Machine Information

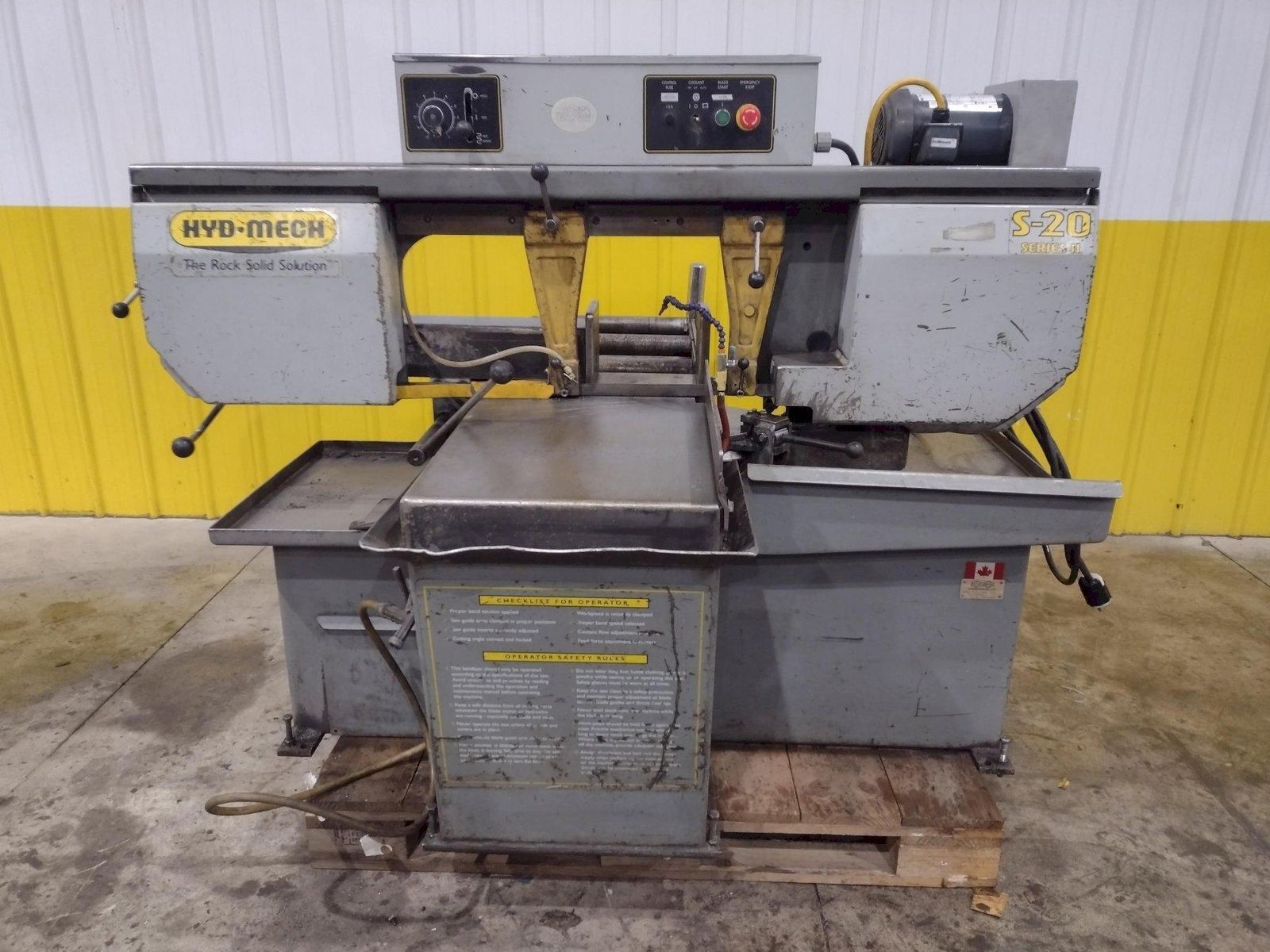

13" X 20" HYD-MECH MODEL #S-20 SERIES II SWIVEL MITER HORIZONTAL BANDSAW: STOCK #22813

Stock #: 22813

Equipped With

MODEL ............................. S-20
CAPACITY .......................... 13" X 18"
ROUND ............................. 13"
MITERING .......................... 0 TO 45 DEGREES
CAPACITY AT 45 DEGREES ............ 13" X 10-3/4"
ROUND AT 45 DEGREES ............... 12"
CAPACITY AT 30 DEGREES ............ 13" X 7-3/4"
ROUND AT 30 DEGREES ............... 8-1/2"
BLADE SIZE ........................ 1" X 14'10"
BLADE SPEED ....................... 45 TO 330 SFM
COOLANT TANK CAPACITY ............. 6 US GALLONS
WORK LOAD ......................... 5,000 LBS
TABLE HEIGHT ...................... 31"
BLADE DRIVE ....................... 3 HORSEPOWER
