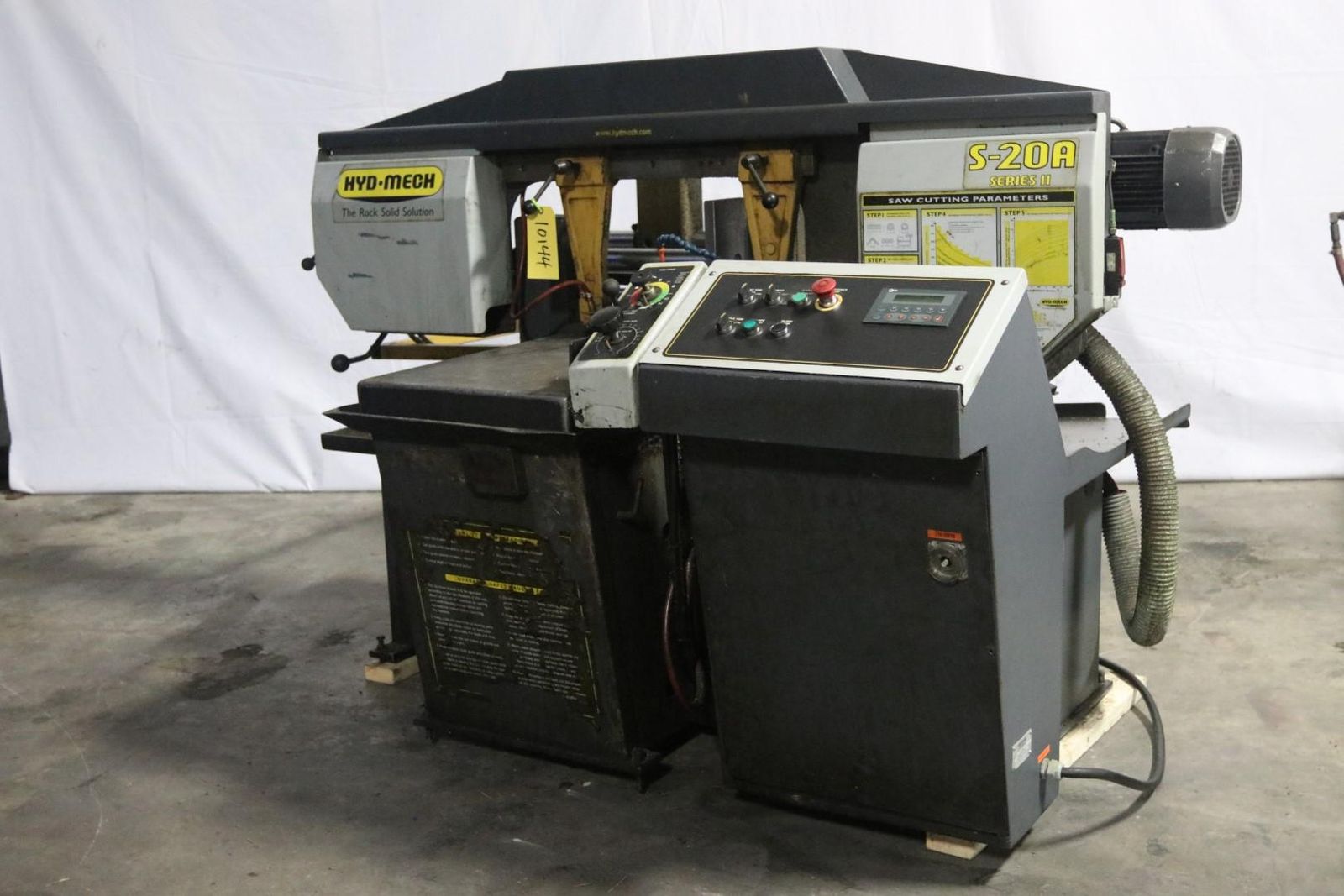

13" X 18" HYDMECH MODEL #S20-A SERIES II AUTOMATIC HORIZONTAL BANDSAW: STOCK #10144

Stock #: 10144

Equipped With

SERIAL #:.................... 81005728FD
NEW ......................... 2006

MODEL:....................... S-20A
CAPACITY:.................... 13" X 18"
CAPACITY ROUNDS @ 45:........ 13"
CAPACITY SQUARES @ 45:....... 10-1/2" X 10-1/2"
MITERING:.................... 0 TO 60 DEGREES
BLADE SIZE:.................. 13'6" X 1" X .035"
BLADE SPEED:................. 75 TO 400 FPM
SHUTTLE VISE LENGTH:......... 0 - 16" MULTI INDEXING
PIECE COUNTER:............... YES
POWER HEAD LIFT:............. YES
COOLANT:..................... YES
BLADE MOTOR:................. 3 HORSEPOWER
HYDRAULIC MOTOR:............. 2 HORSEPOWER

Buy Machines

13" X 18" HYDMECH MODEL #S20-A SERIES II AUTOMATIC HORIZONTAL BANDSAW: STOCK #10144

Stock # 10144

Share Machine
Print Details

Machine Specifications

SERIAL #:.................... 81005728FD
NEW ......................... 2006

MODEL:....................... S-20A
CAPACITY:.................... 13" X 18"
CAPACITY ROUNDS @ 45:........ 13"
CAPACITY SQUARES @ 45:....... 10-1/2" X 10-1/2"
MITERING:.................... 0 TO 60 DEGREES
BLADE SIZE:.................. 13'6" X 1" X .035"
BLADE SPEED:................. 75 TO 400 FPM
SHUTTLE VISE LENGTH:......... 0 - 16" MULTI INDEXING
PIECE COUNTER:............... YES
POWER HEAD LIFT:............. YES
COOLANT:..................... YES
BLADE MOTOR:................. 3 HORSEPOWER
HYDRAULIC MOTOR:............. 2 HORSEPOWER
