Machine Information

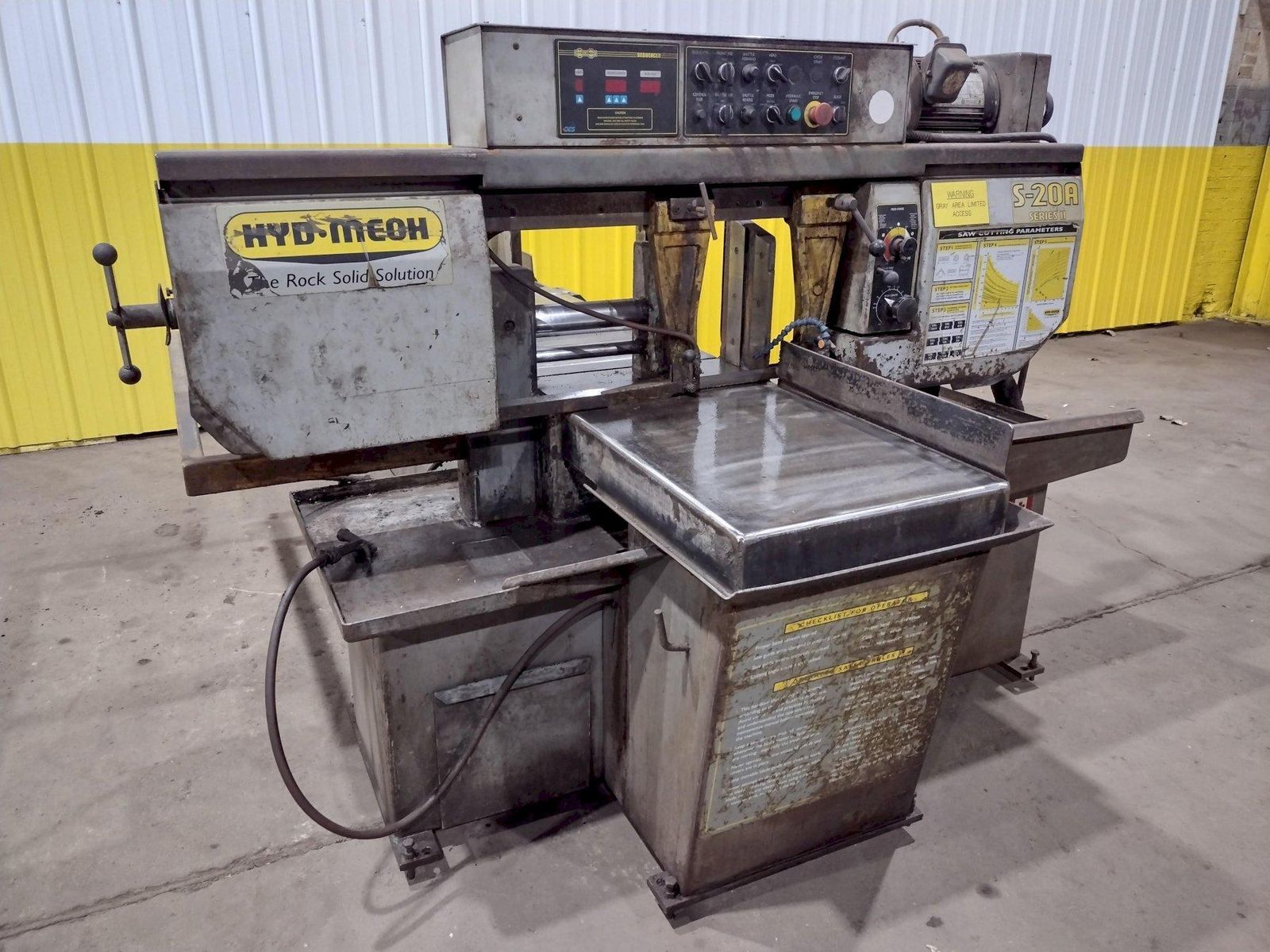

13" x 18" HYD-MECH MODEL #S20A SWIVEL AUTOMATIC HORIZONTAL BANDSAW: STOCK #19916

Stock #: 19916

Equipped With

SERIAL ...................... 80801159
MODEL ....................... S-20A
CAPACITY .................... 13" X 18"
CAPACITY ROUNDS @ 45 ........ 13"
CAPACITY SQUARES @ 45 ....... 10-1/2" X 10-1/2"
MITERING .................... 0 TO 60 DEGREES
BLADE SIZE .................. 13'6" X 1" X .035"
BLADE SPEED ................. 75 TO 400 FPM
SHUTTLE VISE LENGTH ......... 0 - 16" MULTI INDEXING
CONTROL ..................... SEQUENCER
PIECE COUNTER ............... YES
POWER HEAD LIFT ............. YES
COOLANT ..................... YES
BLADE MOTOR ................. 3 HORSEPOWER
HYDRAULIC MOTOR ............. 2 HORSEPOWER
