Overview

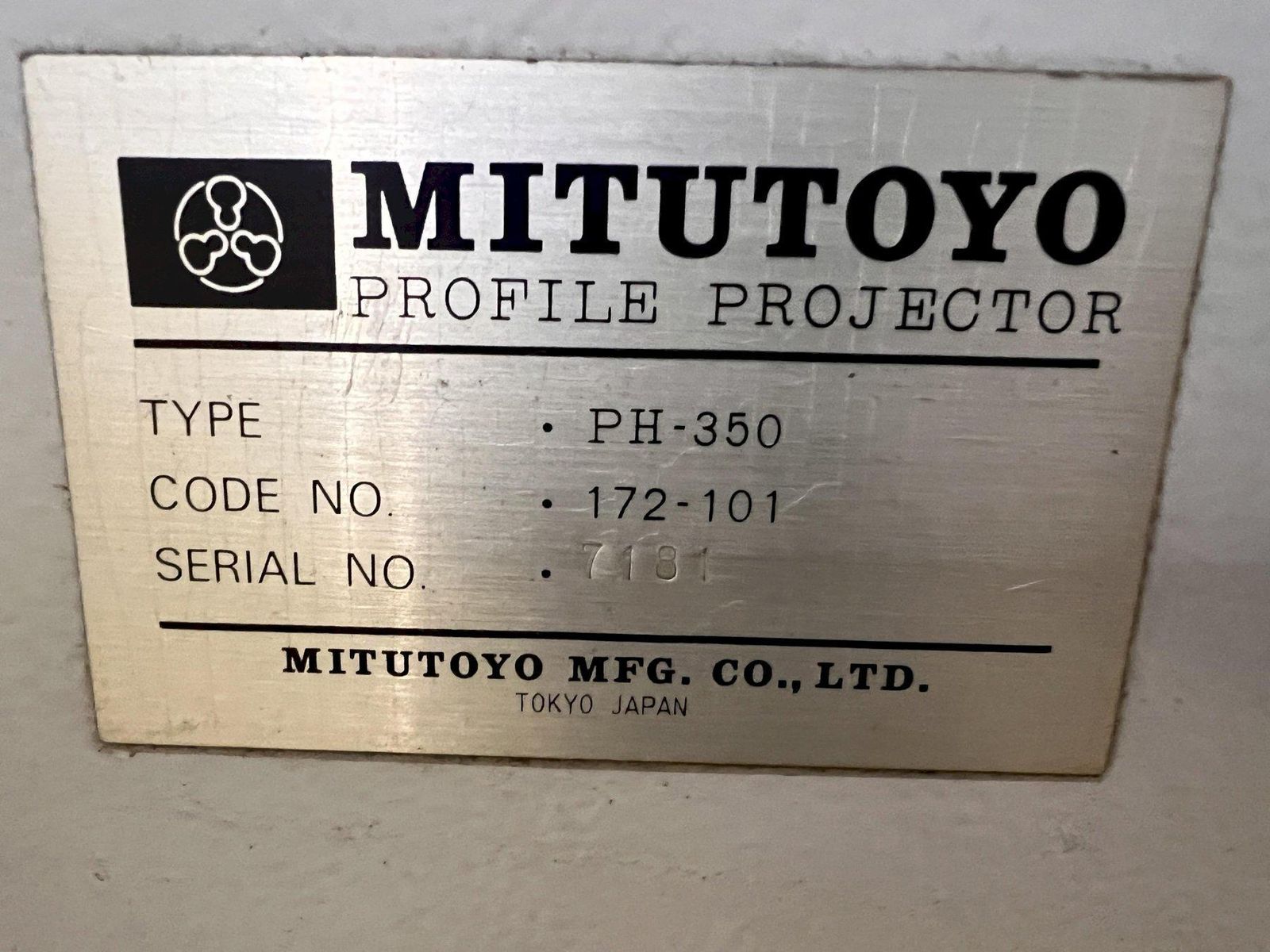

SERIAL .......... 7181
MODEL ........... PH-350
CODE ............ 172-101

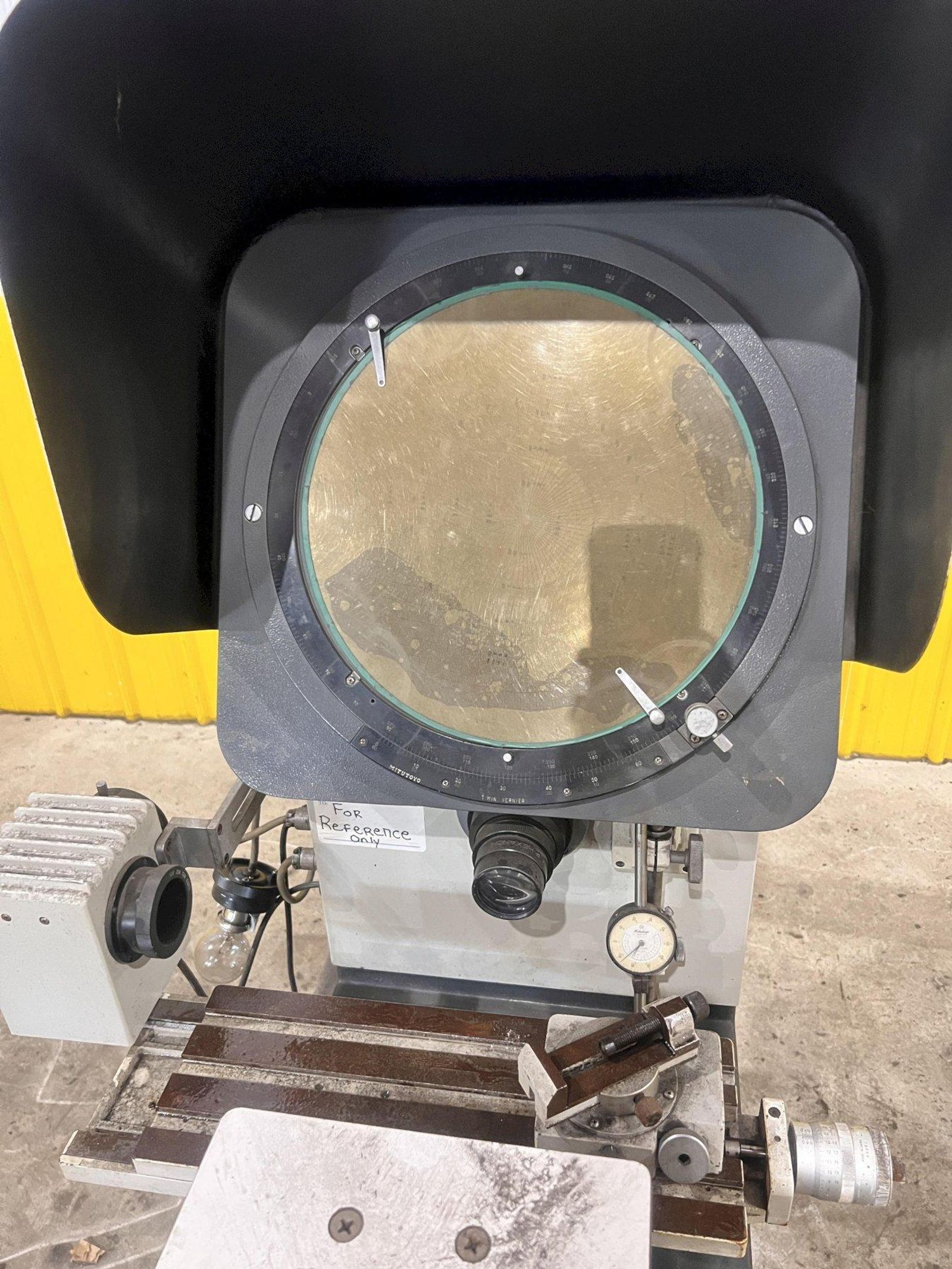

Screen Size 14″

Table Surface (3 T-Slots) 6″ x 16″

Travel – X Axis 6″

Travel – Y Axis 4″

Travel – Z Axis 4″

Table Swivel +/- 10 Degrees

Projection Type Horizontal

Table Load Capacity 99 Lbs.

Surface Illumination 150W Halogen Lamp

Electrics 120V/60Hz/3 Amps

Comparator Dimensions 30″L X 48″W X 46″H

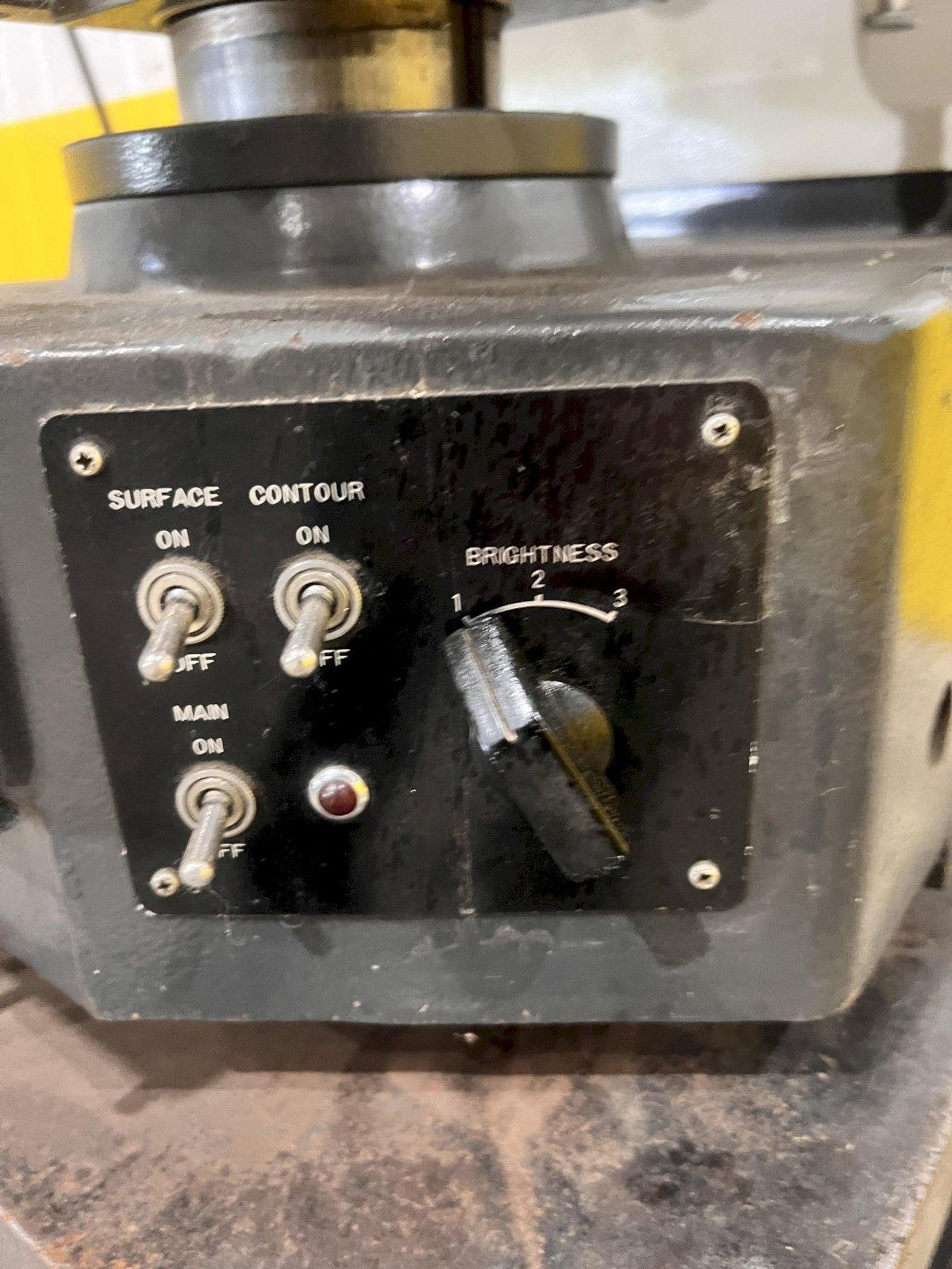

Surface Illumination

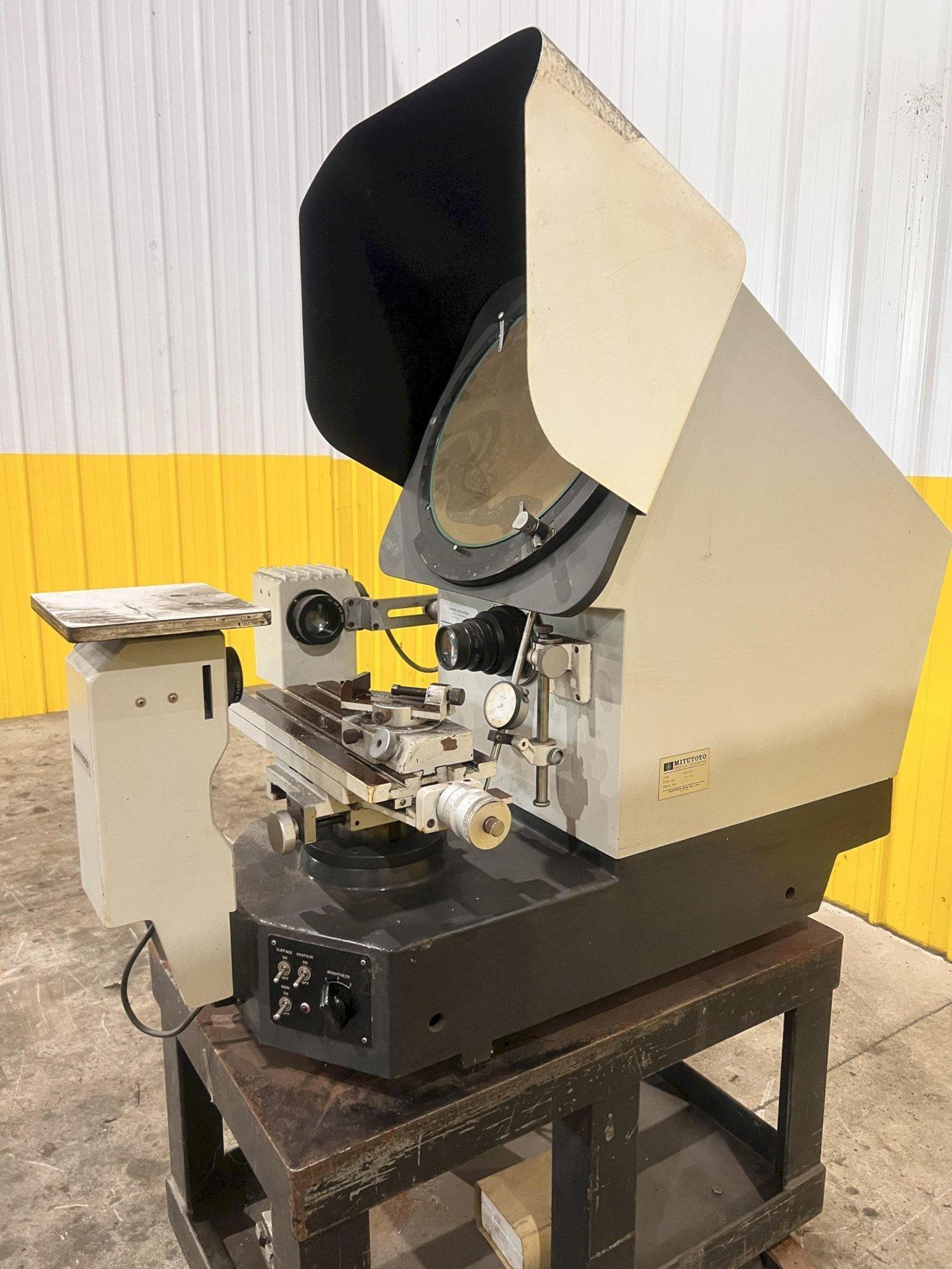

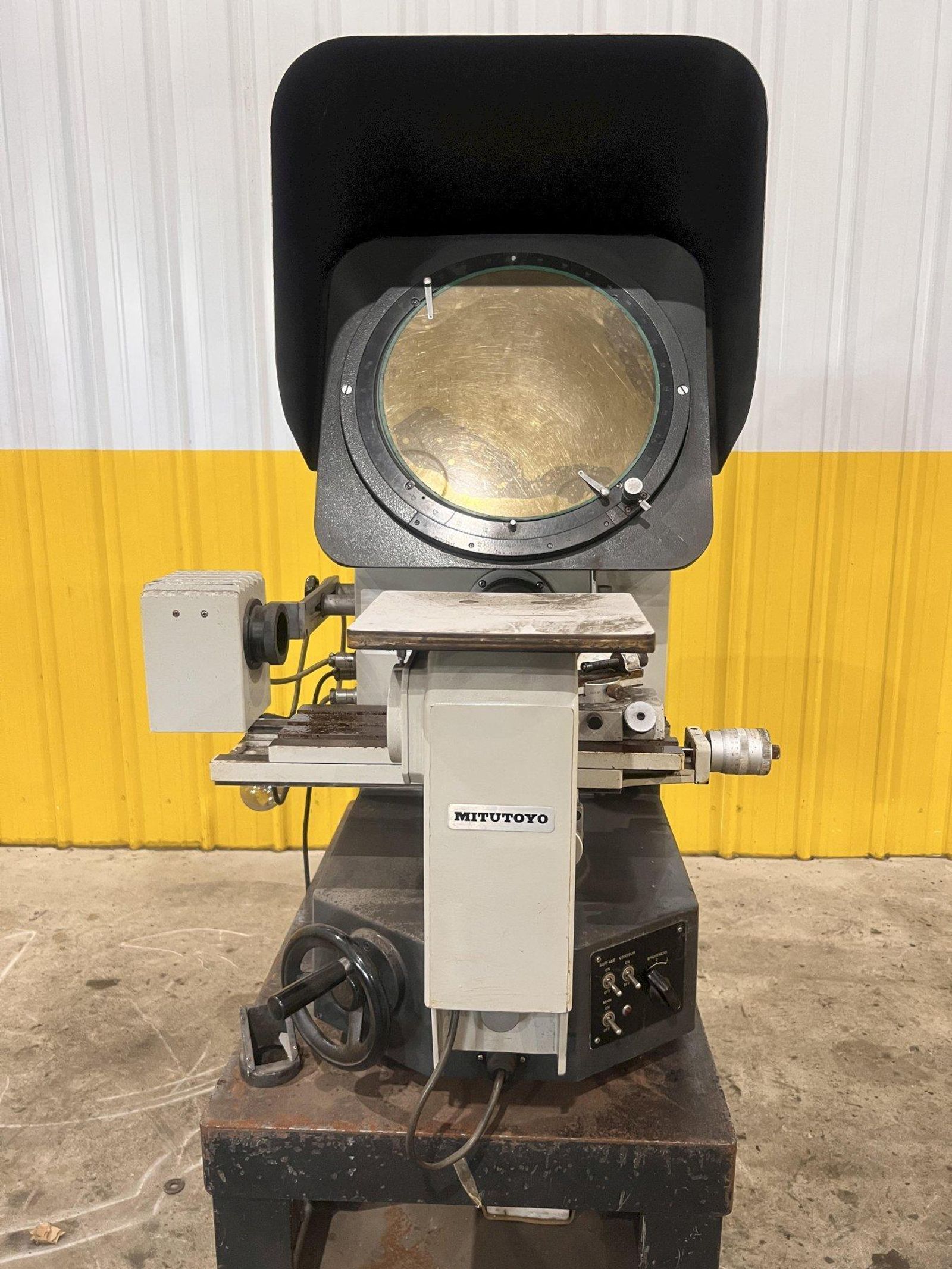

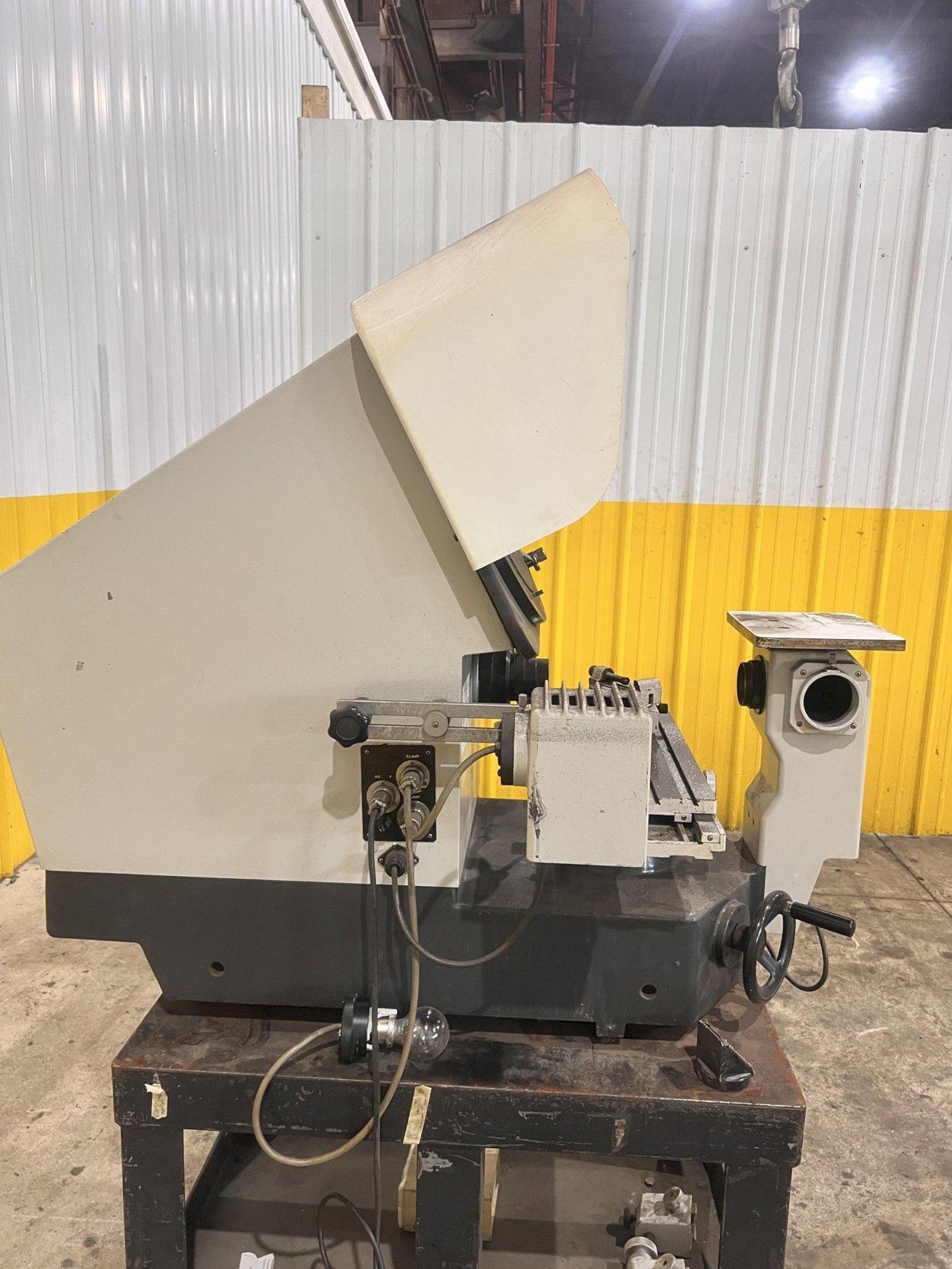

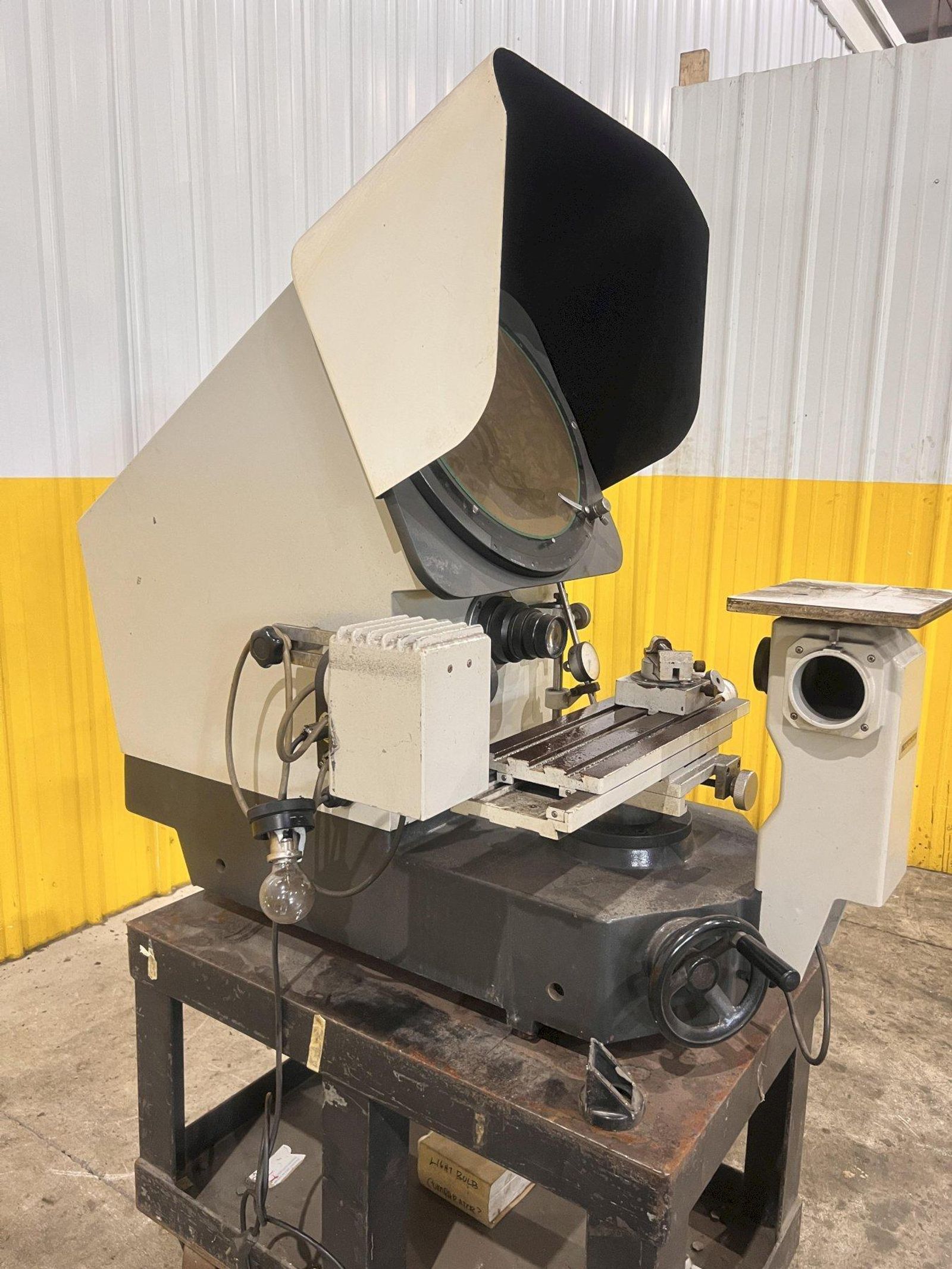

13" MITUTOYO MODEL #PH-350 INSPECTION OPTICAL COMPARATOR: STOCK #22772

Brand
MITUTOYO

Type
Comparators, Optical

Stock No.
22772

Buy Now

Price: $2495.00

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
870 Curtis Street
Toledo, OH 43609

Machine Information

13" MITUTOYO MODEL #PH-350 INSPECTION OPTICAL COMPARATOR: STOCK #22772

Stock #: 22772

Equipped With

SERIAL .......... 7181
MODEL ........... PH-350
CODE ............ 172-101

Screen Size 14″
Table Surface (3 T-Slots) 6″ x 16″
Travel – X Axis 6″
Travel – Y Axis 4″
Travel – Z Axis 4″
Table Swivel +/- 10 Degrees
Projection Type Horizontal
Table Load Capacity 99 Lbs.
Surface Illumination 150W Halogen Lamp
Electrics 120V/60Hz/3 Amps
Comparator Dimensions 30″L X 48″W X 46″H
Surface Illumination

Overview

13" MITUTOYO MODEL #PH-350 INSPECTION OPTICAL COMPARATOR: STOCK #22772
