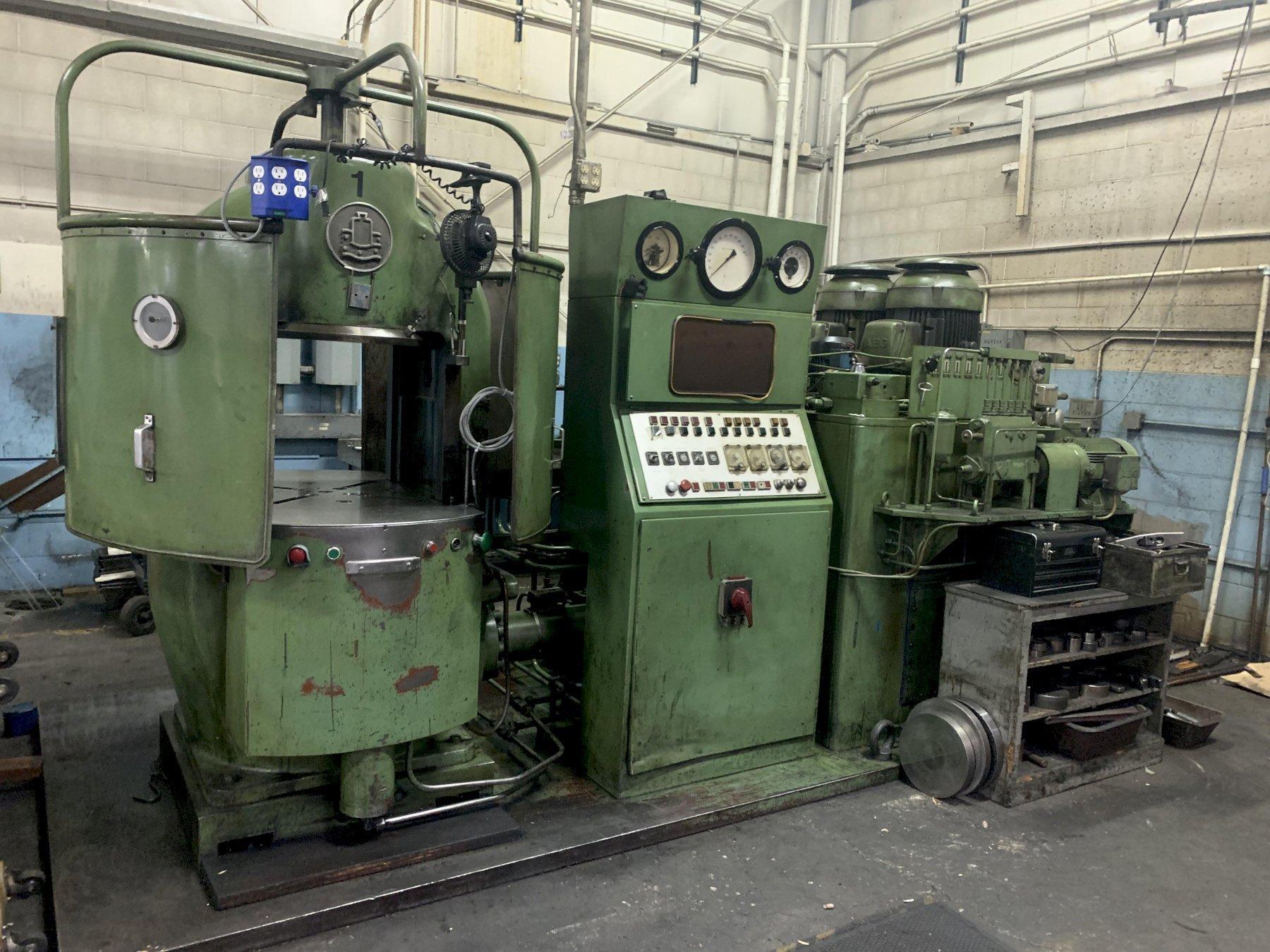

1250 TON SACK & KIESSELBACK HYDRAULIC HOBBING PRESS: STOCK #11484

Stock #: 11484

Equipped With

1250 TON SACK & KIESSELBACH HYDRAULIC HOBBING PRESS

SERIAL ............................ 1021-533823
MODEL ............................. SK1250
YEAR NEW .......................... 1975
CAPACITY .......................... 1250 TONS UP-ACTING RAM PLATEN .............. 27" DIAMETER
TOP BOLSTER PLATEN ................ 27" DIAMETER
BOTTOM RAM & TOP BOLSTER .......... T-SLOTTED STROKE ............................ 8"
OPEN HEIGHT (DAYLIGHT) ............ 19-1/2"
DISTANCE BED TO FLOOR (PASSLINE) .. 42"
HOBBING MODE ...................... YES
INFINITE SPEED CONTROL ............ YES
ADJUSTABLE STROKE CONTROL ......... YES
RAPID ADVANCE ..................... YES
ADJUSTABLE RAPID ADVANCED ......... YES
FOUR SIDED GUIDED PLATEN .......... YES

PRESS & HOLD MODE ................. YES
FLOOR STANDING .................... YES

HYDRAULIC UNIT:
MAIN MOTOR ........................ 50 HP
SECONDARY MOTOR ................... 50 HP

RAPID ADVANCE MOTOR ............... 15 HP
PUSH BUTTON CONTROL STATION:
DUAL PALM BUTTON .................. YES
DUAL PALM BUTTON ON RAM ........... YES
OPERATION MODES ................... CONTROLS, PRESS, SAFETY, TEST
OPERATING MODES ................... SET-UP (JOG), SINGLE STROKE, AUTO, HOBBING
MANUAL RAM RETURN ................. YES
HYDRAULIC EJECTOR ................. YES, VARIABLE SPEED & STROKE

EMERGENCY STOP .................... YES
CYCLE TIMER ....................... YES
PRESSURE TONNAGE GAUGE ............ YES

OVERALL DIMENSIONS ARE 164" L X 84" W X 100" HIGH

PRESS, CONTROLS, & HYDRAULIC SYSTEM ARE ON COMMON STEEL PLATE
THAT IS 164" X 79" X 2-1/2" THICK.
