SERIAL ................................ 3P12098Y

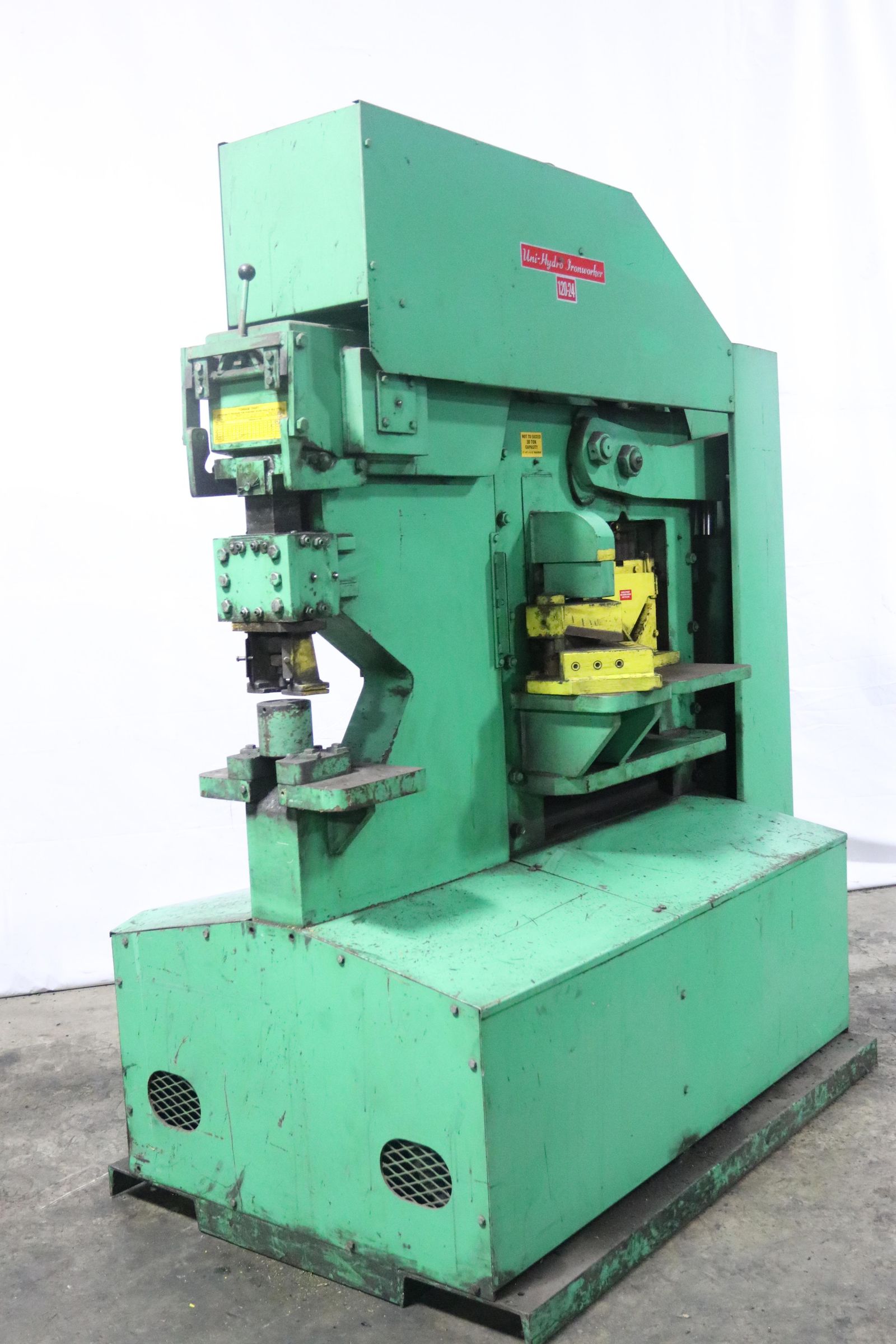

MODEL ................................. 120-24
Punch Tonnage ......................... 120 Ton
Punch Capacity ........................ 1-1/2" In 1"
Angle Capacity ........................ 6" x 6" x 1/2"
Flat Bar Shearing Capacity ............ 24" x 1/4"; 12" x 1"
Maximum Bar Capacity................... 12" x 1"
Coper Notcher ......................... 4" x 4" x 5/16"
Throat Depth .......................... 12"
Strokes Per Minute (Punch/Shear) ...... 40/8
Hydraulics ............................ 3000 PSI, 2 stage pump, 20 gallons
MOTOR ................................. 7.5 HP
| Specifications | ||
|---|---|---|
| Angle (L1) | 6 inches | |
| Angle (L2) | 6 inches | |
| Angle (T) | .5 inches | |
| Tonnage | 120 pounds | |
| Throat | 24 inches | |
| Power | 7.5 horsepower | |
| Weight | 7250 pounds | |
| Dimensions | 32 x 78 x 89 HIGH | |
Brand
UNI-HYDRO
Type
Ironworkers
Stock No.
10544
 |
419-269-2000 |
Stock #: 10544
SERIAL ................................ 3P12098Y
MODEL ................................. 120-24
Punch Tonnage ......................... 120 Ton
Punch Capacity ........................ 1-1/2" In 1"
Angle Capacity ........................ 6" x 6" x 1/2"
Flat Bar Shearing Capacity ............ 24" x 1/4"; 12" x 1"
Maximum Bar Capacity................... 12" x 1"
Coper Notcher ......................... 4" x 4" x 5/16"
Throat Depth .......................... 12"
Strokes Per Minute (Punch/Shear) ...... 40/8
Hydraulics ............................ 3000 PSI, 2 stage pump, 20 gallons
MOTOR ................................. 7.5 HP
