Machine Information

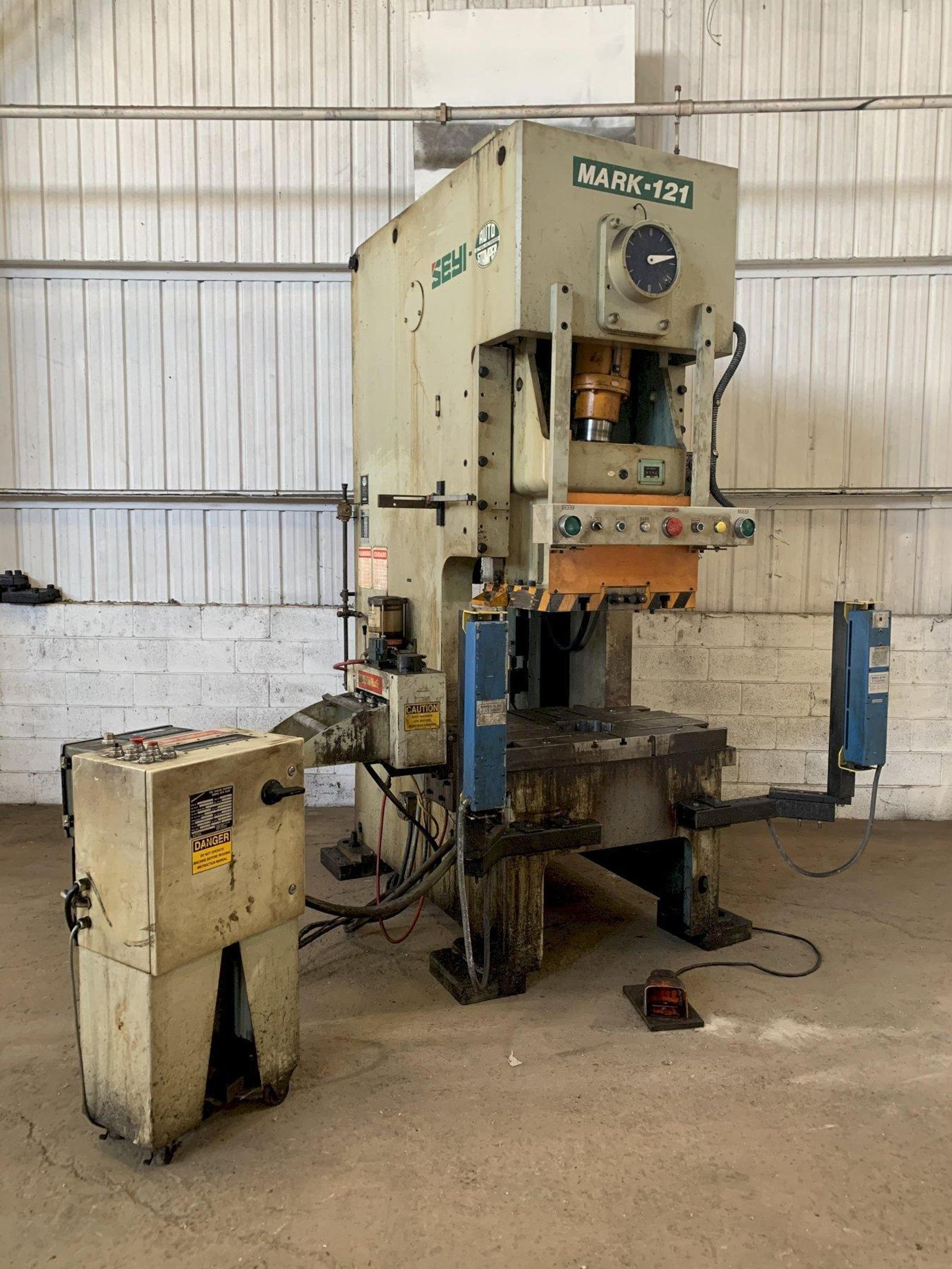

120 TON SEYI SUTHERLAND MODEL MARK-121 AUTO-STAMPER GAP FRAME PRESS: STOCK #12323

Stock #: 12323

Equipped With

SERIAL.......................... SP629-02.95
MODEL .......................... MARK-121
YEAR NEW ....................... 1995
CAPACITY ....................... 121 US TONS
STROKE OF SLIDE ................ 7.1"
SLIDE ADJUSTMENT ............... 3.5"
SLIDE ADJUSTMENT READOUT ....... YES
SHUT HEIGHT, SDAU .............. 13.8"
SPEED .......................... 35-65 SPM

AREA OF BED .................... 45.3" X 26.8"
AREA OF SLIDE .................. 25.6" X 20.5"
T-SLOTTED BOLSTER & RAM ........ YES
OPERATOR CONTROL PANEL ......... YES
CENTRAL LUBE SYSTEM ............ YES, TRABON
DUAL PALM BUTTONS .............. YES
INCH/SINGLE/CONTINUOUS CONTROL . YES
LIGHT CURTAINS ................. YES, TRIAD
E-STOP ......................... YES
MOTOR .......................... 15 HP
