Machine Information

120 TON NIAGARA MODEL HPS-110 HYDRAULC C-FRAME PRESS: STOCK #14868

Stock #: 14868

Equipped With

Serial ........................... #P52950
Model ............................ HPS-110
Capacity ......................... 121 Rated Tons
Stroke (Programmable & Variable) . 1" to 10"
Strokes Per Minute ............... 10 Max
Advanced / Rapid Speed ........... 710 ipm
Pressing Speed ................... 74 ipm
Return Speed ..................... 719 ipm
Bed Area ......................... 42" X 27"
Slide Area ....................... 35" X 24"
Speed ............................ 1-10-SPM
Open Height ...................... 24.25in
Shut Height ...................... 14.25in
Throat depth ..................... 14.5"
Floor to top of bed .............. 36"
Cushion in Bed ................... Lea #C-20-5
Cushion Capacity ................. 1.5 Tons
Cushion Stroke ................... 5"
6 Point Gibbing on Ram ........... Yes
Safety Curtain Lights ............ Yes

Operator Pedestal Control ........ Yes
PanelView 600 Controller ......... Yes

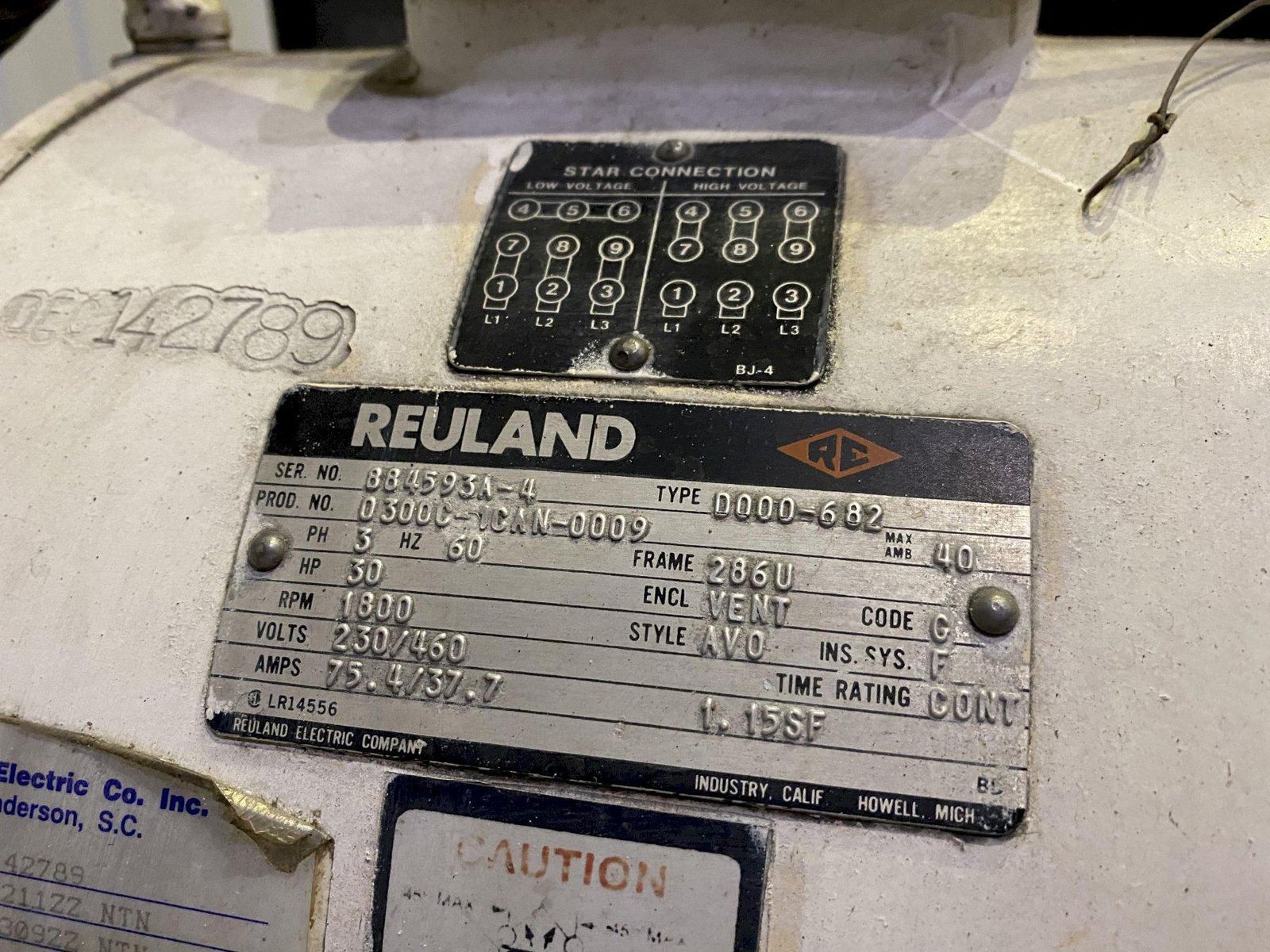

Motor ............................ 30 HP

Buy Machines

120 TON NIAGARA MODEL HPS-110 HYDRAULC C-FRAME PRESS: STOCK #14868

Stock # 14868

Share Machine
Print Details

Machine Specifications

Serial ........................... #P52950
Model ............................ HPS-110
Capacity ......................... 121 Rated Tons
Stroke (Programmable & Variable) . 1" to 10"
Strokes Per Minute ............... 10 Max
Advanced / Rapid Speed ........... 710 ipm
Pressing Speed ................... 74 ipm
Return Speed ..................... 719 ipm
Bed Area ......................... 42" X 27"
Slide Area ....................... 35" X 24"
Speed ............................ 1-10-SPM
Open Height ...................... 24.25in
Shut Height ...................... 14.25in
Throat depth ..................... 14.5"
Floor to top of bed .............. 36"
Cushion in Bed ................... Lea #C-20-5
Cushion Capacity ................. 1.5 Tons
Cushion Stroke ................... 5"
6 Point Gibbing on Ram ........... Yes
Safety Curtain Lights ............ Yes

Operator Pedestal Control ........ Yes
PanelView 600 Controller ......... Yes
Motor ............................ 30 HP

Specifications
Dimensions 96" x 72" x 144" high
Weight 22500 pounds
