Machine Information

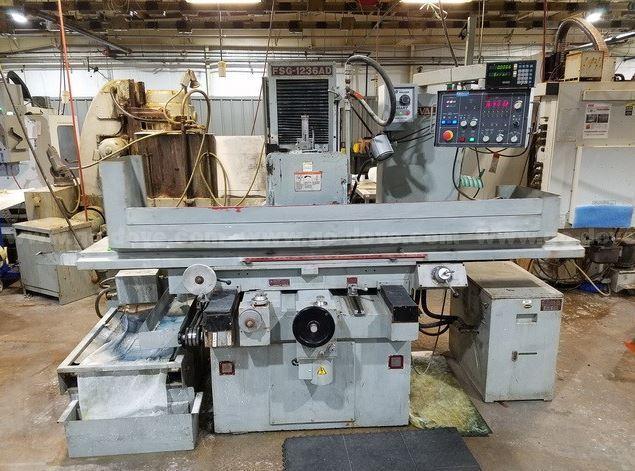

12" X 36" CHEVALIER MODEL FSG-1236AD HORIZONTAL SURFACE GRINDER: STOCK #14050

Stock #: 14050

Equipped With

SERIAL ....................... F3926001
MODEL ........................ FSG-1236AD
CHUCK SIZE ................... 12" X 36"
INCREMENTAL DOWN FEED ........ YES
GRINDING LENGTH .............. 36"
GRINDING WIDTH ............... 12"
HEIGHT UNDER WHEEL ........... 19-3/4"
WHEEL DIMENSIONS ............. 14" OD X 5" ID X 2" WIDE
LONGITUDINAL TRAVEL .......... 37-3/8"
TABLE SPEED .................. 16 TO 82 FPM INFINITELY VARIABLE
CROSS TRAVEL ................. 12"
AUTOMATIC CROSS TRAVERSE ..... 1/8" TO 2" INCREMENT
CROSS RAPID TRAVEL ........... 12 FPM
VERTICAL DOWN FEED ........... 0.00005" TO 0.002" AUTOMATIC
VERTICAL RAPID TRAVEL ........ 8 IPM
GRINDING WHEEL SPEED ......... 1750 RPM
SPINDLE MOTOR ................ 5 HP
COOLANT ...................... YES

Buy Machines

12" X 36" CHEVALIER MODEL FSG-1236AD HORIZONTAL SURFACE GRINDER: STOCK #14050

Stock # 14050

Share Machine
Print Details

Machine Specifications

SERIAL ....................... F3926001
MODEL ........................ FSG-1236AD
CHUCK SIZE ................... 12" X 36"
INCREMENTAL DOWN FEED ........ YES
GRINDING LENGTH .............. 36"
GRINDING WIDTH ............... 12"
HEIGHT UNDER WHEEL ........... 19-3/4"
WHEEL DIMENSIONS ............. 14" OD X 5" ID X 2" WIDE
LONGITUDINAL TRAVEL .......... 37-3/8"
TABLE SPEED .................. 16 TO 82 FPM INFINITELY VARIABLE
CROSS TRAVEL ................. 12"
AUTOMATIC CROSS TRAVERSE ..... 1/8" TO 2" INCREMENT
CROSS RAPID TRAVEL ........... 12 FPM
VERTICAL DOWN FEED ........... 0.00005" TO 0.002" AUTOMATIC
VERTICAL RAPID TRAVEL ........ 8 IPM
GRINDING WHEEL SPEED ......... 1750 RPM
SPINDLE MOTOR ................ 5 HP
COOLANT ...................... YES

Specifications
Dimensions 104" X 59" X 76" HIGH
Weight 6800 pounds
