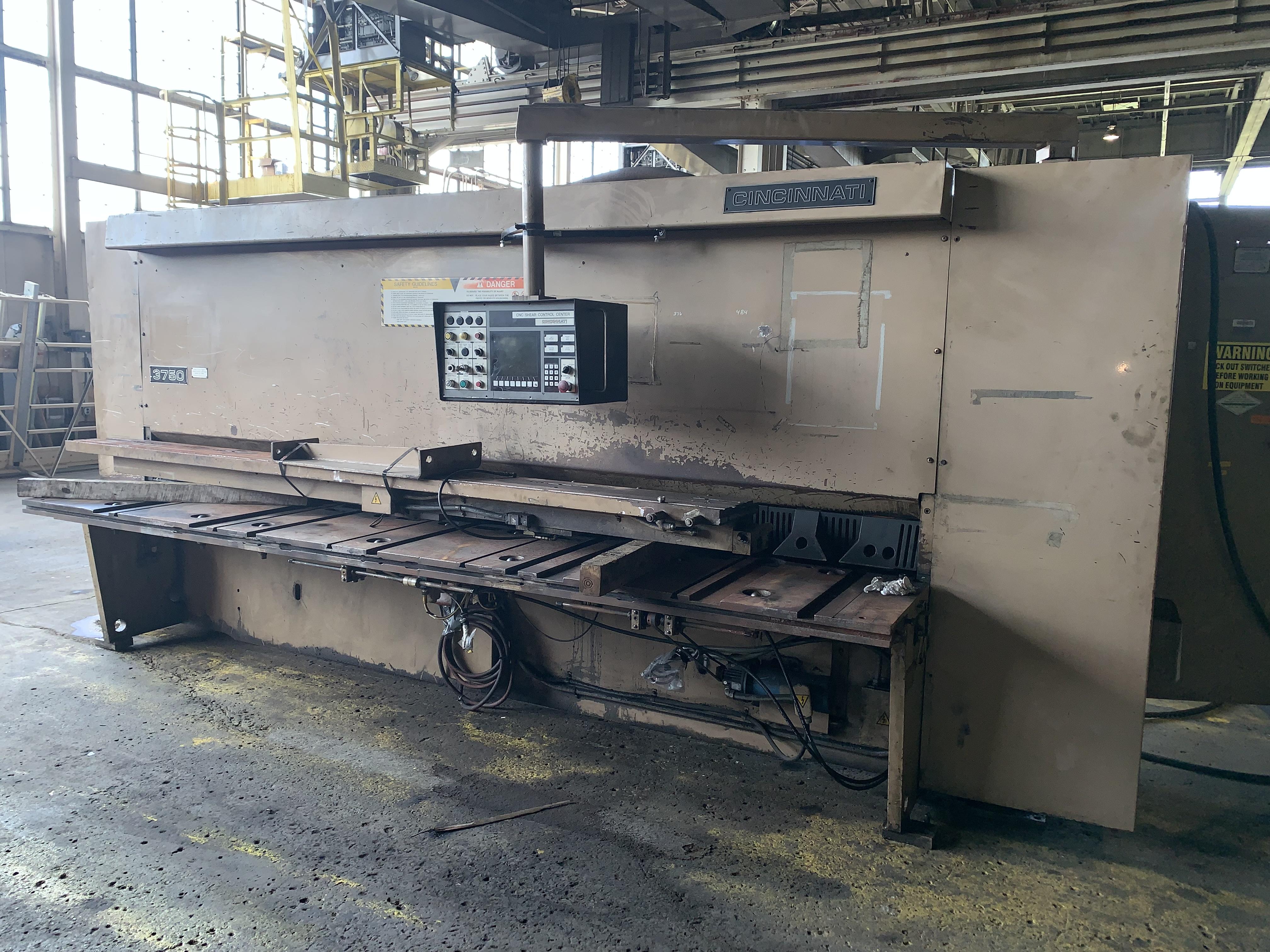

SERIAL ...................... 47988
MODEL ....................... 3750 X 12 HYDRAULIC
CAPACITY .................... 12' X 3/8"
LENGTH OF BLADES ............ 146-3/4"
MAXIMUM RAKE ................ 7/16"
HOLD DOWNS .................. 15 AT 17.2 FORCE TONS
SPEEDS ...................... 16 TO 56 STROKES PER MINUTE
CNC FRONT GAUGING ........... 48" HIGH SPEED (120 IPM)
CNC BACK GAUGING ............ YES
TILT AWAY BACK GAUGE ........ YES
CONVEYOR DISCHARGE .......... YES
SQUARING ARM ................ YES
FRONT ARM SUPPORTS .......... 2
MOTOR ....................... 25 HP
| Specifications | ||
|---|---|---|
| Max Thickness | 375 inches | |
| Length of Blade | 12 inches | |
| Hyd/Mech | hydraulic | |
| Back Gauges | 48 inches | |
| Power | 20 horsepower | |
| CNC Control | yes | |
| Type of CNC Control | CINCINNATI | |
| Weight | 21000 pounds | |
Brand
CINCINNATI INC
Type
Shears, Power Squaring (In)
Stock No.
10033
 |
419-269-2000 |
Stock #: 10033
SERIAL ...................... 47988
MODEL ....................... 3750 X 12 HYDRAULIC
CAPACITY .................... 12' X 3/8"
LENGTH OF BLADES ............ 146-3/4"
MAXIMUM RAKE ................ 7/16"
HOLD DOWNS .................. 15 AT 17.2 FORCE TONS
SPEEDS ...................... 16 TO 56 STROKES PER MINUTE
CNC FRONT GAUGING ........... 48" HIGH SPEED (120 IPM)
CNC BACK GAUGING ............ YES
TILT AWAY BACK GAUGE ........ YES
CONVEYOR DISCHARGE .......... YES
SQUARING ARM ................ YES
FRONT ARM SUPPORTS .......... 2
MOTOR ....................... 25 HP
