Machine Information

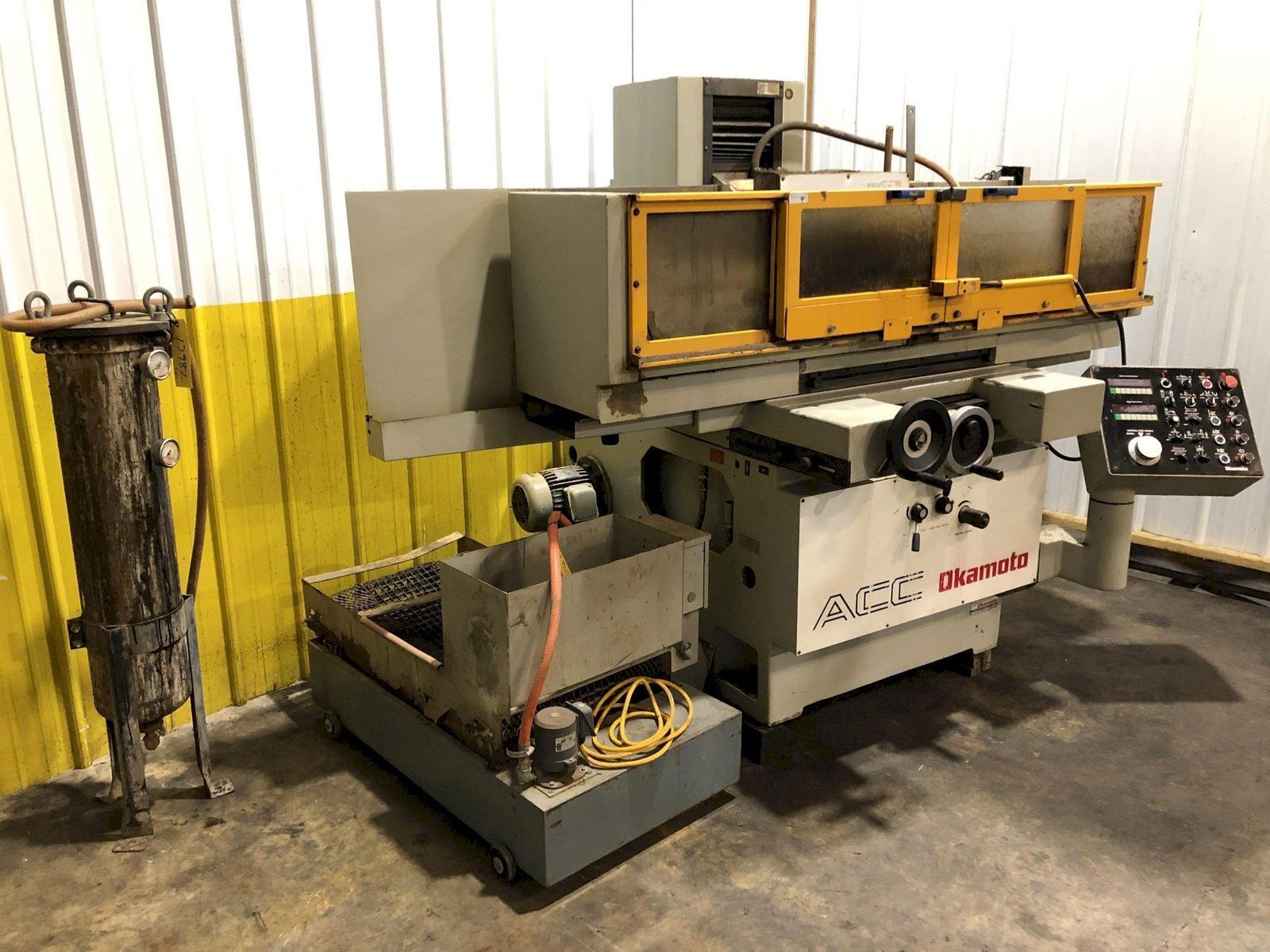

12 X 24” OKAMOTO MODEL #ACC 12-24DX HORIZONTAL AUTOMATIC SURFACE GRINDER: STOCK #17982

Stock #: 17982

Equipped With

SERIAL ................. 64299
NEW .................... 1998
MODEL .................. ACC 12-24DX
Table Size ............. 12″ x 24″
Longitudinal Travel .... 30″
Cross Saddle Travel .... 14″
Max Work Height ........ 13.7″ (Under 12″ Wheel)
Table Speed ............ 1 TO 82 FPM (Variable)
Cross Saddle Feed ...... 0.02 TO 0.8 IPM
Down feed Rate ......... 0.00005″ TO 0.0015″ (Incremental)
Rapid Traverse ......... 16 FPM
Spark Out .............. 0 TO 5
Grinding Wheel Size .... 14″/ 12″ x 1 1/2″ x 5″
Chuck size ............. 12" x 24"
Chuck Control ..........
Variable
Control ................ DX Programmable
Lube System ............ Auto
Coolant Tank and Pump .. YES
Motor .................. 5 Horsepower

Dimensions (L x W x H): 115″ x 80″ x 80″
Weight: 5,300 Lbs.
