Machine Information

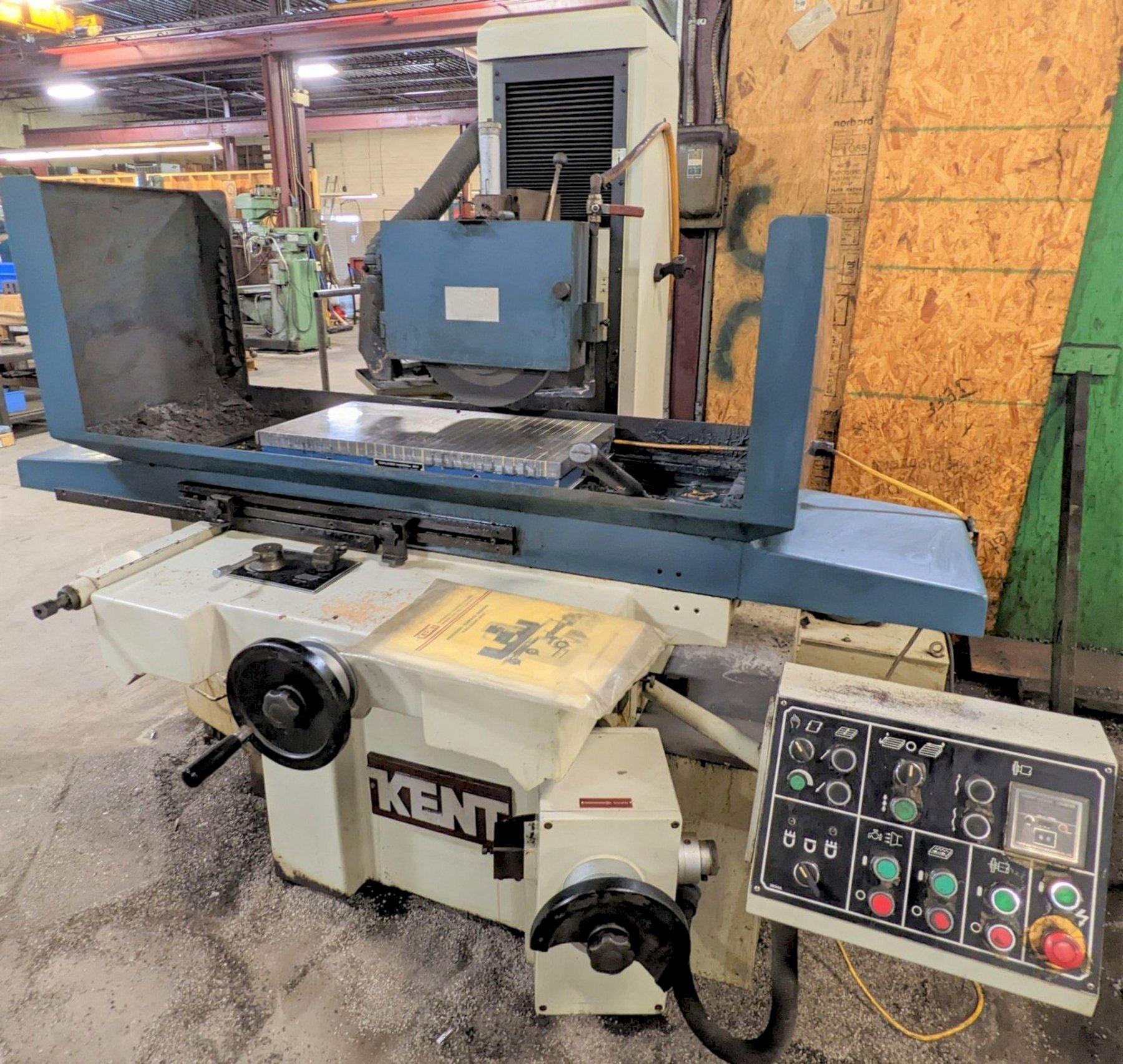

12" X 24" KENT MODEL #KGS-63AMD SURFACE GRINDER: STOCK #16561

Stock #: 16561

Equipped With

SERIAL ....................... 95026315
MODEL ........................ KGS-63AHD
YEAR NEW ..................... 1995
GRINDING CAPACITY ............ 12" X 24"
SPINDLE CENTER TO TABLE ...... 21-1/2"
LONGITUDINAL TABLE TRAVEL .... 28"
CROSS TABLE TRAVEL ........... 13-3/8"
ELECTRO-MAGNETIC CHUCK SIZE .. 24" X 12"
TABLE SPEED (VARIABLE) ....... 16 TO 82 FPM
GRINDING WHEEL SIZE .......... 14" X 1-1/2" X 5"
SPINDLE SPEED ................ 1740 RPM
POWER ELEVATION .............. YES
AUTO INCREMENTAL DOWNFEED .... YES
AUTO CROSS FEED .............. YES
MAGNETIC CHUCK CONTROLS ...... YES
COOLANT ...................... YES

OVERHEAD WHEEL DRESSER ....... YES
AUTO LUBE SYSTEM ............. YES
SPINDLE MOTOR ................ 5 HORSEPOWER
HYDRAULIC MOTOR .............. 1-1/2 HORSEPOWER
