Machine Information

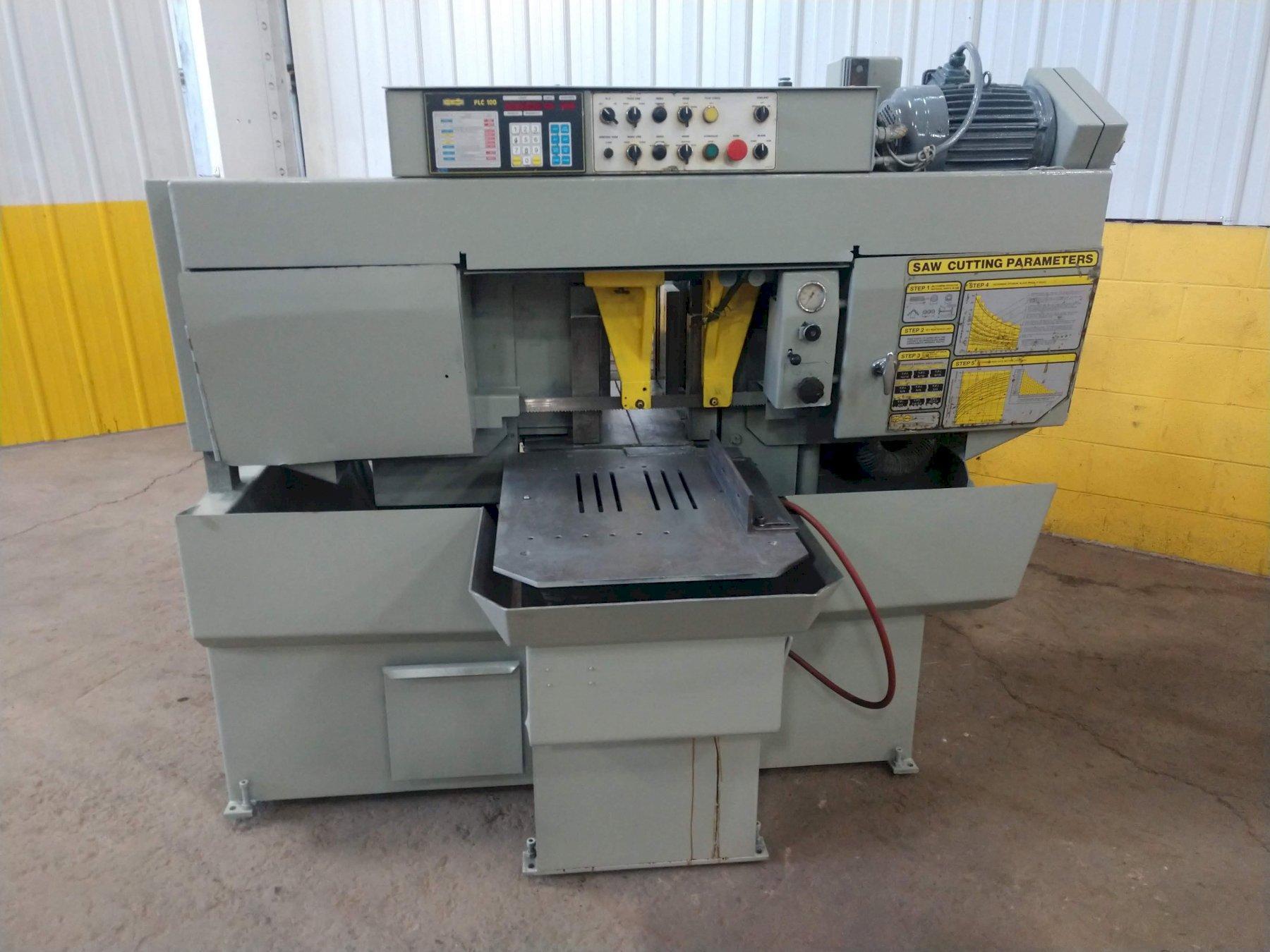

12" X 12" HYDMECH MODEL #H-12A AUTOMATIC DUAL POST HORIZONTAL BANDSAW: STOCK #13863

Stock #:

Equipped With

MODEL ............................... H-12A
CAPACITY ............................ 12" X 12"
BLADE SIZE .......................... 13'6" X 1-1/4"
BLADE SPEEDS ........................ 75 TO 400 SFM
BUNDLING ATTACHMENT ................. YES
POWER DOWN FEED ..................... YES
POWER CLAMPING ...................... HYDRAULIC
BLADE TENSION ....................... HYDRAULIC
CONTROL ............................. PLC 100
SHUTTLE STROKE ...................... 0 TO 40"
TABLE HEIGHT ........................ 29"
MAXUMIM WORK LOAD ................... 6,000 LBS
COOLANT ............................. YES
CHIP AUGER .......................... YES
BLADE BRUSH ......................... YES
CONTROLS ............................ HYD MECH PLC 100
HYDRAULIC MOTOR ..................... 2 HORSEPOWER
DRIVE MOTOR ......................... 5 HORSEPOWER

Buy Machines

12" X 12" HYDMECH MODEL #H-12A AUTOMATIC DUAL POST HORIZONTAL BANDSAW: STOCK #13863

Stock #

Share Machine
Print Details
Download Images

Machine Specifications

MODEL ............................... H-12A
CAPACITY ............................ 12" X 12"
BLADE SIZE .......................... 13'6" X 1-1/4"
BLADE SPEEDS ........................ 75 TO 400 SFM
BUNDLING ATTACHMENT ................. YES
POWER DOWN FEED ..................... YES
POWER CLAMPING ...................... HYDRAULIC
BLADE TENSION ....................... HYDRAULIC
CONTROL ............................. PLC 100
SHUTTLE STROKE ...................... 0 TO 40"
TABLE HEIGHT ........................ 29"
MAXUMIM WORK LOAD ................... 6,000 LBS
COOLANT ............................. YES
CHIP AUGER .......................... YES
BLADE BRUSH ......................... YES
CONTROLS ............................ HYD MECH PLC 100
HYDRAULIC MOTOR ..................... 2 HORSEPOWER
DRIVE MOTOR ......................... 5 HORSEPOWER
