Machine Information

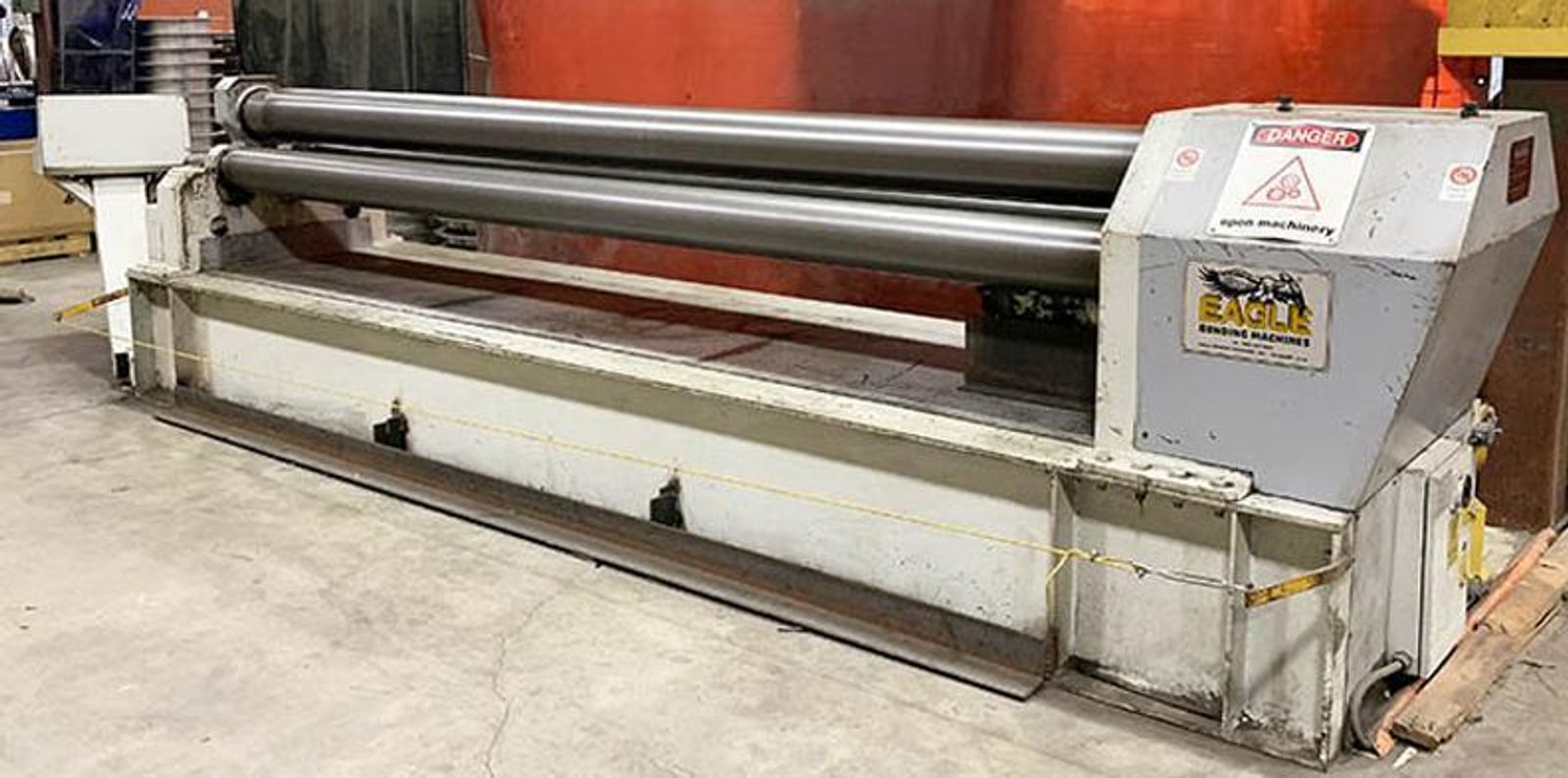

12' X 11 GAUGE EAGLE MODEL #SIHR 6/7 HYRAULIC 3 ROLL PLATE BENDING ROLL, NEW 1997: STOCK 14420

Stock #: 14420

Equipped With

Eagle (Imcar) SIHR 6/7 12' x 11 GA Hydraulic 3 Roll Double Pinch Roll
Serial No. B2417
Year 1997 Roll
Length 12'
Full Length Bending Capacity 11GA
Top Roll Diameter 7.8"
Lateral Roll Diameter 7.1"
Minimum Rolling Diameter 10.9"
Drive Motor 7.5 HP 3/60/480Volt

All Rolls Drive
Hydraulic Drop End
Roll Adjustment from Pedestal Control
Extended Shafts
Cone Rolling attachment
Safety Interlocked Cable

Buy Machines

12' X 11 GAUGE EAGLE MODEL #SIHR 6/7 HYRAULIC 3 ROLL PLATE BENDING ROLL, NEW 1997: STOCK 14420

Stock # 14420

Share Machine
Print Details

Machine Specifications

Eagle (Imcar) SIHR 6/7 12' x 11 GA Hydraulic 3 Roll Double Pinch Roll
Serial No. B2417
Year 1997 Roll
Length 12'
Full Length Bending Capacity 11GA
Top Roll Diameter 7.8"
Lateral Roll Diameter 7.1"
Minimum Rolling Diameter 10.9"
Drive Motor 7.5 HP 3/60/480Volt

All Rolls Drive
Hydraulic Drop End
Roll Adjustment from Pedestal Control
Extended Shafts
Cone Rolling attachment
Safety Interlocked Cable

Specifications
# Rolls 3
Hyd/Mech hydraulic
Power Rear Roll (Yes/No) no
Power 7.5 horsepower
Weight 11880 pounds
Length of Rolls 144 inches
