Machine Information

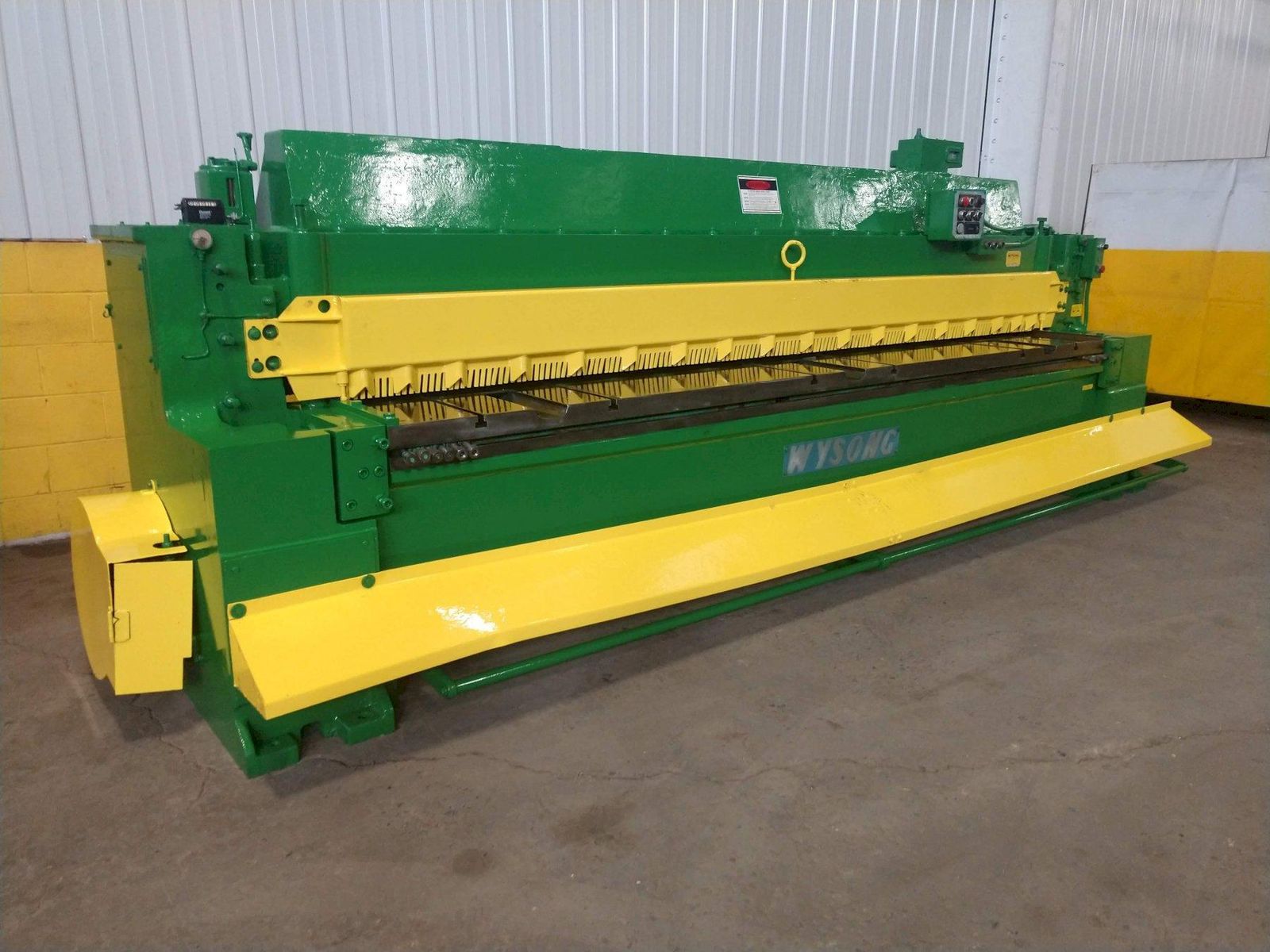

12' X 1/4" WYSONG MODEL #1225 MECHANICAL POWER SQUARING SHEAR: STOCK 17167

Stock #: 17167

Equipped With

SERIAL ........................ P28-278
MODEL ......................... 1225
CAPACITY ...................... 12' X 1/4" (MILD STEEL)
CUT LENGTH .................... 144" MAXIMUM
NUMBER OF HOLD DOWNS .......... 17
BACKGAUGE RANGE ............... 48"
BACKGAUGE ..................... FRONT OPERATED POWER WITH READOUT
STROKES PER MINUTE ............ 60
SQUARING ARM .................. RIGHT SIDE
FRONT SUPPORT ................. 3
ELECTRIC FOOT TRIP ............ YES
AUTO LUBE SYSTEM .............. YES
MOTOR ......................... 15 HP

STACKER:
MODEL ............................... MD12
LENGTH OF CONVEYOR .................. 144"
WIDTH OF CONVEYOR ................... 72"
METAL BELT CONVEYOR ................. 12 BELTS
WIDTH OF FIRST TWO BELTS ............ 7-1/2", 13" CENTERS
WIDTH OF THIRD THROUGH TENTH BELT ... 3-1/4", 12" CENTERS
WIDTH OF ELEVENTH AND TWELFTH BELT .. 7-1/2" 13" CENTERS
CONVEYOR MOTOR, HORSEPOWER .......... 1
MECHANICAL SHEET STACKER ............ YES
PNEUMATIC TAMPER .................... YES
