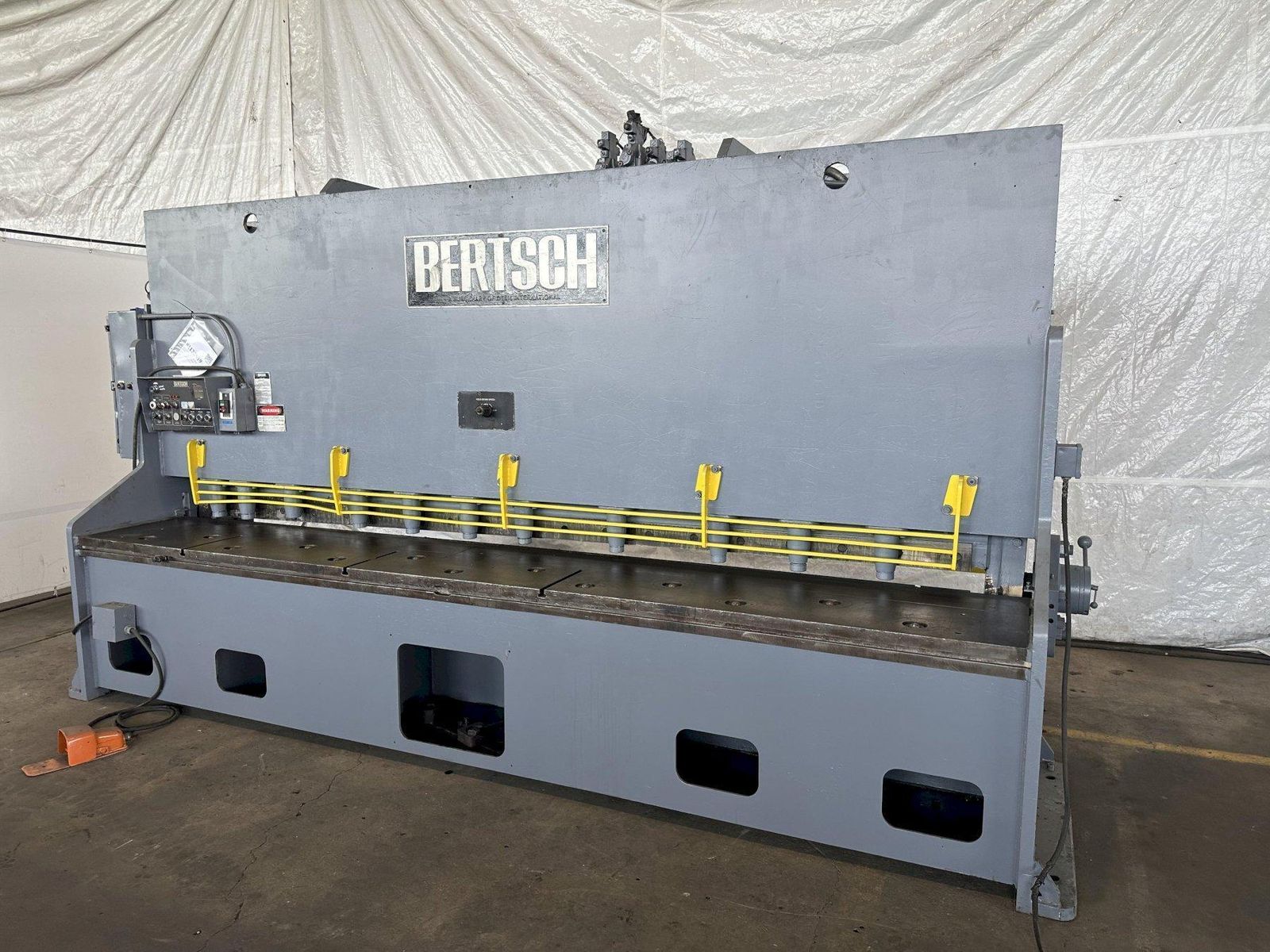

12' X 1/2" BERTSCH HYDRAULIC POWER SQUARING SHEAR: STOCK 11887

Overview

SERIAL ............................ 500144657
Model ............................. Series 500
Nominal Capacity, Mild Steel ...... 12' x 1/2"
Ram Speed Down, Approximately ..... 2.08 IPS
Ram Speed Up, Approximately ....... 2.78 IPS
Strokes Per Minute, Full Cut ...... 11 SPM
Strokes Per Minute, Half Cut ...... 19 SPM
Blade Size ........................ 1" x 4"
Squaring Arm ...................... 96"
Hydraulic Holddowns ............... 12
Hold Down Tonnage, Maximum ........ 48 TON
One Shot Central Lub System ....... YES
Motor, Horsepower ................. 30 HP
Electrical System ................. 230-460/3/60

Specifications
Max Thickness .5 inches
Length of Blade 144 inches
Hyd/Mech hydraulic
Back Gauges 48 inches
Power 30 horsepower

12' X 1/2" BERTSCH HYDRAULIC POWER SQUARING SHEAR: STOCK 11887

Brand
BERTSCH

Type
Shears, Power Squaring (In)

Stock No.
11887

Print Details

Related Listings

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

12' X 1/2" BERTSCH HYDRAULIC POWER SQUARING SHEAR: STOCK 11887

Stock #: 11887

Equipped With

SERIAL ............................ 500144657
Model ............................. Series 500
Nominal Capacity, Mild Steel ...... 12' x 1/2"
Ram Speed Down, Approximately ..... 2.08 IPS
Ram Speed Up, Approximately ....... 2.78 IPS
Strokes Per Minute, Full Cut ...... 11 SPM
Strokes Per Minute, Half Cut ...... 19 SPM
Blade Size ........................ 1" x 4"
Squaring Arm ...................... 96"
Hydraulic Holddowns ............... 12
Hold Down Tonnage, Maximum ........ 48 TON
One Shot Central Lub System ....... YES
Motor, Horsepower ................. 30 HP
Electrical System ................. 230-460/3/60
