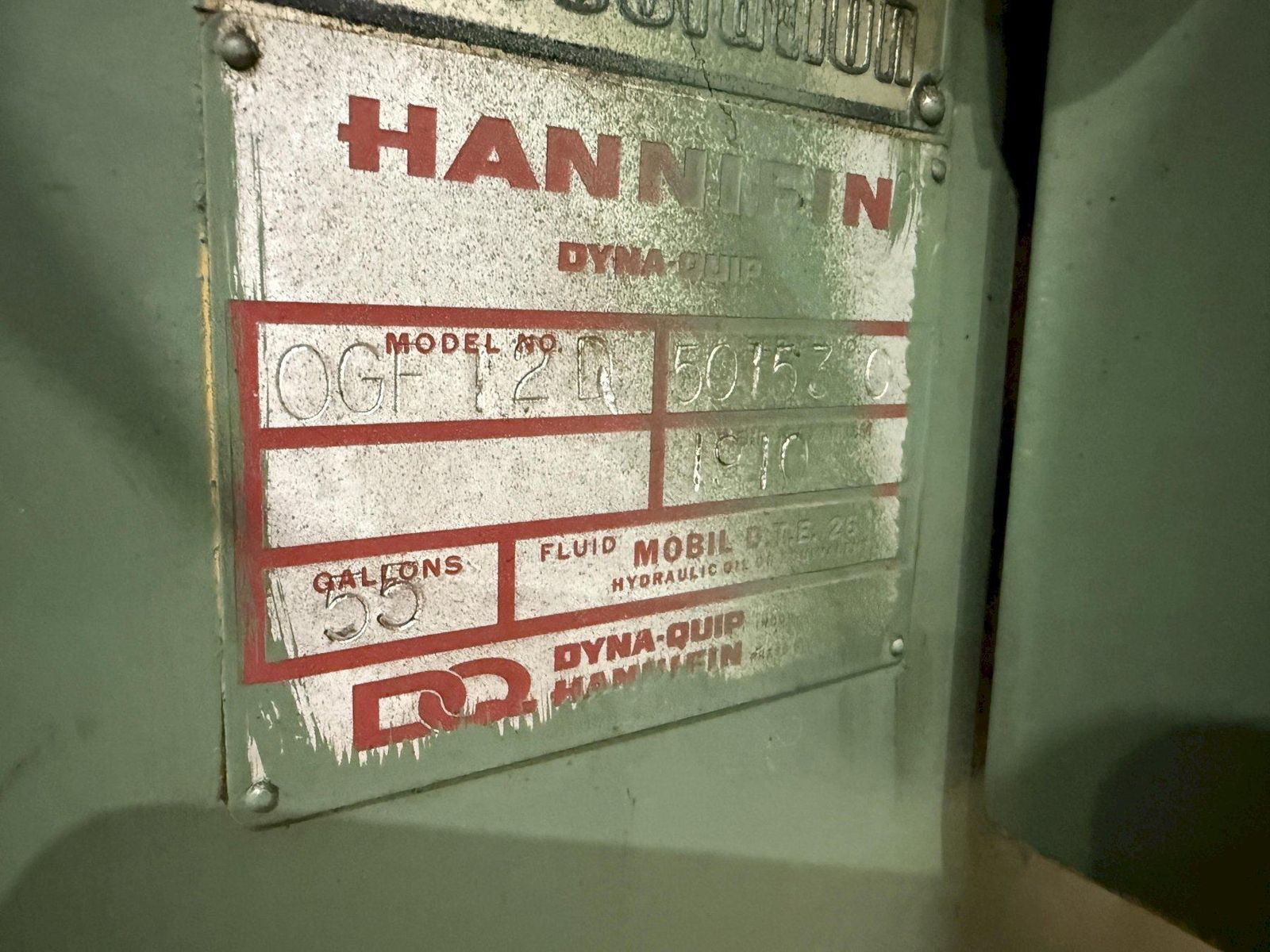

SERIAL .............................................. 50153-C
MODEL ............................................... OGF-12D
TYPE ................................................ FLOOR STANDING

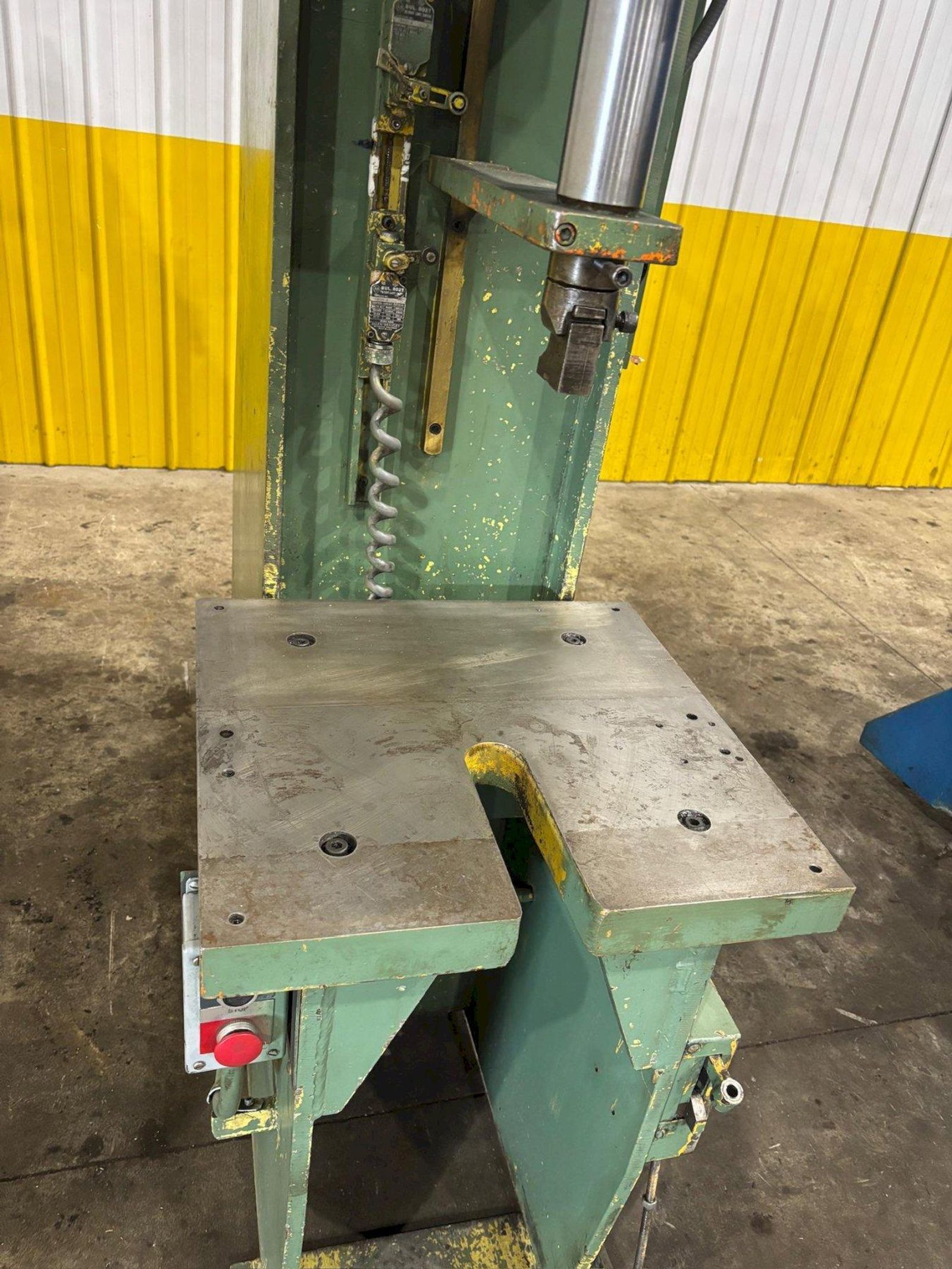

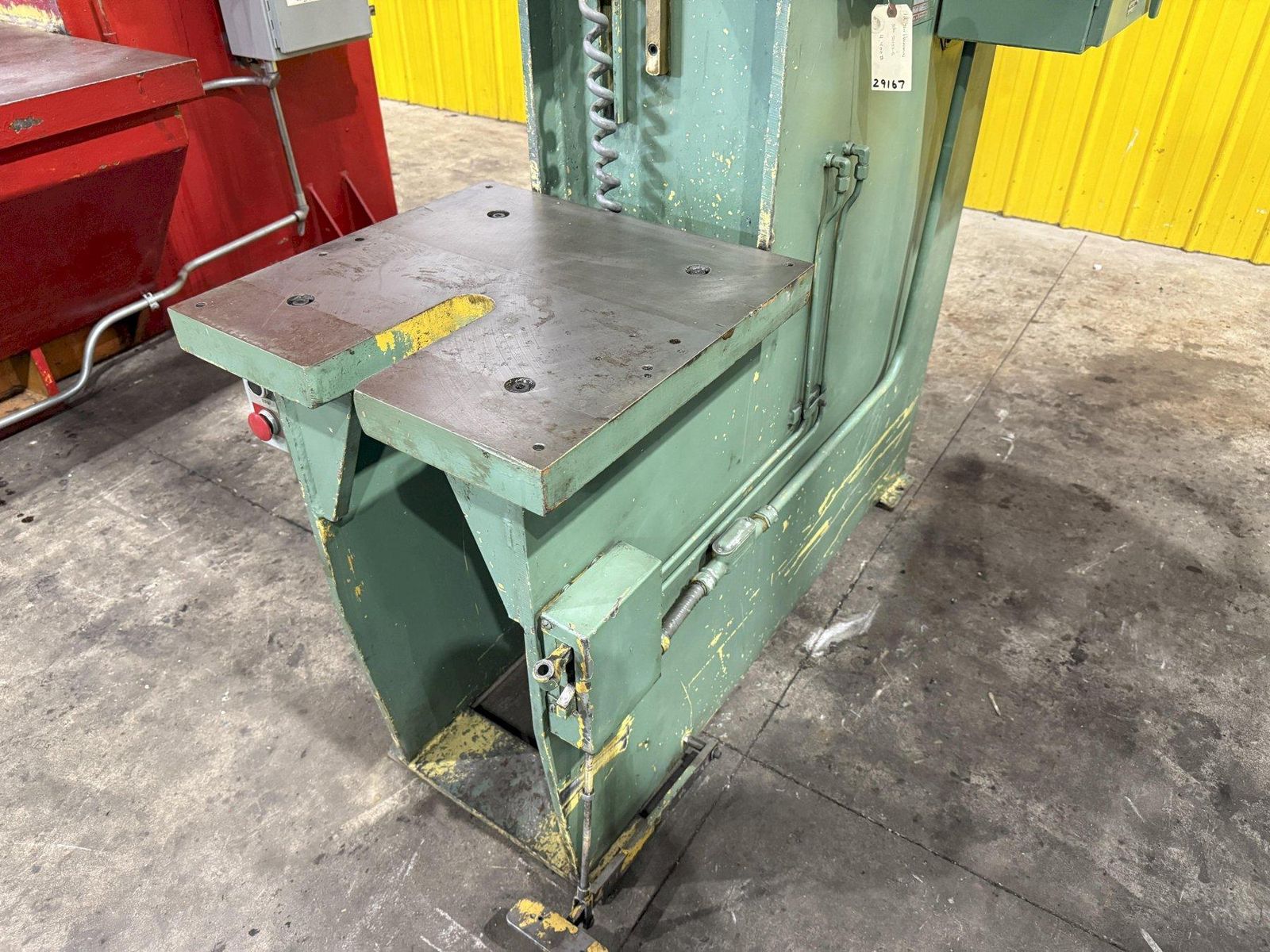

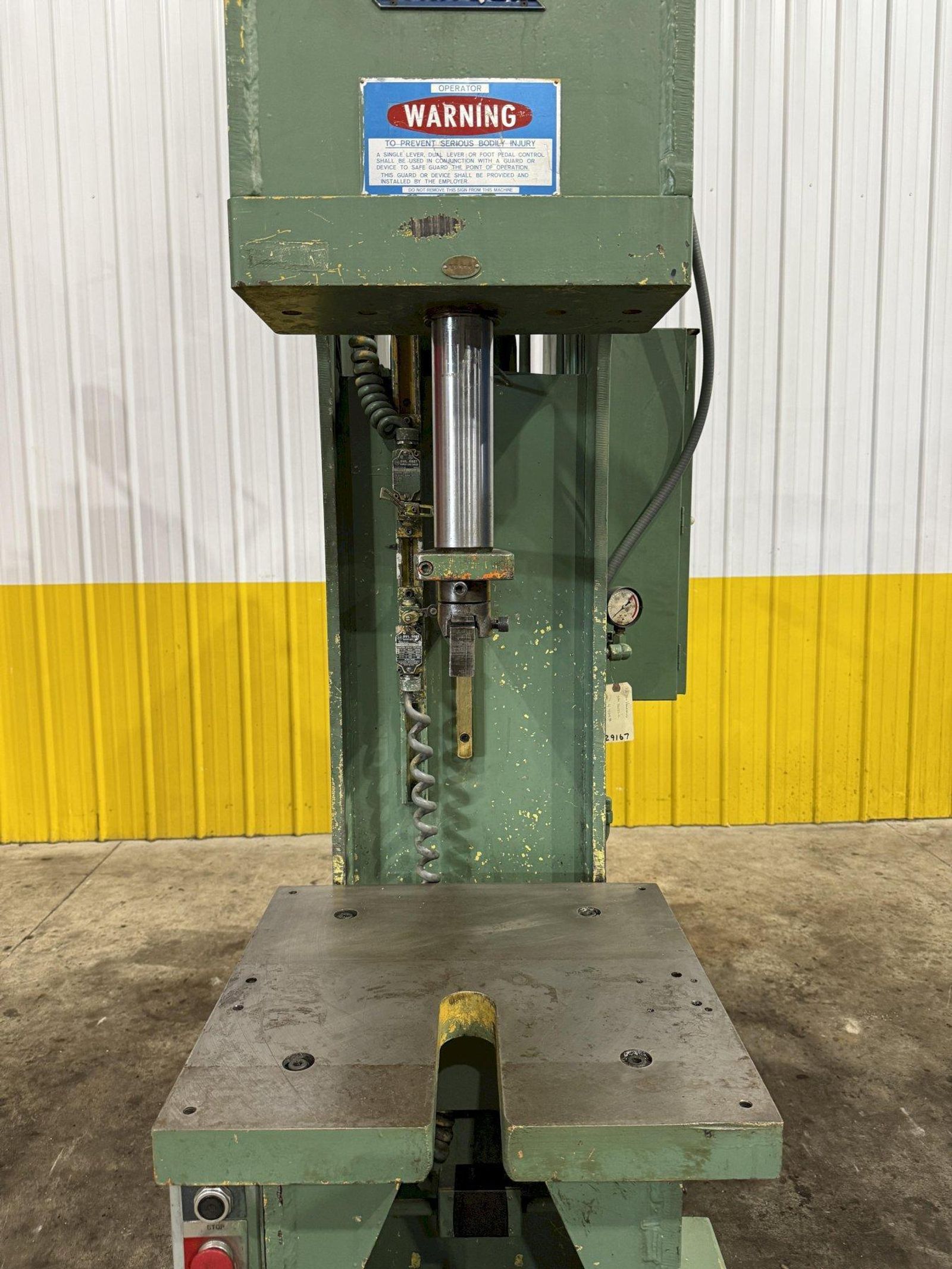

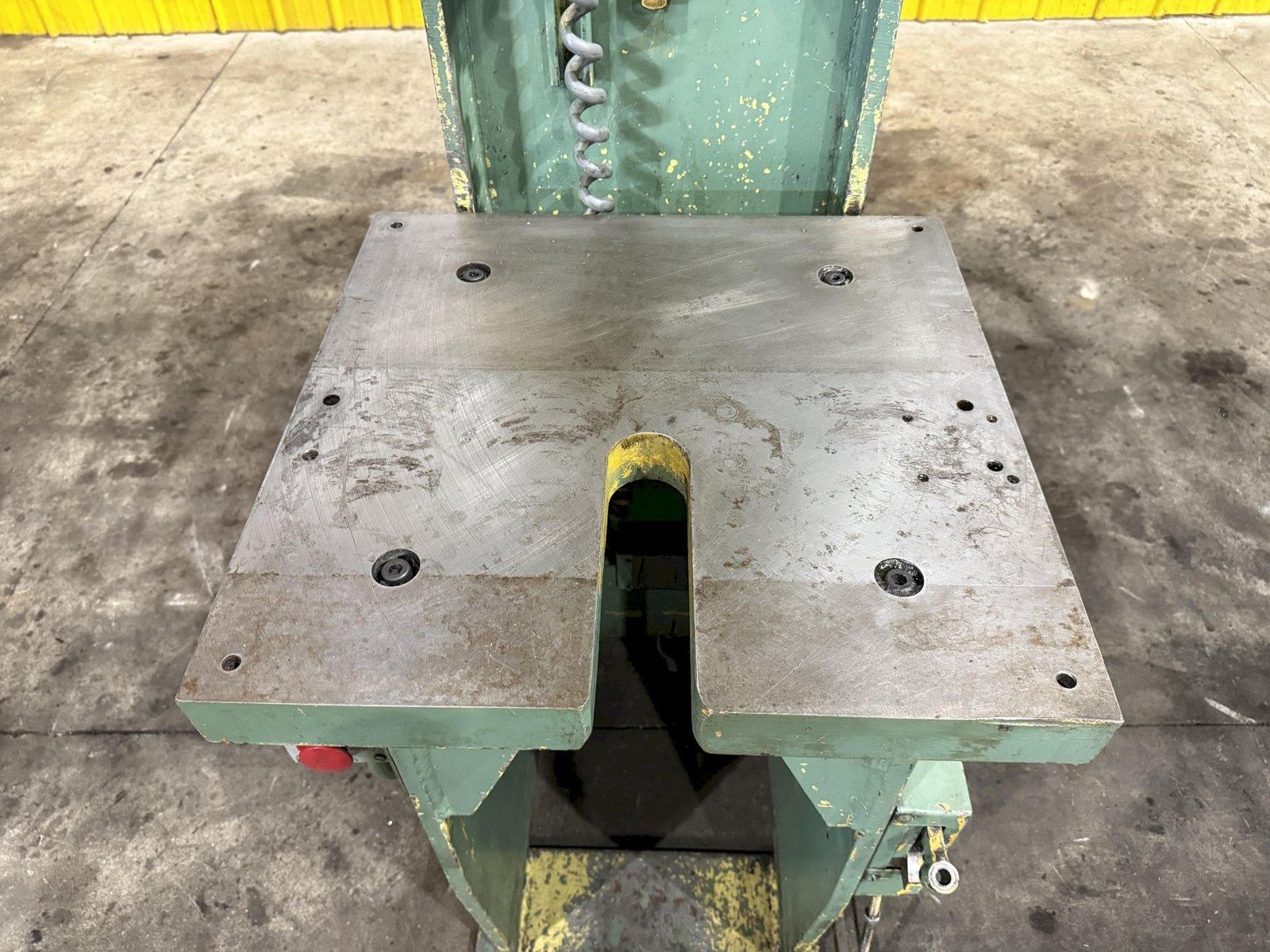

AREA OF BED ......................................... 22" L-R x 21.5" F-B
STROKE .............................................. 0 - 18" MAX
DAYLIGHT OPENING .................................... 24" MAX
THROAT DEPTH ........................................ 14"

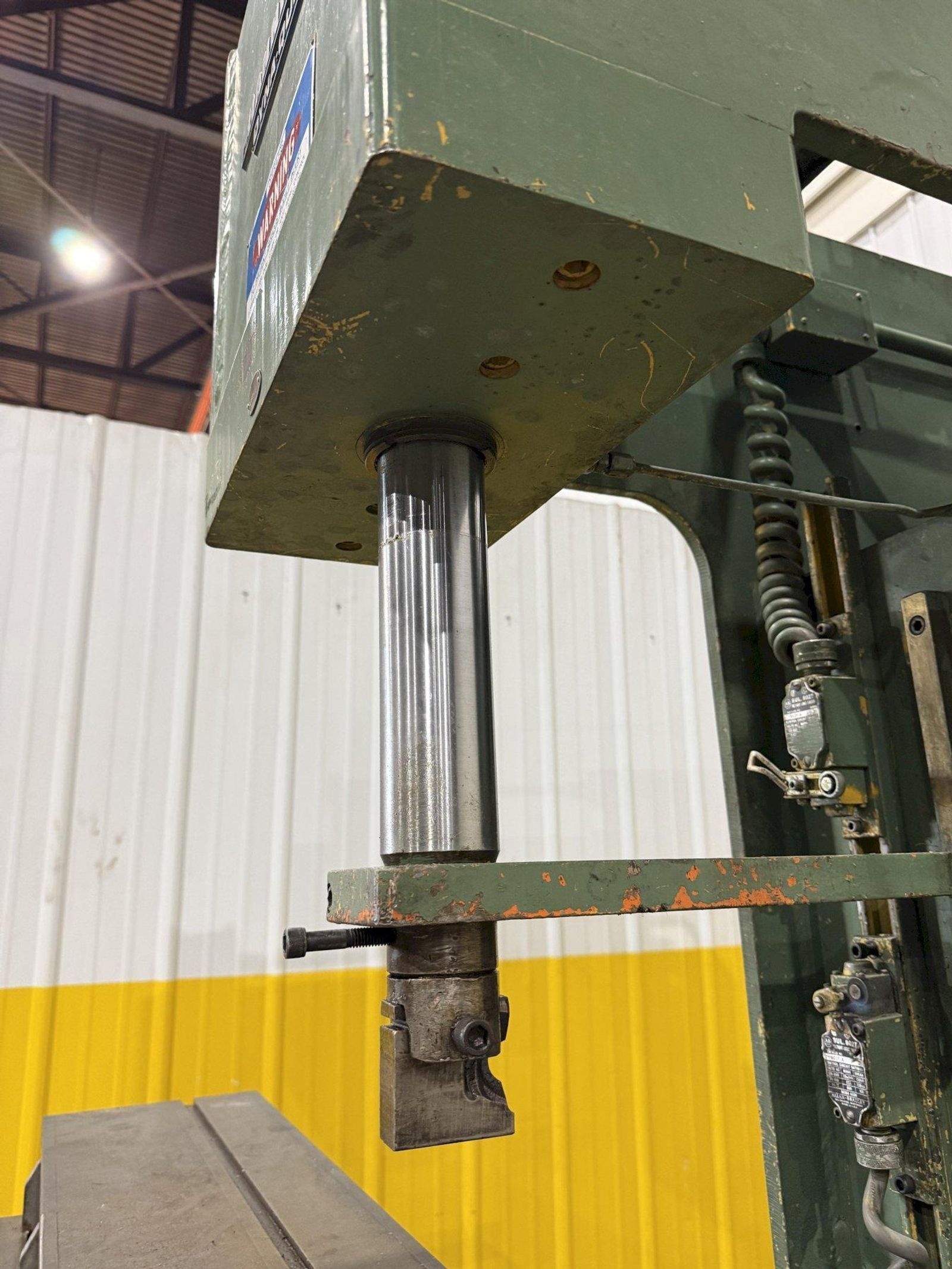

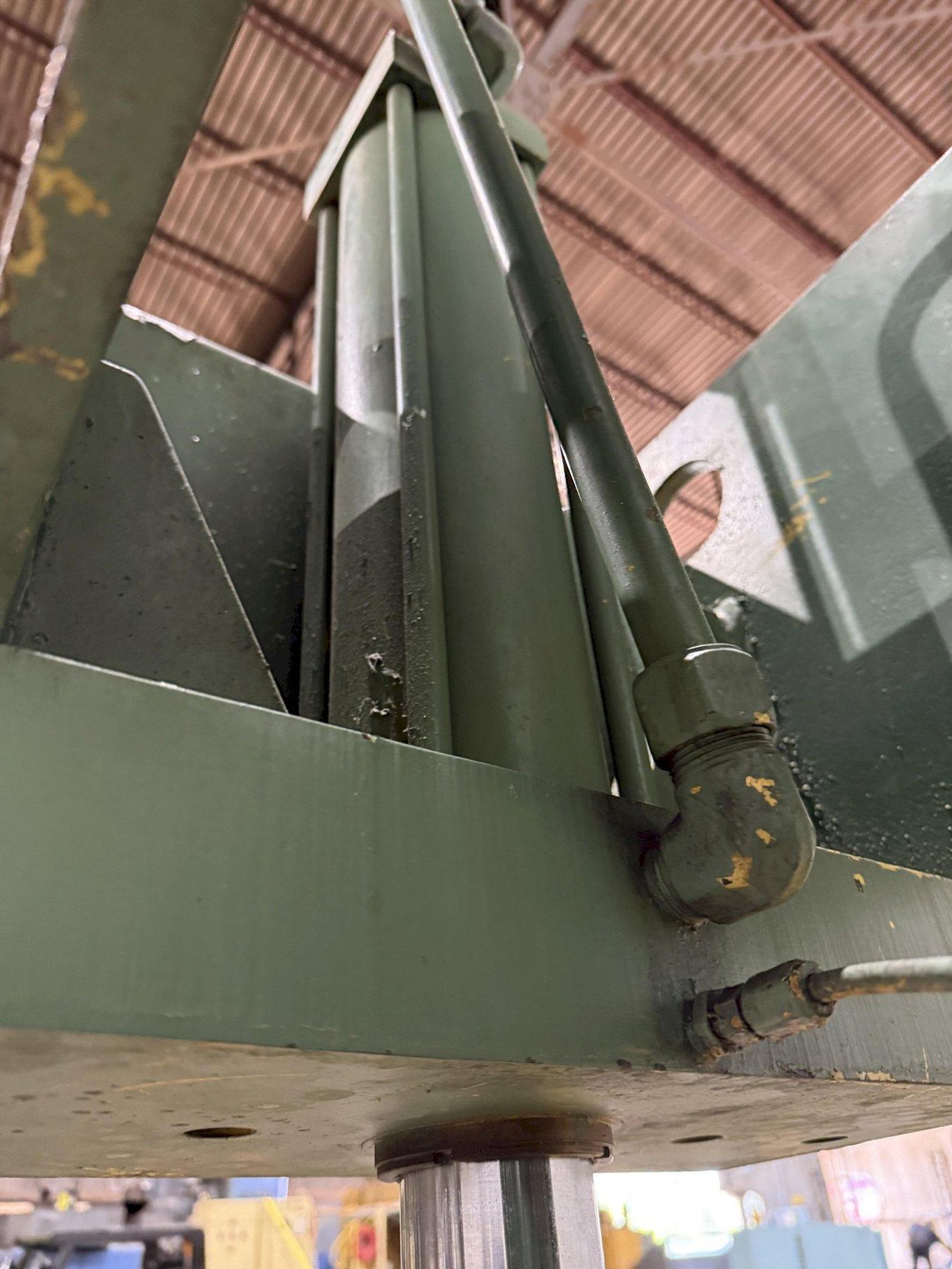

RAM DIAMETER ........................................ 4"/2.5" @ 1910 PSI - 12 tons
FLOOR TO TOP OF BED ................................. 36"

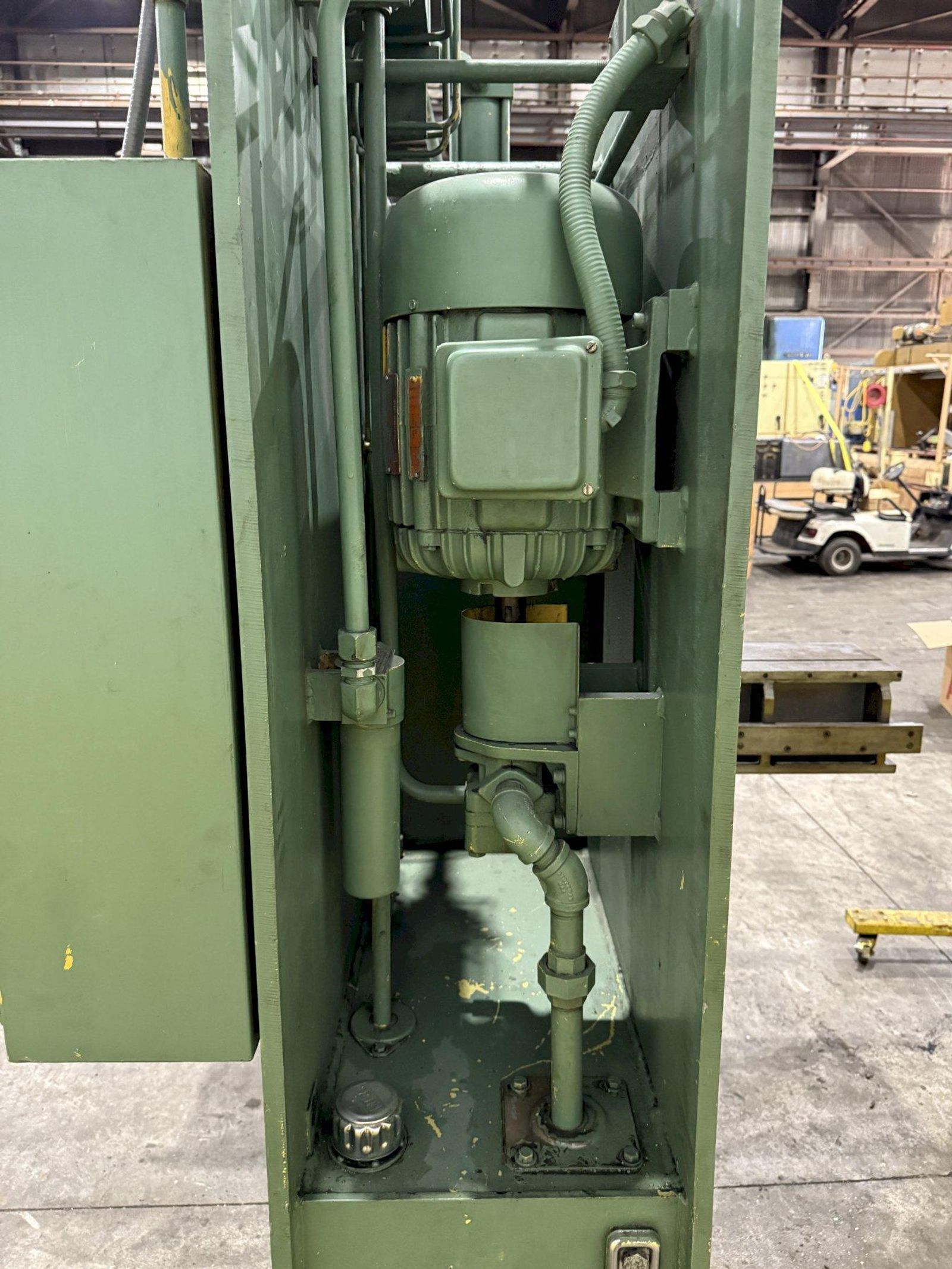

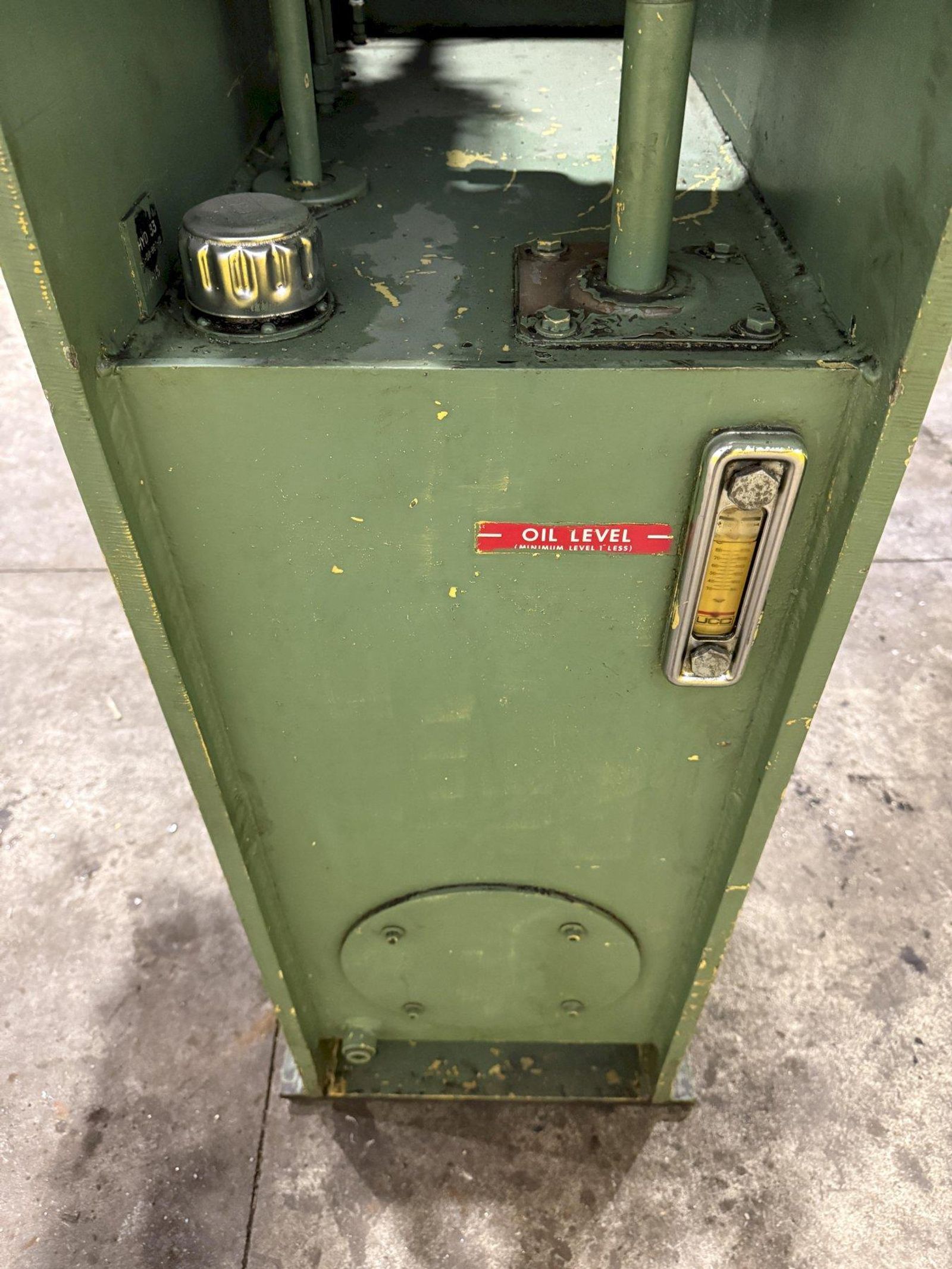

VICKERS HYDRAULIC PUMP POWER UNIT:

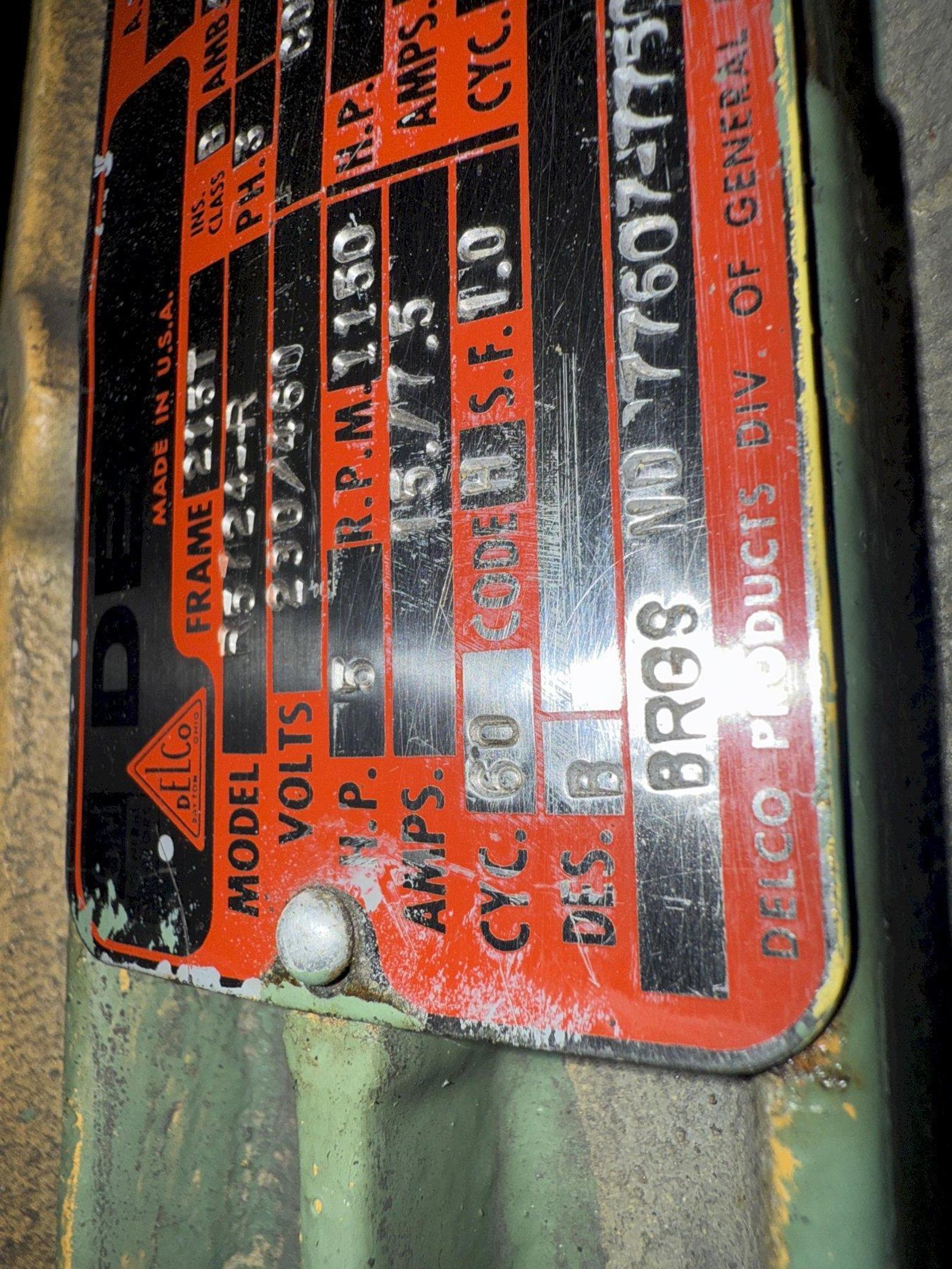

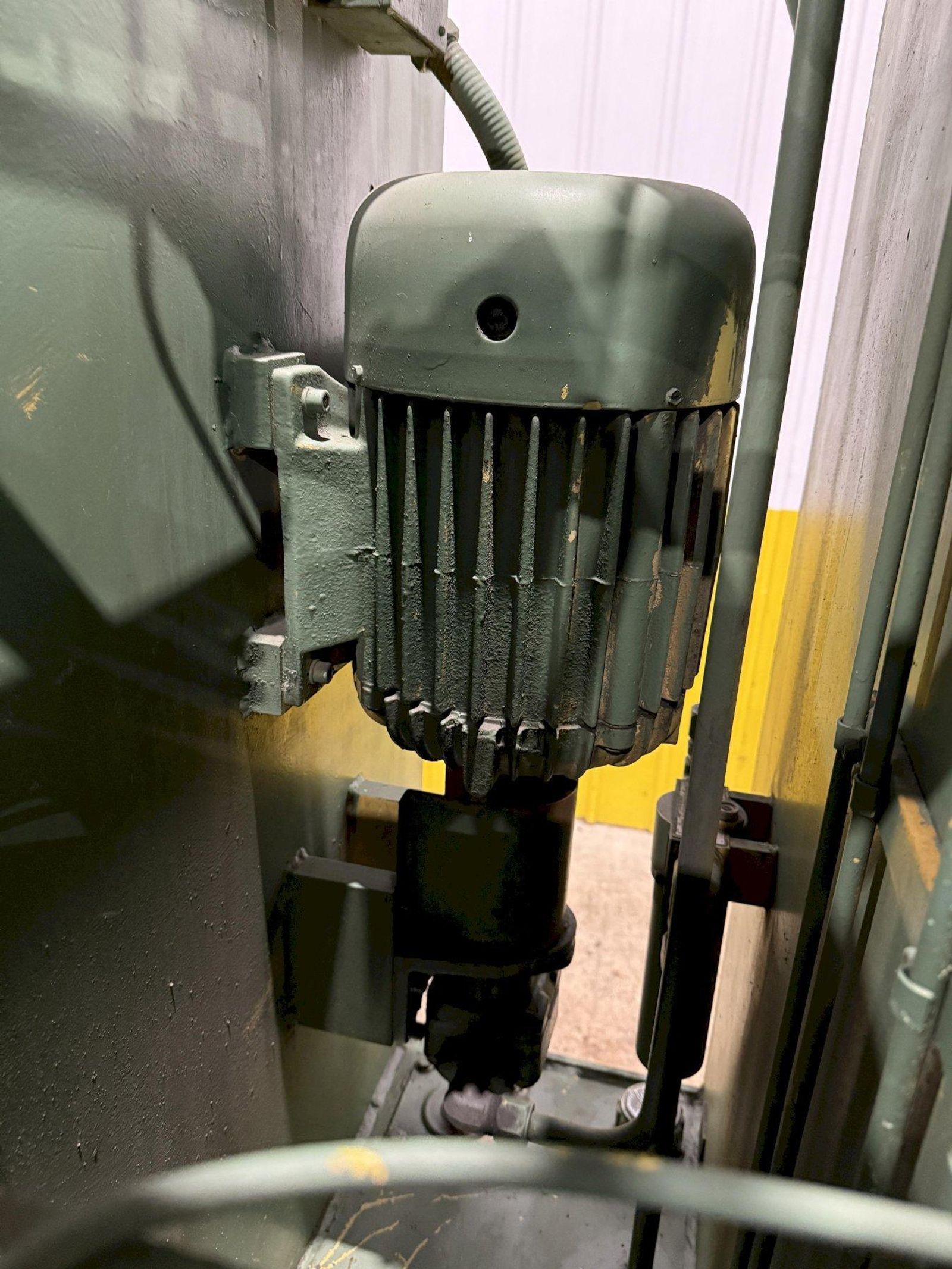

MOTOR ............................................... 5HP/1150RPM/230/460V/3PH/60CY
SPEEDS (APPROX):
MINUTE CLOSING & PRESSING TO 12 TONS ................. 90"
MINUTE RETURN ........................................ 150"
PUSHBUTTON CONTROLS:

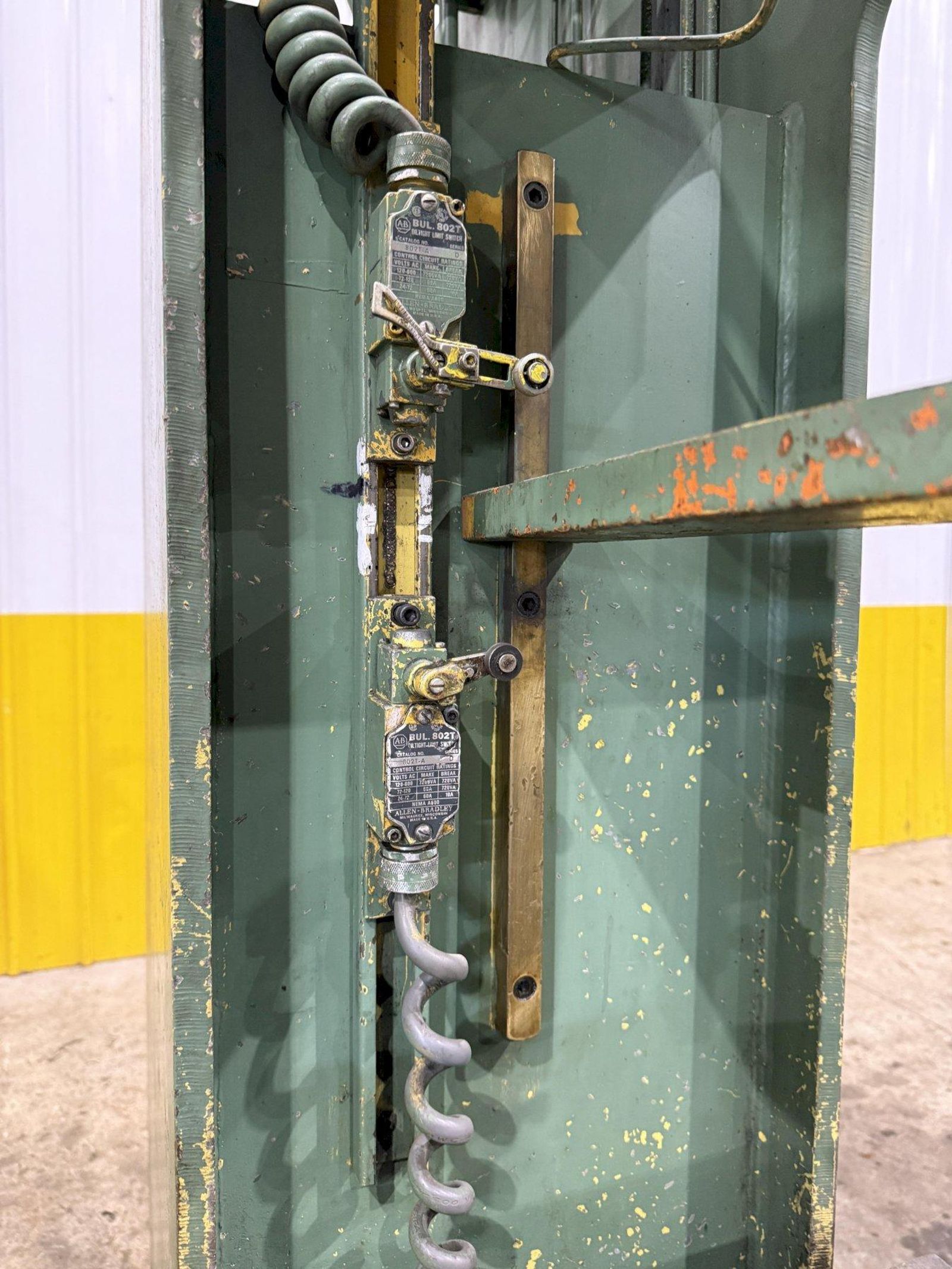

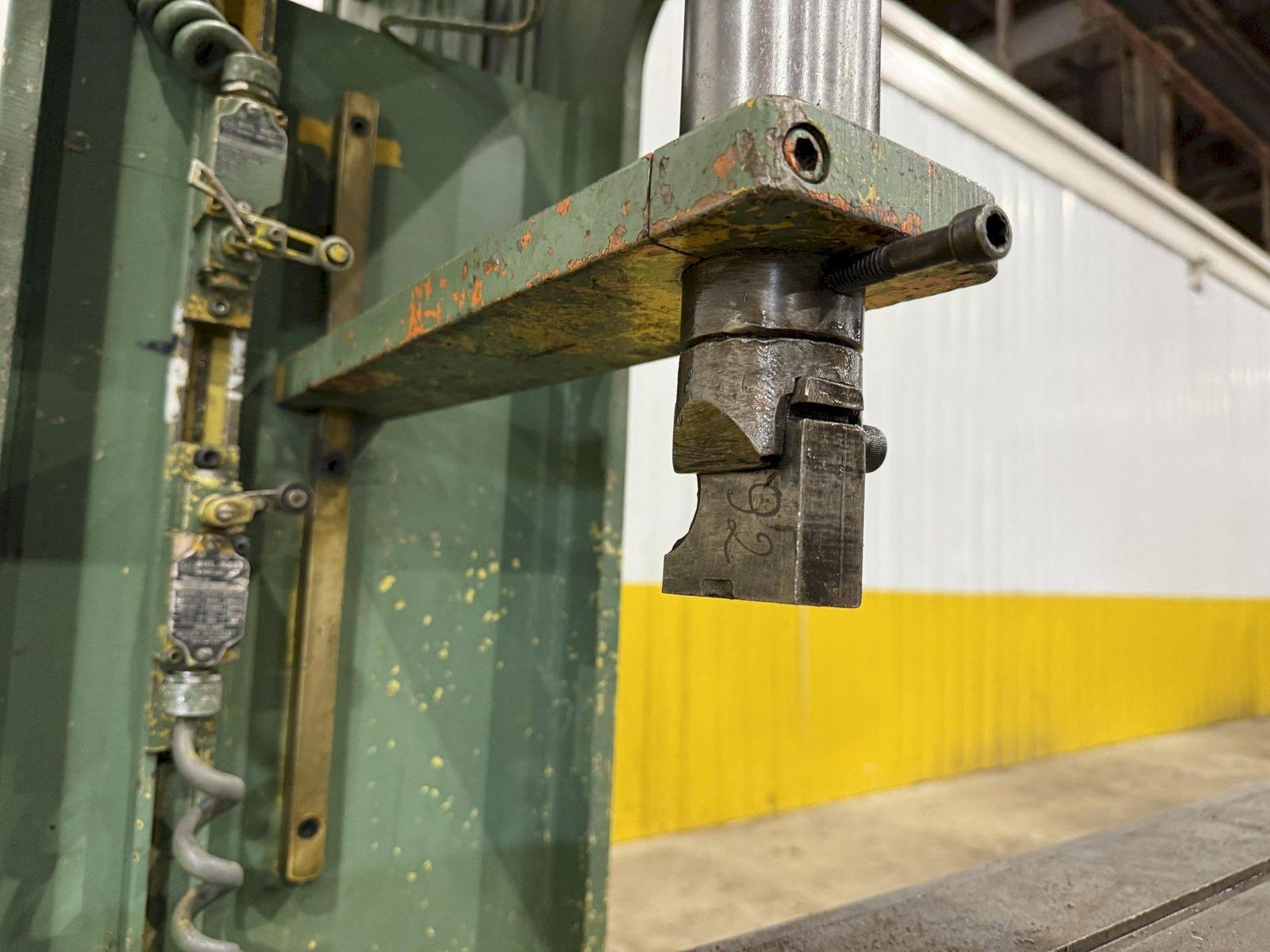

STROKE & PRESSURE CONTROL OPERATOR ................... YES
HAND/FOOT PEDAL ...................................... YES
PRESSURE GAUGE ....................................... YES

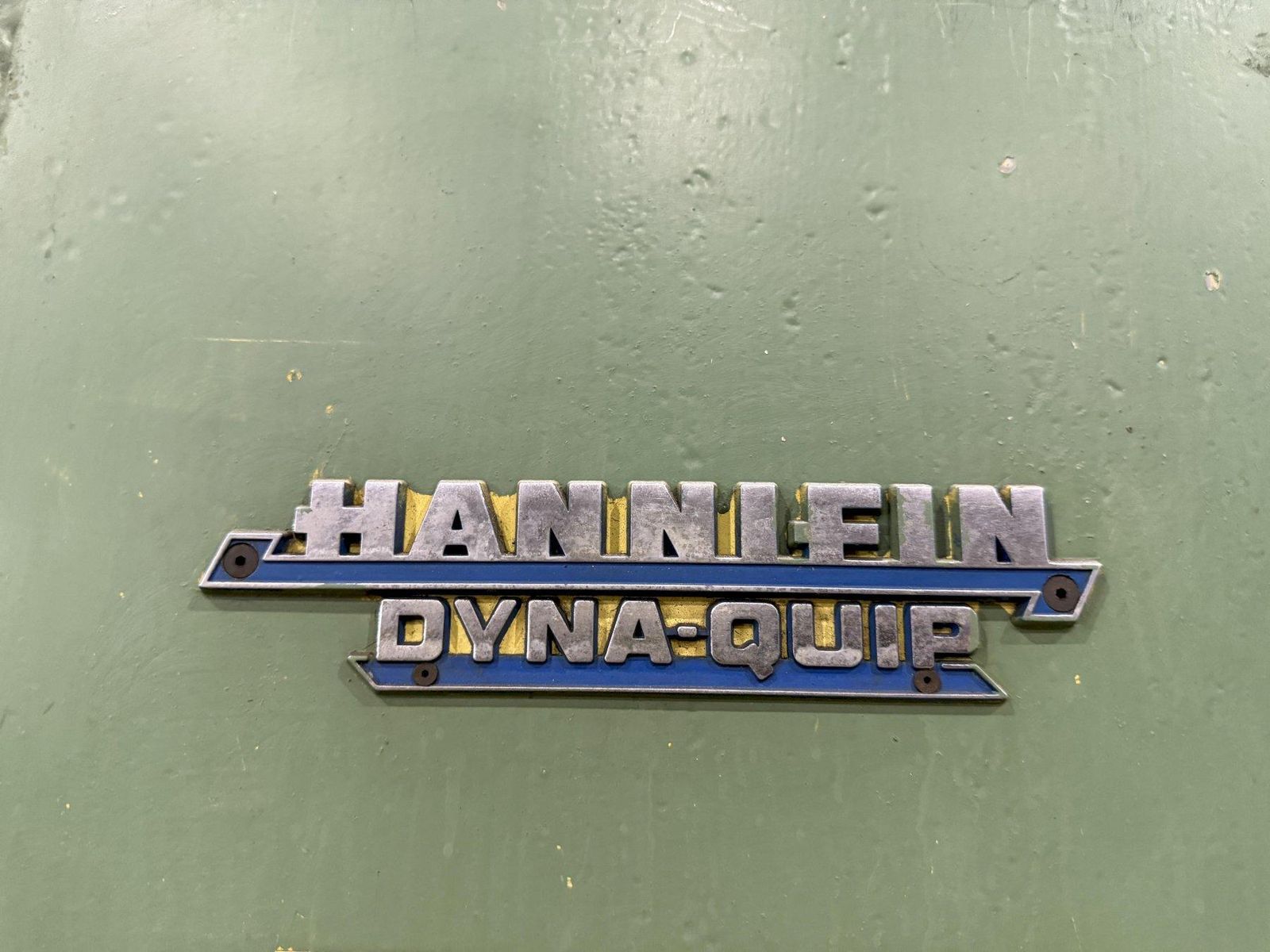

Brand
HANNIFIN
Type

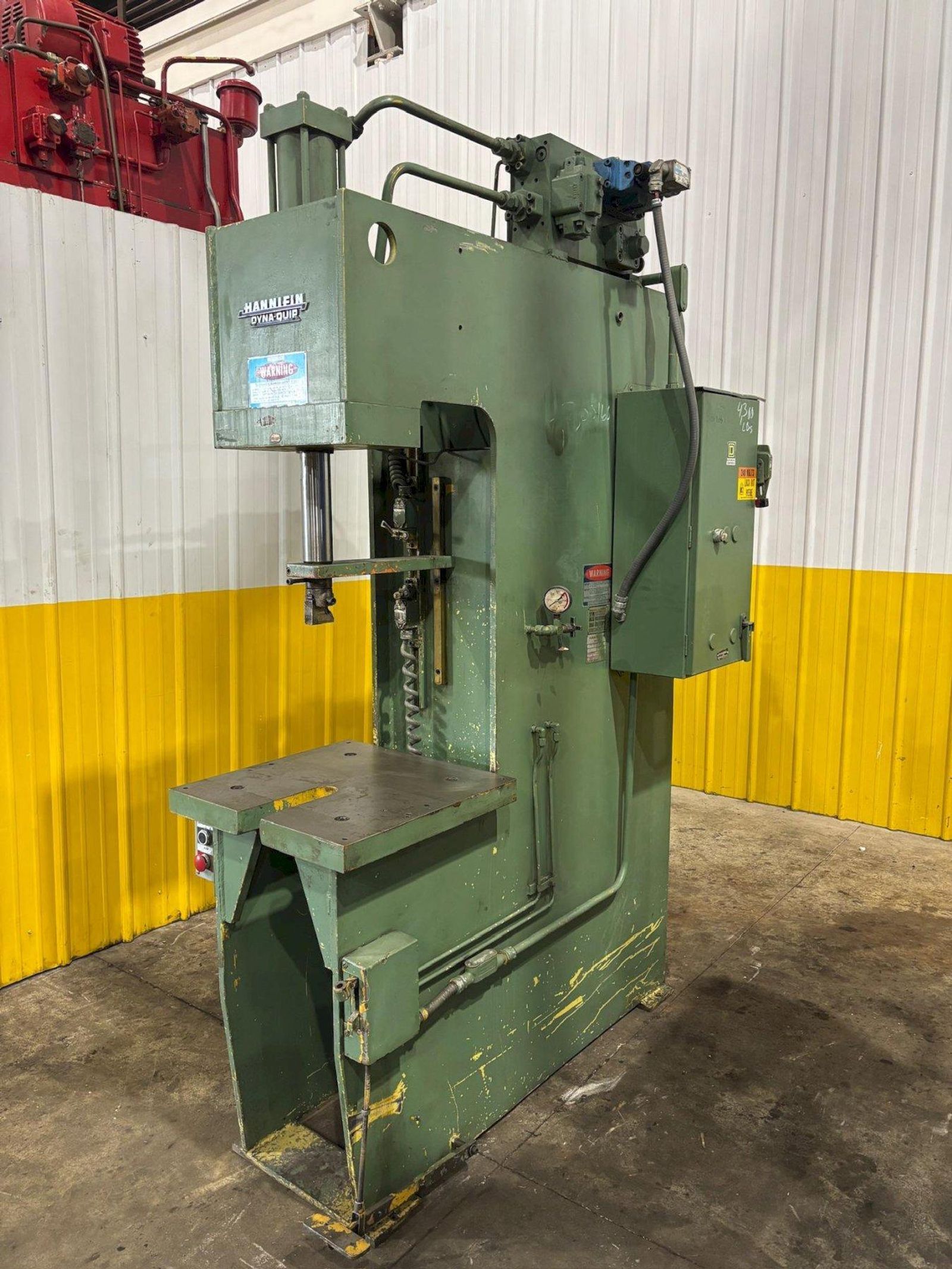

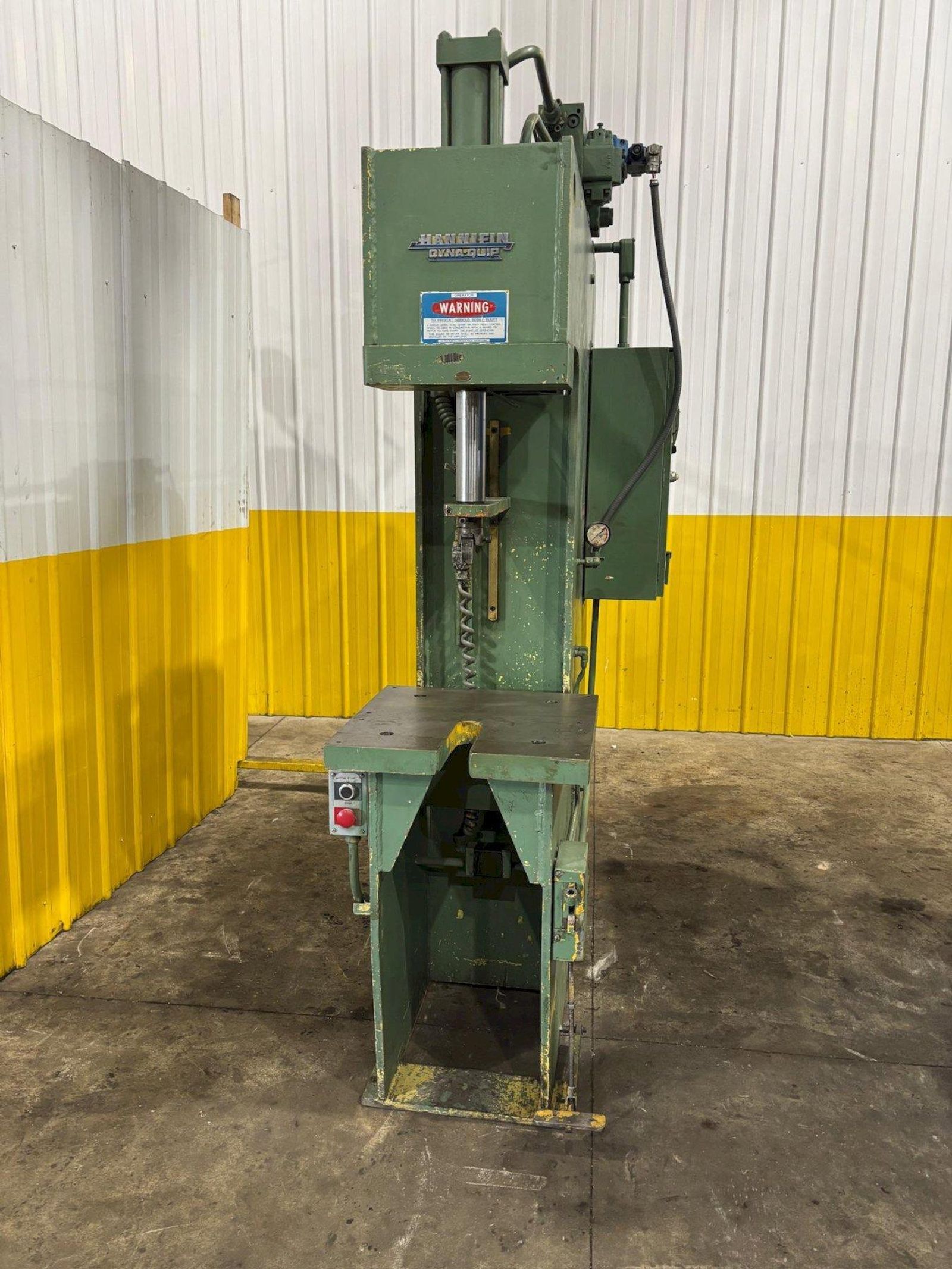

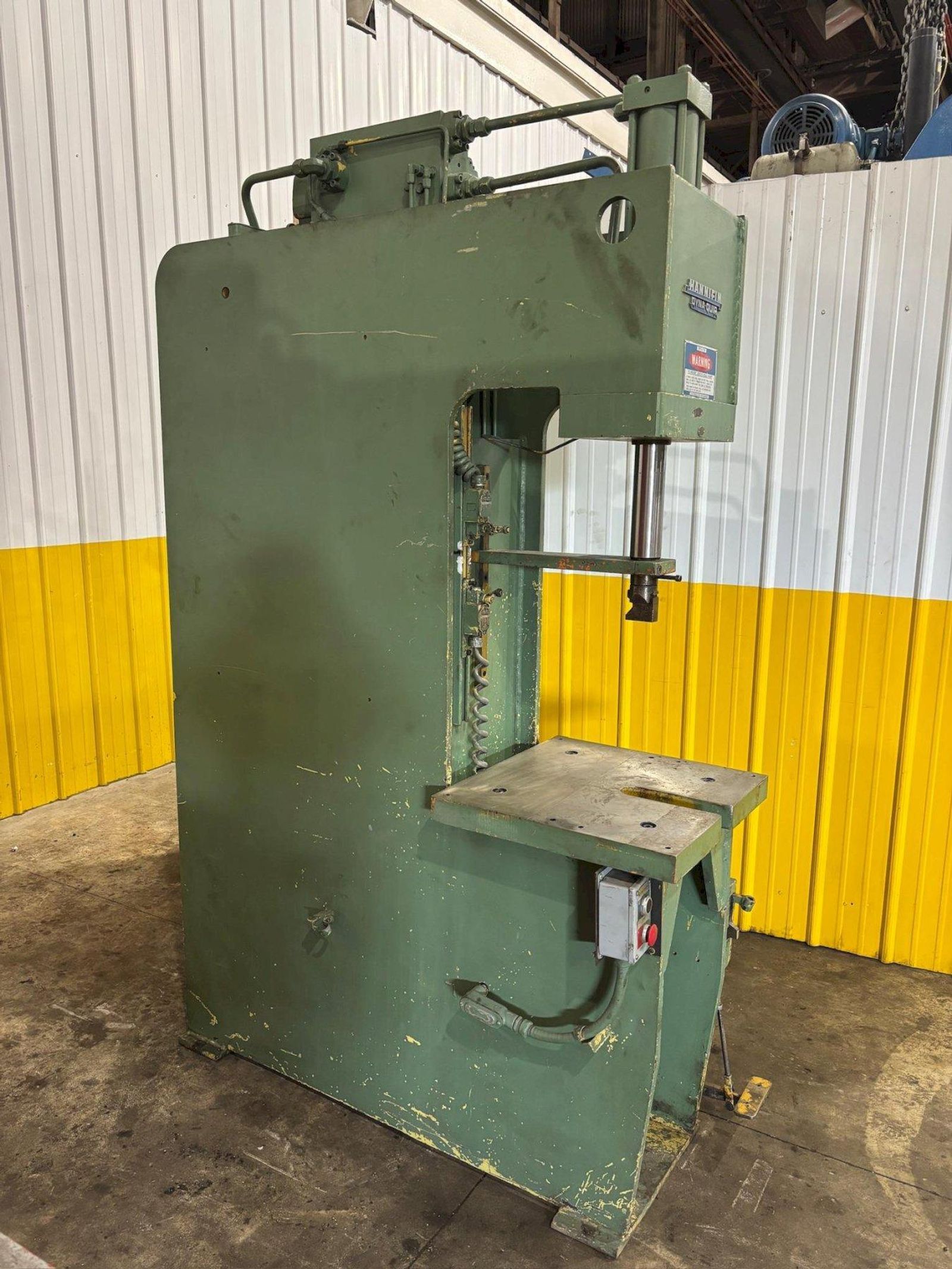

Presses, C-Frame
Stock No.
24081
 |
419-269-2000 |
Stock #: 24081
SERIAL .............................................. 50153-C
MODEL ............................................... OGF-12D
TYPE ................................................ FLOOR STANDING
AREA OF BED ......................................... 22" L-R x 21.5" F-B
STROKE .............................................. 0 - 18" MAX
DAYLIGHT OPENING .................................... 24" MAX
THROAT DEPTH ........................................ 14"
RAM DIAMETER ........................................ 4"/2.5" @ 1910 PSI - 12 tons
FLOOR TO TOP OF BED ................................. 36"
VICKERS HYDRAULIC PUMP POWER UNIT:
MOTOR ............................................... 5HP/1150RPM/230/460V/3PH/60CY
SPEEDS (APPROX):
MINUTE CLOSING & PRESSING TO 12 TONS ................. 90"
MINUTE RETURN ........................................ 150"
PUSHBUTTON CONTROLS:
STROKE & PRESSURE CONTROL OPERATOR ................... YES
HAND/FOOT PEDAL ...................................... YES
PRESSURE GAUGE ....................................... YES
