SERIAL ................... 12354
MODEL .................... STUD MAKER

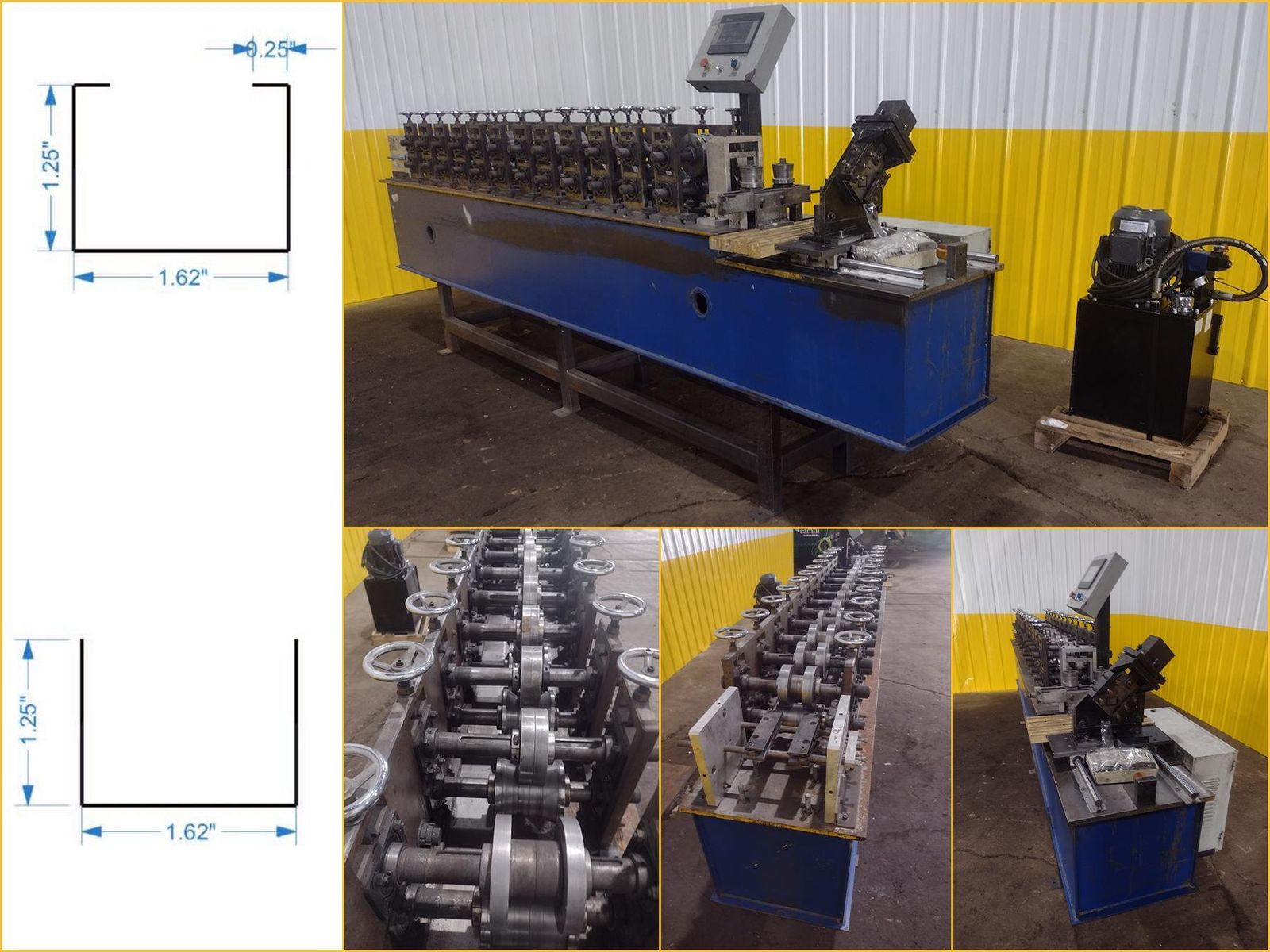

TOOLED FOR ............... 1.25" X 1.62" STUD WITH .25" LEG
STANDS ................... 12
ARBOR DIAMETER ........... 1.75"
ROLL SPACE ............... 10"
VERTICAL ADJUSTMENT ...... 4.5" TO 6"
HORIZONTAL CENTERS ....... 9"
BASE TO LOWER SPINDLE .... 4"
ARBOR KEYWAY ............. 1/2"
ENTRY GUIDE .............. YES
TURKSHEAD ................ YES
CUT OFF .................. HYDRAULIC
CONTROLS ................. TOUCH SCREEN
MAIN MOTOR ............... 4.0 KW
DRIVE .................... VARIABLE SPEED
HYDRAULIC MOTOR .......... 5 HP
Brand
Not Specified
Type
Roll Formers
Stock No.
18943
 |
419-269-2000 |
Stock #: 18943
SERIAL ................... 12354
MODEL .................... STUD MAKER
TOOLED FOR ............... 1.25" X 1.62" STUD WITH .25" LEG
STANDS ................... 12
ARBOR DIAMETER ........... 1.75"
ROLL SPACE ............... 10"
VERTICAL ADJUSTMENT ...... 4.5" TO 6"
HORIZONTAL CENTERS ....... 9"
BASE TO LOWER SPINDLE .... 4"
ARBOR KEYWAY ............. 1/2"
ENTRY GUIDE .............. YES
TURKSHEAD ................ YES
CUT OFF .................. HYDRAULIC
CONTROLS ................. TOUCH SCREEN
MAIN MOTOR ............... 4.0 KW
DRIVE .................... VARIABLE SPEED
HYDRAULIC MOTOR .......... 5 HP
