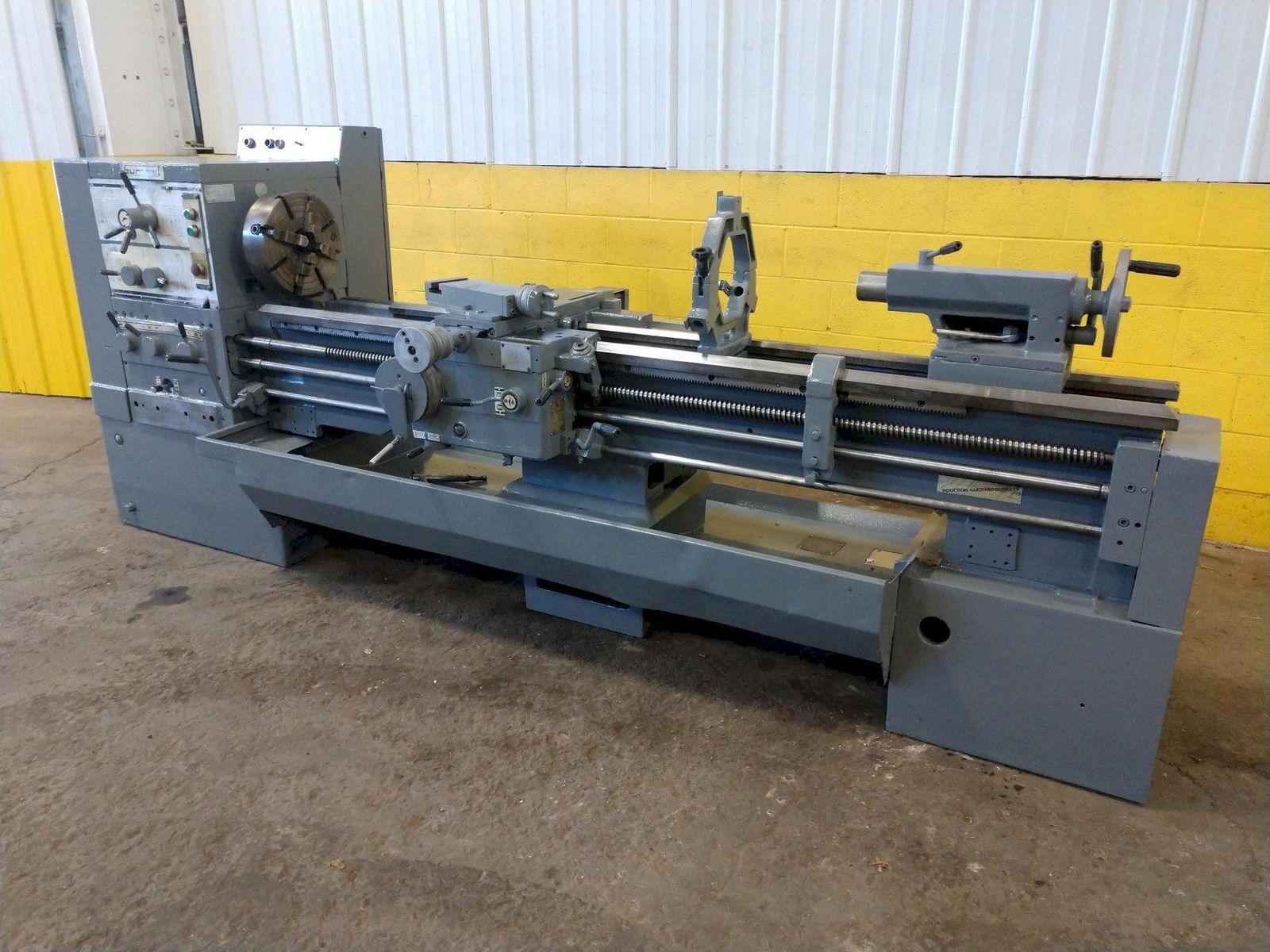

16" X 84" SUMMIT GAP BED MODEL #SNB400X2000 ENGINE LATHE: STOCK #12269

Stock #: 12269

Equipped With

SERIAL ........................ 3SB29061
MODEL ......................... SNB400X2000
SWING OVER WAYS ............... 17"
SWING IN GAP .................. 27"
SWING OVER CROSS SLIDE ........ 8.5"
DISTANCE BETWEEN CENTERS ...... 84"
SPINDLE SPEEDS ................ (12) 25 TO 2000 RPM
ENGLISH TREADS ................ 4 TO 92 TPI
METRIC THREADING .............. 0.5 TO 11.5 MM
FEEDS ......................... (63) .0018 TO .0752 MMPR
DIAMETER OF SPINDLE HOLE ...... 2"
CHUCK ......................... 12.5" 4 JAW
TAPER ATTACHMENT .............. YES
THREAD DIAL ................... YES
TAIL STOCK .................... #3 MT
STEADY RESTS .................. (2) 8" EACH
COOLANT & CHIP PANS ........... YES
MOTOR ......................... 10 HORSEPOWER


Buy Machines

16" X 84" SUMMIT GAP BED MODEL #SNB400X2000 ENGINE LATHE: STOCK #12269

Stock # 12269

Share Machine
Print Details

Machine Specifications

SERIAL ........................ 3SB29061

MODEL ......................... SNB400X2000
SWING OVER WAYS ............... 17"
SWING IN GAP .................. 27"
SWING OVER CROSS SLIDE ........ 8.5"
DISTANCE BETWEEN CENTERS ...... 84"
SPINDLE SPEEDS ................ (12) 25 TO 2000 RPM
ENGLISH TREADS ................ 4 TO 92 TPI
METRIC THREADING .............. 0.5 TO 11.5 MM
FEEDS ......................... (63) .0018 TO .0752 MMPR
DIAMETER OF SPINDLE HOLE ...... 2"
CHUCK ......................... 12.5" 4 JAW
TAPER ATTACHMENT .............. YES
THREAD DIAL ................... YES
TAIL STOCK .................... #3 MT
STEADY RESTS .................. (2) 8" EACH
COOLANT & CHIP PANS ........... YES
MOTOR ......................... 10 HORSEPOWER
