.5" TO 2" RIDGID HEAD STEEL DRAGON TOOLS 110V MODEL #7090 PORTABLE PIPE THREADER: STOCK #12378

Stock #: 12378

Equipped With

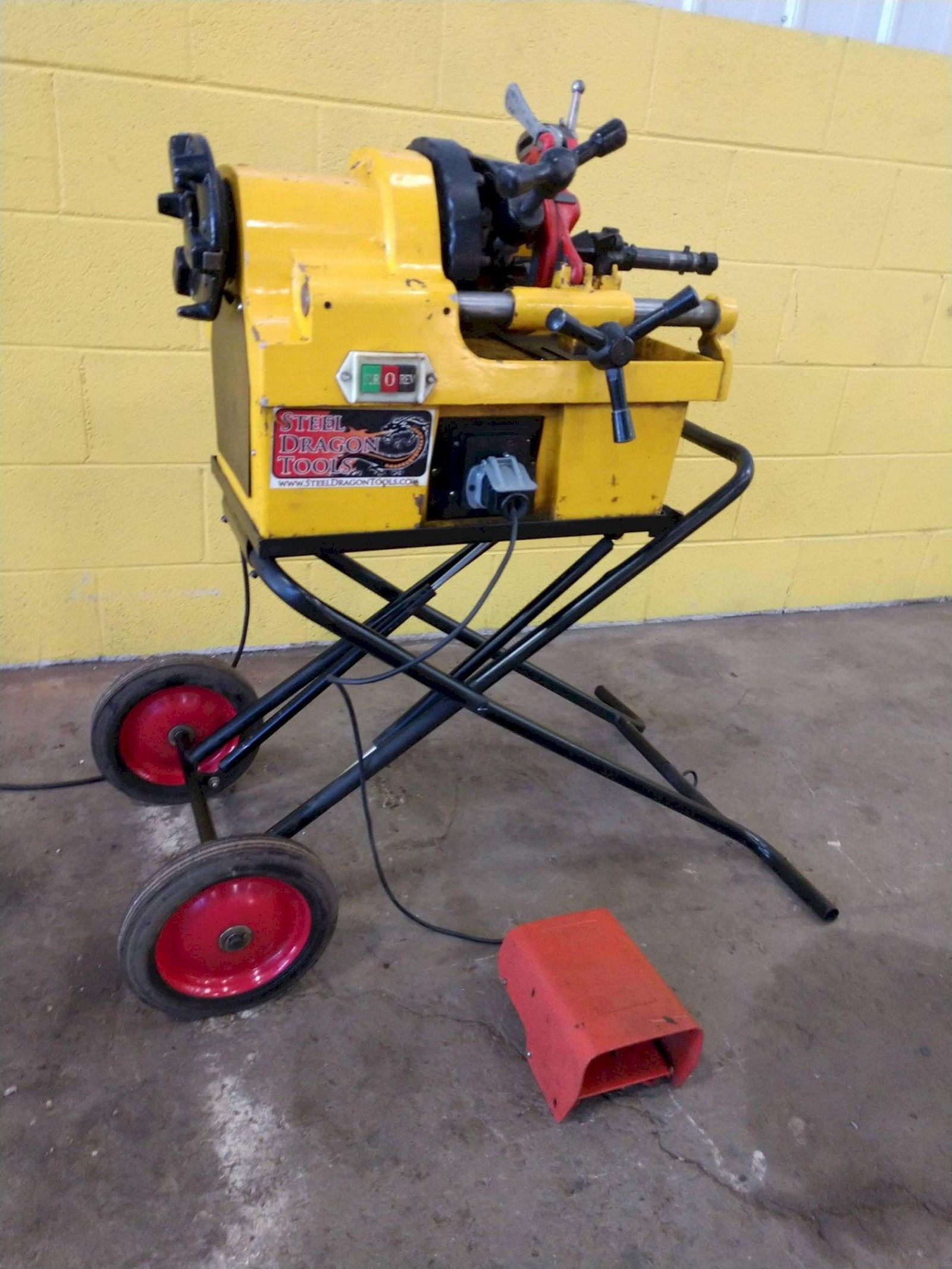

The Steel Dragon Tools® 7090 Pro is a portable and compact, high-performance pipe threading machine that will thread, cut, and ream up to 2-inch pipe. This machine comes with a Steel Dragon Tools® 811A quick-opening die head and a through-head oiling system.

The Steel Dragon Tools® 7090 Pro features a 900-watt induction motor and a heavy-duty, removable foot pedal.

Features:

Package Includes:

Specifications:

Buy Machines

.5" TO 2" RIDGID HEAD STEEL DRAGON TOOLS 110V MODEL #7090 PORTABLE PIPE THREADER: STOCK #12378

Stock # 12378

Share Machine
Print Details

Machine Specifications

The Steel Dragon Tools® 7090 Pro is a portable and compact, high-performance pipe threading machine that will thread, cut, and ream up to 2-inch pipe. This machine comes with a Steel Dragon Tools® 811A quick-opening die head and a through-head oiling system.

The Steel Dragon Tools® 7090 Pro features a 900-watt induction motor and a heavy-duty, removable foot pedal.

Features:

  • Pipe Capacity: 1/2 in. to 2 in. NPT
  • Automatic oiling system produces high-quality threads. Oil comes through the die head with a gear driven pump and automatically recirculated through the system.
  • Includes Steel Dragon Tools® 811A Die Head that works with RIDGID® Dies.
  • Dies are made of steel with Rockwell Hardness of 58-62 HRC for long operating life.

Package Includes:

  • Steel Dragon Tools® 7090 Pro Pipe Threading Machine
  • Steel Dragon Tools® 811A 1/2 in. to 2 in. universal die head.
  • Steel Dragon Tools® 811A Universal Die Head works with compatible RIDGID® machines and dies.
  • One (1) set of Steel Dragon Tools® 47765 1/2 in. to 3/4 in. universal high-speed steel dies.
  • One (1) set of Steel Dragon Tools® 47770 1 in. to 2 in. high speed steel dies.
  • Heavy-duty removable foot pedal.
  • Industrial-strength pipe cutter.
  • Wrenches and oil can.
  • Threading oil is not included.

Specifications:

  • Motor: Induction, 900 W, 110 V, 60 Hz, 25 RPM, Reversible
  • Maximum Chuck Capacity: 2-1/2 in.
  • Reamer: Pentangular 5-Blade Conical
  • Pipe Cutter Capacity: 1/4 in. to 2 in.
  • Maximum amperage under load is 18.5 amps
  • Overall Measurements: 24 in. x 24 in. x 18 in.
  • Overall Weight: 190 lbs.
