Overview

SERIAL ................... 406291218299021

MODEL .................... PEDDIWORKER 1050

STROKES ON PUNCH ......... 17

STROKE ................... 3/8" TO 1-5/8"

MOTOR .................... 5-1/2 HP

FLAT BAR SHEAR SPECIFICATION:

CAPACITY ................. 16" X 3/4"

12" X 5/8"

12" X 1"

45 DEGREE IRON CAPACITY .. 5" X 3/8"

BLADE CUT LENGTH ......... 16-1/2"

WORKING HEIGHT ........... 30"

SECTION AND BAR STOCK SHEAR SPECIFICATION:

CROSS SECTION ............ 4-3/4" SQUARED

CUTS WITH STANDARD BLADES SPECIFICATION:

ANGLES, 90 DEGREES ....... 5" X 5" X 1/2"

ROUNDS ................... 1-9/16", 3/4"

SQUARES .................. 1-9/16", 1"

CUTS WITH SPECIAL KNIVES SPECIFICATION:

CHANNELS, 90 DEGREES ..... 6"

WORKING HEIGHT ........... 45-7/8" CENTER OF BLADE

SQUARE NOTCHER SPECIFICATION:

PLATE .................... 1/2"

ANGLES ................... 3" X 3/8"

CHANNELS IN FLANGE ....... 3" TO 5"

NOTCH WIDE ............... 2"

NOTCH DEPTH .............. 2-3/4"

TRIANGULAR NOTCHER SPECIFICATION:

PLATE .................... 1/2"

ANGLES ................... 2-1/2" X 3/8"

NOTCH DEPTH .............. 2-3/16"

WORKING HEIGHT ........... 44-1/4"

PUNCH UNIT SPECIFICATION:

CAPACITY ................. 105 TONS

PUNCH CAPACITY ........... 1-1/4" IN 3/4"

CHANNELS IN FLANGE ....... 4" TO 15"

CHANNELS IN WEB .......... 4" TO 15"

PUNCH WITH OVERSIZE PUNCHING ATTACHMENT:

UP TO 2-1/2" ............. 2-1/2" X 7/16"

UP TO 3-1/2" ............. 3-1/2" X 11/32"

THROAT DEPTH ............. 10"

WORKING HEIGHT ........... 44-3/4"

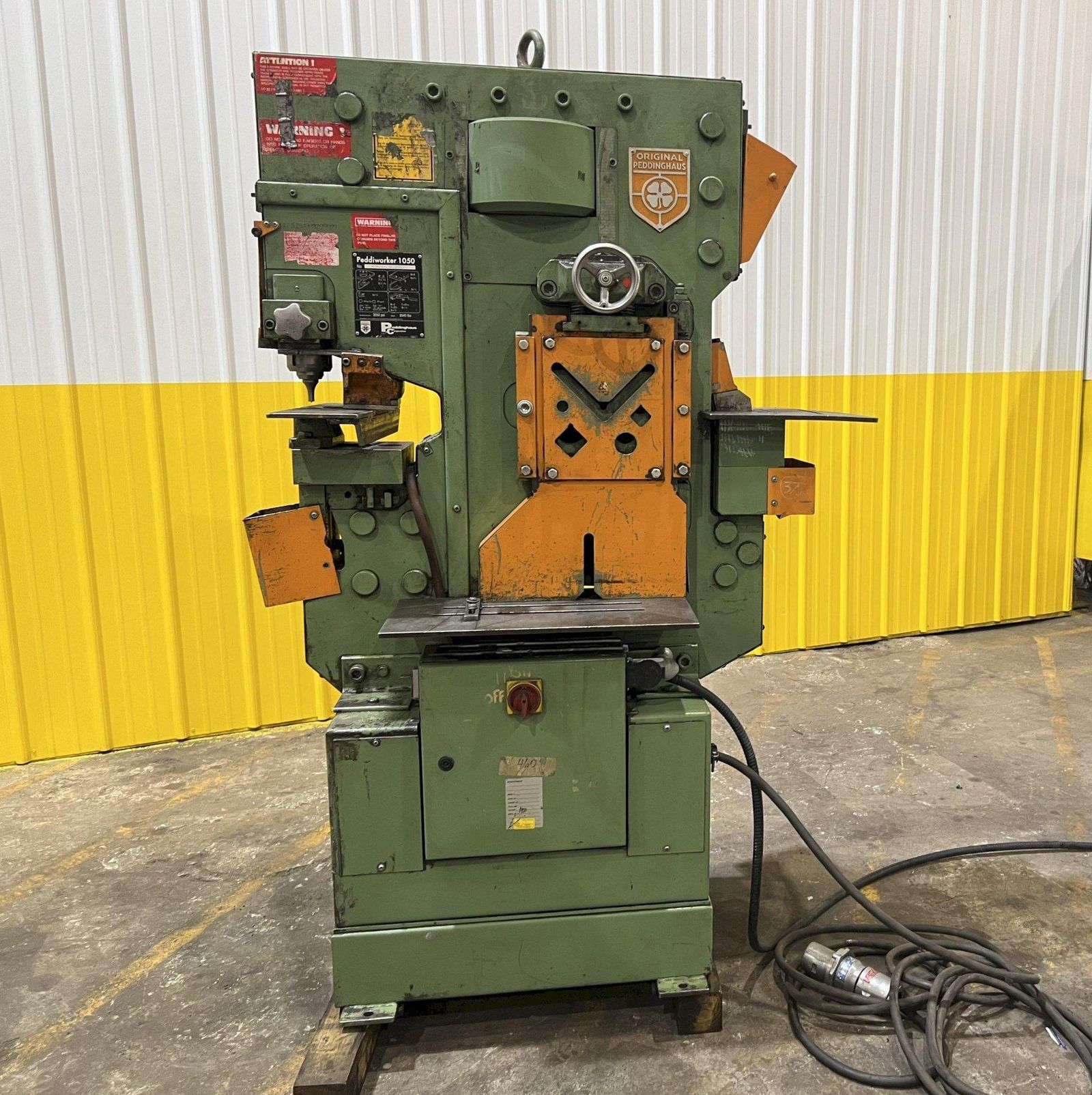

110 TON PEDDINGHAUS PEDDIWORKER MODEL #1050 HYDRAULIC IRONWORKER: STOCK #19922

Brand
Not Specified

Type
Ironworkers

Stock No.
19922

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

110 TON PEDDINGHAUS PEDDIWORKER MODEL #1050 HYDRAULIC IRONWORKER: STOCK #19922

Stock #: 19922

Equipped With

SERIAL ................... 406291218299021
MODEL .................... PEDDIWORKER 1050
STROKES ON PUNCH ......... 17
STROKE ................... 3/8" TO 1-5/8"
MOTOR .................... 5-1/2 HP

FLAT BAR SHEAR SPECIFICATION:
CAPACITY ................. 16" X 3/4"
                           12" X 5/8"
                           12" X 1"
45 DEGREE IRON CAPACITY .. 5" X 3/8"
BLADE CUT LENGTH ......... 16-1/2"
WORKING HEIGHT ........... 30"

SECTION AND BAR STOCK SHEAR SPECIFICATION:
CROSS SECTION ............ 4-3/4" SQUARED

CUTS WITH STANDARD BLADES SPECIFICATION:
ANGLES, 90 DEGREES ....... 5" X 5" X 1/2"
ROUNDS ................... 1-9/16", 3/4"
SQUARES .................. 1-9/16", 1"

CUTS WITH SPECIAL KNIVES SPECIFICATION:
CHANNELS, 90 DEGREES ..... 6"
WORKING HEIGHT ........... 45-7/8" CENTER OF BLADE

SQUARE NOTCHER SPECIFICATION:
PLATE .................... 1/2"
ANGLES ................... 3" X 3/8"
CHANNELS IN FLANGE ....... 3" TO 5"
NOTCH WIDE ............... 2"
NOTCH DEPTH .............. 2-3/4"

TRIANGULAR NOTCHER SPECIFICATION:
PLATE .................... 1/2"
ANGLES ................... 2-1/2" X 3/8"
NOTCH DEPTH .............. 2-3/16"
WORKING HEIGHT ........... 44-1/4"

PUNCH UNIT SPECIFICATION:
CAPACITY ................. 105 TONS
PUNCH CAPACITY ........... 1-1/4" IN 3/4"
CHANNELS IN FLANGE ....... 4" TO 15"
CHANNELS IN WEB .......... 4" TO 15"

PUNCH WITH OVERSIZE PUNCHING ATTACHMENT:
UP TO 2-1/2" ............. 2-1/2" X 7/16"
UP TO 3-1/2" ............. 3-1/2" X 11/32"
THROAT DEPTH ............. 10"
WORKING HEIGHT ........... 44-3/4"
