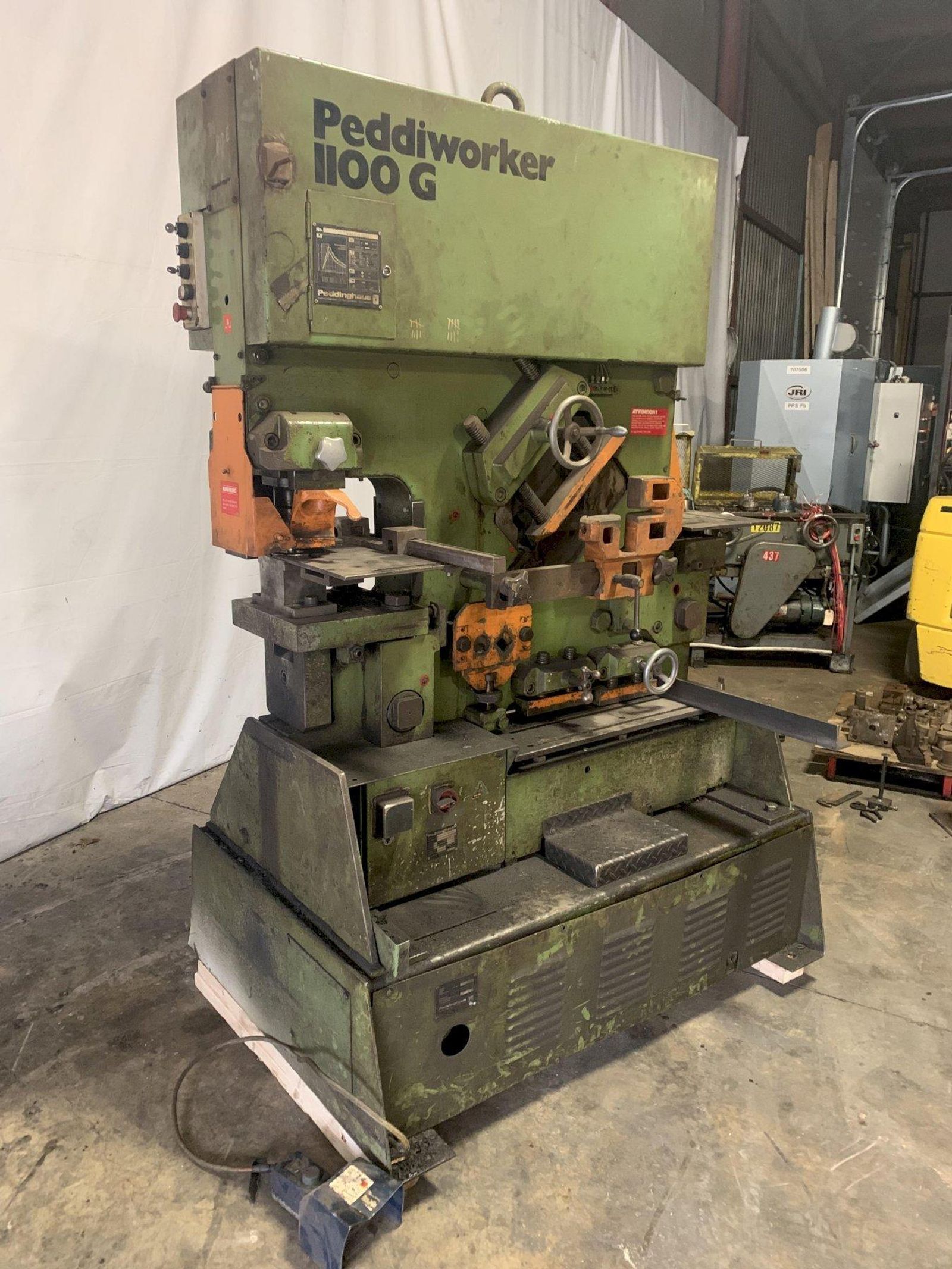

110 TON PEDDINGHAUS "PEDDIWORKER" 1100G HYDRAULIC IRONWORKER: STOCK #12175

Stock #: 12175

Equipped With

FLAT BAR SHEAR

SECTION SHEAR

SHEARS WITH ANGLE IRON KNIVES (STANDARD)

BAR STOCK SHEAR

SQUARE NOTCHING ATTACHMENT

PUNCH UNIT

MACHINE DATA

Buy Machines

110 TON PEDDINGHAUS "PEDDIWORKER" 1100G HYDRAULIC IRONWORKER: STOCK #12175

Stock # 12175

Share Machine
Print Details

Machine Specifications

FLAT BAR SHEAR

  • FLAT BAR (SLIGHTLY DISTORTED 6 DEGREES): 8”X1”
  • FLAT BAR (DISTORTION-FREE 3 DEGREES): 12” X ¾”,
  • 20”X 5/8”
  • BLADE LENGTH: 20-7/8”
  • WORKING HEIGHT: 26-1/2”

SECTION SHEAR

  • SHEARING CROSS SECTION: 4.75”
  • STROKE (INFINITELY VARIABLE): 3/8” – 1-9/16”

SHEARS WITH ANGLE IRON KNIVES (STANDARD)

  • ANGLES (90 DEGREES): 6” X ½”
  • ANGLES (45 DEGREES): 4” X 3/8”

BAR STOCK SHEAR

  • ROUNDS: 1-3/4”
  • SQUARES: 1-9/16”

SQUARE NOTCHING ATTACHMENT

  • PLATE: ½”
  • ANGLES: 3-1/2” X 3/8”
  • CHANNELS IN FLANGE: 3-6
  • I-BEAMS IN FLANGE: 3-6
  • WIDTH OF NOTCH: 2-9/16”
  • DEPTH OF NOTCH: 3-5/16”

PUNCH UNIT

  • RATED CAPACITY: 110 TONS
  • STROKE (INFINITELY VARIABLE): ½” – 1-9/16”
  • THROAT DEPTH: 10”
  • WORKING HEIGHT: 44-1/2”

MACHINE DATA

  • NUMBER OF STROKES AT X INCHES PER STROKE: 24-3/8”
  • CONNECTED LOAD: 10 HP
  • CHARGE OF OIL: 21 GALLONS
  • NET WEIGHT WITH OIL (APPROX): 6,200 LBS
  • GROSS WEIGHT (APPROX): 6,600 LBS
  • OVERALL MACHINE DIMENSIONS: 60” X 41” X 84”
