Overview

SERIAL ................... 9069
MODEL .................... 110 PF-OBS
NEW ...................... 1981
CAPACITY ................. 110 TON
STROKE ................... 10"
OPEN HEIGHT .............. 15.25"
CLOSED HEIGHT ............ 5.25"
RAM SIZE ................. 21" X 28"
BED SIZE ................. 27" X 42"
BED BOLSTER HEIGHT ....... 4"
BED & RAM T-SLOTTED ...... YES
THROAT ................... 14.5"
BETWEEN HOUSINGS ......... 29"
ADVANCE SPEED ............ 324 & 120 IPM
PRESSING SPEED ........... 42 IPM
RETURN SPEED ............. 204 & 78 IPM
PASSLINE HEIGHT .......... 40"
MOTOR .................... 30 HP
KNOCK OUT CYLINDER ....... YES
CUSHION .................. 30 TON
TONNAGE CONTROL VALVE .... YES
TONNAGE INDICATOR GAUGE .. YES
OIL COOLER ............... YES

Specifications
Dimensions 44" X 109" X 140" HIGH
Weight 28000 pounds

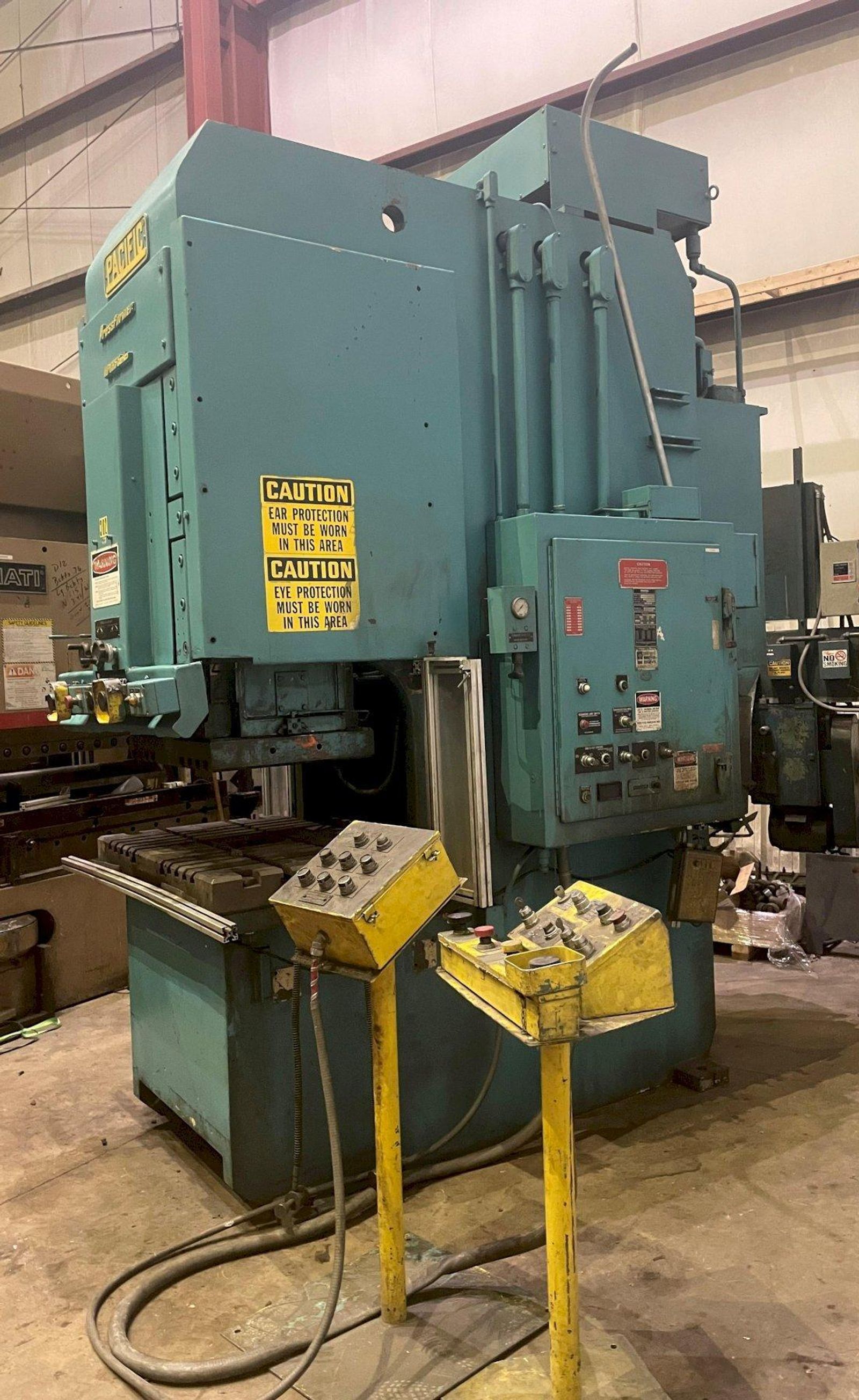

110 TON PACIFIC PRESSFORMER GUIDED RAM OBS HYDRAULIC PRESS: STOCK #14524

Brand
PACIFIC

Type
Presses, Hydraulic

Stock No.
14524

Make an Offer
Request a Quote
Print Details

Contact Us
