SERIAL .................... 81402-75-1
MODEL ..................... 90-30
CAPACITY .................. 10,000 LBS
MANDREL LENGTH ............ 36"
COIL ID ................... 16" TO 20"
EXPANSION ................. AIR OVER HYDRAULIC
COIL OD ................... 48"
FLOOR TO MANDREL CENTER ... 42.5"
ELECTRIC BRAKE ............ 110V & VARIABLE HOLD
NON MOTORIZED ............. YES
| Specifications | ||
|---|---|---|
| Max Weight of Coil | 10000 pounds | |
| Max Width of Coil | 36 inches | |
| CNC Control | no | |
| Dimensions | 86" x 42" x 54" H | |

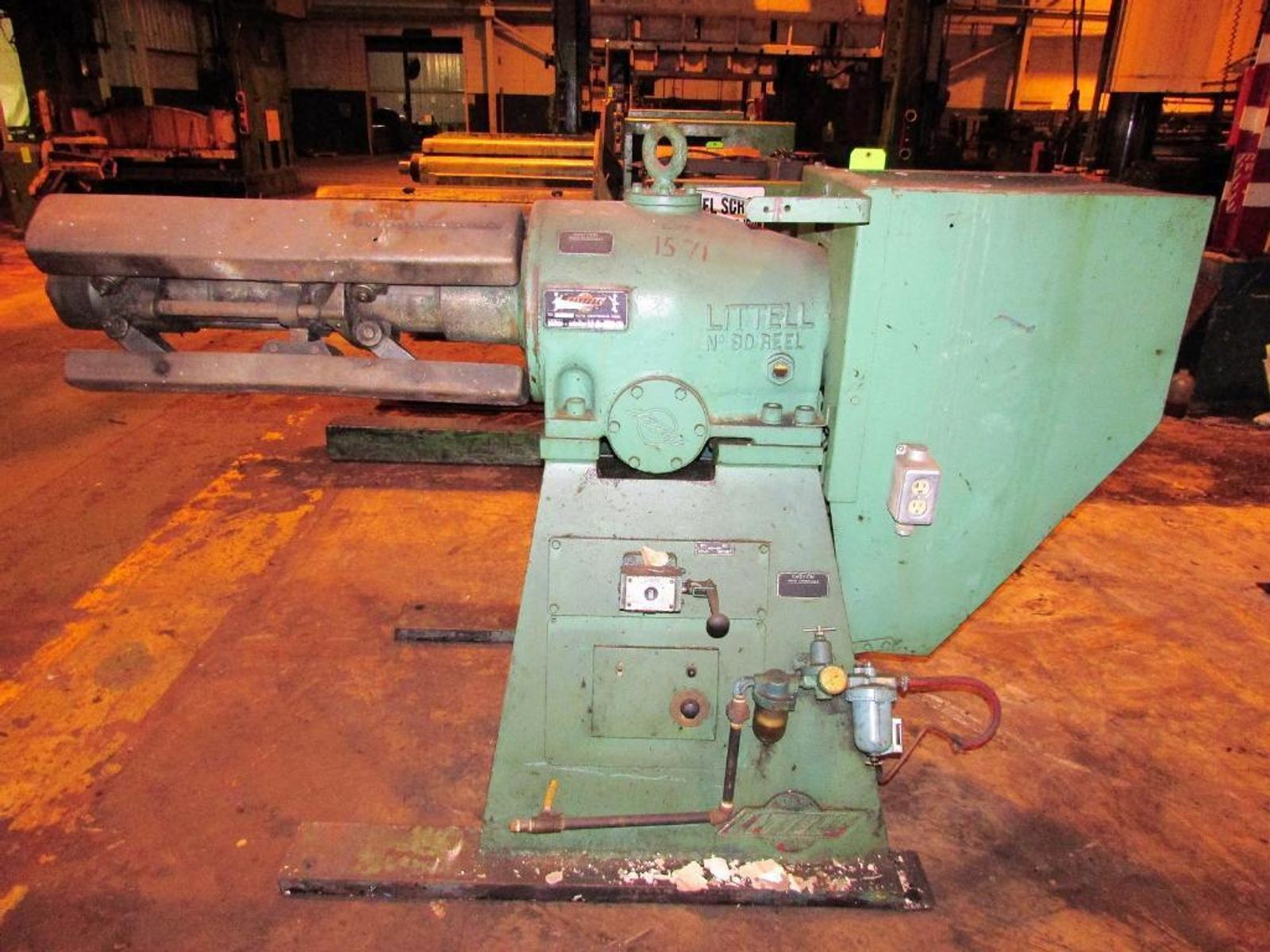

Brand
LITTELL
Type
Uncoilers
Stock No.
10017
 |
419-269-2000 |
Stock #: 10017
SERIAL .................... 81402-75-1
MODEL ..................... 90-30
CAPACITY .................. 10,000 LBS
MANDREL LENGTH ............ 36"
COIL ID ................... 16" TO 20"
EXPANSION ................. AIR OVER HYDRAULIC
COIL OD ................... 48"
FLOOR TO MANDREL CENTER ... 42.5"
ELECTRIC BRAKE ............ 110V & VARIABLE HOLD
NON MOTORIZED ............. YES
