| Specifications | ||
|---|---|---|
| Max Weight of Coil | 10000 pounds | |
| Max Coil Width Capacity | 40 inches | |
| Max Stock Thickness Capacity At Full Width | .105 inches | |
Brand
ROWE
Type
Coil Feed Lines
Stock No.
20335
 |
419-269-2000 |

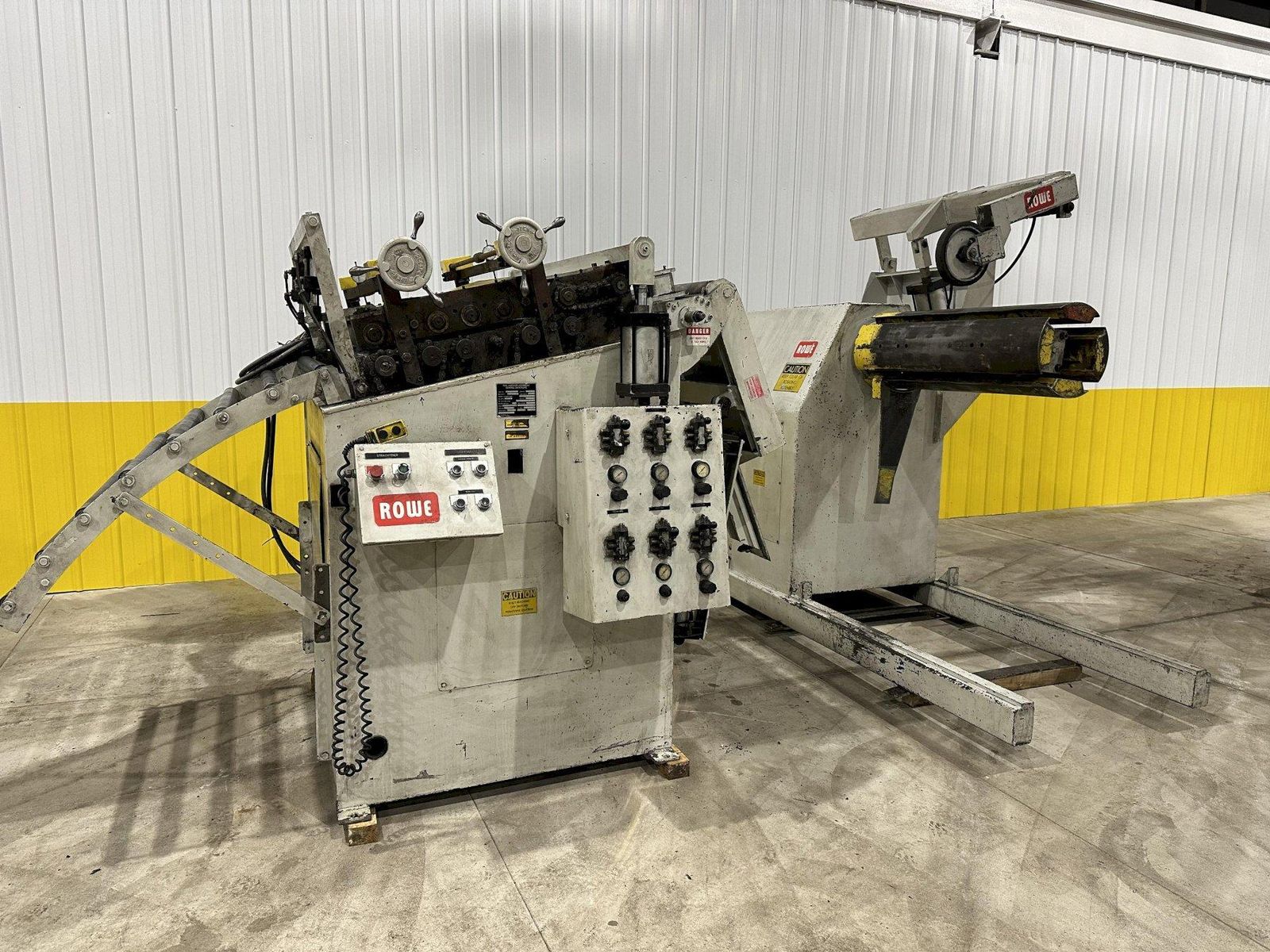

Stock #: 20335
ROWE STRAIGHTENER:SERIAL .................... R29451STRMODEL ..................... C6-40COIL WIDTH ................ 40"THICKNESS CAPACITY ........ .020 TO .105"NUMBER OF ROLLS ........... (7) 3 OVER 4SPEED ..................... 160 FPM MAXVARIABLE SPEED ............ YES, TB WOODS VFDPASSLINE .................. 44"LINE DIRECTION ............ RIGHT TO LEFTPEELER TABLE .............. YESENTRY & EXIT PINCH ROLLS .. YESENTRY SIDE GUIDE ROLLS .... YESDRIVE MOTOR ............... 5.5 HPROWE UNCOILER:SERIAL .................... R29451CRMODEL ..................... 10040-H-DSJWEIGHT CAPACITY ........... 10,000 LBSCOIL WIDTH ................ 40"COIL I.D. ................. 15.75" TO 20.25"COIL O.D. ................. 60"EXPANSION ................. HYDRAULICHOLD DOWN ARM ............. YESTHREADING WHEEL ........... YESLINE DIRECTION ............ RIGHT TO LEFTHYDRAULIC UNIT MOTOR ...... 2 HP
