Machine Information

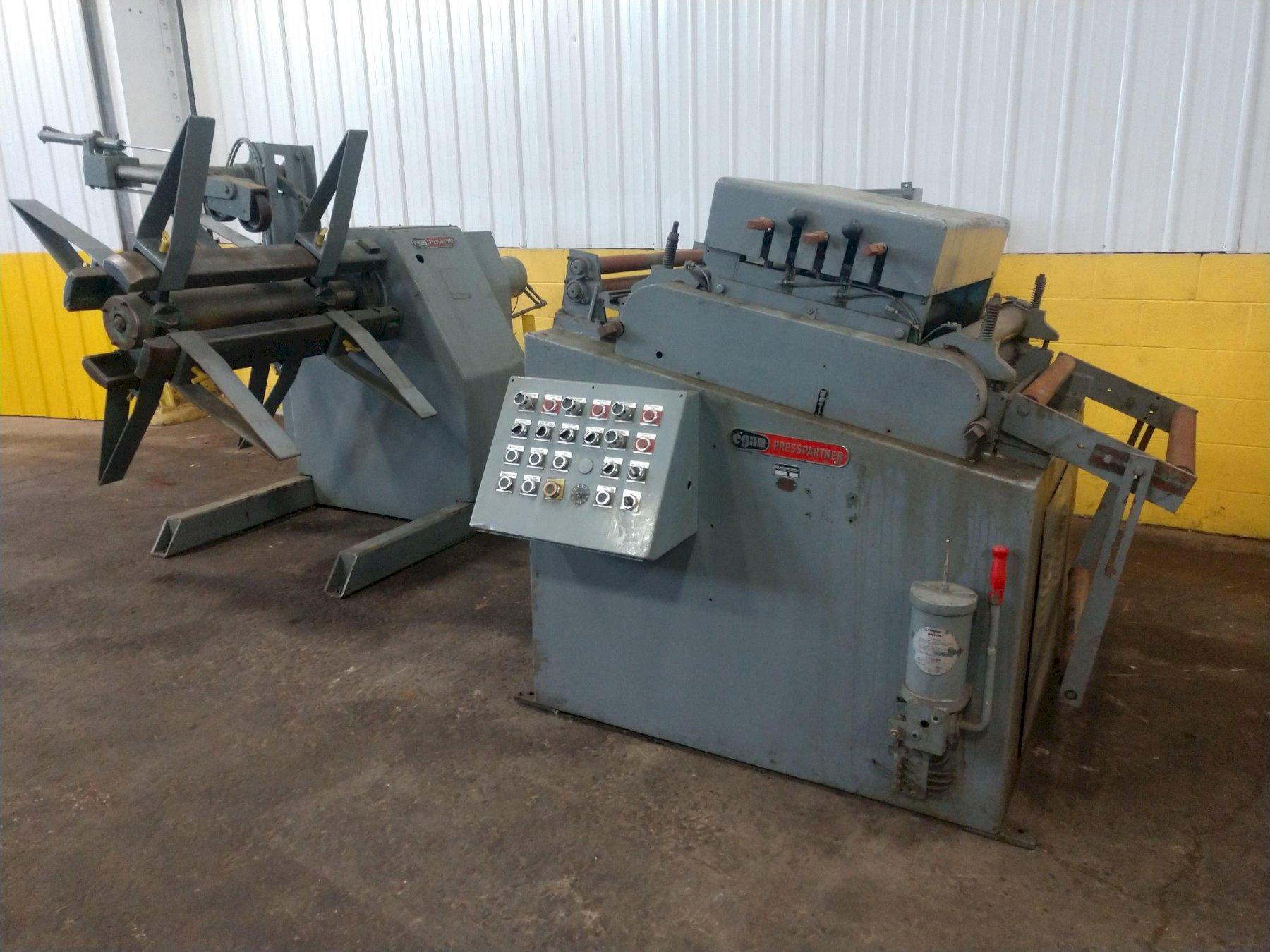

10,000 LB x 30" x .110" EGAN COIL REEL & STRAIGHTENER: STOCK 14982

Stock #: 14982

Equipped With

Egan Coil Reel Uncoiler and Powered coil Straightener Combination Specifications:
Coil weight capacity: 10,000 Lbs.
Coil width capacity: 30" wide
Stock thickness capacity: .110'' x 30'' wide
Stock thickness capacity: .190'' x 10'' wide
Expansion range: 17"-20" (To be confirmed)
Coil O.D. capacity: 60"

Egan Coil Reel Uncoiler and Powered Coil Straightener Combination Equipment and Features:

Egan Coil Reel Uncoiler Model No.: M1001-36
Four leaf mandrel coil reel
Coil reel keeper arms
Hydraulic coil reel mandrel expansion
Electric brake mounted on main coil reel spindle
Adjustable tensioning
Adjustable coil hold down arm
Hydraulic unit

Egan Powered Coil Straightener, Model No.: S30-630
Manual adjustment of entrance and exit powered coil straightener pinch rolls
Six coil straightening rolls x 3.125 diameter - three over three design
Independent adjustment of coil straightening rolls
Adjustable stock width edge guides
Three roll material support section
Entrance side trap roll
Reconditioned machine includes:
AC variable frequency powered coil straightener drive (240 or 480 Volt)
Dynamic braking resistors
Remote pendant for jog forward and reverse
Auto / Run cycle
Variable speed loop control
