Machine Information

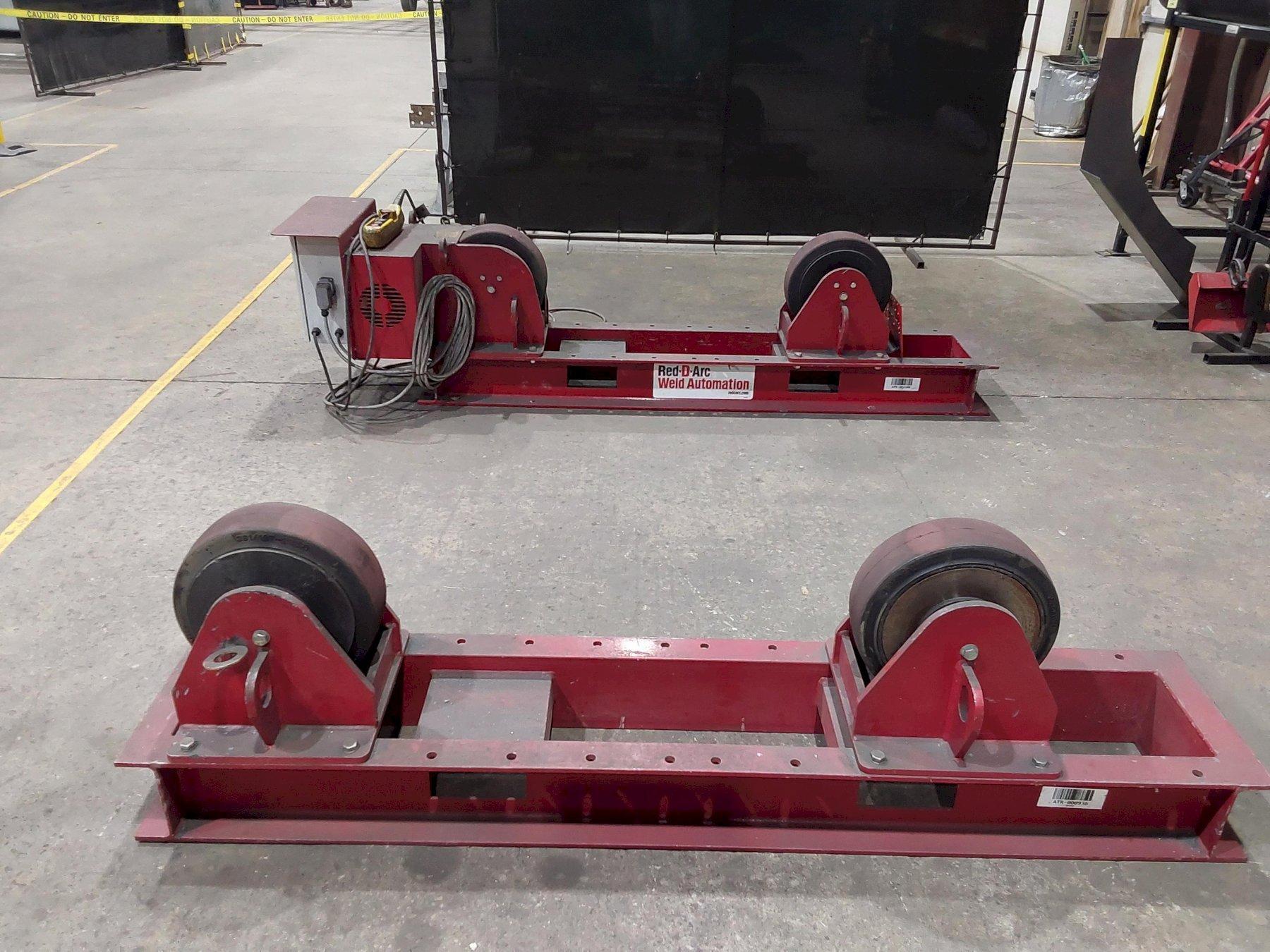

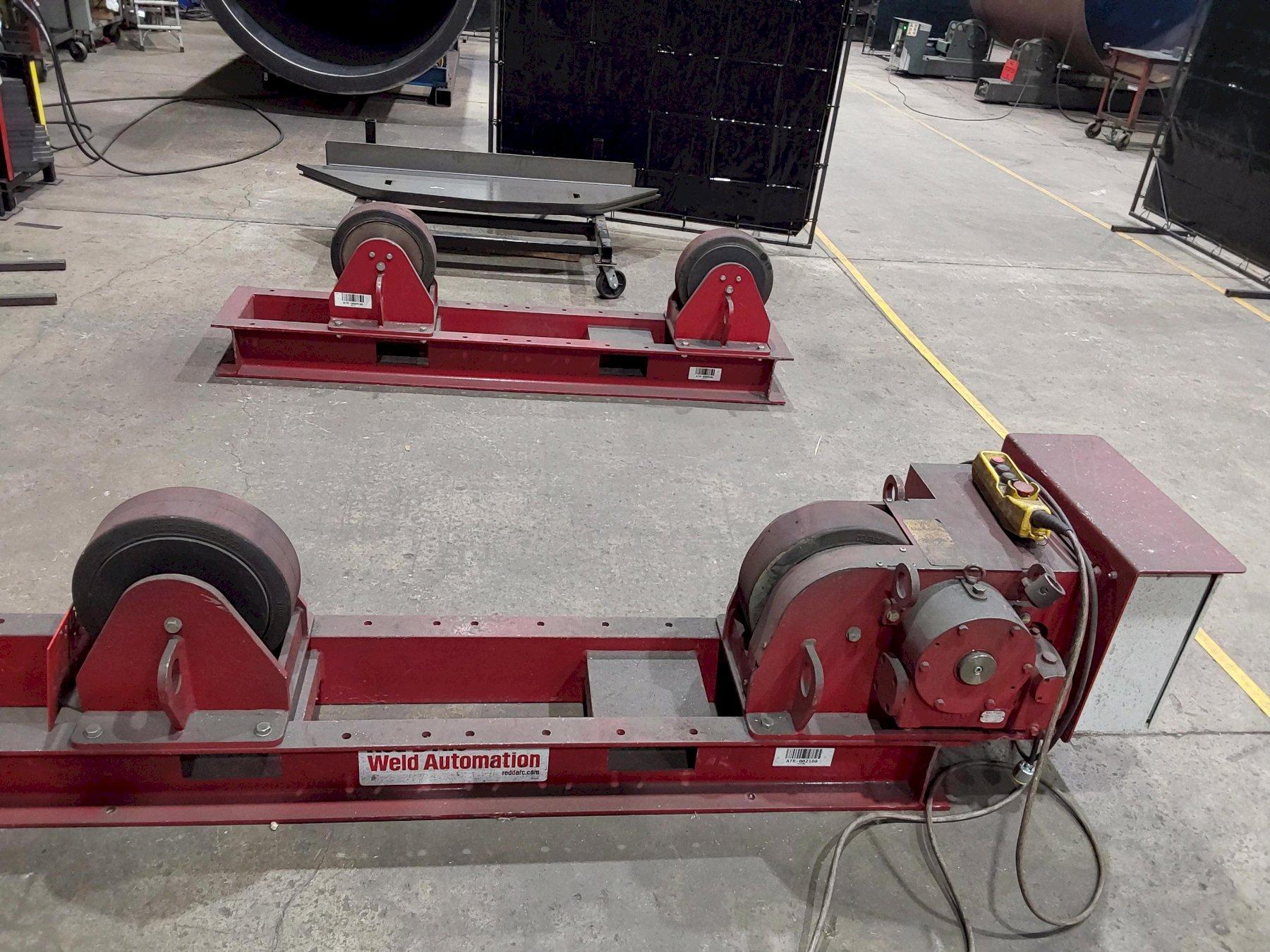

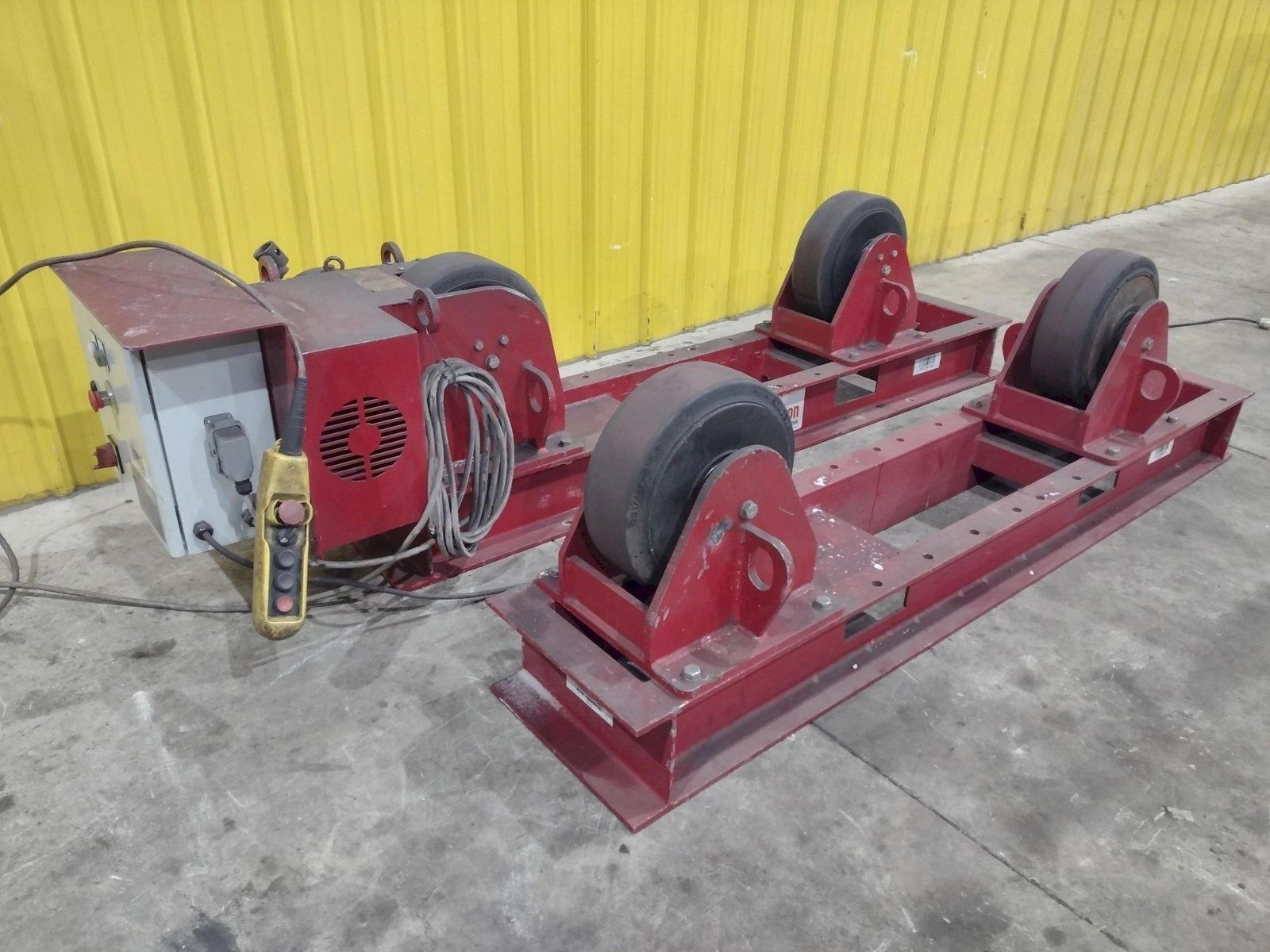

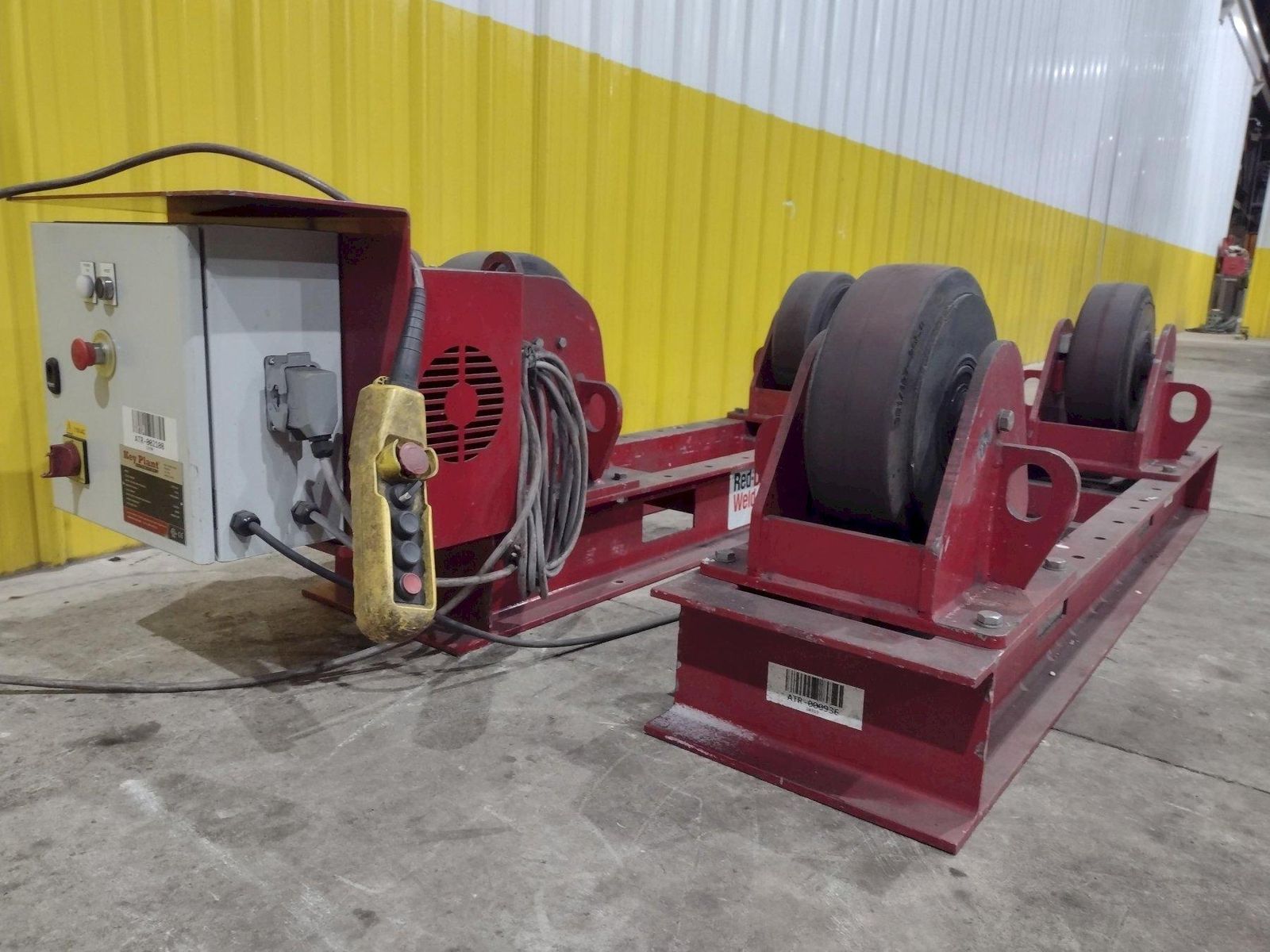

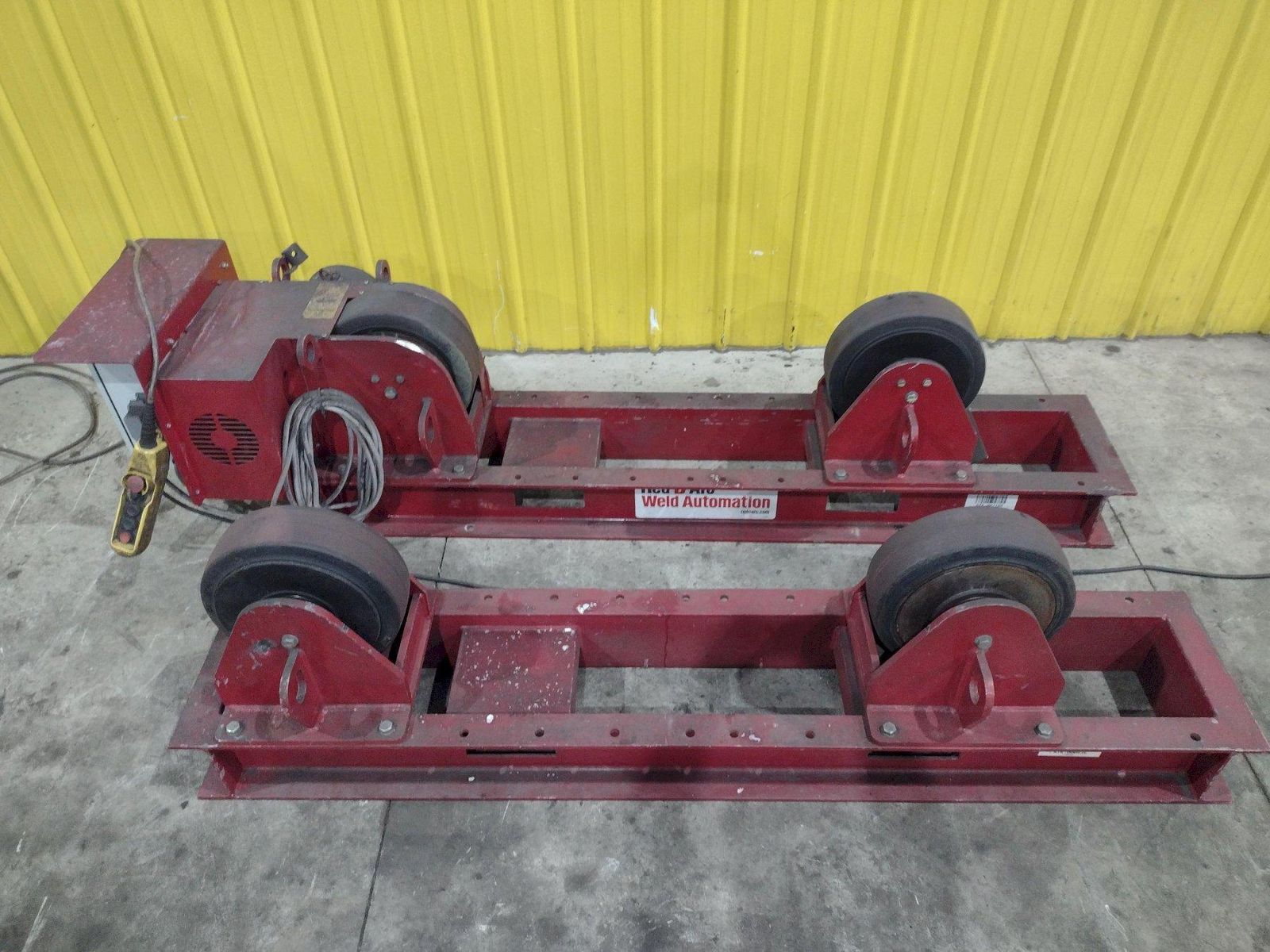

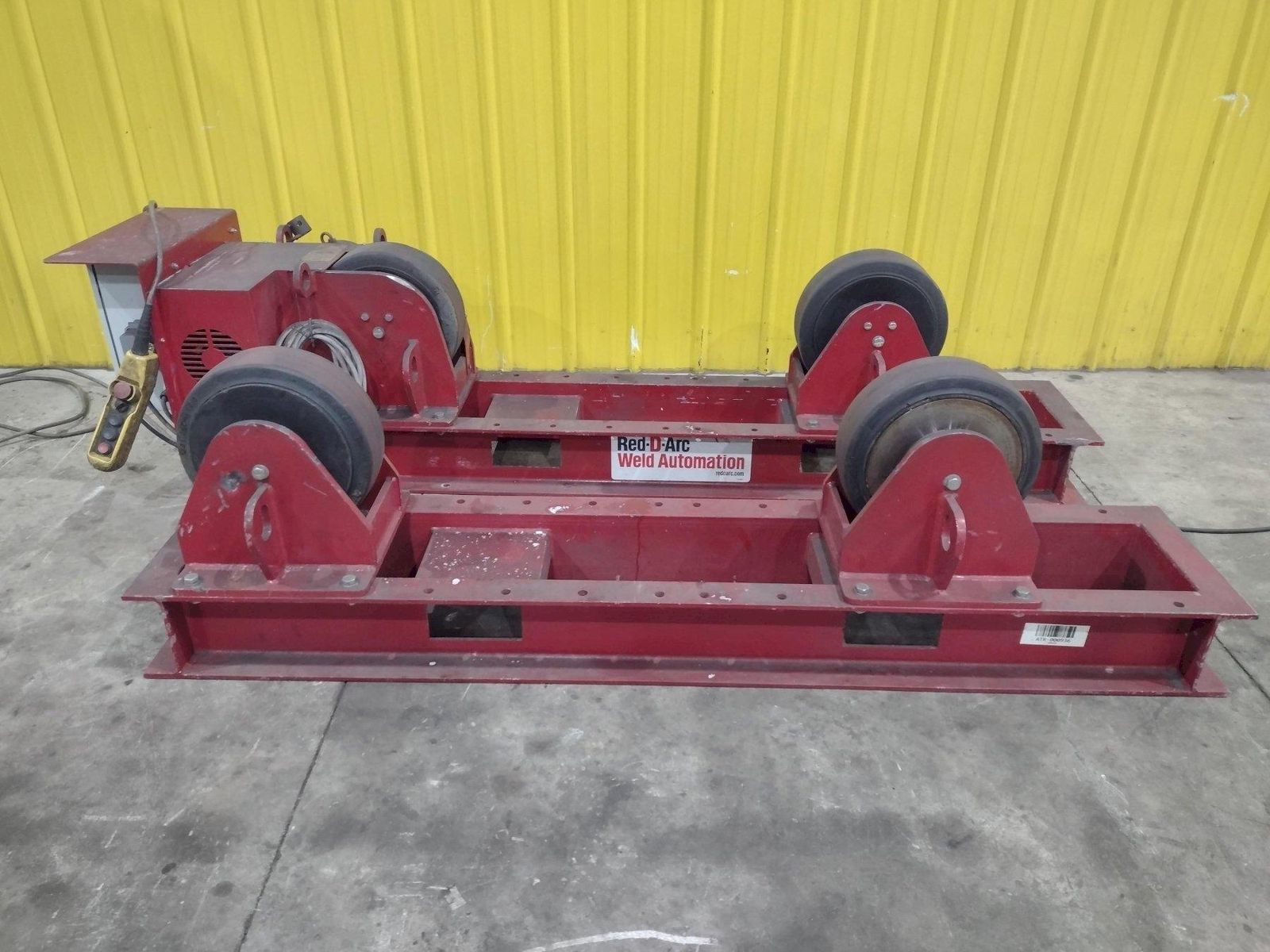

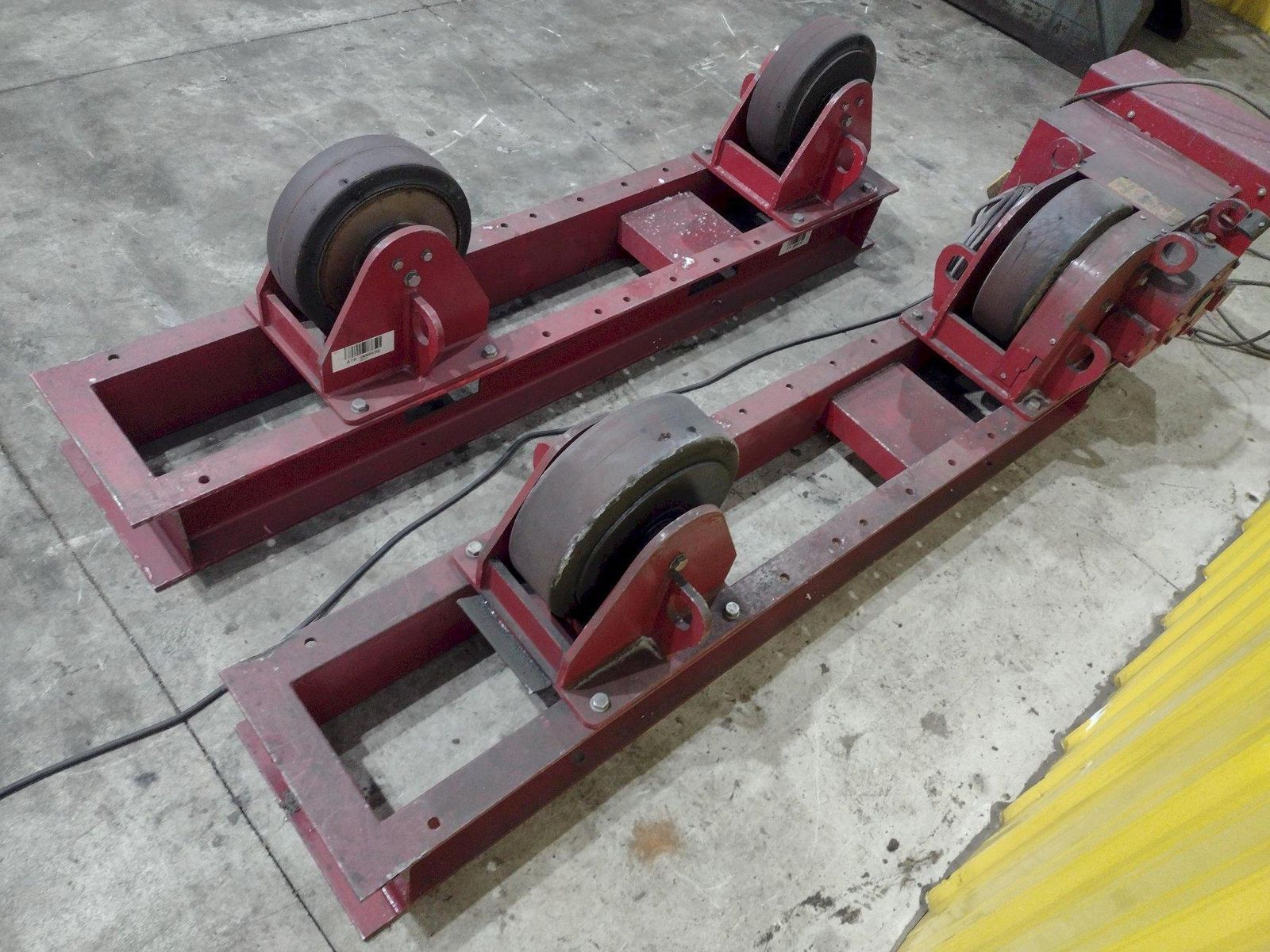

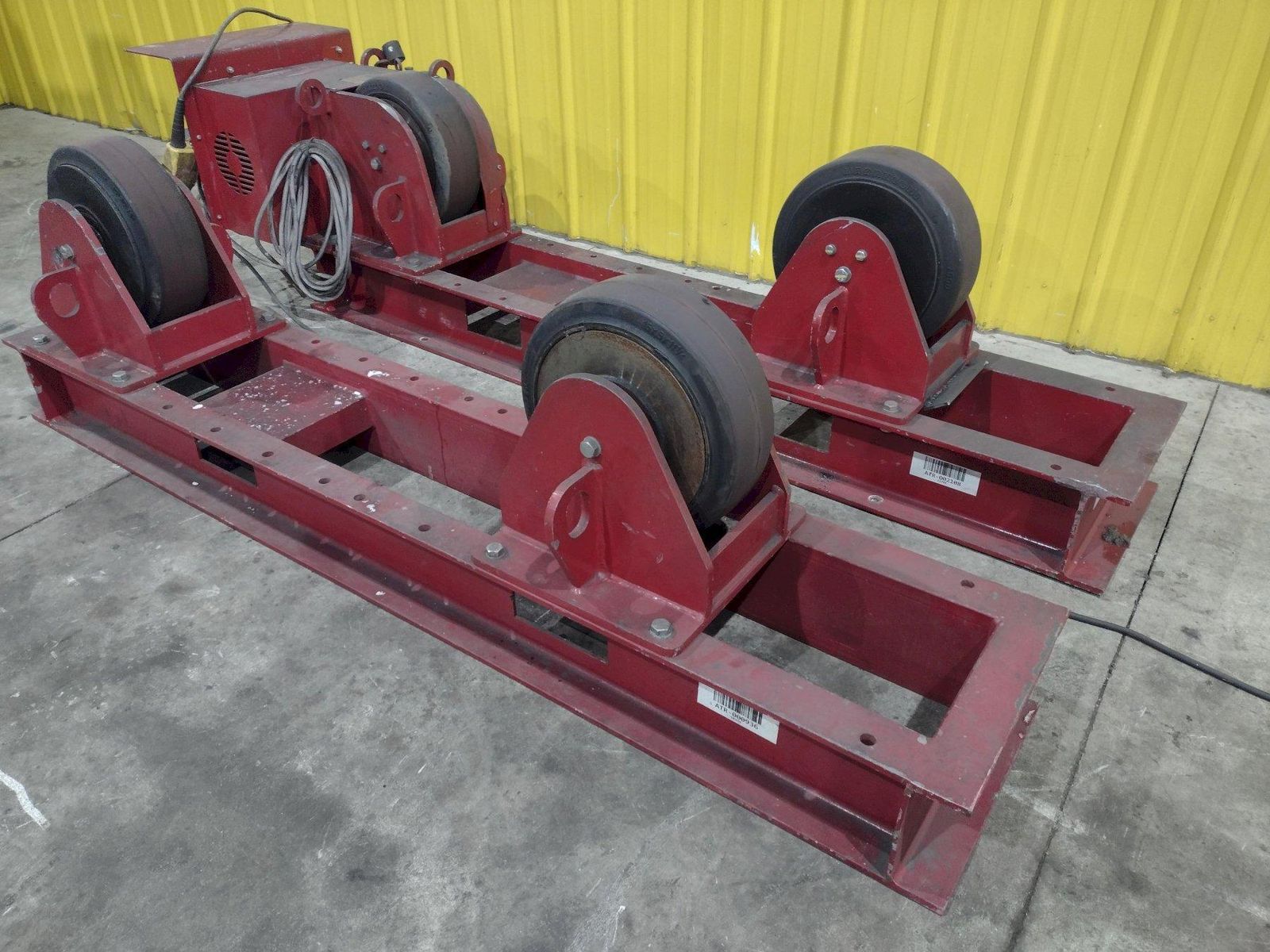

10,000 LB 5 TON RED-D-ARC MODEL #CR5 TANK TURNING ROLLS, POWER & IDLER: YOBRO 24747

Stock #: 24747

Equipped With

Features


5 Ton Drive/Idler Roll Set Load-Carrying Capacity
7.5 Ton Drive Roll Load-Turning Capacity
8" to 137" Vessel Diameter Capacity




Model:
RDA CR5 NA turning roll set (drive and idler)


Manufacturer Part Number:
Drive: CRD5, Idler: CRI5


Load Carrying Capacity:
Drive: 2.5 ton maximum
Idler: 2.5 ton maximum
Set: 5 ton maximum


Rotation Capacity:
Drive Roll: 7.5 ton maximum


Wheel Centre Distance:
15.1, 26.9, 38.7, 62.4 in


Vessel Diameter Capacity:
7.9 in to 137.8 in


Rotation Speed Range:
5.5 to 59 in/min


Tire Type:
Rubber, A90-95 durometer rating


Wheel Size:
15 in diameter x 3 in wide

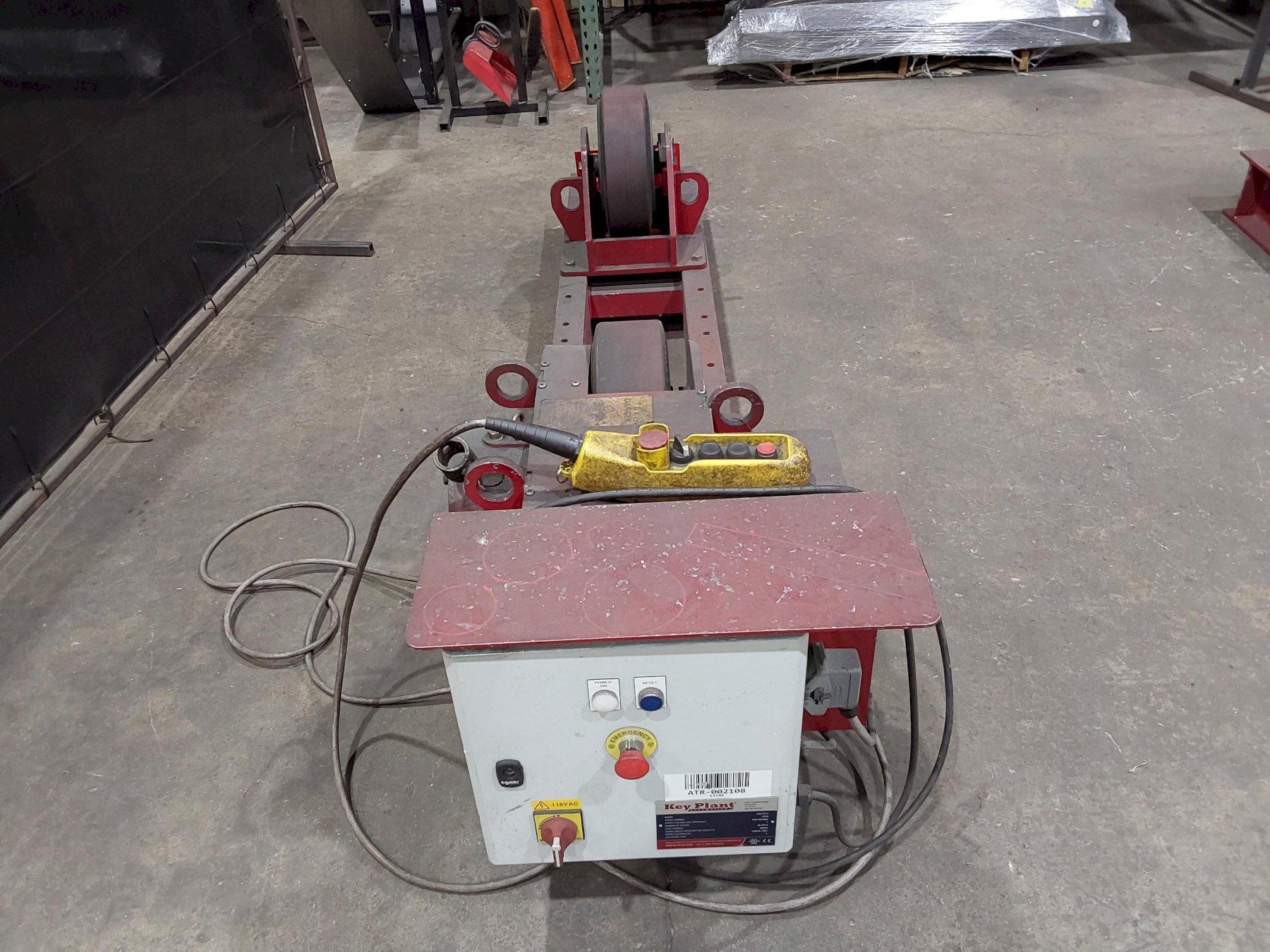

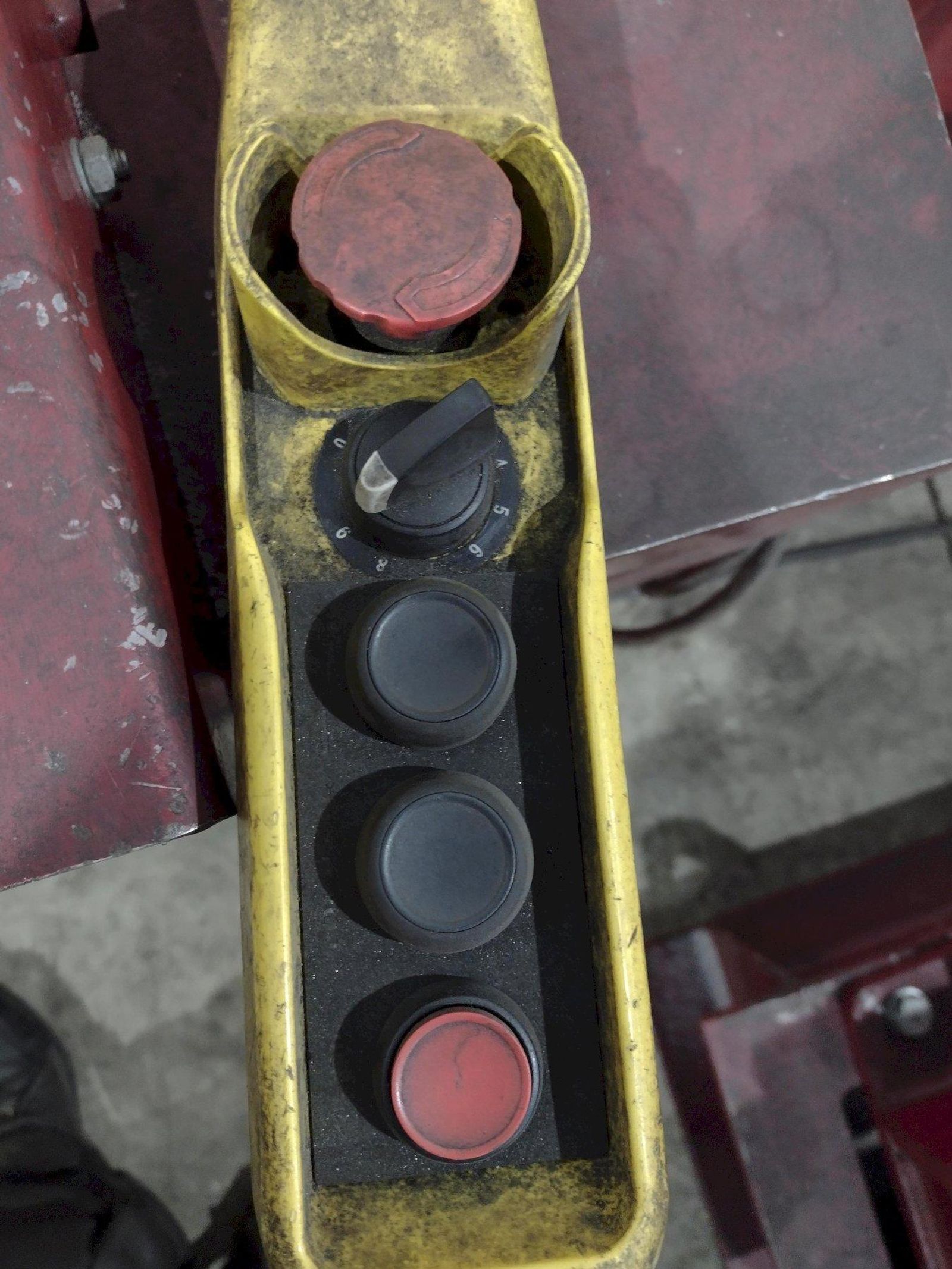

Five Function Hand Control:
Push Button Pendant, 50 ft control cable (forward/stop/reverse/speed control/emergency stop)

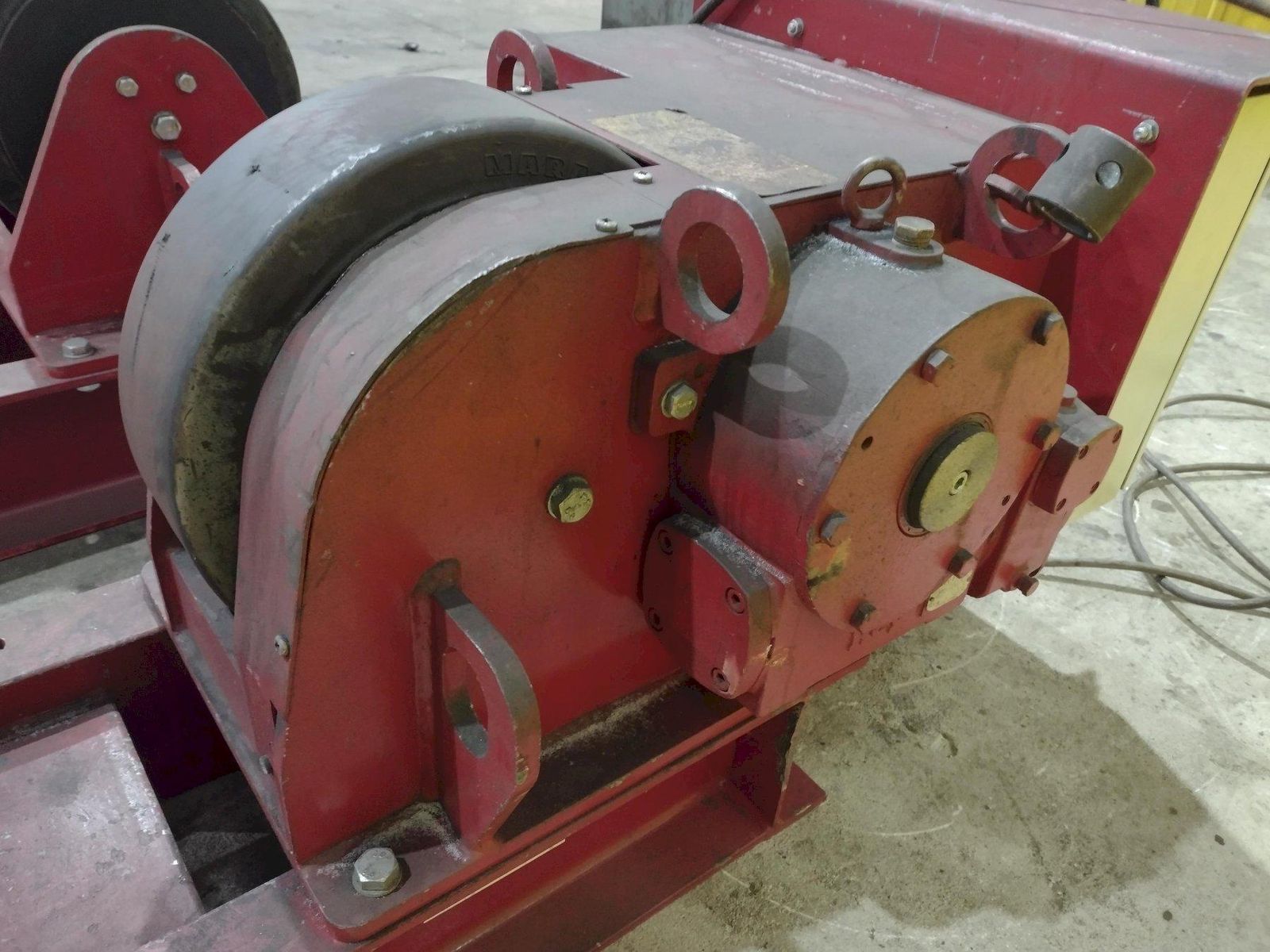

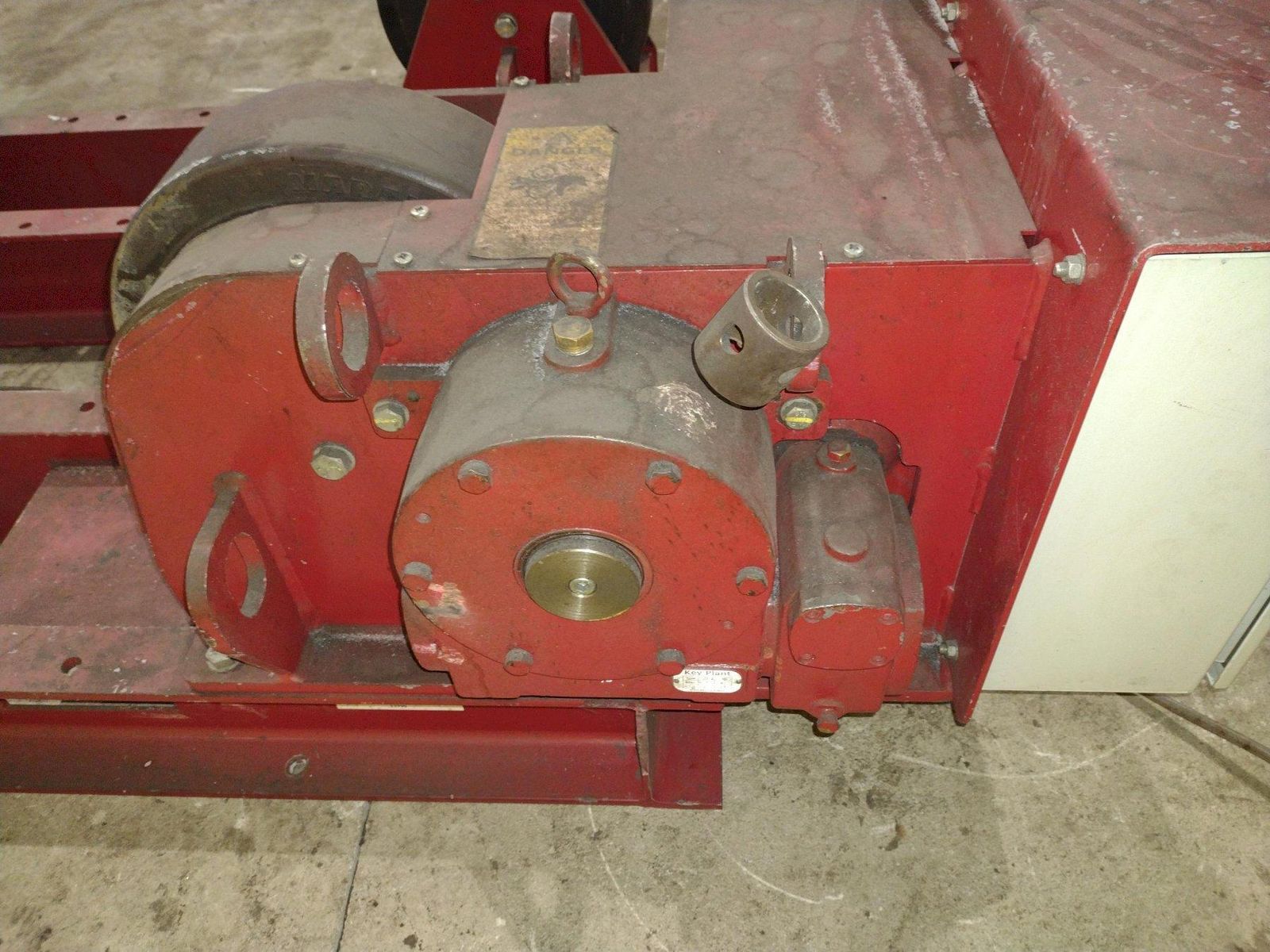

Rotation Drive Motor:
0.55 kW with fan cooling


Primary Input Power:
110 V, 1 phase, 60 Hz


Input Current at Rated Load:
6.9 A


Weight:
Drive: 1300 lb
Idler: 1036 lb

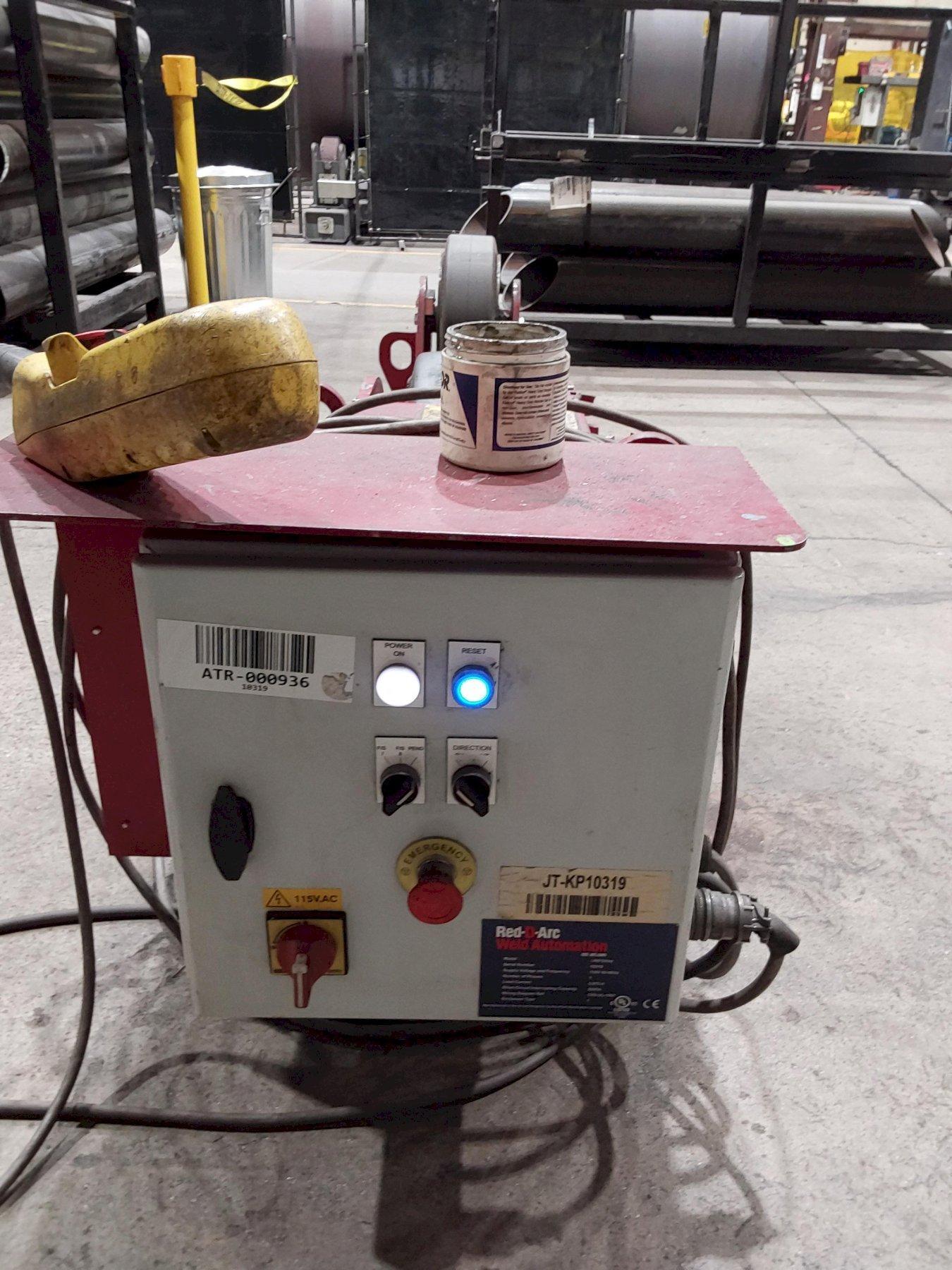

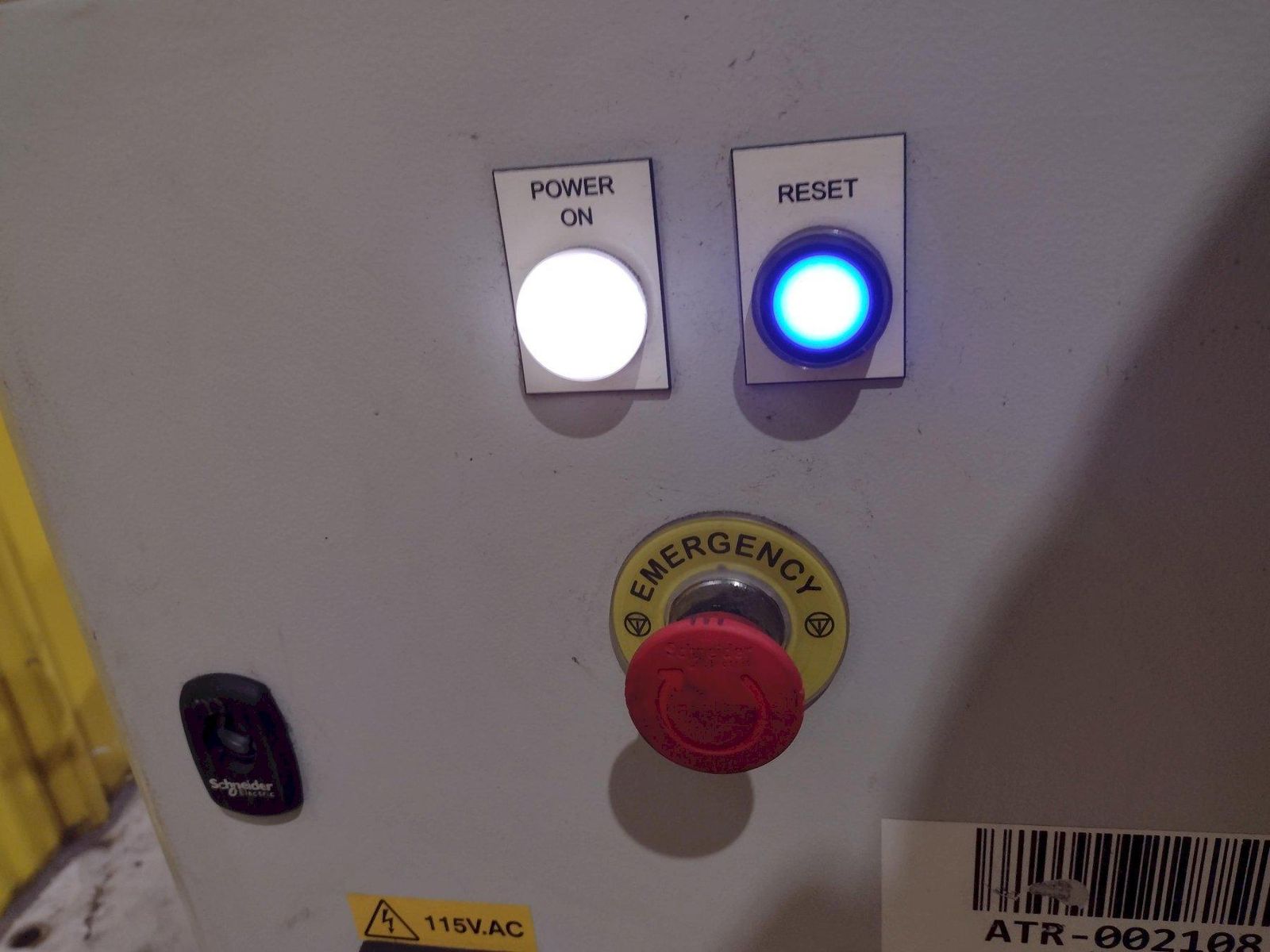

Control Box Ingress Protection Rating: IP65


Control Box Electrical Certification: UL508


Loading Capacity Certification: UL2011
