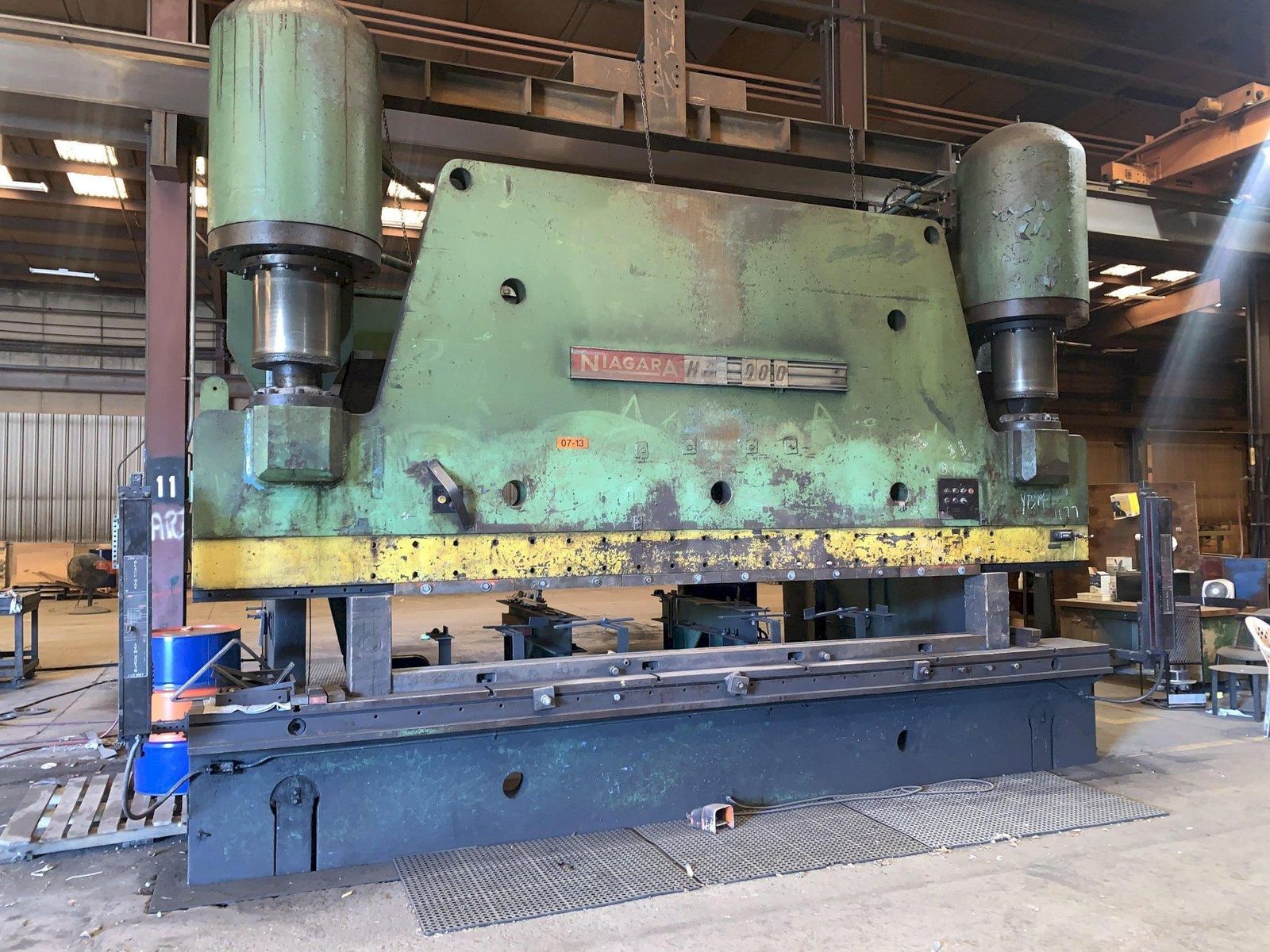

1000 TON X 18' NIAGARA #HD1000 14-18 HYDRAULIC PRESS BRAKE: STOCK #13329

Stock #: 13329

Equipped With

SERIAL ........................... 50780
MODEL ............................ HD1000 14-18
CAPACITY ......................... 1000 TON
LENGTH OF BED & RAM .............. 18'
DISTANCE BETWEEN HOUSINGS ........ 14'6"
STROKE ........................... 24"
OPEN HEIGHT ...................... 36"
CLOSED HEIGHT .................... 12"
THROAT ........................... 10"
RAM ADVANCE & RETURN SPEED ....... 88 IPM
RAM PRESSING SPEED ............... 44 IPM
MANUAL RAM ADVANCE ............... YES
RAM MILLED & DRILLED FOR ANGLES .. YES
TOP STOP RETURN .................. YES
BACK SUPPORT STANDS .............. YES, (2)
POWER RAM ADJUSTMENT ............. YES
STROKE ADJUSTMENT ................ YES
FOOT TRIP CONTROL ................ YES
BLACK MAX LIGHT CURTAINS ......... YES
MOTOR ............................ 60 HP
