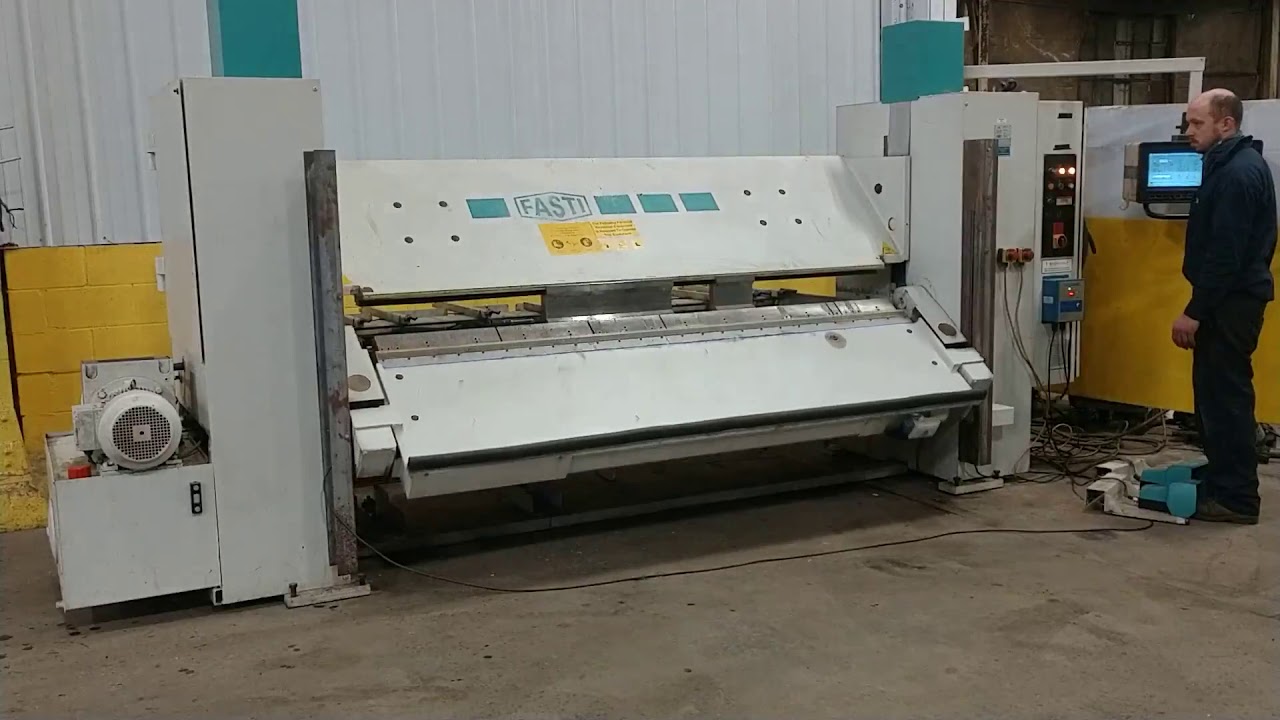

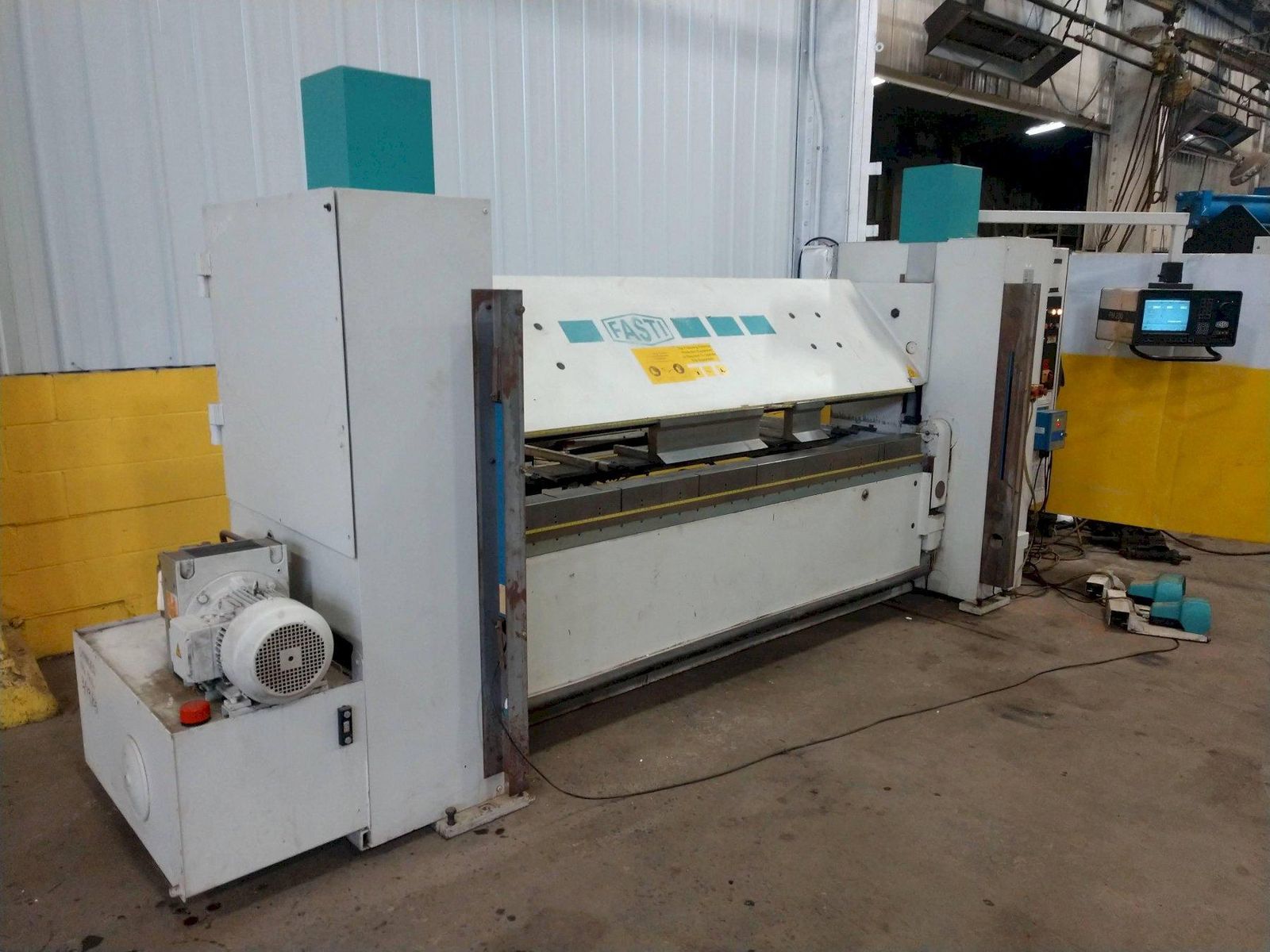

100" x 3/16" FASTI MODEL 225-25-5 HYDRUAULIC CNC FOLDER: STOCK #12041

Stock #: 12041

Equipped With

Serial ................................ 01 225 024
Year New .............................. 2001
Model ................................. 225-25-5
Maximum Sheet Thickness ............... 3/16" (5 mm)
Maximum Working Length ................ 100" (2540 mm)
Clamp Open Height ..................... 13.78"
Clamp Opening Speed ................... 3.27 IPM
Clamp Closing Speed ................... 1.97 IPM
Clamping Beam Accuracy ................ .0004"
CNC Folding Beam Adj. Range ........... 3.15"
Angle Bending Range ................... 0 - 180 Degrees
Folding Beam Speed, Up ................ 60 Deg./Sec
Folding Beam Speed, Down .............. 113 Deg./Sec
Folding Beam Speed, Maximum ........... 86.5 Deg./Sec
Folding Beam Speed Accuracy ...........  /- 1/2 Deg.
Back Gauge Range ...................... .394"-63"
Back Gauge Accuracy ...................  /-.002"
Back Gauge Position Speed ............. 13 IPS
Drive Motor (220/440/3/60) ............  H.P.

EQUIPPPED WITH:
CNC Control with 12" Color LCD
Automatic Hydraulic Tool Clamping
63" Backgauge Range with 2 rows of Pop-Up Gauge Fingers
Electric Foot Switch Controls

Buy Machines

100" x 3/16" FASTI MODEL 225-25-5 HYDRUAULIC CNC FOLDER: STOCK #12041

Stock # 12041

Share Machine
Print Details

Machine Specifications

Serial ................................ 01 225 024
Year New .............................. 2001
Model ................................. 225-25-5
Maximum Sheet Thickness ............... 3/16" (5 mm)
Maximum Working Length ................ 100" (2540 mm)
Clamp Open Height ..................... 13.78"
Clamp Opening Speed ................... 3.27 IPM
Clamp Closing Speed ................... 1.97 IPM
Clamping Beam Accuracy ................ .0004"
CNC Folding Beam Adj. Range ........... 3.15"
Angle Bending Range ................... 0 - 180 Degrees
Folding Beam Speed, Up ................ 60 Deg./Sec
Folding Beam Speed, Down .............. 113 Deg./Sec
Folding Beam Speed, Maximum ........... 86.5 Deg./Sec
Folding Beam Speed Accuracy ...........  /- 1/2 Deg.
Back Gauge Range ...................... .394"-63"
Back Gauge Accuracy ...................  /-.002"
Back Gauge Position Speed ............. 13 IPS
Drive Motor (220/440/3/60) ............  H.P.

EQUIPPPED WITH:
CNC Control with 12" Color LCD
Automatic Hydraulic Tool Clamping
63" Backgauge Range with 2 rows of Pop-Up Gauge Fingers
Electric Foot Switch Controls
