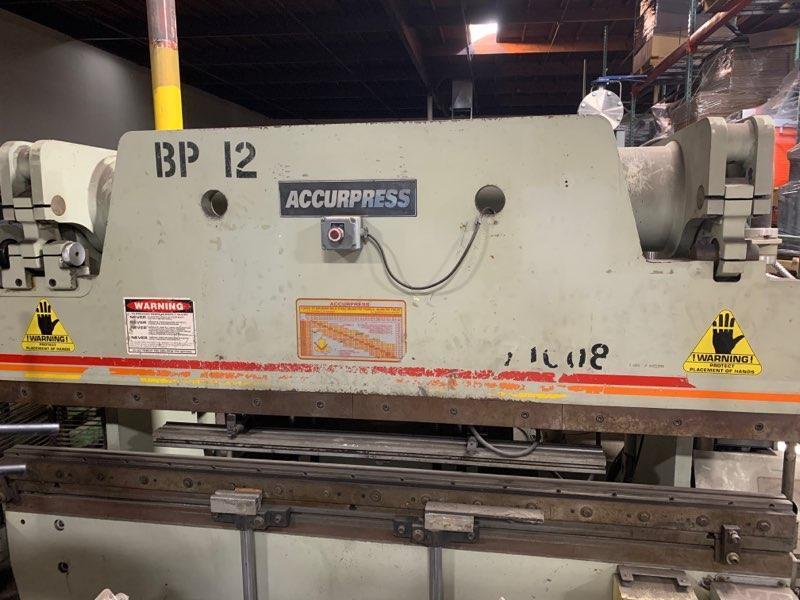

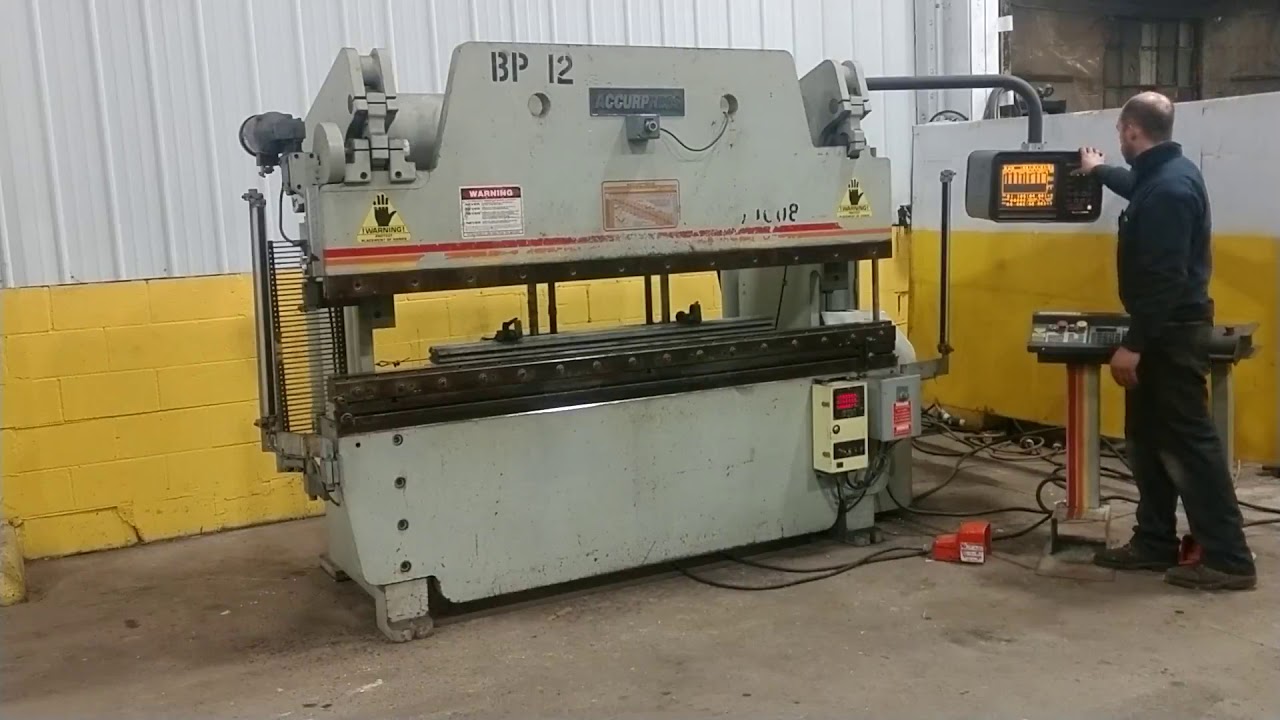

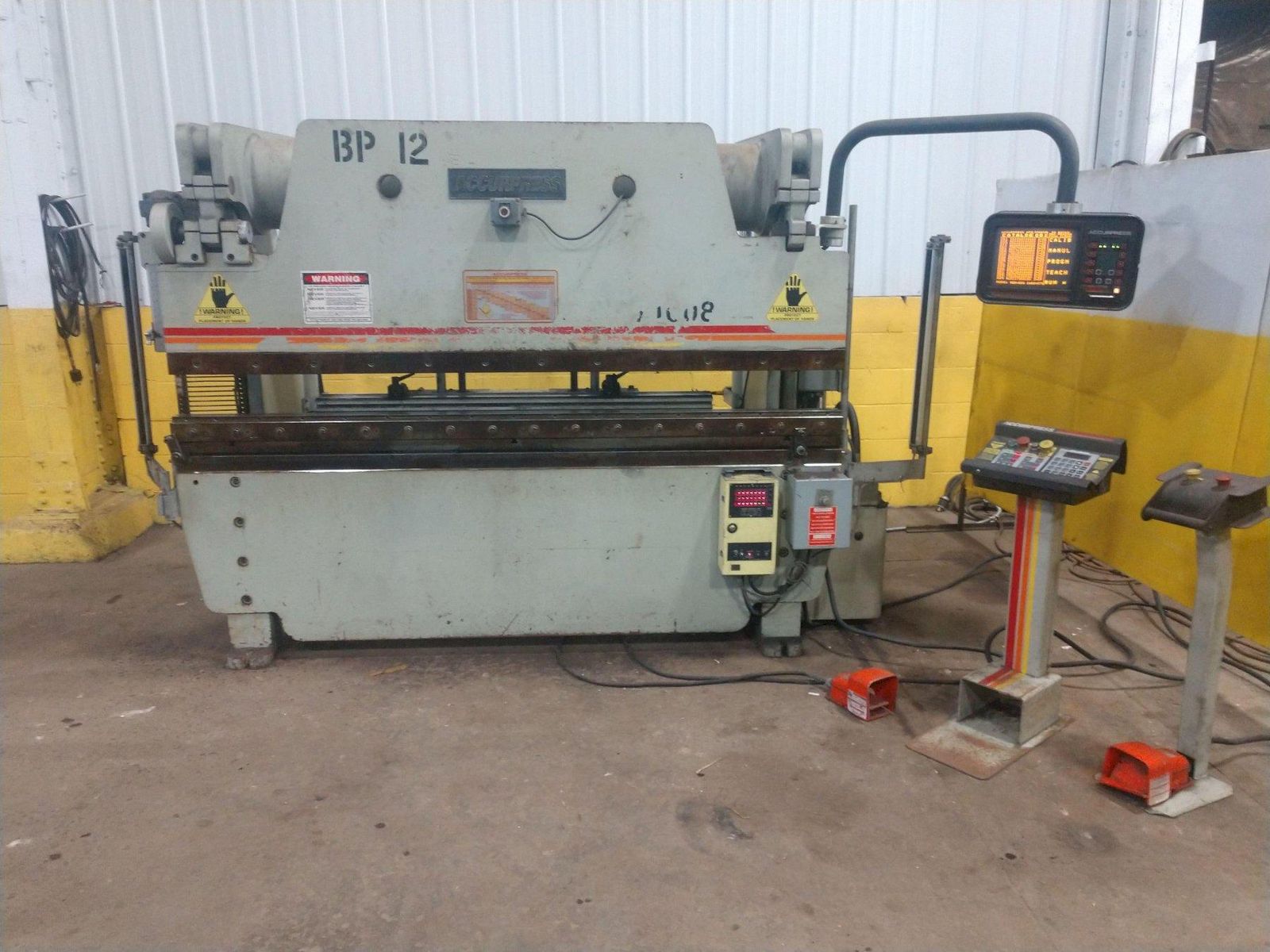

100 TON X 8' ACCURPRESS MODEL 71008 HYDRAULIC PRESS BRAKE: STOCK #12141

Stock #: 12141

Equipped With

SERIAL .......................... 4852
MODEL ........................... 71008
YEAR NEW ........................ 1987
CAPACITY ........................ 100 TON
OVERALL LENGTH OF BED ........... 96"
DISTANCE BETWEEN HOUSINGS ....... 76"
STROKE .......................... 8"
THROAT .......................... 10"
OPEN HEIGHT ..................... 14"
CLOSED HEIGHT ................... 6"
FAST APPROACH ................... 115 IPM
SLOW BEND ....................... 24 IPM
FAST RETURN ..................... 200 IPM
CNC BACKGUAGES .................. ACCURPRESS CONTROLS
DUAL PALM BUTTON ................ YES
ELECTRIC FOOT PEDAL ............. YES
PEDESTAL CONTROL STATION ........ YES
MOTOR ........................... 10 HORSEPOWER

Buy Machines

100 TON X 8' ACCURPRESS MODEL 71008 HYDRAULIC PRESS BRAKE: STOCK #12141

Stock # 12141

Share Machine
Print Details

Machine Specifications

SERIAL .......................... 4852
MODEL ........................... 71008
YEAR NEW ........................ 1987
CAPACITY ........................ 100 TON
OVERALL LENGTH OF BED ........... 96"
DISTANCE BETWEEN HOUSINGS ....... 76"
STROKE .......................... 8"
THROAT .......................... 10"
OPEN HEIGHT ..................... 14"
CLOSED HEIGHT ................... 6"
FAST APPROACH ................... 115 IPM
SLOW BEND ....................... 24 IPM
FAST RETURN ..................... 200 IPM
CNC BACKGUAGES .................. ACCURPRESS CONTROLS
DUAL PALM BUTTON ................ YES
ELECTRIC FOOT PEDAL ............. YES
PEDESTAL CONTROL STATION ........ YES
MOTOR ........................... 10 HORSEPOWER

Specifications
Dimensions 115" X 52" X 82" HIGH
Weight 12000 pounds
