Machine Information

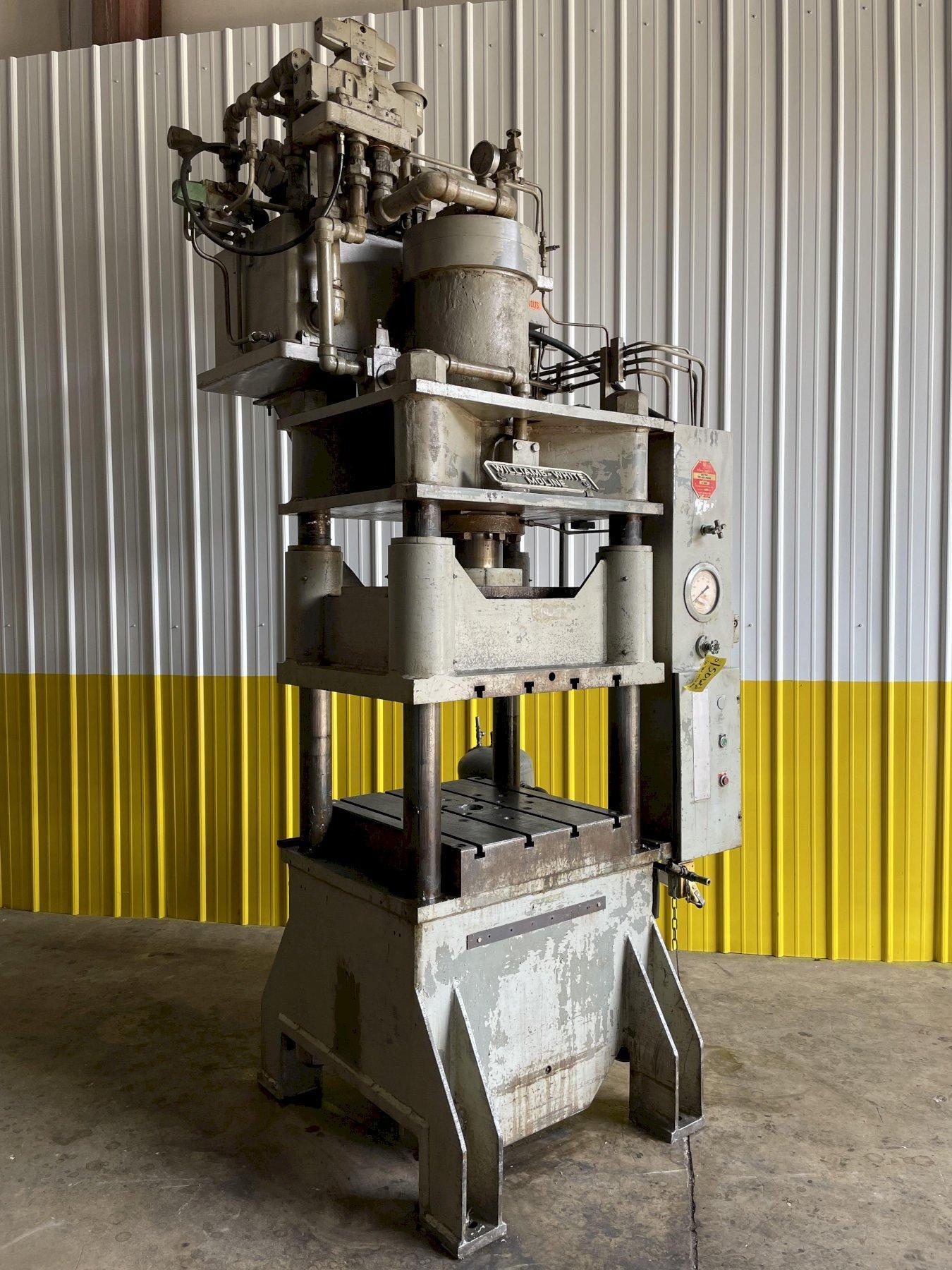

100 TON WILLIAMS & WHITE 4-POST HYDRAULIC PRESS: STOCK #15066

Stock #: 15066

Equipped With

SERIAL ................. C-3914
CAPACITY  .............. 100 TON
STROKE ................. 12"
OPEN HEIGHT ............ 16" OVER BOLSTER
OPEN HEIGHT ............ 21" OVER BED

RAM AREA ............... 38" L-R X 30" F-B
BED BOLSTER AREA ....... 30" X 26" X 5" THICK
RAM DIAMETER ........... 8"
POST DIAMETER .......... 4"

DISTANCE BETWEEN POST .. 27" L-R X 19.5" F-B
BED CUSHION ............ YES, PNEUMATIC
MOTOR .................. 15 HP

Buy Machines

100 TON WILLIAMS & WHITE 4-POST HYDRAULIC PRESS: STOCK #15066

Stock # 15066

Share Machine
Print Details

Machine Specifications

SERIAL ................. C-3914
CAPACITY  .............. 100 TON
STROKE ................. 12"
OPEN HEIGHT ............ 16" OVER BOLSTER
OPEN HEIGHT ............ 21" OVER BED

RAM AREA ............... 38" L-R X 30" F-B
BED BOLSTER AREA ....... 30" X 26" X 5" THICK
RAM DIAMETER ........... 8"
POST DIAMETER .......... 4"

DISTANCE BETWEEN POST .. 27" L-R X 19.5" F-B
BED CUSHION ............ YES, PNEUMATIC
MOTOR .................. 15 HP

Specifications
Dimensions 11'4" OVERALL HEIGHT
