Machine Information

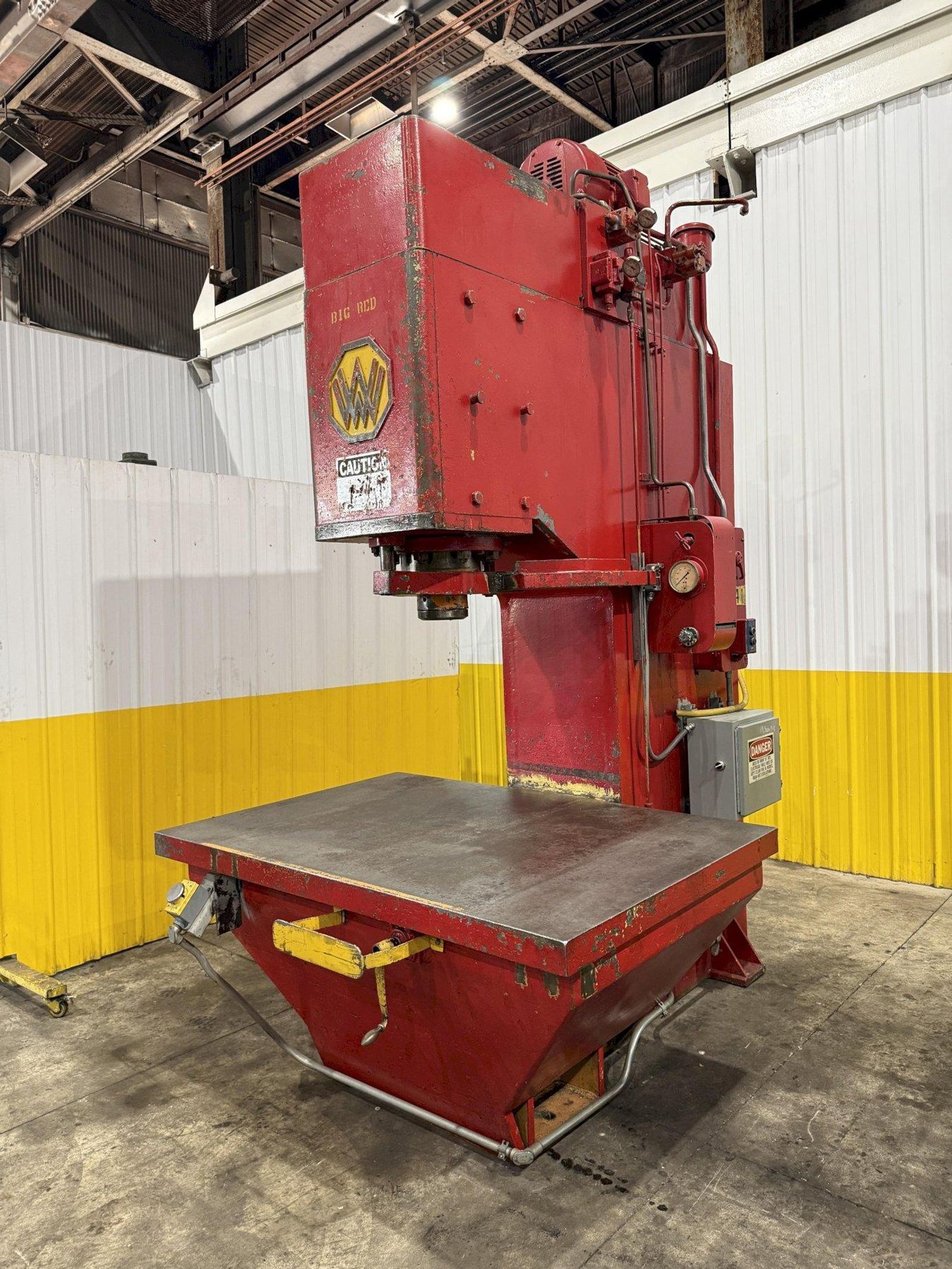

100 TON WILLIAMS & WHITE HYDRAULIC C-FRAME STRAIGHTENING PRESS 18" STROKE: YOBRO #24087

Stock #: 24087

Equipped With

SERIAL ....................... C-3184-A
TYPE ......................... FLOOR STANDING
BED AREA ..................... 72" L-R x 48" F-B
STROKE (APPROX) .............. 0-18" MAX
DAYLIGHT OPENING (TOTAL) ..... 28" MAX (APPROX)
THROAT DEPTH ................. 26"
RAM DIAMETER (APPROX) ........ 11.5"/11" @ 1950 PSI - 100 TONS
FLOOR TO TOP OF BED .......... 36"

VICKERS HYDRAULIC PUMP MOTOR ... 10HP/1175/220/440/3/60

CONTROLS:
PUSHBOTTON OPERATION W/STROKE & PRESSURE CONTROL
OPERATOR HAND LEVER
PRESSURE GAUGE
