Machine Information

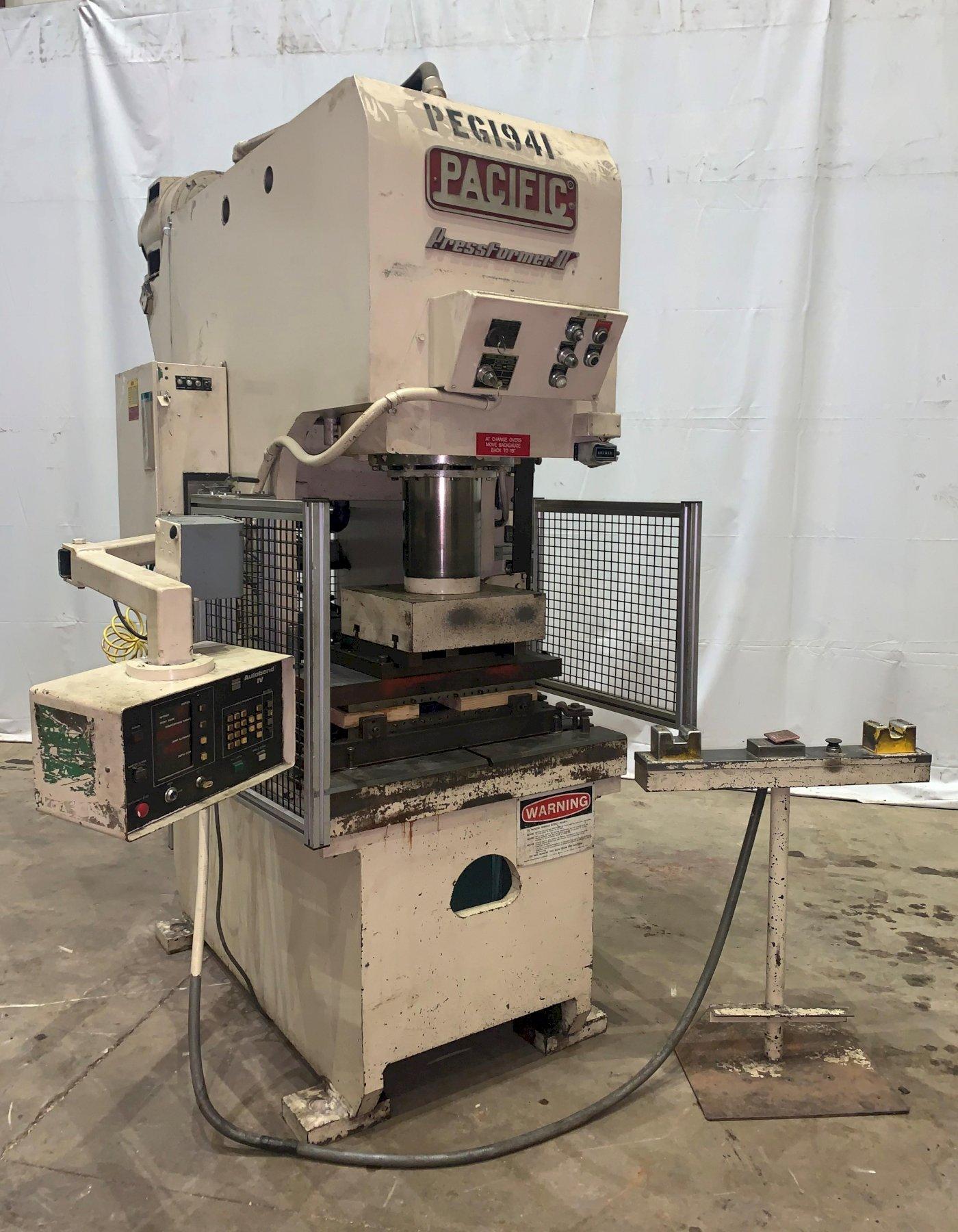

100 TON PACIFIC MODEL #PFII PRESSFORMER HYDRAULIC C FRAME PRESS: STOCK 13000

Stock #: 13000

Equipped With

SERIAL ................ 8574
MODEL ................. 100 PRESSFORMER PFII
CAPACITY .............. 100 TON
C FRAME ............... YES
OPEN HEIGHT ........... 21" OVER 4-1/4" T-SLOTTED BOLSTER
STROKE ................ 12"
CLOSED HEIGHT ......... 8"
THROAT DEPTH .......... 10"
BOLSTER ............... 18" X 35" X 4-1/4" THICK
RAM / TOOL HOLDER ..... 15" X 15"
PALM BUTTONS CONTROL .. YES
SPEED, RAPID ADVANCE .. 144 IPM
SPEED, PRESSING ....... 66 IPM
SPEED, RETURN ......... 132 IPM
HURCO BACK GAUGE ...... AUTOBEND IV
MOTOR ................. 25 HP

Buy Machines

100 TON PACIFIC MODEL #PFII PRESSFORMER HYDRAULIC C FRAME PRESS: STOCK 13000

Stock # 13000

Share Machine
Print Details

Machine Specifications

SERIAL ................ 8574
MODEL ................. 100 PRESSFORMER PFII
CAPACITY .............. 100 TON
C FRAME ............... YES
OPEN HEIGHT ........... 21" OVER 4-1/4" T-SLOTTED BOLSTER
STROKE ................ 12"
CLOSED HEIGHT ......... 8"
THROAT DEPTH .......... 10"
BOLSTER ............... 18" X 35" X 4-1/4" THICK
RAM / TOOL HOLDER ..... 15" X 15"
PALM BUTTONS CONTROL .. YES
SPEED, RAPID ADVANCE .. 144 IPM
SPEED, PRESSING ....... 66 IPM
SPEED, RETURN ......... 132 IPM
HURCO BACK GAUGE ...... AUTOBEND IV
MOTOR ................. 25 HP

Videos
Specifications
Tonnage 100 tons
