Machine Information

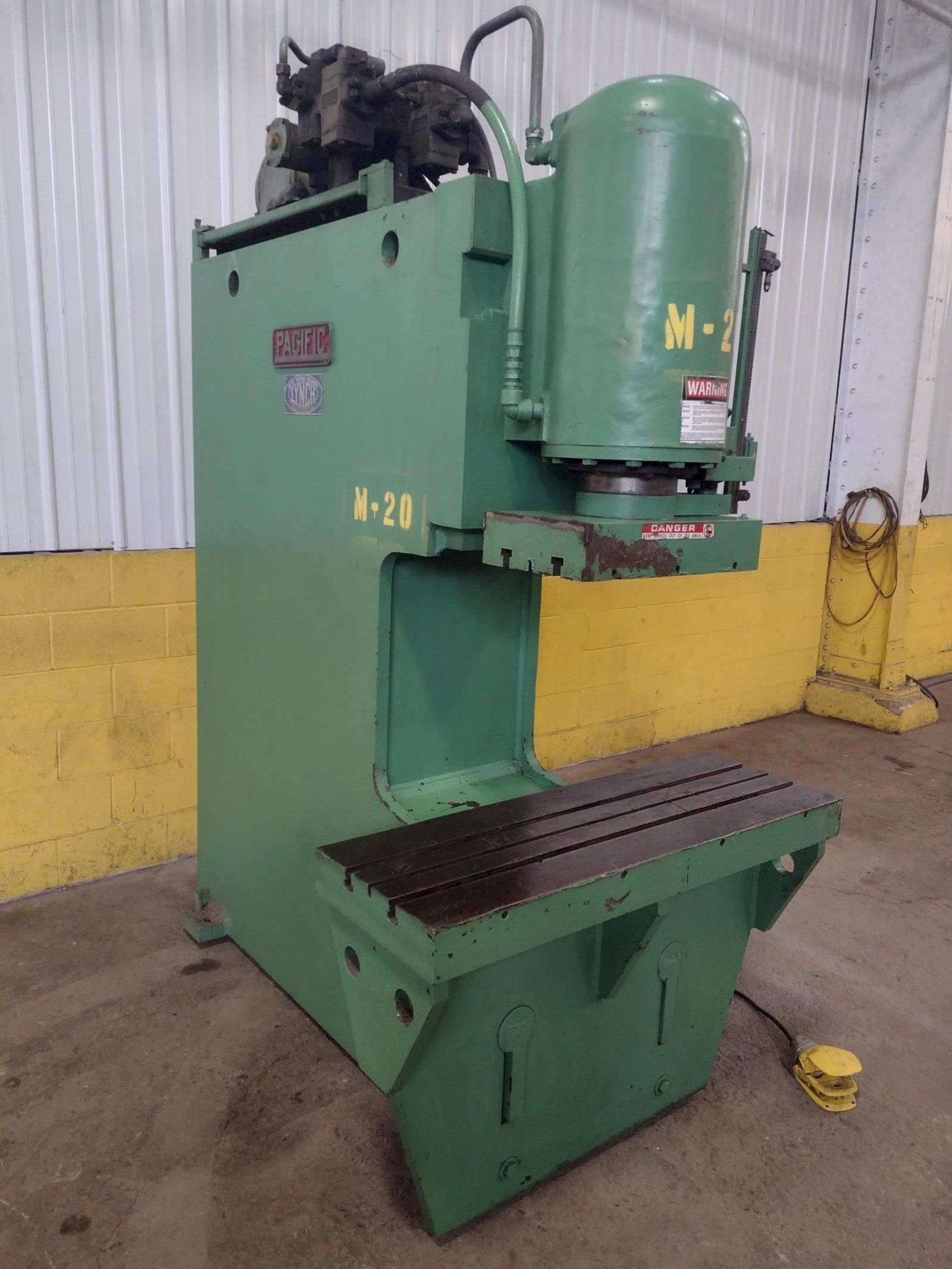

100 TON PACIFIC PRESSFORMER C-FRAME HYDRAULIC PRESS, 12" STROKE: STOCK #16251

Stock #: 16251

Equipped With

SERIAL .................. 3352
MODEL ................... 100VC
CAPACITY ................ 100 TON
TYPE .................... C-FRAME
T-SLOTTED BED SIZE ...... 16" X 48"
T-SLOTTED RAM FACE ...... 12" X 20"
BETWEEN HOUSINGS ........ 18"
STROKE .................. 12"
OPEN HEIGHT ............. 22"
CLOSED HEIGHT ........... 10"
THROAT .................. 21"
ADVANCE SPEED ........... 75 IPM
PRESS SPEED ............. 33 IPM
RETURN SPEED ............ 71 IPM
CONTROLS ................ FOOT SWITCH
TOP MOUNTED HYDRAULICS .. YES
MAIN MOTOR .............. 12.5 HP

Buy Machines

100 TON PACIFIC PRESSFORMER C-FRAME HYDRAULIC PRESS, 12" STROKE: STOCK #16251

Stock # 16251

Share Machine
Print Details

Machine Specifications

SERIAL .................. 3352
MODEL ................... 100VC
CAPACITY ................ 100 TON
TYPE .................... C-FRAME
T-SLOTTED BED SIZE ...... 16" X 48"
T-SLOTTED RAM FACE ...... 12" X 20"
BETWEEN HOUSINGS ........ 18"
STROKE .................. 12"
OPEN HEIGHT ............. 22"
CLOSED HEIGHT ........... 10"
THROAT .................. 21"
ADVANCE SPEED ........... 75 IPM
PRESS SPEED ............. 33 IPM
RETURN SPEED ............ 71 IPM
CONTROLS ................ FOOT SWITCH
TOP MOUNTED HYDRAULICS .. YES
MAIN MOTOR .............. 12.5 HP

Videos
Specifications
Dimensions 73 X 48 X 106" HIGH.
Weight 9550 pounds
