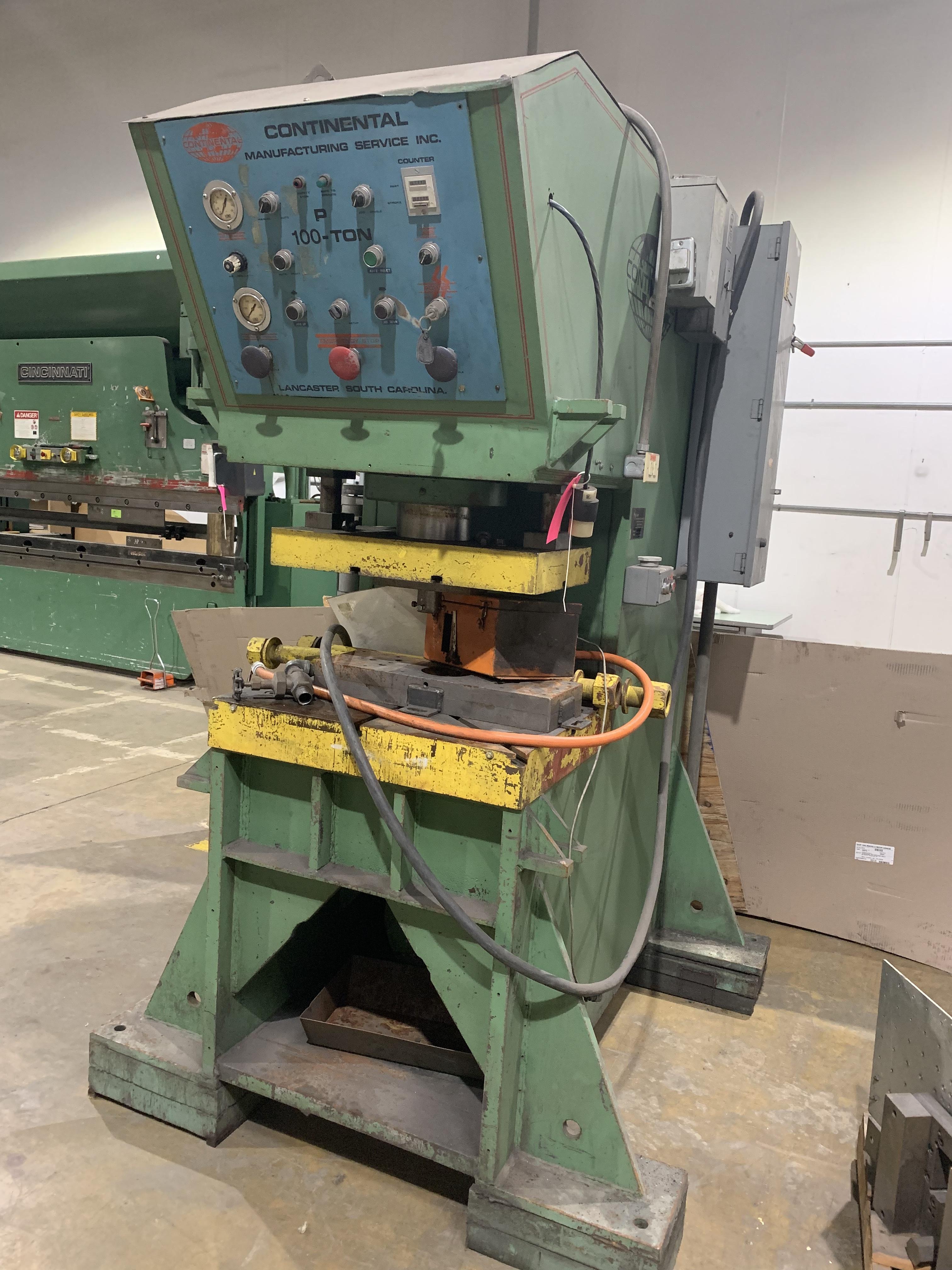

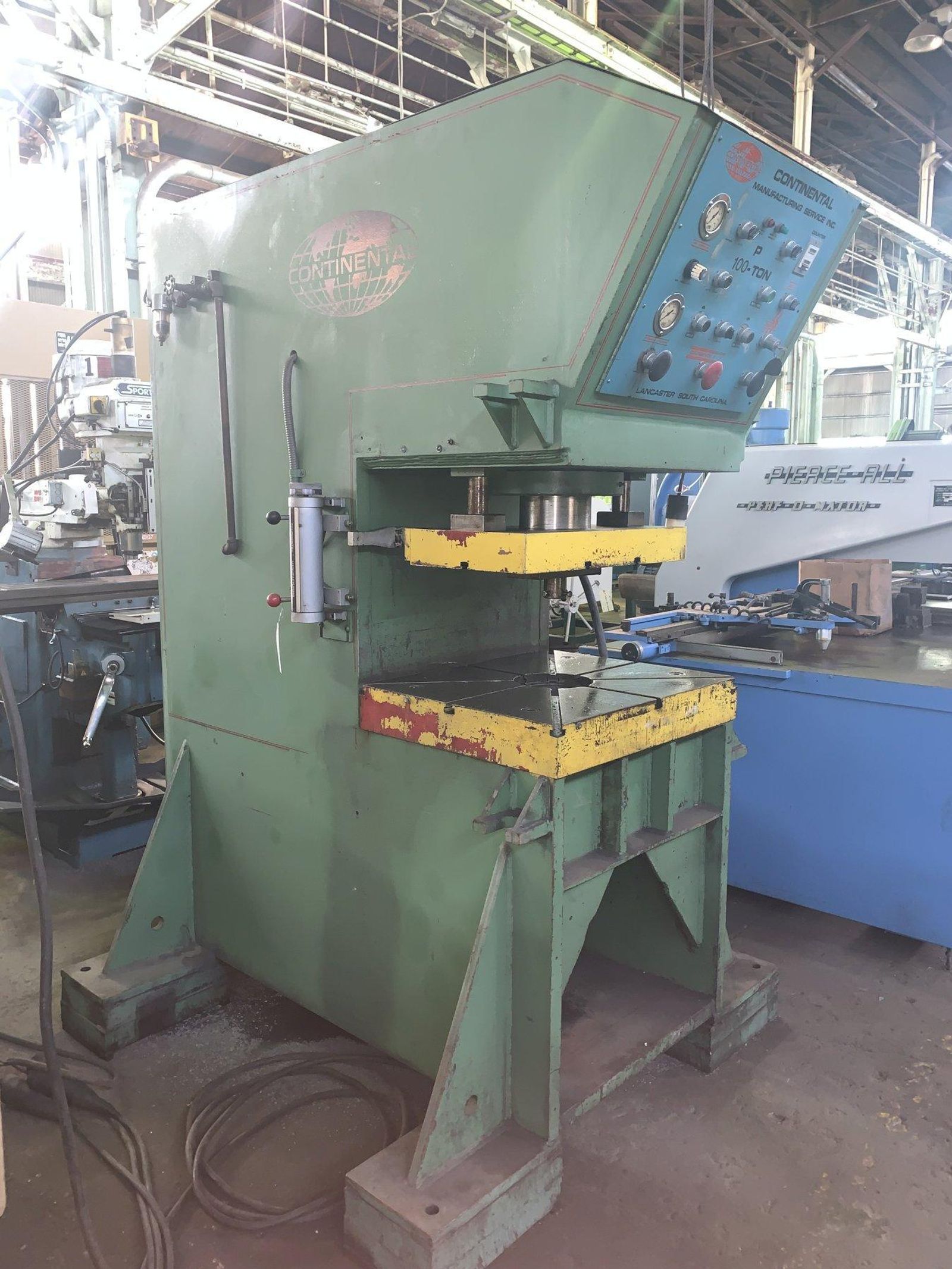

100 TON CONTINENTAL MANUFACTURING SERVICES INC C-FRAME HYDRAULIC PRESS: STOCK #10133

Stock #: 10133

Equipped With

100 TON CONTINENTAL MANUFACTURING SERVICES INC
HYDRAULIC GAP-FRAME PRESS
MODEL P-100

EQUIPPED WITH:
AIR PRESSURE REGULATOR
HYDRAULIC PRESSURE REGULATOR
SKID OF DIES
LARGE CABINET FULL OF TOOLING
4-1/2" T-SLOTTED BOLSTER PLATE
PARTS COUNTER

TONNAGE CAPACITY 100 TON
STROKE LENGTH, MAXIMUM 6"
BED AREA, L-R X F-B 30" X 24"
SLIDE AREA, L-R X F-B 26" X 14"
THROAT DEPTH 12"
OPEN HEIGHT TO BOLSTER 12"
OPEN HEIGHT TO BED 17"
MOTOR HORSEPOWER/RPM 30 HP/1765 RPM
ELECTRICAL SYSTEM 220-440/3/60

Buy Machines

100 TON CONTINENTAL MANUFACTURING SERVICES INC C-FRAME HYDRAULIC PRESS: STOCK #10133

Stock # 10133

Share Machine
Print Details

Machine Specifications

100 TON CONTINENTAL MANUFACTURING SERVICES INC
HYDRAULIC GAP-FRAME PRESS
MODEL P-100

EQUIPPED WITH:
AIR PRESSURE REGULATOR
HYDRAULIC PRESSURE REGULATOR
SKID OF DIES
LARGE CABINET FULL OF TOOLING
4-1/2" T-SLOTTED BOLSTER PLATE
PARTS COUNTER

TONNAGE CAPACITY 100 TON
STROKE LENGTH, MAXIMUM 6"
BED AREA, L-R X F-B 30" X 24"
SLIDE AREA, L-R X F-B 26" X 14"
THROAT DEPTH 12"
OPEN HEIGHT TO BOLSTER 12"
OPEN HEIGHT TO BED 17"
MOTOR HORSEPOWER/RPM 30 HP/1765 RPM
ELECTRICAL SYSTEM 220-440/3/60

Specifications
Tonnage 100 tons
