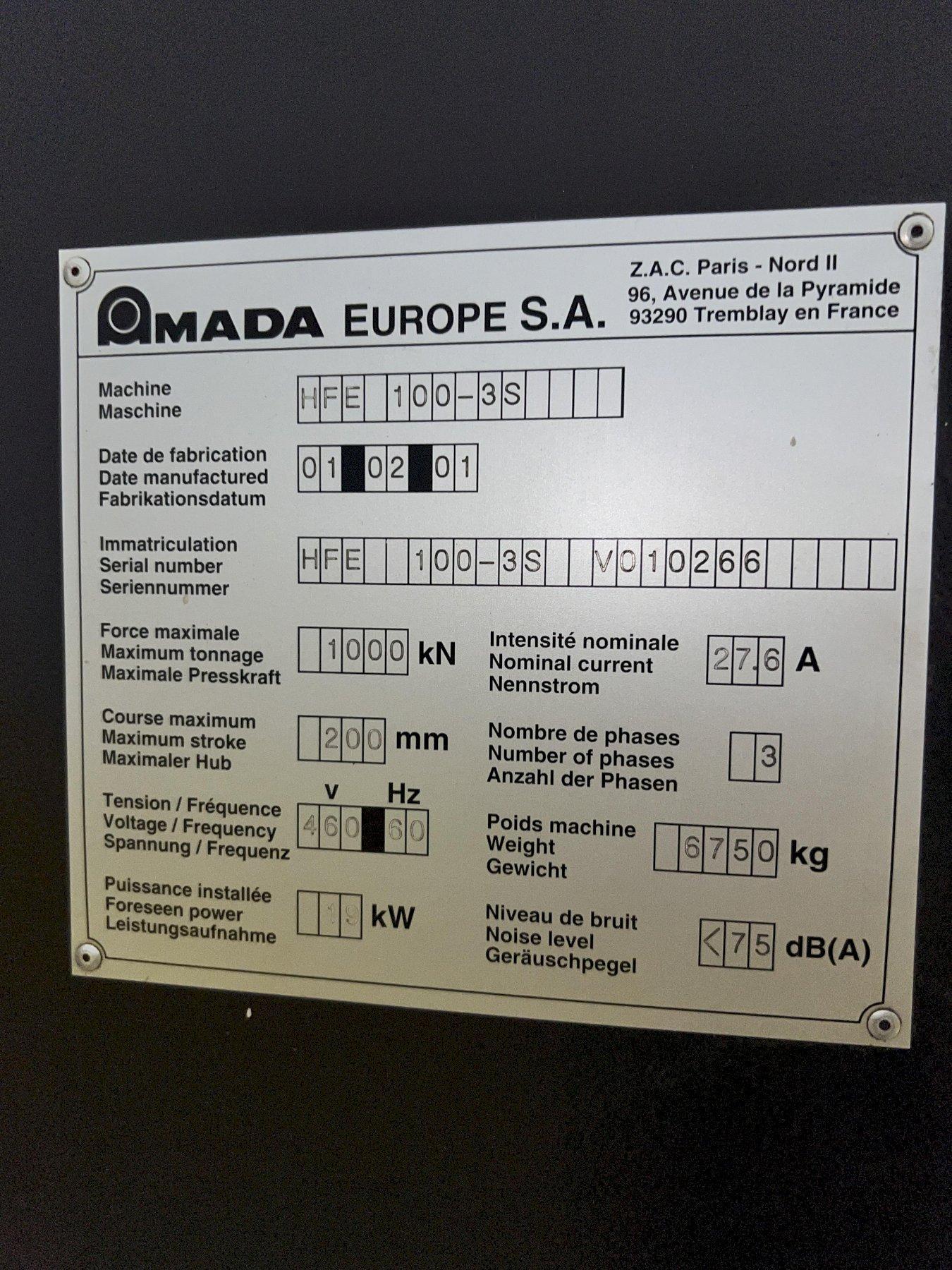

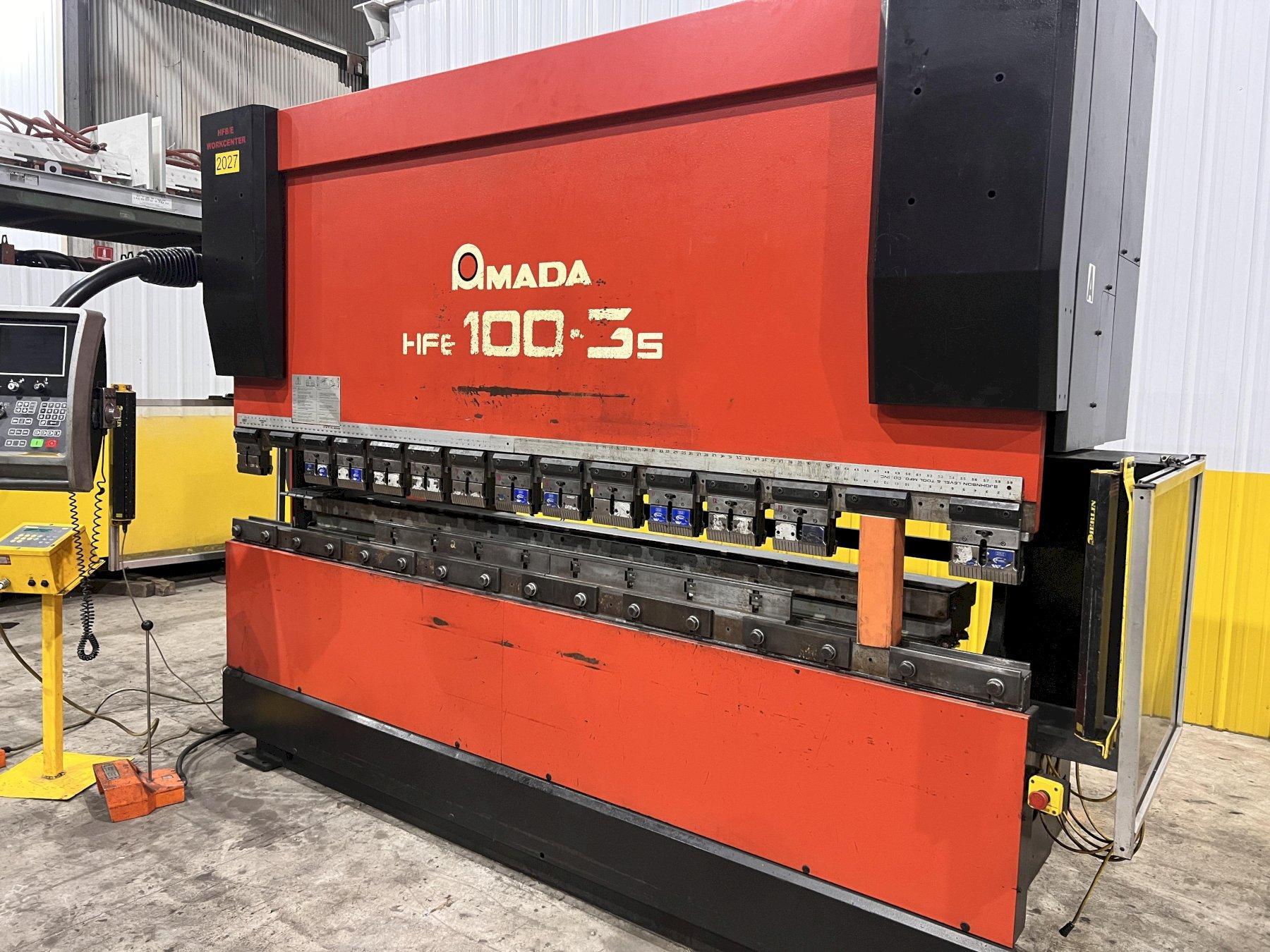

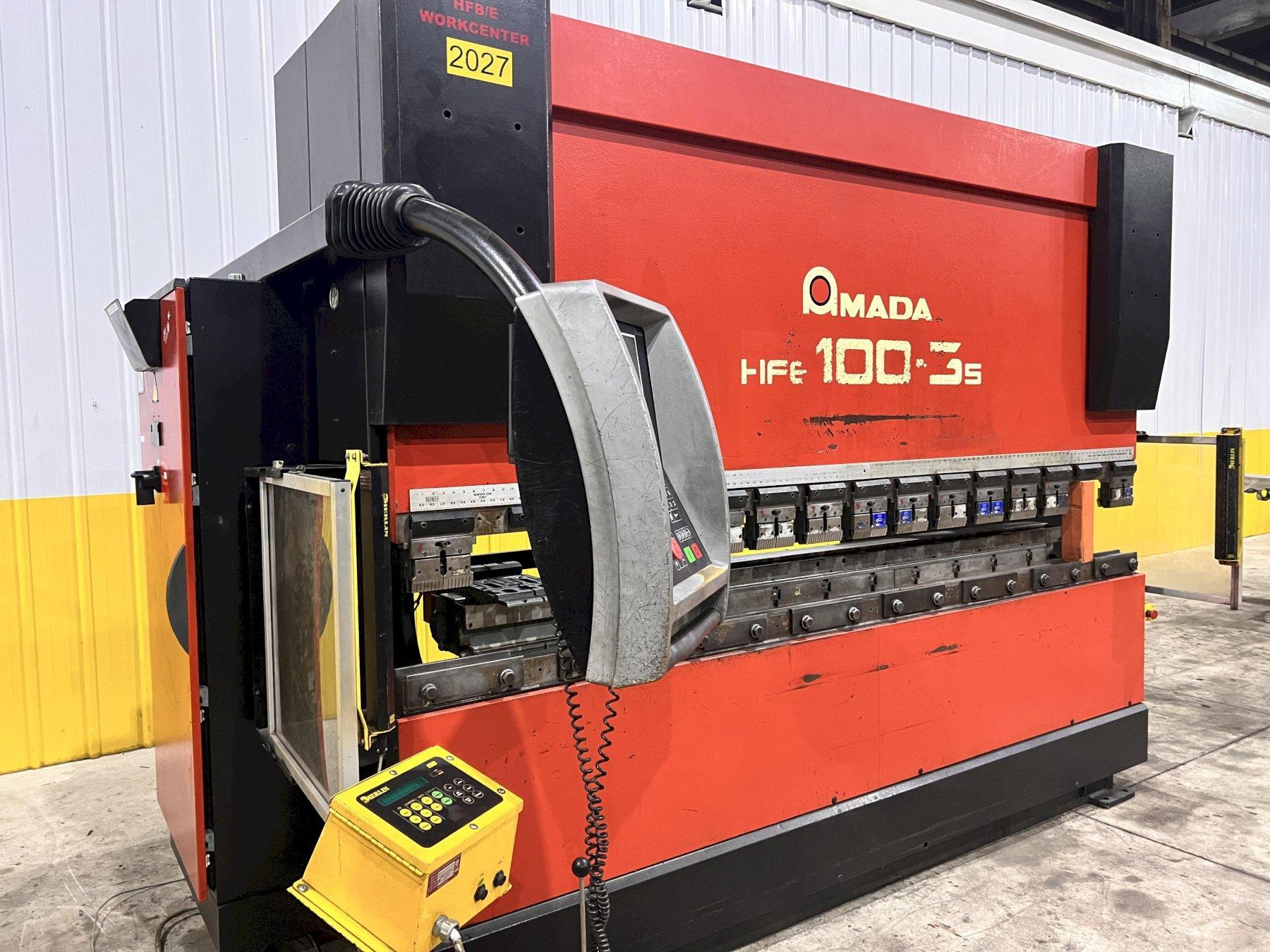

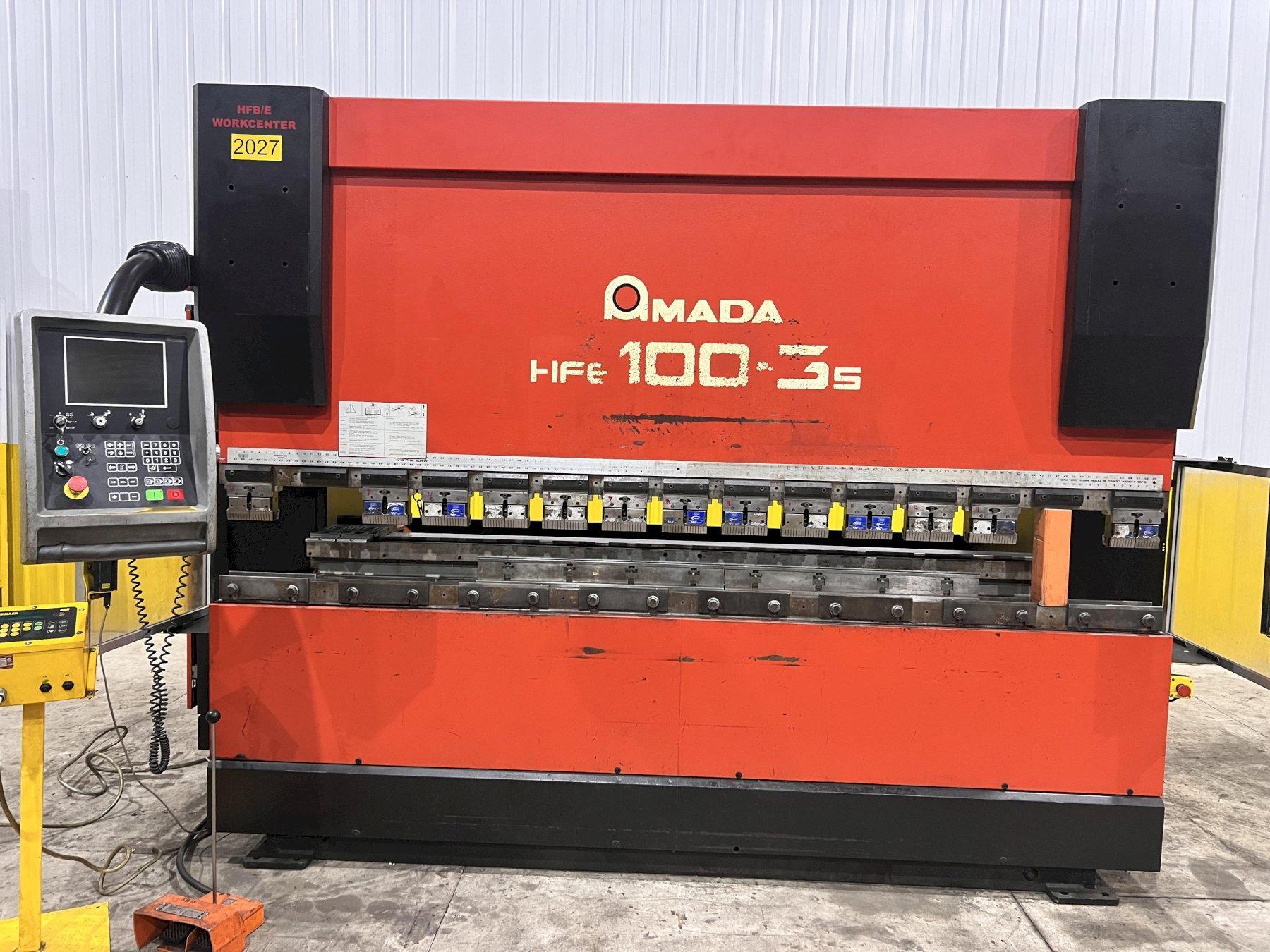

SERIAL HFE-100-3S-V010266
NEW 01-02-2001

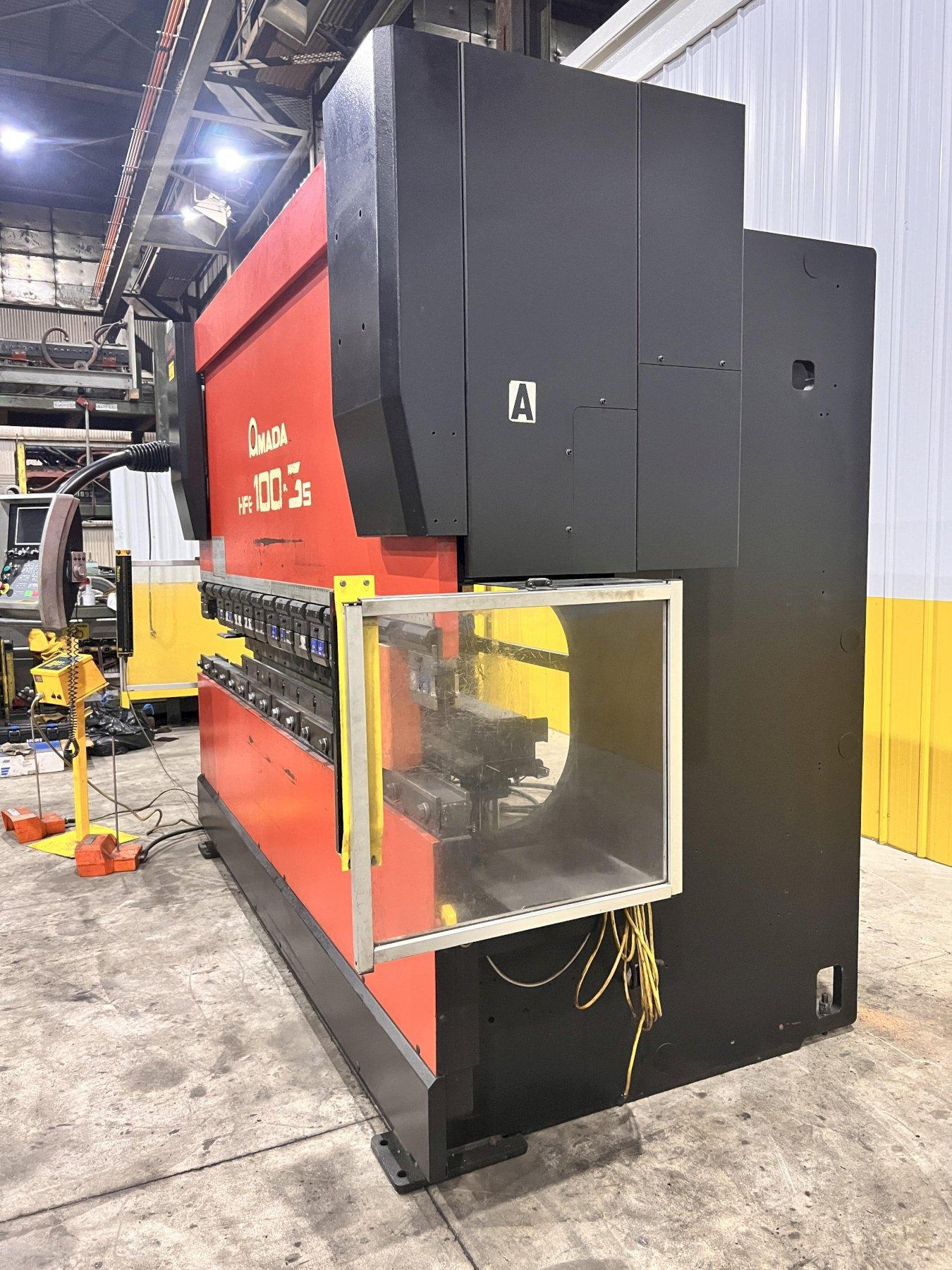

MODEL HFE100-3S
| Specifications | ||
|---|---|---|
| Dimensions | Length: 145" Width: 58" Height: 106" | |
| Weight | 15000 pounds | |
Brand
AMADA
Type
Brakes, Press
Stock No.
21984
 |
419-269-2000 |
Stock #: 21984
SERIAL HFE-100-3S-V010266
NEW 01-02-2001
MODEL HFE100-3S

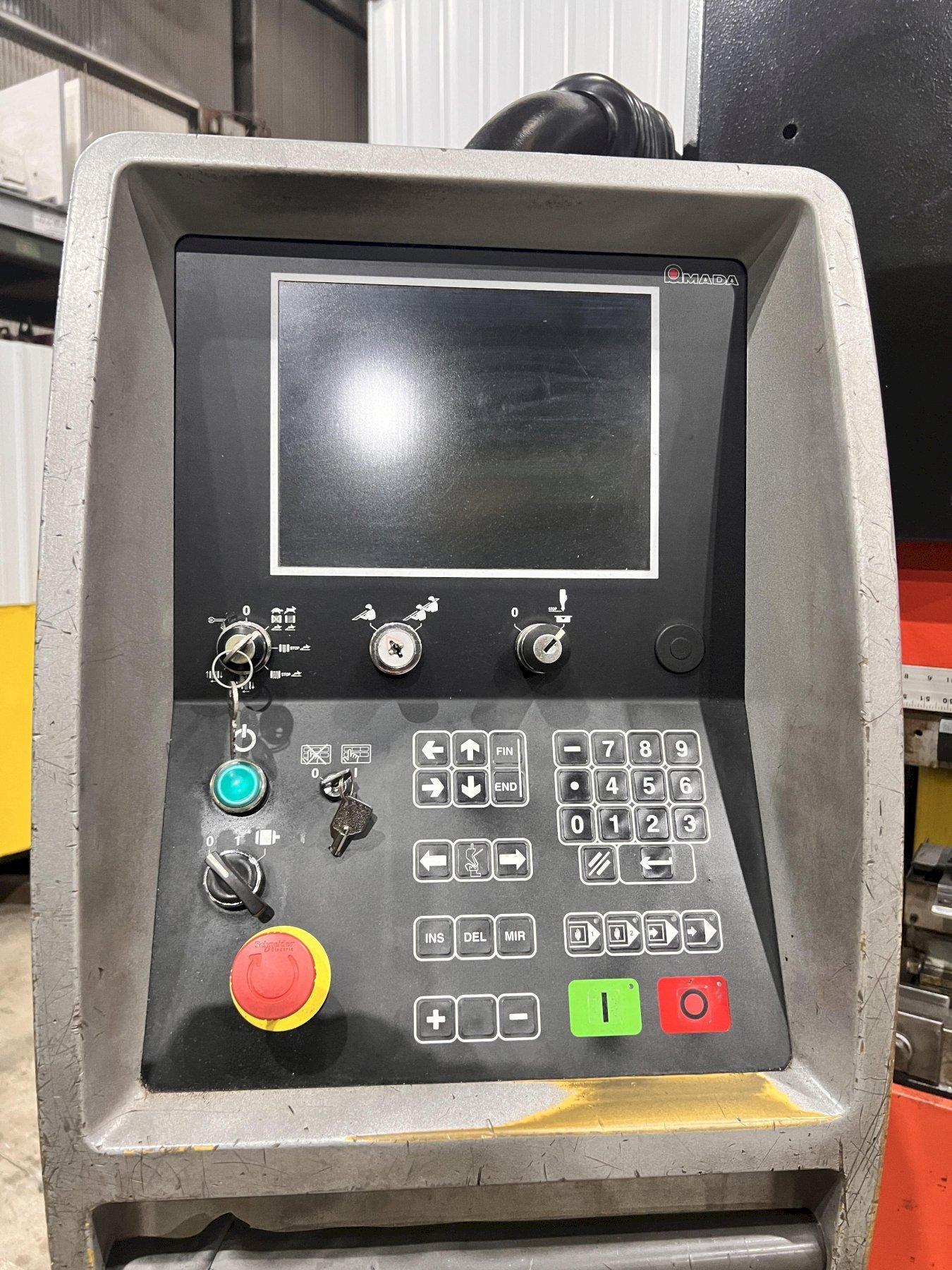

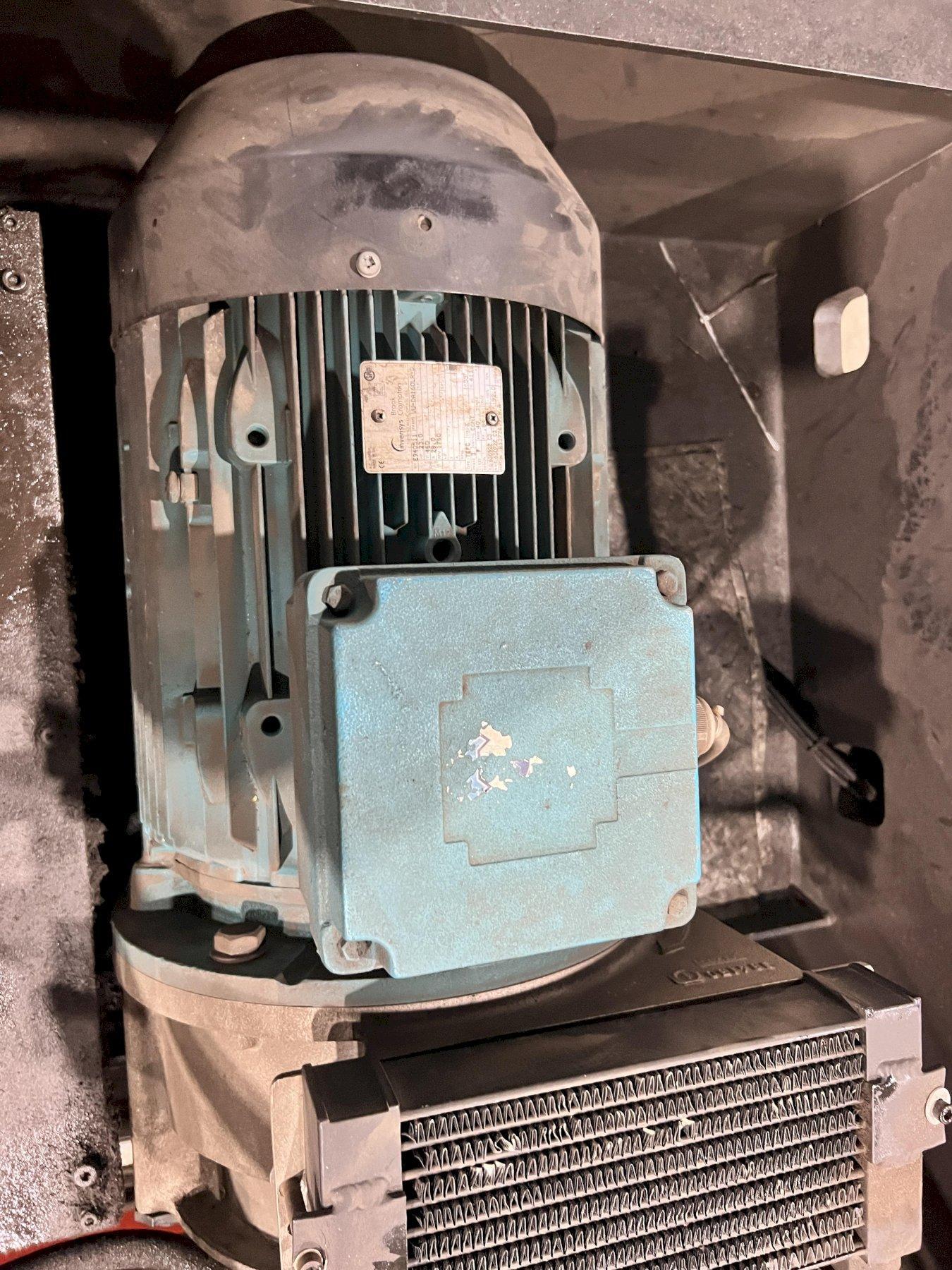

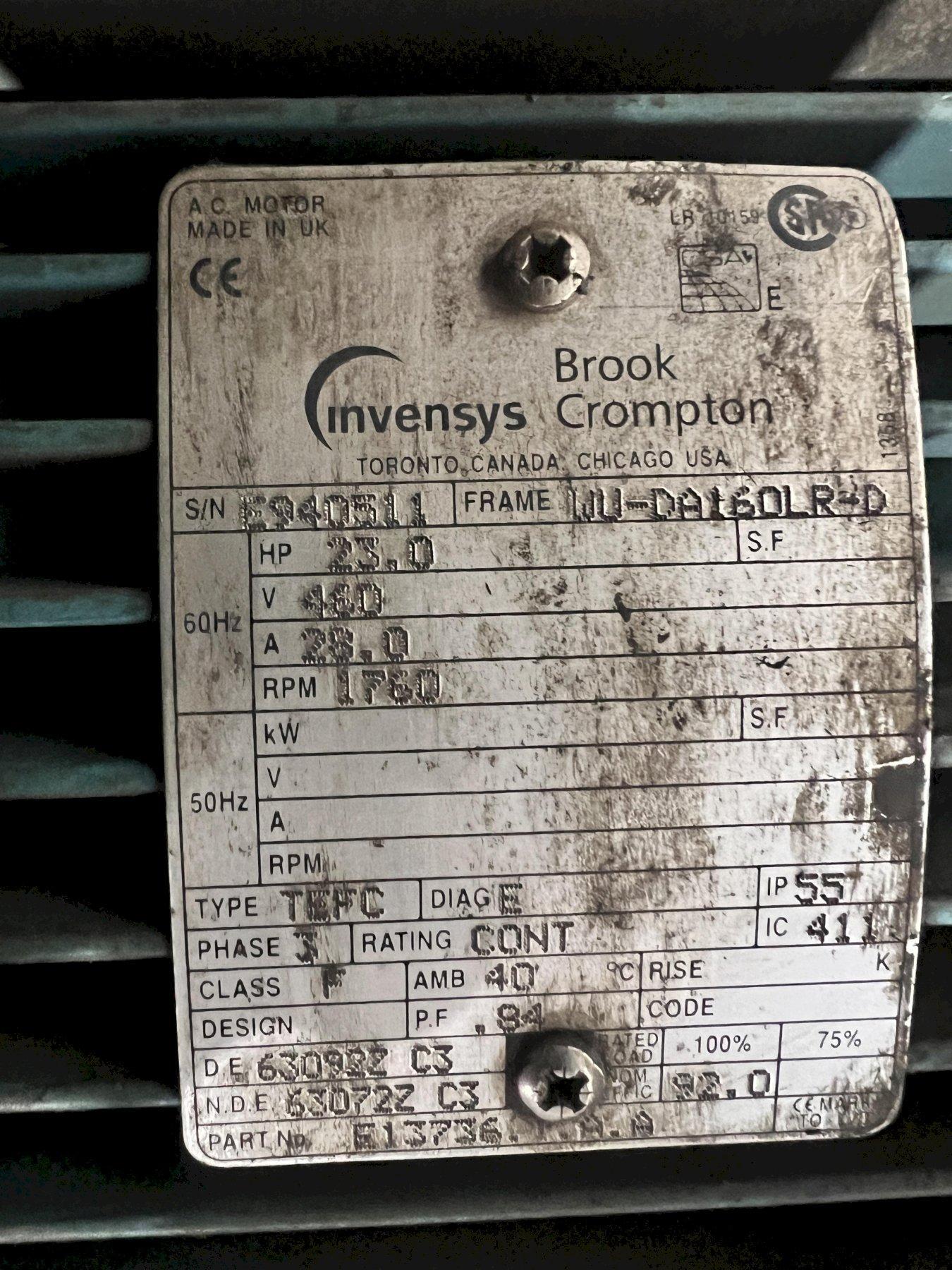

Capacity: 110 U.S. tonsBend Length: 122 inchesMaximum Stroke Length: 7.8 inchesOpen Height: 18.5 inchesThroat Depth: 16.5 inchesDistance Between Housings: 106 inchesRam Repeatability: +/- 0.00004 inchesTable Width: 2.36 inchesApproach Speed: 7.87 inches per secondBending Speed: 0.04 to 0.787 inches per second, programmableReturn Speed: .04 to 7.87 inches per second, programmableHydraulic Oil Capacity: 56 gallonsMotor HP: 25BackgaugeModel: Amada Type BRepeatability: L Axis +/- 0.0004 inchesMovement RangeX Axis: 27.5/37.5 inchesR Axis: 9.84 inchesZ Axis: 94 inchesFeed SpeedX Axis: 19.5 inches per secondR Axis: 6.2 inches per secondZ Axis: 39.3 inches per secondMinimum Command Unit: 0.0001 inchCNC ControllerModel: Amada OPERATEURAxes of Control: 7 standardY1Y2 Ram depthX1X2 BackgaugeZ1Z2 Horizontal finger position of two stoppersR Vertical finger position of two stoppersInput Method: Keyboard, 3.5″ diskette and RS232Display: 12″ Color VGAProgram Storage: 60 in active memory plus 30 on disketteBends per Program: 25Die Library: 70 diesPunch Library: 30 punches
