Machine Information

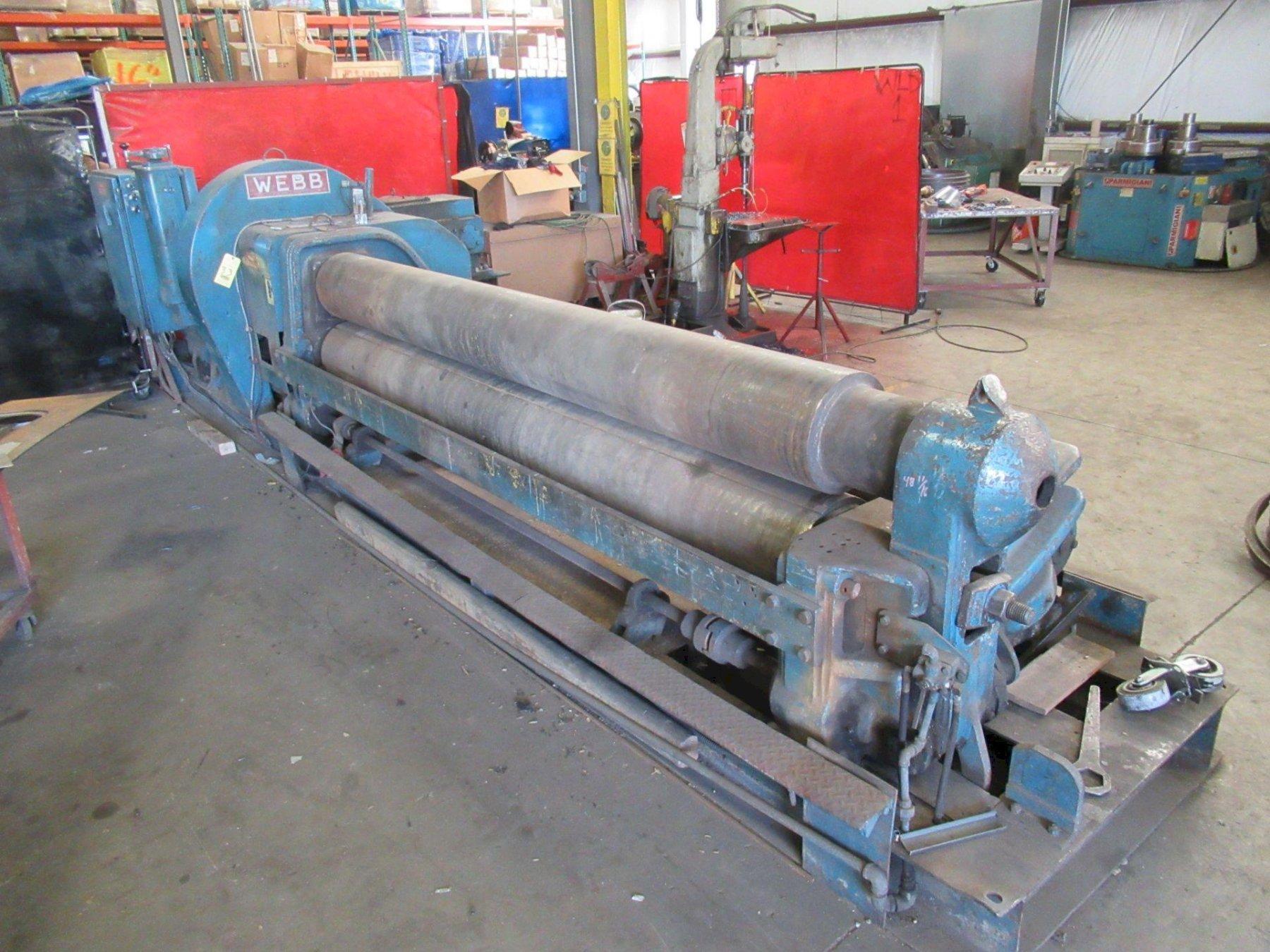

10' X 5/8" WEBB MODEL #9L INITIAL PINCH PLATE BENDING ROLL: STOCK #14769

Stock #: 14769

Equipped With

MODEL ......................... 9L
CAPACITY ...................... 5/8"
OVERALL LENTH OF ROLLS ........ 10'2"
DIAMETER OF ROLLS ............. 12"
VARIABLE SPEED ................ 0 TO 16 FPM
AIR DROP END .................. YES
POWER REAR ROLL ADJUSTMENT .... YES
POWER FRONT ROLL ADJUSTMENT ... YES
SKID FRAME MOUNTED ............ YES
FRONT ROLL ADJUSTMENT MOTOR ... 3 HORSEPOWER
REAR ROLL ADJUSTMENT MOTOR .... 10 HORSEPOWER
MAIN DRIVE MOTOR .............. 20 HORSEPOWER

Buy Machines

10' X 5/8" WEBB MODEL #9L INITIAL PINCH PLATE BENDING ROLL: STOCK #14769

Stock # 14769

Share Machine
Print Details

Machine Specifications

MODEL ......................... 9L
CAPACITY ...................... 5/8"
OVERALL LENTH OF ROLLS ........ 10'2"
DIAMETER OF ROLLS ............. 12"
VARIABLE SPEED ................ 0 TO 16 FPM
AIR DROP END .................. YES
POWER REAR ROLL ADJUSTMENT .... YES
POWER FRONT ROLL ADJUSTMENT ... YES
SKID FRAME MOUNTED ............ YES
FRONT ROLL ADJUSTMENT MOTOR ... 3 HORSEPOWER
REAR ROLL ADJUSTMENT MOTOR .... 10 HORSEPOWER
MAIN DRIVE MOTOR .............. 20 HORSEPOWER
