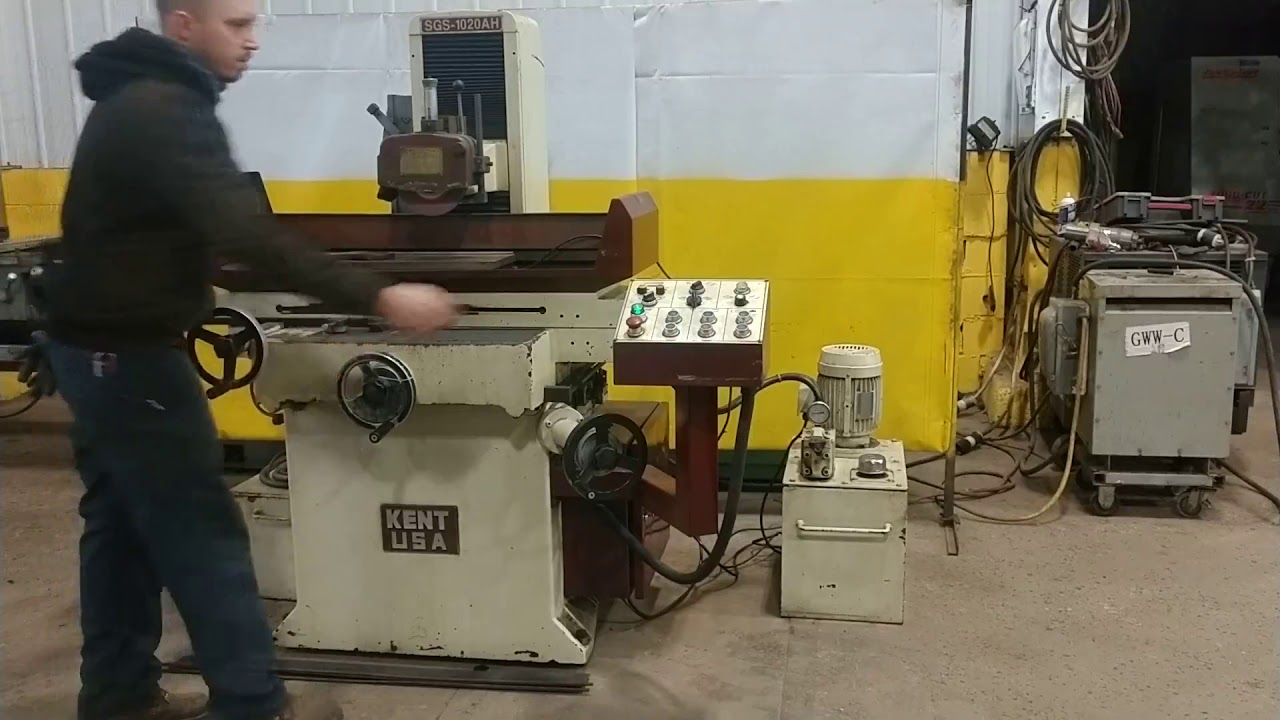

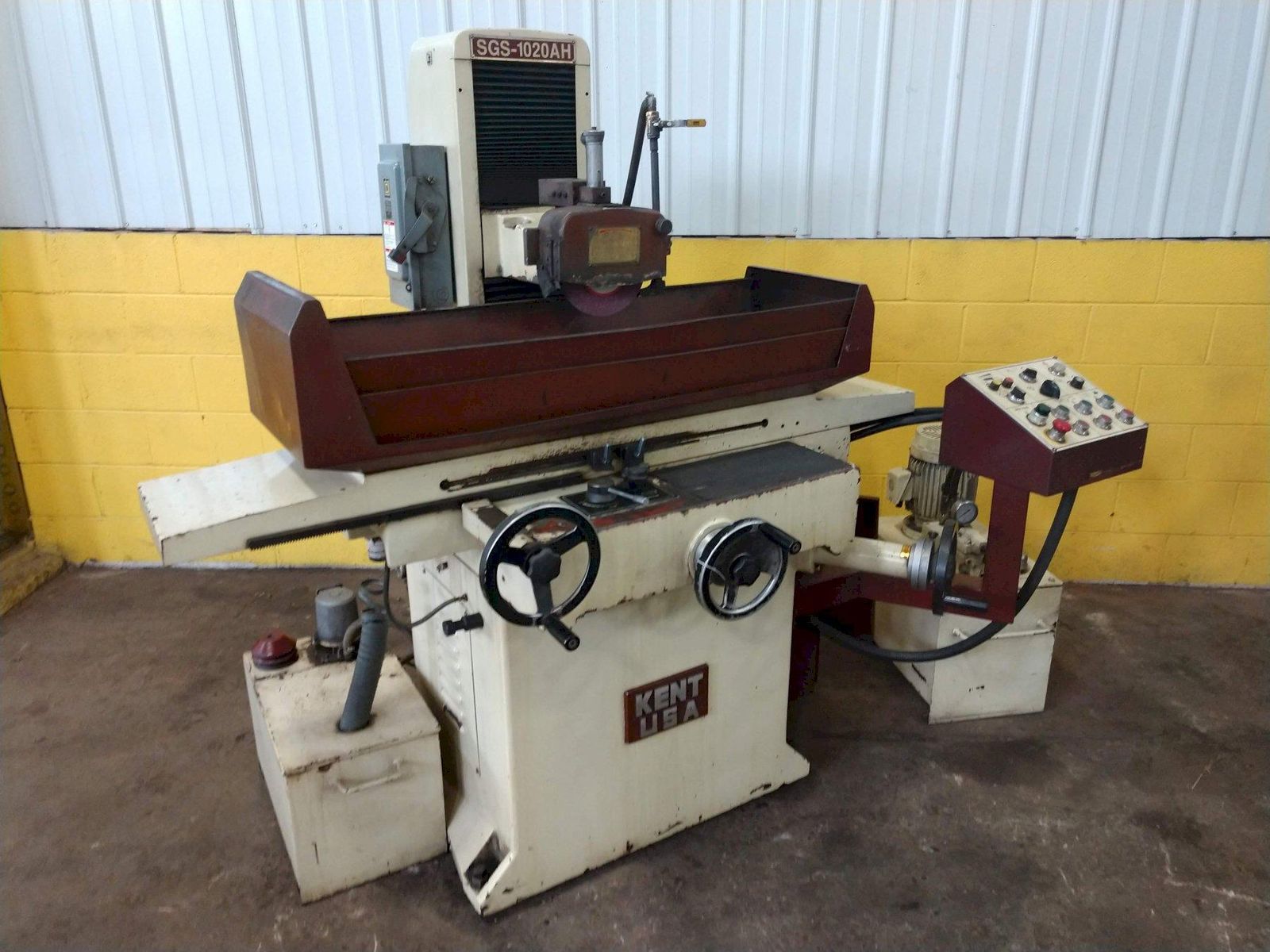

10" X 20" KENT MODEL SGS-1020AH AUTOMATIC HYDRAULIC SURFACE GRINDER: STOCK #13422

Stock #: 13422

Equipped With

Model ......................... SGS-1020AH
Kanetsu Magnetic Chuck ........ 8" x 17-3/4"
Table travel .................. 22.2"
Saddle travel ................. 10.5"
Working capacity .............. 10" x 20"
T-slot size ................... 1" x 9/16"
Spindle speed ................. 3600 rpm
Grinding wheel capacity ....... 8" x 1/2" x 1-1/4"
Vertical graduation ........... 0.0005"
Vertical revolution ........... 0.100"
Auto downfeed increment ....... 0.0001" (10 steps)
Spindle to table .............. 19.7"
Front operator controls ....... YES
3-Axis auto movement design ... YES
Motor .........................
2 HP/230/460 V/3 phase/60 HZ

Buy Machines

10" X 20" KENT MODEL SGS-1020AH AUTOMATIC HYDRAULIC SURFACE GRINDER: STOCK #13422

Stock # 13422

Share Machine
Print Details

Machine Specifications

Model ......................... SGS-1020AH
Kanetsu Magnetic Chuck ........ 8" x 17-3/4"
Table travel .................. 22.2"
Saddle travel ................. 10.5"
Working capacity .............. 10" x 20"
T-slot size ................... 1" x 9/16"
Spindle speed ................. 3600 rpm
Grinding wheel capacity ....... 8" x 1/2" x 1-1/4"
Vertical graduation ........... 0.0005"
Vertical revolution ........... 0.100"
Auto downfeed increment ....... 0.0001" (10 steps)
Spindle to table .............. 19.7"
Front operator controls ....... YES
3-Axis auto movement design ... YES
Motor .........................
2 HP/230/460 V/3 phase/60 HZ

Specifications
Weight 2970 pounds
