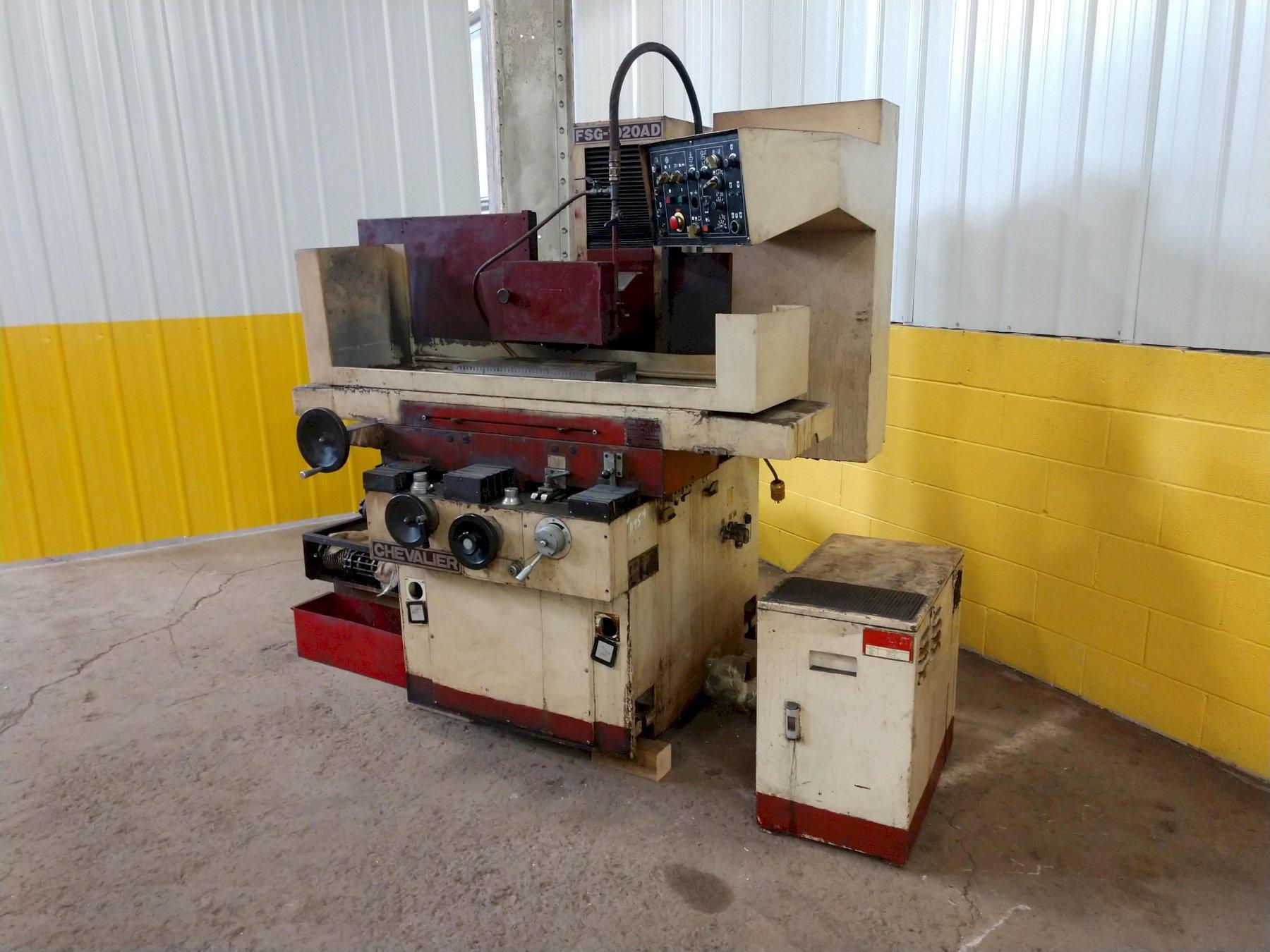

10" x 20" CHEVALIER MODEL #FSG-1020AD AUTOMATIC HORIZONTAL SURFACE GRINDER: STOCK #11959

Stock #: 11959

Equipped With

SERIAL ................................ 12354
MODEL ................................. FSG-1020AD
GRINDING CAPACITY ..................... 10" X 20"
SPINDLE TO TABLE (MAXIMUM) ............ 21"
LONGITUDINAL TABLE TRAVEL ............. 22-7/8"
CROSS TABLE TRAVEL .................... 10"
TABLE SPEED (VARIABLE) ................ 16 TO 82 FPM
SPINDLE SPEED ......................... 3450 RPM
GRINDING WHEEL SIZE ................... 12" X 1" X 3"
ELECTRO-MAGNETIC CHUCK SIZE ........... 19-3/4" X 9-7/8" X 2-7/8"
INCREMENTAL DOWN FEED ................. YES
AUTOMATIC CROSS FEED .................. YES
POWER ELEVATION ....................... YES
COOLANT W/PAPER FILTRATION ............ YES
OVER THE WHEEL DRESSER ................ YES
ELECTRO-MAGNETIC CHUCK W/CONTROLS ..... YES
SPINDLE MOTOR ......................... 3 HORSEPOWER
HYDRAULIC MOTOR ....................... 1 HORSEPOWER

Buy Machines

10" x 20" CHEVALIER MODEL #FSG-1020AD AUTOMATIC HORIZONTAL SURFACE GRINDER: STOCK #11959

Stock # 11959

Share Machine
Print Details
Download Images

Machine Specifications

SERIAL ................................ 12354
MODEL ................................. FSG-1020AD
GRINDING CAPACITY ..................... 10" X 20"
SPINDLE TO TABLE (MAXIMUM) ............ 21"
LONGITUDINAL TABLE TRAVEL ............. 22-7/8"
CROSS TABLE TRAVEL .................... 10"
TABLE SPEED (VARIABLE) ................ 16 TO 82 FPM
SPINDLE SPEED ......................... 3450 RPM
GRINDING WHEEL SIZE ................... 12" X 1" X 3"
ELECTRO-MAGNETIC CHUCK SIZE ........... 19-3/4" X 9-7/8" X 2-7/8"
INCREMENTAL DOWN FEED ................. YES
AUTOMATIC CROSS FEED .................. YES
POWER ELEVATION ....................... YES
COOLANT W/PAPER FILTRATION ............ YES
OVER THE WHEEL DRESSER ................ YES
ELECTRO-MAGNETIC CHUCK W/CONTROLS ..... YES
SPINDLE MOTOR ......................... 3 HORSEPOWER
HYDRAULIC MOTOR ....................... 1 HORSEPOWER

Specifications
Chuck Size 10 X 20
X-Axis Travel 22 inches
Y-Axis Travel 10 inches
Z-Axis Travel 21 inches
Main Motor 33
Grinding Wheel Speed RPM 3450
Table-W 10 inches
Table-L 20 inches
Spindle (Horz/Vert) horizontal
Power 3 horsepower
Grinding Wheel Width 1 inches
Grinding Wheel Dia. 12 inches
CNC Control yes
Dimensions 90" X 63" X 83"
