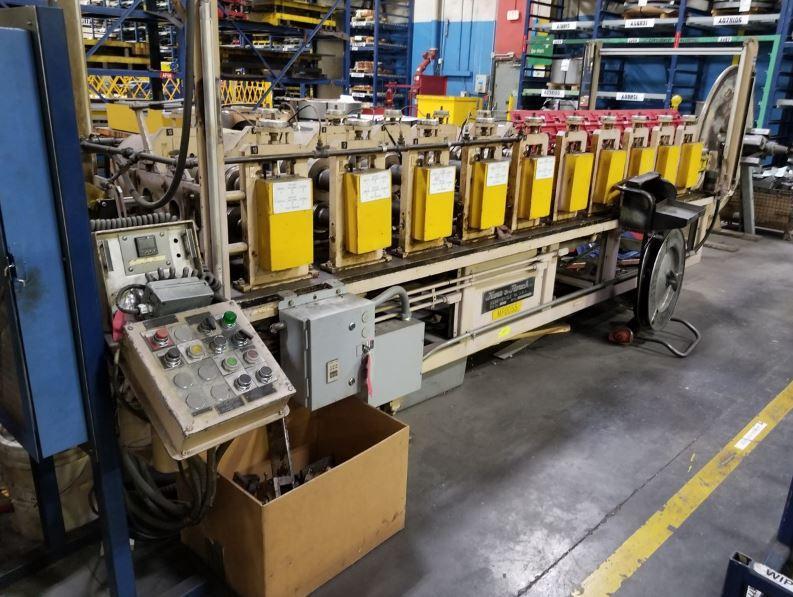

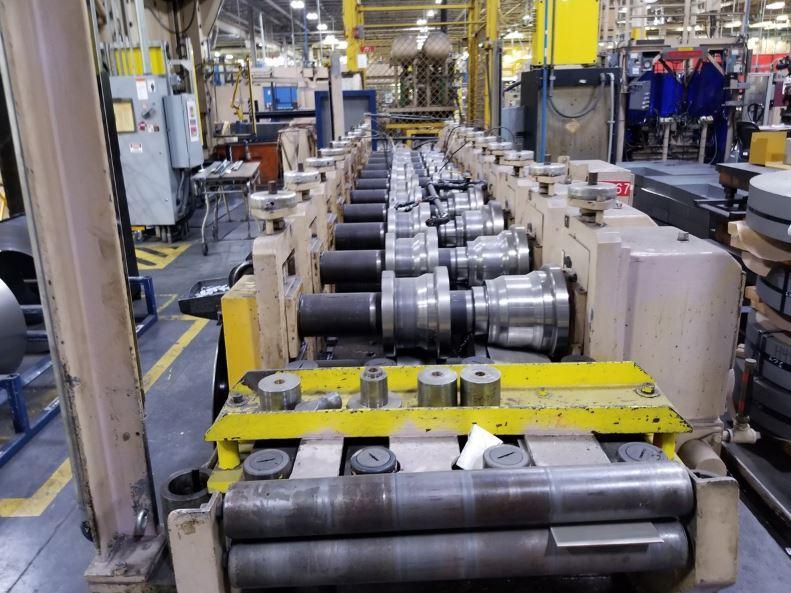

10 x 2.5" KANE & ROACH ROLLFORMER: STOCK #11366

Stock #: 11366

Equipped With

SERIAL .................................... 9605
MODEL ..................................... 2ST CRFM
DIRECTION OF TRAVEL ....................... R-L
NUMBER OF DRIVE HOUSINGS .................. 10
SHAFT DIAMETER ............................ 2.5"
ROLL SPACE ................................ 21.375"
KEYWAY WIDTH .............................. 0.360"
KEYWAY DEPTH .............................. 0.198"
ROLL SHAFT RATIOS (BOTTOM TO TOP) ......... EQUAL
VERTICAL SHAFT CENTERS .................... 5" TO 7.5"
HORIZONTAL SHAFT CENTERS .................. 15"
CENTERLINE BOTTOM SHAFT TO TOP BASE ....... 9.25"
TOP OF BASE TO FLOOR ...................... 30"
AC MOTOR .................................. 25 HP

Buy Machines

10 x 2.5" KANE & ROACH ROLLFORMER: STOCK #11366

Stock # 11366

Share Machine
Print Details

Machine Specifications

SERIAL .................................... 9605
MODEL ..................................... 2ST CRFM
DIRECTION OF TRAVEL ....................... R-L
NUMBER OF DRIVE HOUSINGS .................. 10
SHAFT DIAMETER ............................ 2.5"
ROLL SPACE ................................ 21.375"
KEYWAY WIDTH .............................. 0.360"
KEYWAY DEPTH .............................. 0.198"
ROLL SHAFT RATIOS (BOTTOM TO TOP) ......... EQUAL
VERTICAL SHAFT CENTERS .................... 5" TO 7.5"
HORIZONTAL SHAFT CENTERS .................. 15"
CENTERLINE BOTTOM SHAFT TO TOP BASE ....... 9.25"
TOP OF BASE TO FLOOR ...................... 30"
AC MOTOR .................................. 25 HP

Specifications
Roll Diameter 2.5 inches
Number of Stands 10
Diameter of Arbor 2.5 inches
Power 25 horsepower
Horiz Centers 15 inches
Vert Centers 7.5 inches
