Machine Information

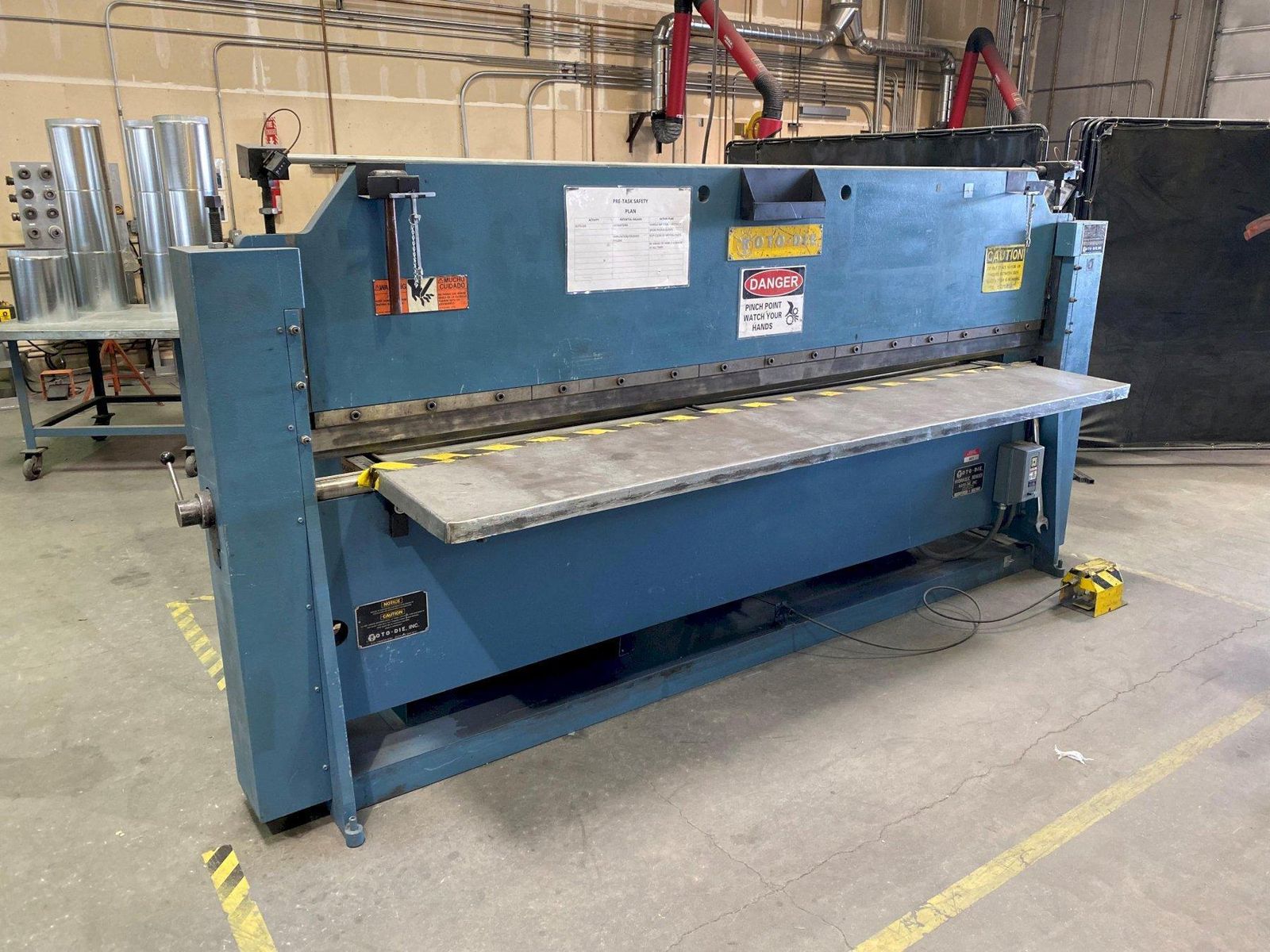

10' X 16 GAUGE ROTODIE MODEL #10 HYDRAULIC BENDER BRAKE:S TOCK 16768

Stock #: 16768

Equipped With

SERIAL ........................ 98193
MODEL ......................... 10
NEW ........................... 1998
BENDING CAPACITY .............. 120" X 16 GAUGE
BENDING CAPACITY .............. 72" X 10 GAUGE
LENGTH OF STROKE .............. 3"
STROKES PER MINUTE ............ 20 TO 50
DIE CLEARANCE.................. 2-1/8"
DEPTH OF STROKE ADJUSTMENT .... YES
LENGTH OF STROKE ADJUSTMENT ... YES
3 WAY ROTATION BOTTOM DIE ..... YES
FOOT SWITCH OPERATION ......... YES
MOTOR ......................... 7-1/2 HORSEPOWER


Buy Machines

10' X 16 GAUGE ROTODIE MODEL #10 HYDRAULIC BENDER BRAKE:S TOCK 16768

Stock # 16768

Share Machine
Print Details

Machine Specifications

SERIAL ........................ 98193
MODEL ......................... 10
NEW ........................... 1998
BENDING CAPACITY .............. 120" X 16 GAUGE
BENDING CAPACITY .............. 72" X 10 GAUGE
LENGTH OF STROKE .............. 3"
STROKES PER MINUTE ............ 20 TO 50
DIE CLEARANCE.................. 2-1/8"
DEPTH OF STROKE ADJUSTMENT .... YES
LENGTH OF STROKE ADJUSTMENT ... YES
3 WAY ROTATION BOTTOM DIE ..... YES
FOOT SWITCH OPERATION ......... YES
MOTOR ......................... 7-1/2 HORSEPOWER


Specifications
Dimensions 145 X 39 X 68
Weight 6200 pounds
