| Specifications | ||
|---|---|---|
| Weight | 11465 ounces | |
Brand
JMT
Type
Rolls, Plate Bending (incld Pinch)
Stock No.
21168
 |
419-269-2000 |
Stock #: 21168

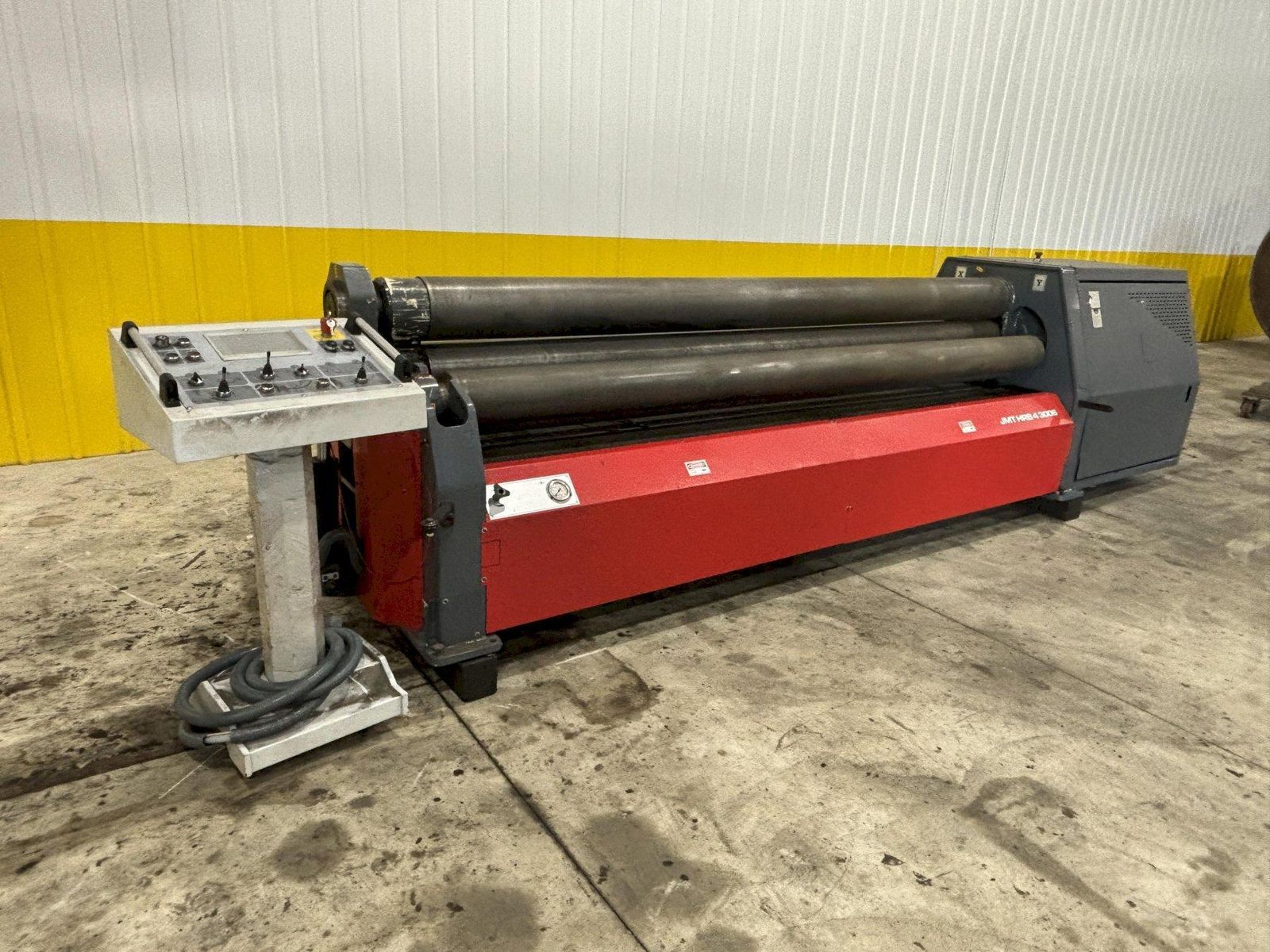

10' X 15/64" JMT DURMA MODEL #HRB-4 3006 4 ROLL HYDRAULIC PLATE BENDING ROLLS, NEW 2017: STOCK 21168
SERIAL ....................... 604017045
MODEL ........................ HRB-4 3006
CAPACITY ..................... 15/64" (.234")
NUMBER OF ROLLS .............. 4
LENGTH OF ROLLS .............. 122"
THICKNESS .................... .235"
TOP ROLL DIAMETER ............ 8.27"
BOTTOM ROLL DIAMETER ......... 7.48"
SIDE ROLLS DIAMETER .......... 7.09"
OPENING BETWEEN ROLLS ........ 1-3/16"
CONTROL STATION .............. TOUCH SCREEN WITH READ OUTS
DUAL SPEED ................... YES
CONE BENDING ................. YES
DROP END ..................... HYDRAULIC
MOTOR ........................ 10 HP
