Machine Information

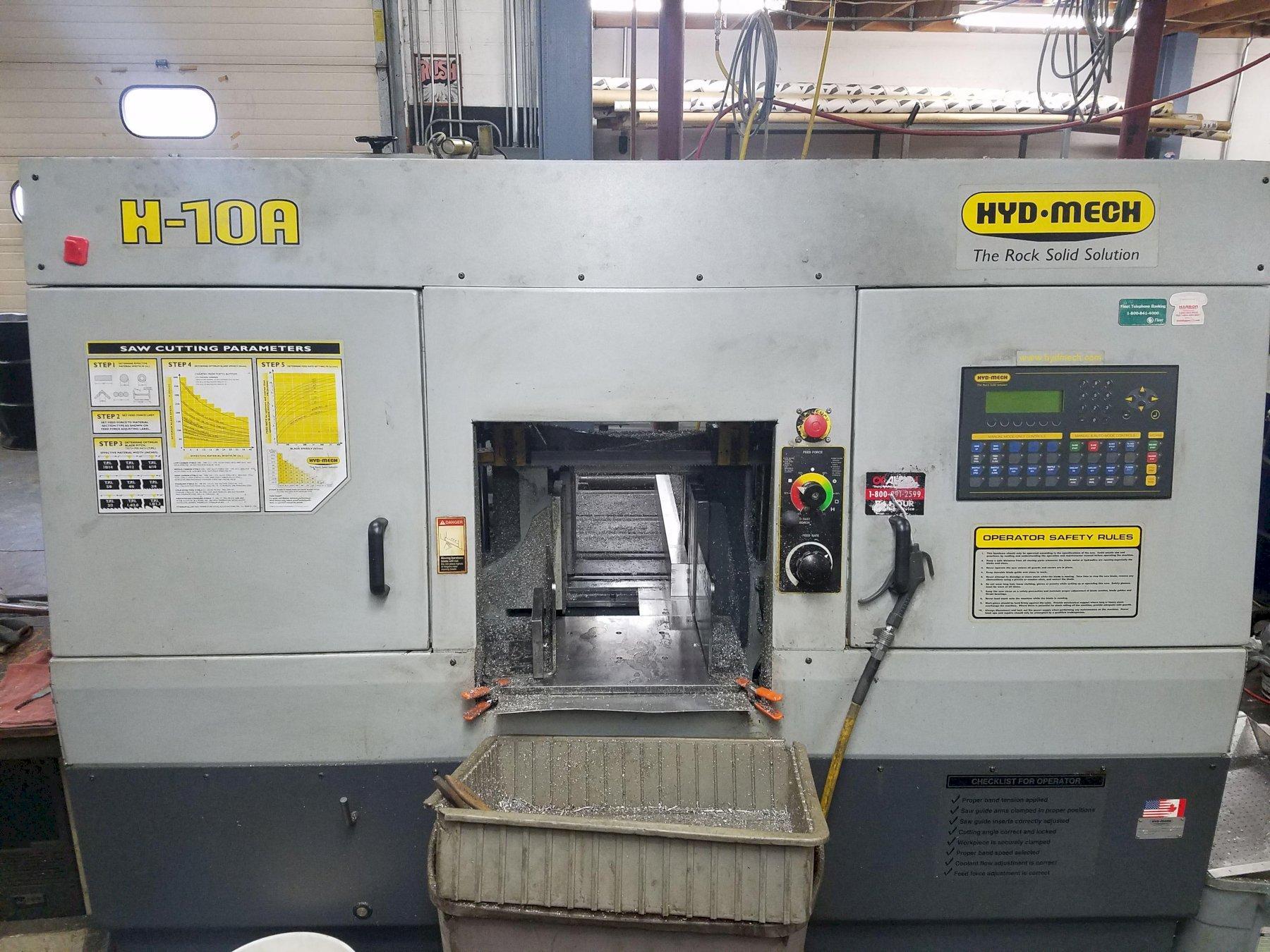

10" X 10" HYDMECH MODEL #H10A AUTOMATIC HORIZONTAL BAND SAW, NEW 2010: STOCK 14125

Stock #: 14125

Equipped With

NEW 2010
MODEL H10A

Capacity 10" x 10""

Blade Size 1-1/4" x 12' 6" x .042"

Blade Drive 5 HP

Blade Speed 50 TO 350 SFM

Band Wheel Diameter 16"

Hydraulic Drive 1HP, 600 PSI

Hydraulic Tank Capacity 4 U.S. Gal.

Coolant Tank Capacity 15 U.S. Gal.

Shuttle Stroke 0" TO 24" Multi Indexing

Table height 31"

Bundling option

Automatic PLC Control, Programmable Up To 99 Jobs

Heavy Duty Cast-Iron Saw Head

Split Front Vise

Cast-Tron Shuttle Features Automatic Multi-Indexing Up to 24" in a Single Stroke

Cast-Iron Guide Arms Mounted on Linear Rails

Blade Breakage Switch

Hydraulic Positive Down Feed

Blade Chamber Separates Material from Cut Apart

Cast-Iron Band Wheels

Blade Brush

Automatic Chip Removal Auger

Replaceable Carbide Guide Inserts

Mechanical Band Tensioning with Digital Readout

Safety Door Interlocks

Flood Coolant with Wash Down Hose

Work Light

Buy Machines

10" X 10" HYDMECH MODEL #H10A AUTOMATIC HORIZONTAL BAND SAW, NEW 2010: STOCK 14125

Stock # 14125

Share Machine
Print Details

Machine Specifications

NEW 2010
MODEL H10A

Capacity 10" x 10""

Blade Size 1-1/4" x 12' 6" x .042"

Blade Drive 5 HP

Blade Speed 50 TO 350 SFM

Band Wheel Diameter 16"

Hydraulic Drive 1HP, 600 PSI

Hydraulic Tank Capacity 4 U.S. Gal.

Coolant Tank Capacity 15 U.S. Gal.

Shuttle Stroke 0" TO 24" Multi Indexing

Table height 31"

Bundling option

Automatic PLC Control, Programmable Up To 99 Jobs

Heavy Duty Cast-Iron Saw Head

Split Front Vise

Cast-Tron Shuttle Features Automatic Multi-Indexing Up to 24" in a Single Stroke

Cast-Iron Guide Arms Mounted on Linear Rails

Blade Breakage Switch

Hydraulic Positive Down Feed

Blade Chamber Separates Material from Cut Apart

Cast-Iron Band Wheels

Blade Brush

Automatic Chip Removal Auger

Replaceable Carbide Guide Inserts

Mechanical Band Tensioning with Digital Readout

Safety Door Interlocks

Flood Coolant with Wash Down Hose

Work Light

Specifications
Rect-Cap (H) 10 inches
Rect-Cap (W) 10 inches
Dimensions 83" x 68" x 67"
