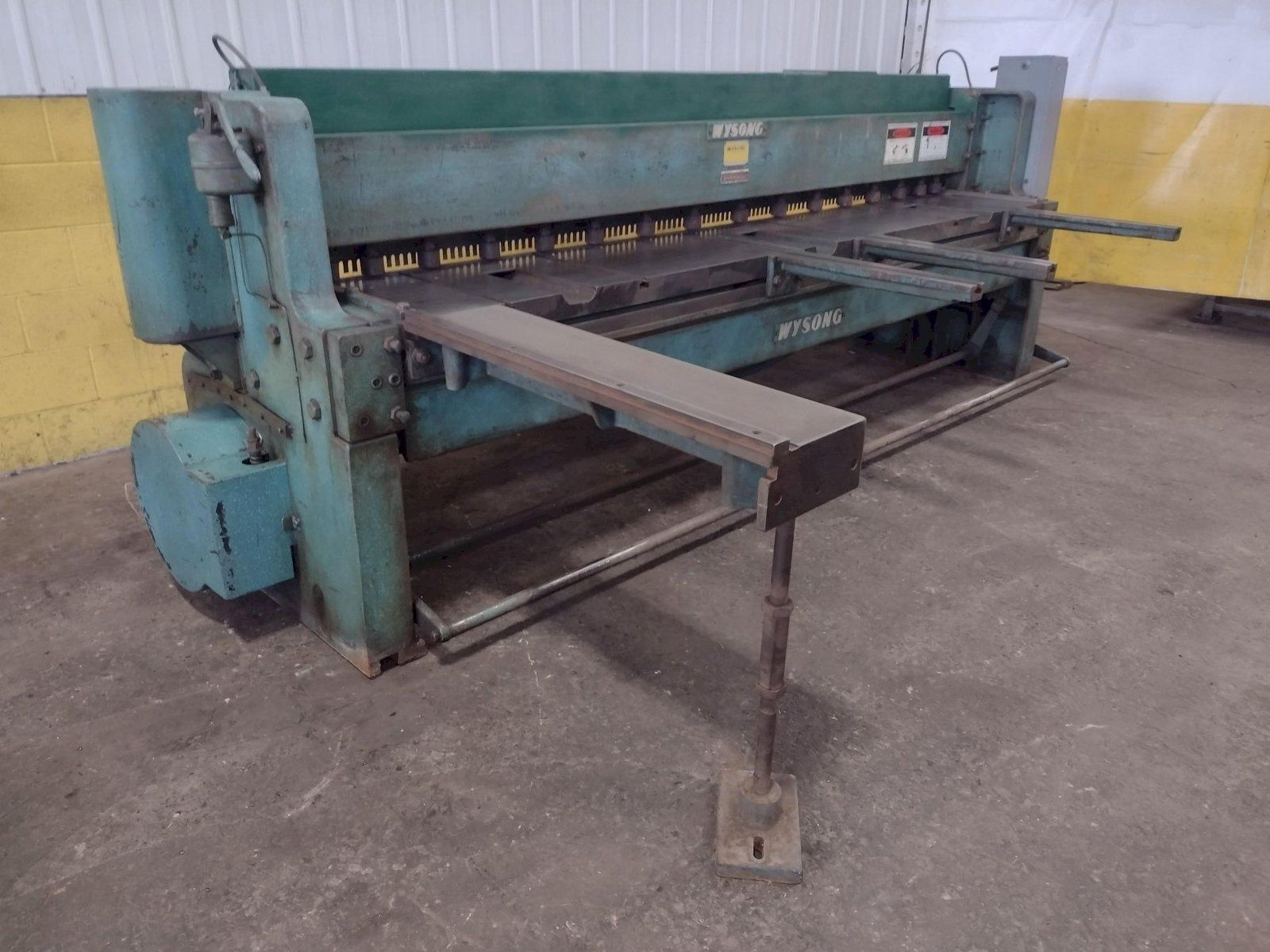

Stock #: 17371
SERIAL ................... P32-722
MODEL .................... 1010RDCAPACITY MILD STEEL ...... 10 GACAPACITY STAINLESS ....... 12 GAOVERALL LENGTH OF CUT .... 10'2"BACK GAUGES .............. 24"3 FRONT ARM SUPPORTS ..... 24"SQUARING ARM ............. 128"HOLD DOWNS ............... 14PASS LINE HEIGHT ......... 34-1/2"FULL TRIPS ............... YESMOTOR .................... 7-1/2 HORSEPOWER
Stock # 17371
SERIAL ................... P32-722
MODEL .................... 1010RDCAPACITY MILD STEEL ...... 10 GA
CAPACITY STAINLESS ....... 12 GA
OVERALL LENGTH OF CUT .... 10'2"
BACK GAUGES .............. 24"
3 FRONT ARM SUPPORTS ..... 24"
SQUARING ARM ............. 128"
HOLD DOWNS ............... 14
PASS LINE HEIGHT ......... 34-1/2"
FULL TRIPS ............... YES
MOTOR .................... 7-1/2 HORSEPOWER
| Specifications | ||
|---|---|---|
| Dimensions | 164"L X 108"W X 56"H | |
| Weight | 11300 pounds | |
