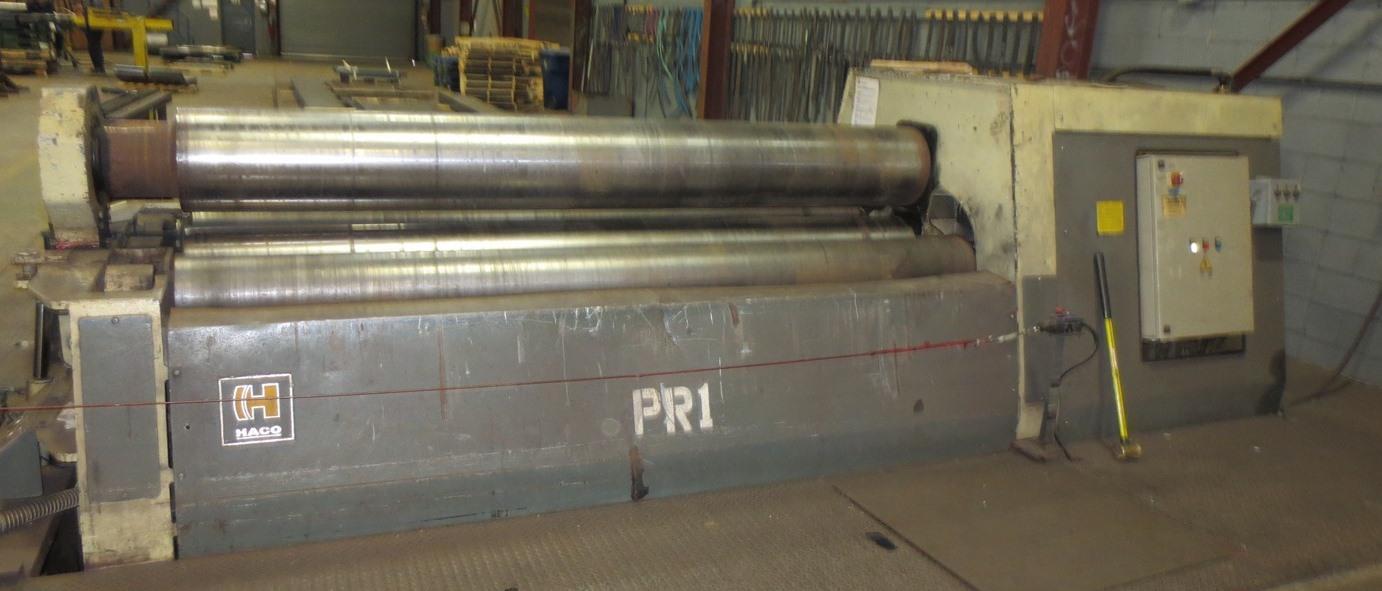

10’ x 1” HACO 4 ROLL MODEL #4HBR328E HYDRAULIC PLATE BENDING ROLL, NEW 2006: STOCK 12314

Stock #: 12314

Equipped With

SERIAL 05223
MODEL 4HBR328E
NEW 2006
CAPACITY 10' X 1"
WORKING LENGTH 3100MM
CAPACITY 32MM
PRE BEND 25MM
TOP ROLL DIAMETER 380 MM
BOTTOM ROLL DIAMETER 360 MM
SIDE ROLL DIAMETER 290 MM
 POWER 15 KW
WEIGHT 16500 KG
LENGTH 5340 MM
WIDTH 1980 MM
HEIGHT 2090 MM
WORKING HEIGHT 1415 MM

Buy Machines

10’ x 1” HACO 4 ROLL MODEL #4HBR328E HYDRAULIC PLATE BENDING ROLL, NEW 2006: STOCK 12314

Stock # 12314

Share Machine
Print Details

Machine Specifications

SERIAL 05223
MODEL 4HBR328E
NEW 2006
CAPACITY 10' X 1"
WORKING LENGTH 3100MM
CAPACITY 32MM
PRE BEND 25MM
TOP ROLL DIAMETER 380 MM
BOTTOM ROLL DIAMETER 360 MM
SIDE ROLL DIAMETER 290 MM
 POWER 15 KW
WEIGHT 16500 KG
LENGTH 5340 MM
WIDTH 1980 MM
HEIGHT 2090 MM
WORKING HEIGHT 1415 MM
