Machine Information

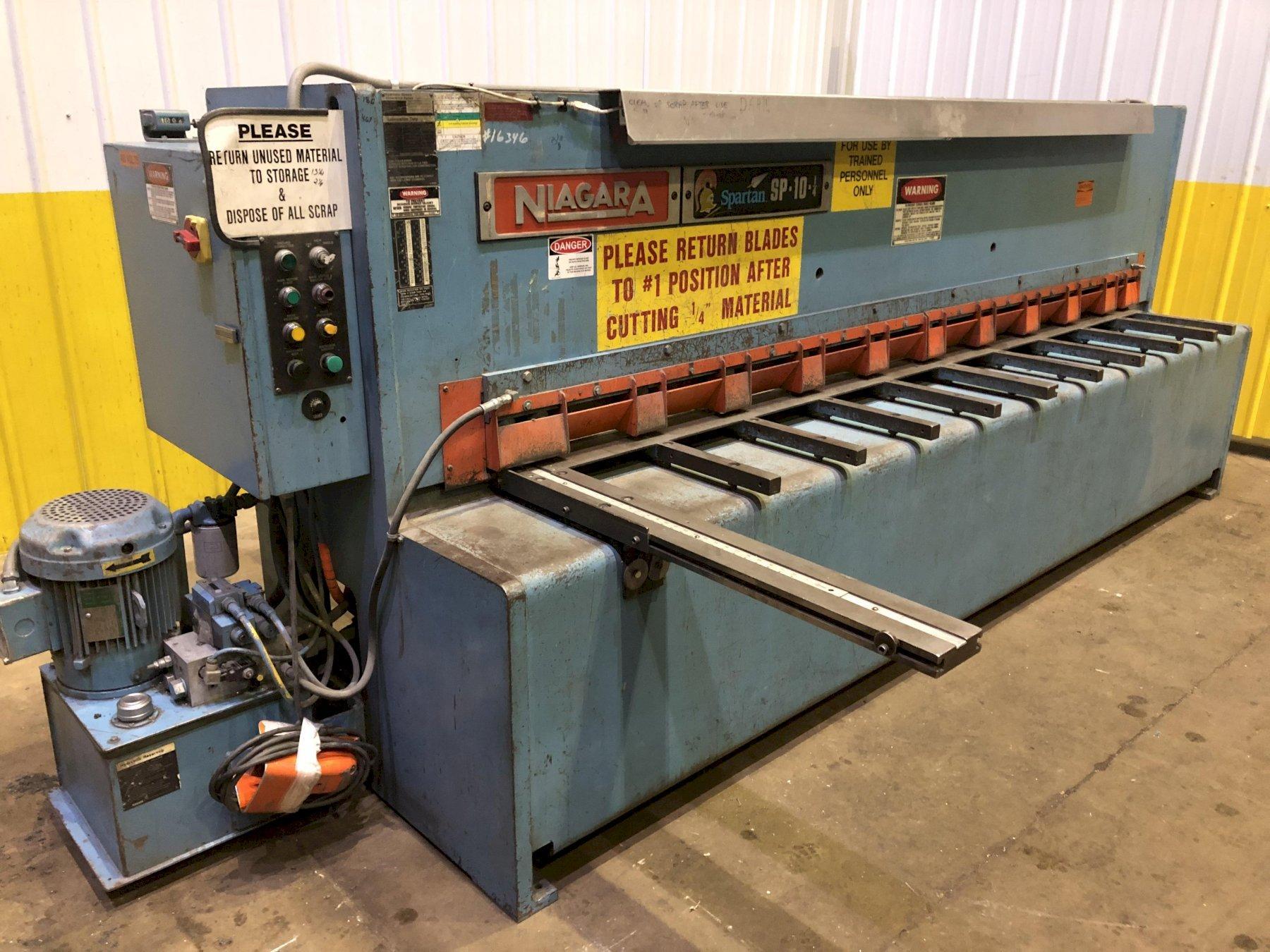

10' x 1/4" NIAGARA MODEL #SP-10-1/4 HYDRAULIC POWER SQUARING SHEAR: STOCK 16346

Stock #: 16346

Equipped With

SERIAL ............................ S65928
MODEL ............................. 1F-10-1/4
CAPACITY, MILD STEEL .............. 10' X 1/4"
BLADE RAKE ........................ 3/8"/FOOT
BLADE LENGTH ...................... 10'-2-1/2"
BLADE SIZE ........................ 3/4" X 3"
FRONT OPERATED POWER BACK GAUGE ... 36"
SPEED, FULL STROKE ................ 24 SPM
SPEED, SHORT STROKE ............... 60 SPM
SQUARING ARM ...................... 9'
(2) FRONT ARM SUPPORTS ............ YES
ELECTRIC FOOT TRIP ................ YES
MOTOR ............................. 15 HORSEPOWER

10' x 1/4" NIAGARA MODEL #SP-10-1/4 HYDRAULIC POWER SQUARING SHEAR: STOCK 16346

Stock # 16346

Request a Quote

Share Machine

Print Details

Make an Offer































Download Images

View All Images

Machine Specifications

SERIAL ............................ S65928

MODEL ............................. 1F-10-1/4

CAPACITY, MILD STEEL .............. 10' X 1/4"

BLADE RAKE ........................ 3/8"/FOOT

BLADE LENGTH ...................... 10'-2-1/2"

BLADE SIZE ........................ 3/4" X 3"

FRONT OPERATED POWER BACK GAUGE ... 36"

SPEED, FULL STROKE ................ 24 SPM

SPEED, SHORT STROKE ............... 60 SPM

SQUARING ARM ...................... 9'

(2) FRONT ARM SUPPORTS ............ YES

ELECTRIC FOOT TRIP ................ YES

MOTOR ............................. 15 HORSEPOWER
