Machine Information

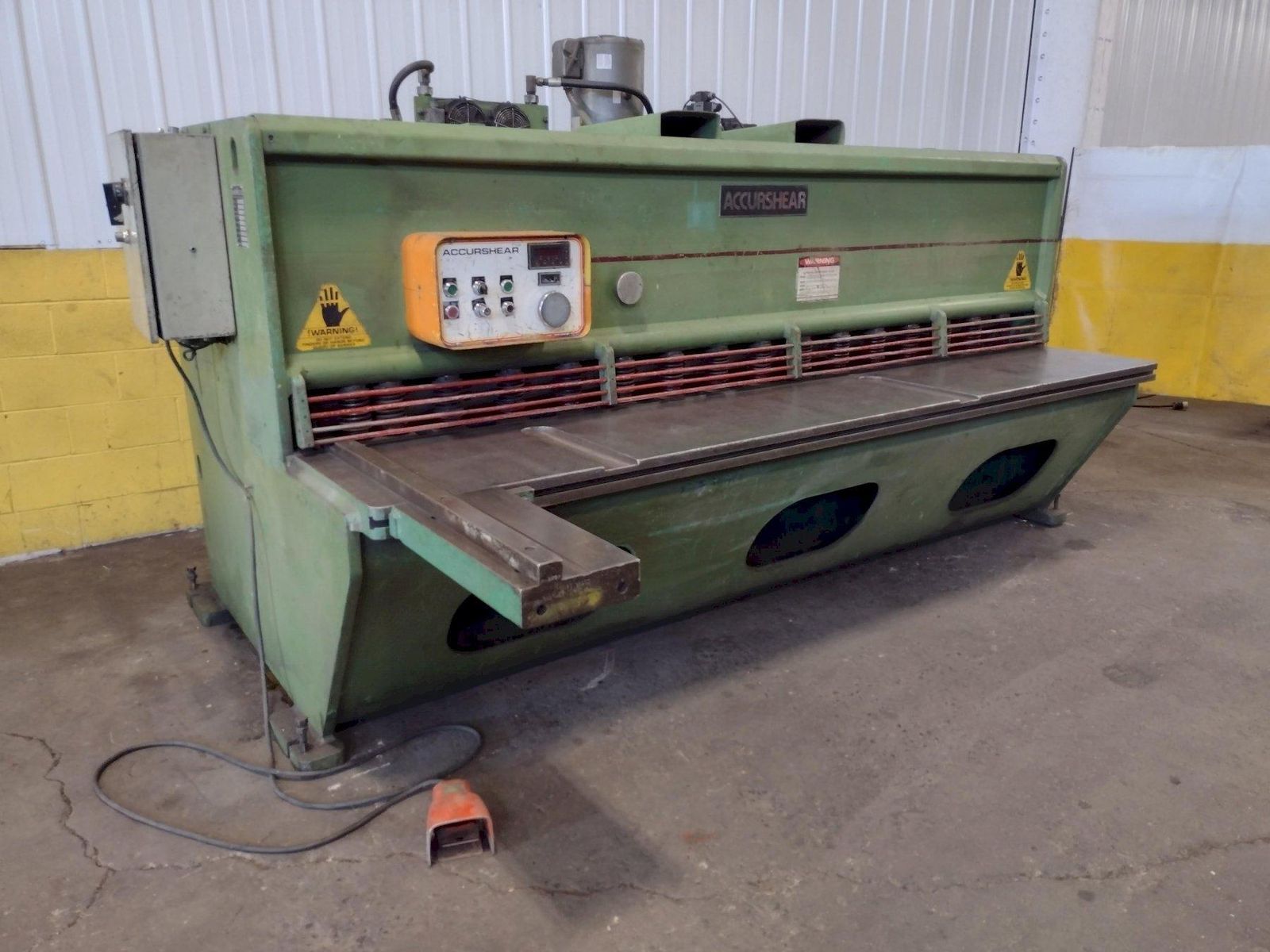

10' X 1/4" ACCURSHEAR MODEL #625010 HYDRAULIC POWER SHEAR: STOCK 17154

Stock #: 17154

Equipped With

SERIAL ................... 1672
MODEL .................... 62510
CAPACITY (MILD STEEL) .... 1/4"
MAX. CUTTING LENGTH ...... 10'
RAKE ANGLE ............... 5/16"
HYDRAULIC HOLD DOWNS ..... 16
BACK GAUGE TRAVEL ........ 36"
STROKES PER MINUTE ....... 23 TO 48 SPM
SHEAR BLADE SIZE ......... 124" X 3" X 1"
SQUARE ARM ............... YES
POWER STROKE CONTROL ..... YES
BLADE GAP CONTROL ........ YES
OIL COOLER ............... YES
ELECTRIC FOOT PEDAL ...... YES
BACKGAUGE MOTOR .......... 1 HP
MOTOR .................... 20 HP

10' X 1/4" ACCURSHEAR MODEL #625010 HYDRAULIC POWER SHEAR: STOCK 17154

Stock # 17154

Request a Quote

Share Machine

Print Details

Make an Offer



































Download Images

View All Images

Machine Specifications

SERIAL ................... 1672

MODEL .................... 62510

CAPACITY (MILD STEEL) .... 1/4"

MAX. CUTTING LENGTH ...... 10'

RAKE ANGLE ............... 5/16"

HYDRAULIC HOLD DOWNS ..... 16

BACK GAUGE TRAVEL ........ 36"

STROKES PER MINUTE ....... 23 TO 48 SPM

SHEAR BLADE SIZE ......... 124" X 3" X 1"

SQUARE ARM ............... YES

POWER STROKE CONTROL ..... YES

BLADE GAP CONTROL ........ YES

OIL COOLER ............... YES

ELECTRIC FOOT PEDAL ...... YES
BACKGAUGE MOTOR .......... 1 HP
MOTOR .................... 20 HP

Videos

Specifications
Max Thickness	.25 inches
Length of Blade	120 inches
Hyd/Mech	hydraulic
Power	20 horsepower
Dimensions	147" x 85" x 85"
WEIGHT	17000
