| Specifications | ||
|---|---|---|
| Dimensions | 84" X 240" X 102" HIGH | |
| Weight | 46000 pounds | |

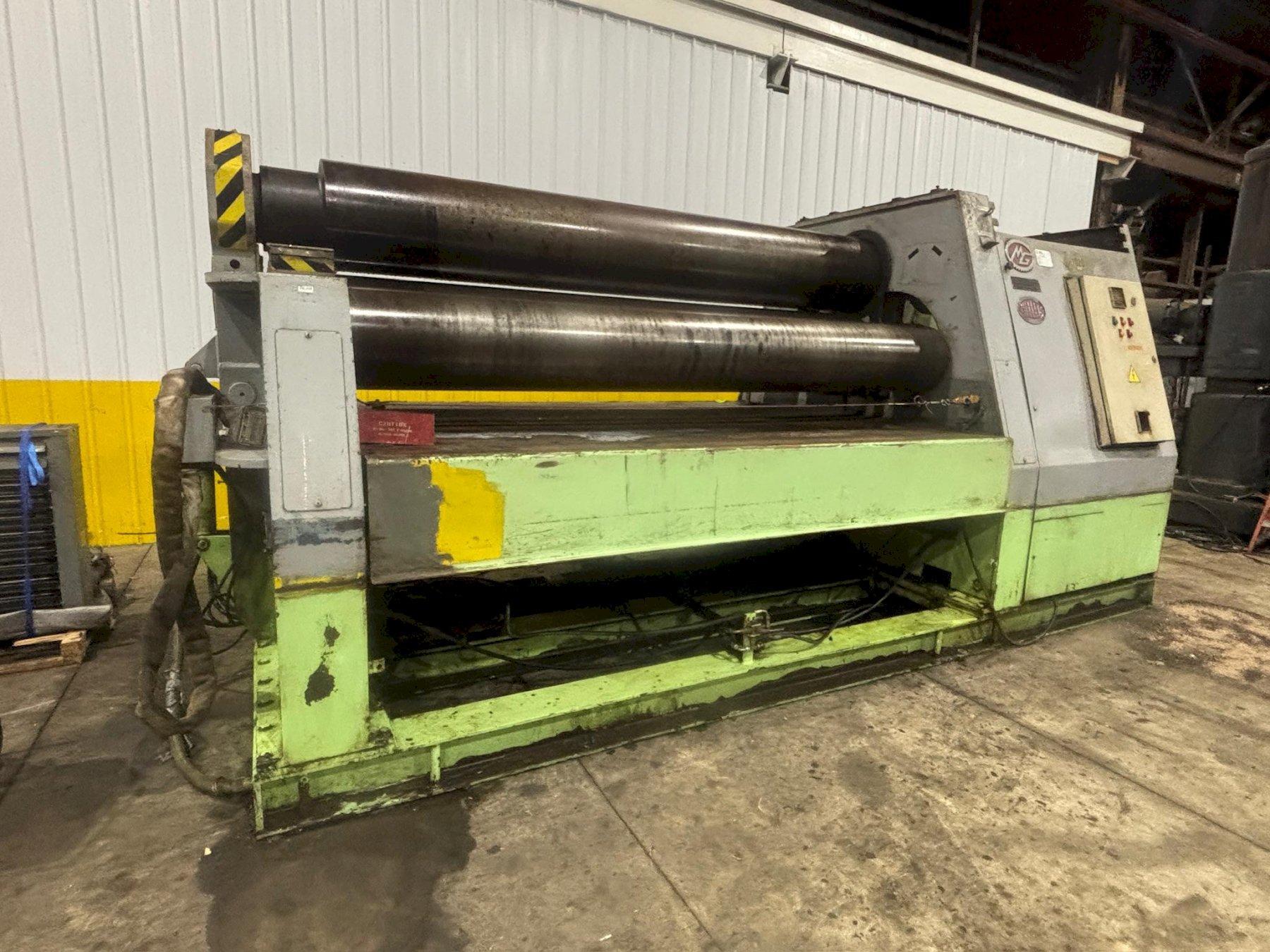

Brand
BERTSCH
Type
Rolls, Plate Bending (incld Pinch)
Stock No.
14196
 |
419-269-2000 |
Stock #: 14196
SERIAL ...................... M-10547MODEL ....................... #14YEAR NEW .................... 1982CAPACITY (BOILER DUTY) ...... 1-3/16"
CAPACITY (PIPE DUTY) ........ 59/34"LENGTH OF ROLLS ............. 10'NUMBER OF ROLLS ............. 3DIAMETER OF PINCH ROLLS ..... 17"DIAMETER OF FORMING ROLLS ... 17"BOTTOM ROLL ADJUSTMENT ...... HYDRAULICREAR ROLL ADJUSTMENT ........ HYDRAULIC
REAR ROLL INDICATOR ......... YESDROP END .................... HYDRAULICOPERATOR CONTROL CENTER ..... YES
FEED UP & SUPPORT TABLE ..... YESMOTOR ....................... 15 HORSEPOWER
