Machine Information

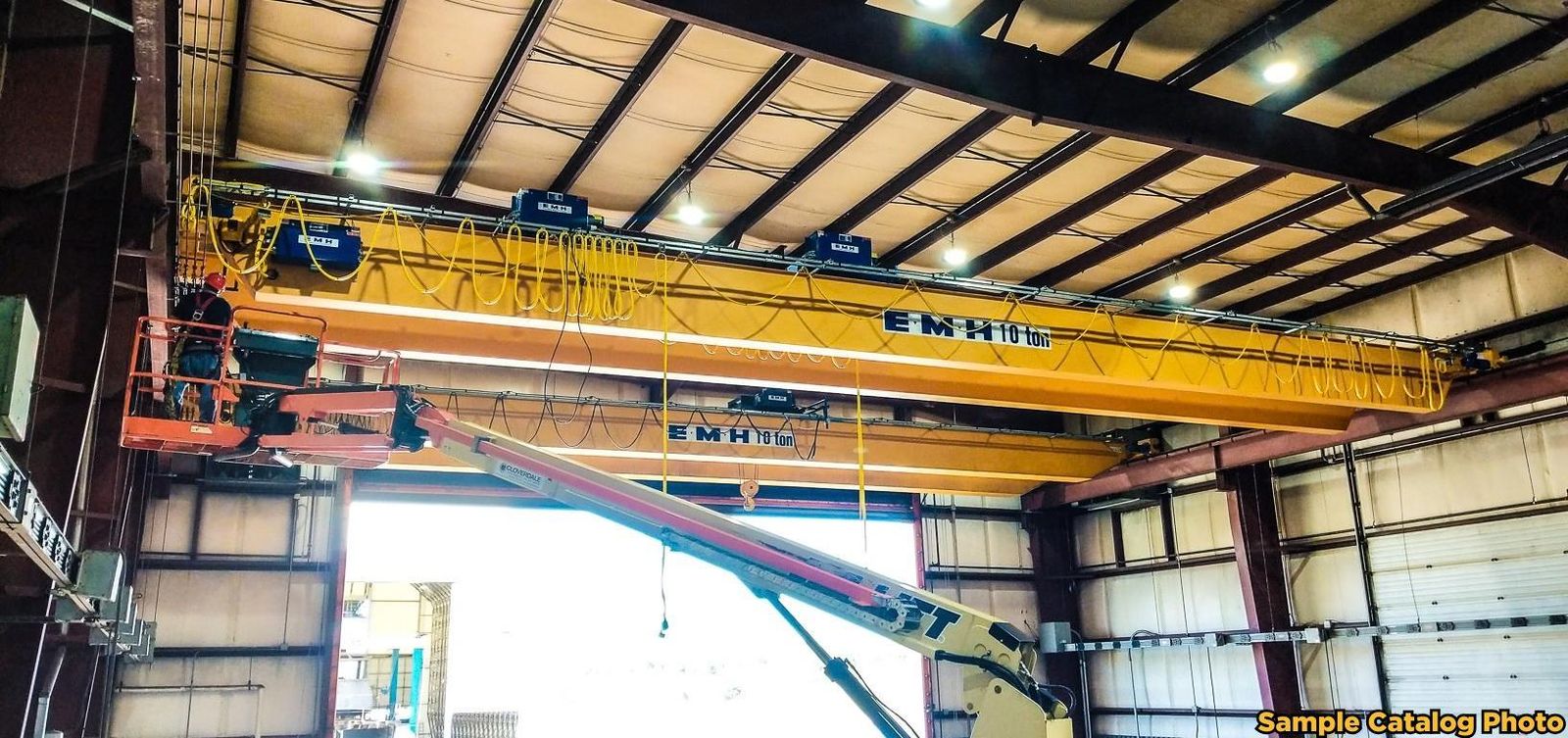

10 TON (5/5) X 46’7” EMH 2020 DUAL GIRDER TOP RUNNING OVERHEAD BRIDGE CRANE : YOBRO #25017

Stock #: 25017

Equipped With

YEAR NEW .................... 2020
SERVICE CLASS ............... "C"
CAPACITY .................... 10 TON (5T + 5T)
HOISTS ...................... 2 @ 5 TON EACH
SPAN LENGTH ................. 46'7"

BRIDGE / GIRDER CRANE:
BRIDGE TRAVEL SPEED ......... 120 FPM
BRIDGE SPEED CONTROL ........ VARIABLE SPEED DRIVE
BRIDGE MOTORS ............... 2 @ 1.5 HP EACH
CRANE BEAM SIZE ............. W24 X 131

END TRUCK TYPE .............. HSZ-200.391.2900
END TRUCK LENGTH ............ 11'0"


BRIDGE / HOIST TROLLEY:
HOOK TRAVEL ................. 40'2"
TROLLEY TYPE ................ "D"
TROLLEY TRAVEL SPEEDS ....... 80 VFD FPM
TROLLEY TRAVEL MOTORS ....... 2 @ .25 HP

EMH HOIST:
SERIAL ...................... 175044
MODEL ....................... EM1050L6-161.41.060.D
LIFT HEIGHT ................. 20' MAX
HOIST TRAVEL SPEEDS ......... 3.6 / 16 FPM
HOIST TRAVEL MOTOR .......... 1.1 / 6.4 HP
HOIST WIDTH / GAUGE ......... 9'6"
HEAD ROOM HEIGHT ............ 40" - TOP RAIL TO TOP OF HOIST
PENDANT CONTROL ............. YES
