Machine Information

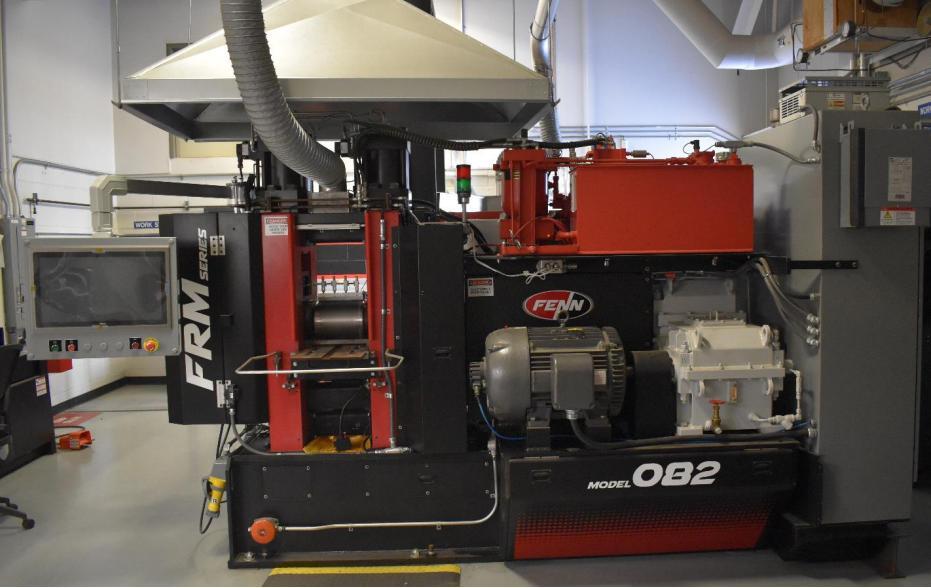

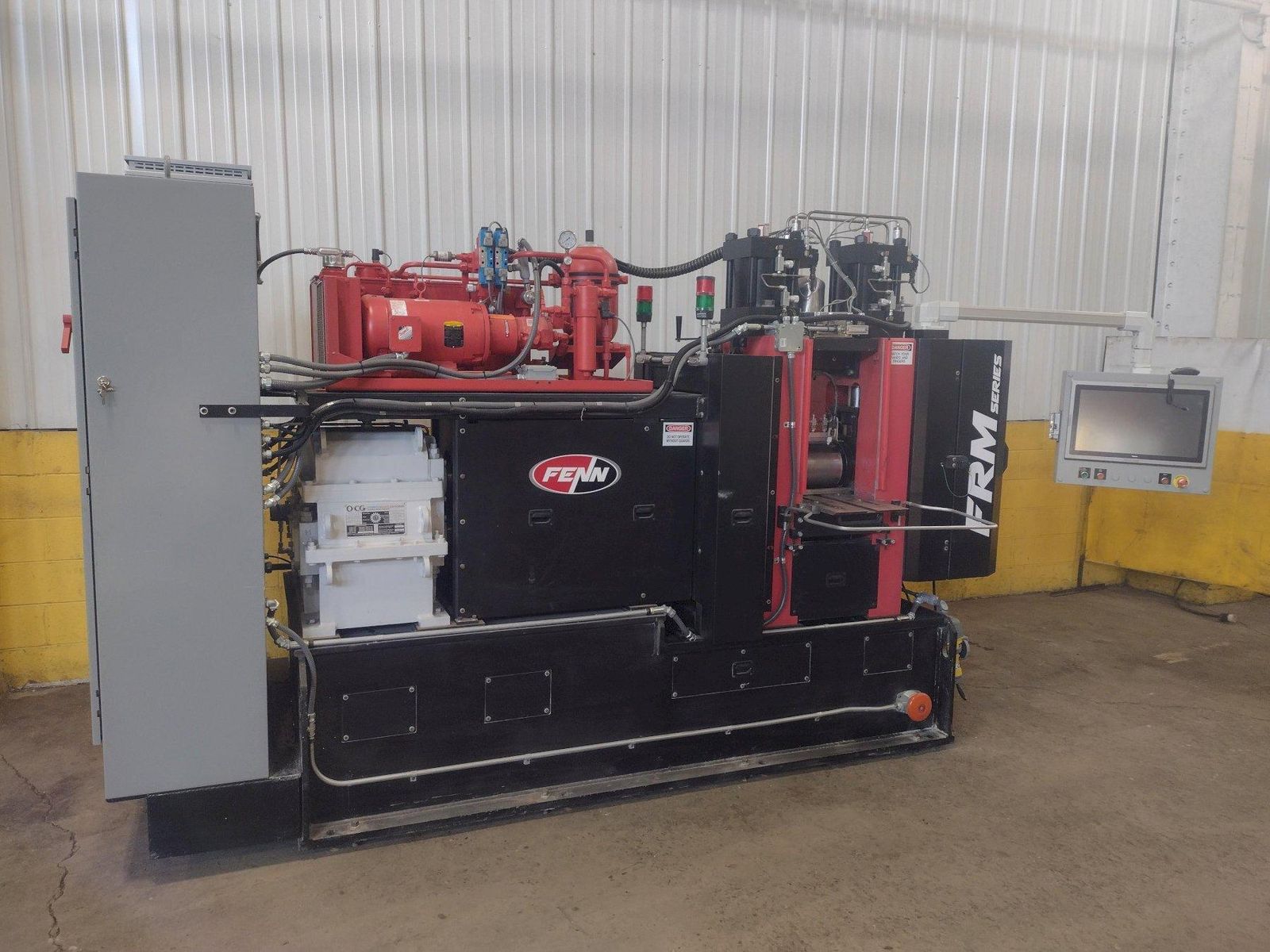

10" FENN (2016) MODEL #082 2-HI & 4-HI REVERSING ROLLING MILL: STOCK #18159

Stock #: 18159

Equipped With

MANUFACTURER – FENN

YEAR – 2016

SERIAL NUMBER – 53688

FENN MODEL – 082 FRM

DESIGN MATERIAL – 5000 & 6000 SERIES ALUMINUM

MILL DESIGN – 2HI/4HI REVERSING***

CURRENT CONFIGUATION – 2HI HOT MILL

PREVIOUS USE – LAB/R&D APPLICATIONS

ROLL DIAMETER – 8”

ROLL FACE – 10”

ROLL TEMPERATURE – 150 DEGREES (VIA INTERNAL CARTRIDGE HEATERS)

ROLL SPEED – 0-50 FPM

PASSLINE HIGHT – 41.38”

MILL SEPARATING FORCE – 150,000 LBS

MILL BEARING TYPE – HEAVY DUTY ROLLER BEARINGS

SCREWDOWN – TWO (2) SERVO HYDRAULICALLY DRIVEN CYLINDERS

SCREWDOWN PRESSURE – 75,000 LBS PER CYLINDER

ELECTRICAL – 600 V, 3 PH, 60 HZ

MILL DRIVE MOTOR – 50 HP, 1750 RPM

MILL DRIVE REDUCER – 70:1 NOMINAL



***

THIS MILL HAS BEEN DESIGNED TO ACCOMMODATE A FUTURE WORK ROLL ASSEMBLY WITH 1 7/8” DIAMETER X 10” FACE WIDTH WORK ROLL. IT IS CURRENTLY SET_UP AS A 2HI HOT REVERSING MILL



MILL INCLUDES:

HMI CONTROL AND MONITOR

ELECTRICS AND CONTROLS

PRESURE TRANSDUCERS TO PROVIDE FEEDBACK FOR CYLINDER FORCE TO HMI SCREEN

HYDRAULIC ROLL LIFTERS TO KEEP UPPER ROLL ASSEMBLY FIRMLY IN CONTACT WITH SCREWDOWN CYLINDERS

LOAD CELLS TO INDICATE SEPARATING FORCE WHILE ROLLING

MILL DRIVE AND PINION STAND

BUILT-IN SLIDING CARRIAGE TO FACILITATE TO MANUALLY REMOVE ROLL ASSEMBLIES

45” INFEED AND EXIT TABLES
